3.2mm Anti Reflective Coating Low Iron Solar Panel Glass

Name: 3.2mm Anti Reflective Coating Low Iron Solar Panel Glass
Brand: china-crystals.com
SKU: 730574872
Availability: InStock
Rating: 4.7 (140 reviews)

Price:	US $ 1-10/Square Meter
Min Order:	2000/Square Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	SG16
Glass Color:	Low Iron / Clear/Ultra Clear
Glass Edge:	C-Edge
Light Transmittance:	Over 91%
Thickness:	3.2mm/4mm
Test Broken:	>40PCS Per Cm2

Product Description

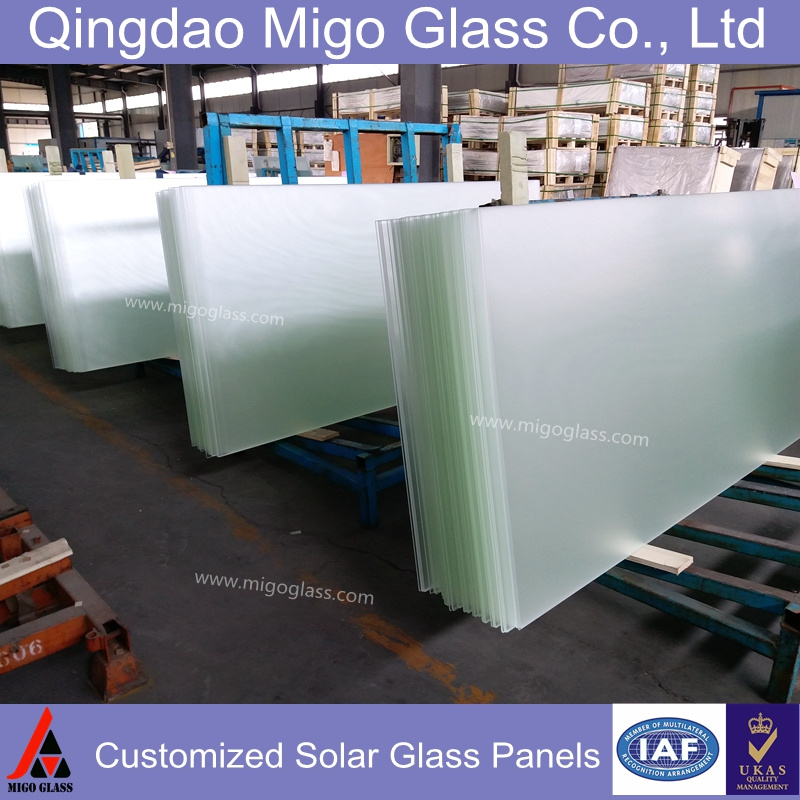

3.2mm Anti Reflective Coating Low Iron Solar Panel Glass

Solar Glass is also named Super White Glass, Super clear glass, Extra clear glass, Normally it is a kind of plant glass with highly clear, highly transmissive,It is highly Smooth used in all kinds of construction and decoration and the counter and the Solar Tempered glass panel and display window exhiited by top-gradevaluable products. And it is a new type of deeply processed glass, also it is a new type advanced structural glass with environment protection, economic on energy. The glass is a lower iron float glass and be made by a special process. It is not like the clear float glass to sight like green, it looks just like colorless crystal, highly transmissive and terrific.

Thickness	3.2mm,4mm
Max.Size	22503500mm(annealed),18302600mm(tempered)
size	1220 x 915mm, 1830 x 1220mm, Customized size
Colors	Clear and ultra clear
Package	Safety seaworthy wooden and plywood packing with paper interleaved

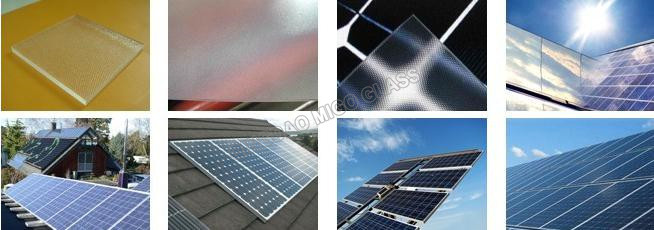

Applications	solar panel and solar water heater
Types	1.Solar patterned glass(tempered or non-tempered) 2.Solar float glass(temoered or non-tempered)

Features:

1. Low iron content
2. High solar transmittance: >= 91.6%
3. Low visible light reflectivity
4. Clear and pattern glass
5. Fully tempered

Advantages of solar glass

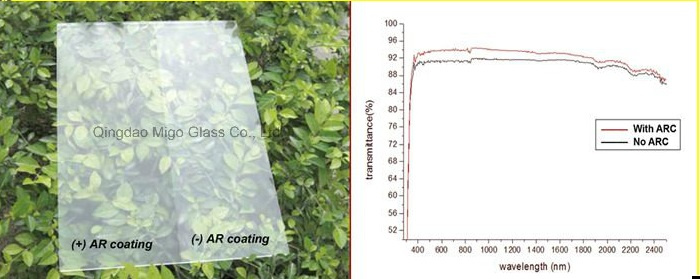

1.Solar energy transmittance:
≥91.7%, without AR coating
≥94.7%, with AR coating
2.Quality standard: JC/T 2001, Chinese standard.
EN572.5,European standard
EN 12150.1, European standard

Technical Data:

Thickness: 3.2mm 4mm
Visible Light Transmittance: 91.60%
Visible Light Reflectance: 7.30%
Solar Transmittance: 92%
Solar Reflectance: 7.40%
UV Transmittance: 86.80%
Total Solar Heat Gain Coefficient: 92.20%
Shading Coefficient: 1.04%
Performance varied due to different thickness
SIZE: Could be produced the sizes as per the request.

Packing & Delivery
Packing:100% Strong Plywood crates,fresh paper or wood cork between each sheet of glass panel
Delivery: Within 30 days after receiving your deposit

MigoGlass Competitive Advantages:
a. 20 years experience in glass production and export.
b. Direct factory price, quick delivery, professional package and container loading design.
c. Quality assurance. ISO 9001:2008 Quality System Certification. Glass products with CE certification,
SGS test reports.
d. Full range of glass supply, offering one-stop purchase.
e. Excellent sales team, offering personalized and dedicated pre-sale and after-sale service.

FAQ
1. Do you have a range of stock items for sale?
As general we have products of sizes 4-12mm in stock. For other products, we should confirm through communication.
2. What is your minimum order quantity?
Our MOQ is one 20 feet container (25Tons).
Products of different sizes and specifications could be mixed in one container.
3. How can I get samples to check your quantity?
We can offer samples for free. The freight is paid by buyers.
4. Can you do the production as customized?
Yes, we have a professional technique team, so we could produce the glass depends on your requirements.

Contact us
To get the latest prices, feel free to email or call us (pls state clearly glass types, thickness, sizes, edge grinding, holes or cut-outs if necessary, order quantity, destination port...).We will get in touch with you within 24 working hours.

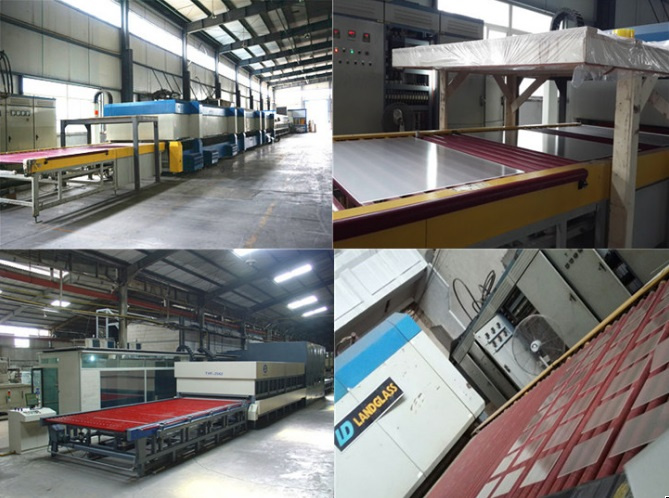

QINGDAO MIGO GLASS Co., Ltd is a China-based integrated enterprise specialized in production and sales of building glass and solar glass. We have our own factory to produce processed glass, which is 30, 000 SQM and consists of more than 200 workers. Under the management of Migo Group, we are operating more than 8 raw material and processed glass branch factories around China. In this case, we are running an exporting company whose main responsibility is exporting our own products and meanwhile assists overseas customers purchase related products from China.

With more than 10 years experience producing and exporting glass and related products, MigoGlass is able to ensure customers high quality, reasonable price and efficient shipment.

MigoGlass suppliers all types of solar glass and greenhouse glass; Patterned glass-clear and colored; Processed glass like tempered glass, bending glass, laminated glass, insulated glass and enameled glass; Float glass, sheet glass, low iron glass, mirror glass, reflective & tinted glass, etc. Now, the processed glass of MigoGlass has been widely used for glass greenhouse, flat plat solar collectors, solar PV modules, windows & doors, shower enclosures, glass curtain walls, glass railings or fences, staircases, furniture, and etc.

Under the principle of "strengthen scientific management, improve the comprehensive quality, create high-quality brands and ensure customer satisfaction", MigoGlass is stepping forward day by day. We are always doing our utmost to assure the top quality glass and customer satisfaction. We sincerely look forward to establishing a win-win business with you to create a bright future together.

MigoGlass Competitive Advantages:

Direct factory price, quick delivery, professional package and container loading design.

Quality assurance. ISO 9001: 2008 Quality System Certification. Glass products with CE certification, SGS test reports.

Full range of glass supply, offering one-stop purchase.

Excellent sales team, offering personalized and dedicated pre-sale and after-sale service.
