20-133mm Screw CaCO3 Filler Mastrubatch Granulation Line /Plstic Color Mastrubatch Compounding Machine

Name: 20-133mm Screw CaCO3 Filler Mastrubatch Granulation Line /Plstic Color Mastrubatch Compounding Machine
Brand: china-crystals.com
SKU: 788886915
Availability: InStock
Rating: 4.8 (101 reviews)

Price:	US $ 40000-50000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	TSE
Feeding Mode:	Multiple Feed
Assembly Structure:	Integral Type Extruder
Screw:	Twin-Screw
Engagement System:	Full Intermeshing
Screw Channel Structure:	Deep Screw
Exhaust:	Exhaust
Automation:	Automatic
Computerized:	Computerized
Type:	Granules
Plastic Processed:	PE PP EVA ABS PVC
Product Type:	Plastic Granules

Product Description

Caco3 plastic filler masterbatch making machine

Parameter geanulator

Mode mm L/D R/MIN KW      N.m                  KG/H
TSE-20 22 32-44 600 5.5 43     1-10
TSE-30A 31 32-48 600 15 119 5-40
TSE-40A    41 32-52 600 15 119 65-110
TSE-40B    41 32-52 400 22 263 90-150
TSE-52B    51.5 32-64 600 75 716 250-300
TSE-75B      71 32-64 600 132 1050 350-550
TSE-75D      71 32-64 600 220-250 1990 500-1000
TSE-95A    93 32-64 500 250 2387    600-1000
TSE-95B     93 32-64 600 315 2506     800-1200

Application of masterbatch machine

Mixing Nature-Changing → PE/PP+SBS;PP+NBR;EVA+Silicon RubberPP+ABS(Alloy) ; PP+PEProcess → Representative Materials

Filling Nature-Changing→PP/PE/EVA+Calcium Carbonate/Talcum Powder/Titanic Powder ;

ABS+Aluminum Hydroxide/Magnesium Hydroxide/Antimony Oxide ;

PP/ABS+Ferrous Powder/Sulphuric Powder/Ceramic Powder

Functional Machine Pellets → PP/ABS+Anti-Burning Agent and Other Auxiliary Agent

PE/PP+Starch ; PE+Frog-Preventing Dlipper/Stabilizer ; PE/EVA/ABS+Carbon Black

Colored Machine Pellets → PE/PP/ABS/EVA+Pigment and Auxiliary

Intensified Glass Fibres and Carbon Fibres → PP/ABS+Long Fibre/Small Fibre/Carbon Fibre/Crystals

Various Cables → EVA/PVC/PP Lnsulating Cables; PE peroxide

Special Materials → EVA Heat-Melting Glue; PP Cigarette Filterial

Heat-Susceptible Plastics → PVC Cables;EVA Sole; PE Peroxide Crossing Cables

PE Silicon Alkyl Crossing Cables; PE Crossing Piping; PE/EVA Crossing Shield

Various pelletizing line for different kinds of masterbatch and compounds;

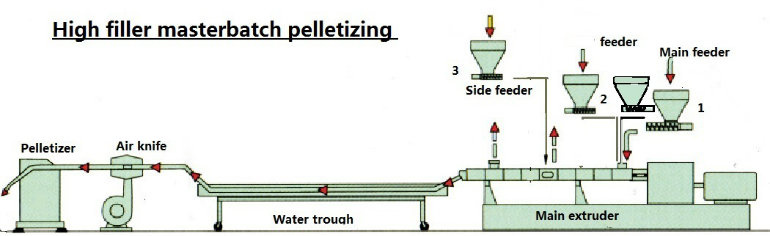

Water strand pelletizing line for various filling masterbatch ,fiber reinforcement masterbatch ,etc

Air cooling pelletizing line for PE+ Caco3/ Pigment ,etc

Water ring pelletizing line for PP+70-85% Caco3/Talc/Tio2,etc.

Under water pelletizing line for TPU, etc

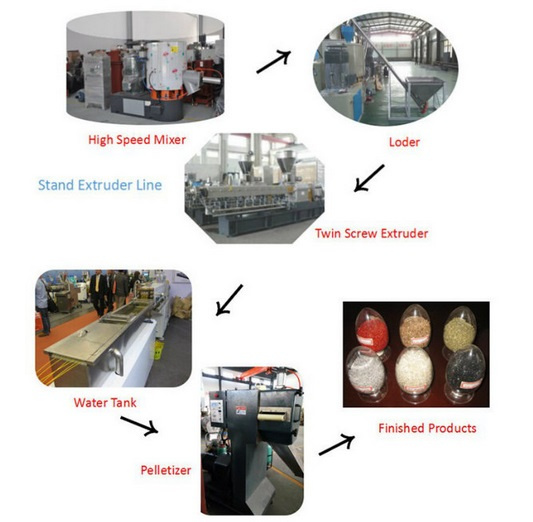

PP + 30% Pigments+ Calcium carbonate + Addictives;
a.Including mixer for mixing PE+ pigments +Calcium Carbonate Addictives;
b.Screw loader for loading materials;
c.Extruder for extrusion ;
d.Water strand pelletizing line for cooling and cutting;

PP +70% Calcium carbonate ;
High speed mixer for mixing PE+ Caco3+ Addictives;
Screw loader for loading materials ,
Extruder for extrusion;
Water ring pelletizing line for cooling and pelletizing ;

PE + 85% Calcium carbonate;
Including High speed mixer for mixing PE+85% Calcium carbonate+ addictives;
Screw loader for loading materials ;
Extruder for extrusion;
Air cooling pelletizing line for cooling and cutting ;

Electric control system of masterbatch machine

Frame structure control cabinet

Imported electrical elements

Imported temperature control system

Imported driving system

Interlock and multi-protection

Adopting imported PLC (OMRON or SIMES ) to achieve optimized process control.Stronger function, steady performance and much higher accuracy.

It can be also accomplished full-set link-lock protection,trouble safeguard, fault alarm cluing and so on

Operation interface on touching screen is visual and marked, which is brief and easy to use.

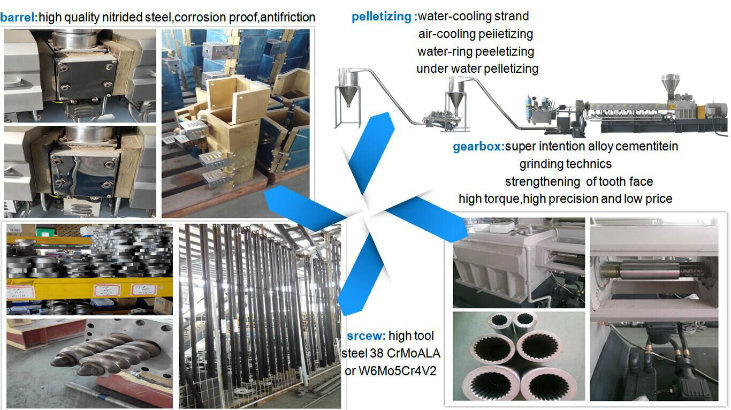

Features of Plastic pellet granulator

Euro-style rectangle barrel, reflux refrigeration channel is optimized and disposed ,which makes temperature difference in D areas smaller.
According to the material and special technics demands, the material of cylinder can use high quality nitrided steel, corrosion proof o antifricion with corresponding process
The screw elements and kneading blocks are designed, by precise processed, agile combination,withinterchangeability, which can fulfill efficient self-cleaning, transmission, compounding ,pressure-forming,etc.
The screw is made of high tool steel 38 CrMoALA or W6Mo5Cr4V2 by special heat treatment ,which is possessed with high corrosion-resistant and high function.

Main Parameters Of The machine

Model of plastic pelletizing line	SJ85	SJ100	SJ130	SJ160
extruder screw diameter	85	100	130	160
main motor of extruder	55	90	132	160
main motor of compacting machine	37	55	75	90
production capacity	100-150	200-300	300-400	500-600

Mixing and Feeding system of masterbatch machine

Metering feeders are equipped with single screw, twin screw, hollow screw, forced-feeding, system etc, to meet different requirements of feeding, such as powder, pellet, lump and liquid material

Service system

support and service-when you need

Before-sale

introduce product in detial

Recommend suitable solution

Offer test

During manufacturing

Provide layout and engineering conditions

Offer screw plan and related documents

Inform the project processing status

Insure the peoduct designed in accordance with teachnical documents

After-sale

Provide installation,commissioning and training

Offer spare parts

Provide necessary technical support and update information
