Product Specifications

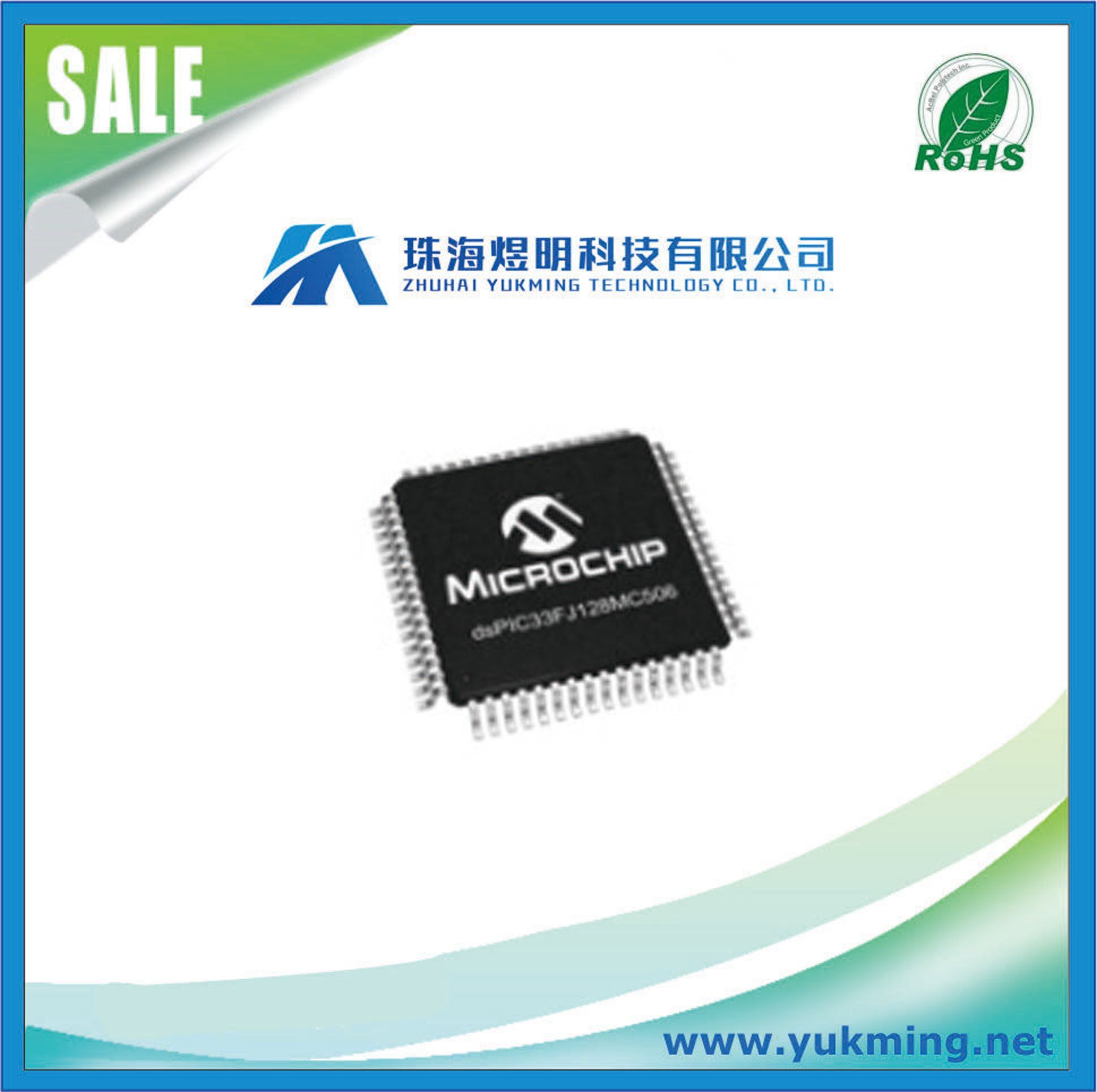

| Prod Model: |
DSPIC33FJ128MC506 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Manufacturer:MICROCHIP
Min working temp:-40ºC
Max working temp:85ºC
Max frequency:40MHz
Typical working supply current:3-3.6V

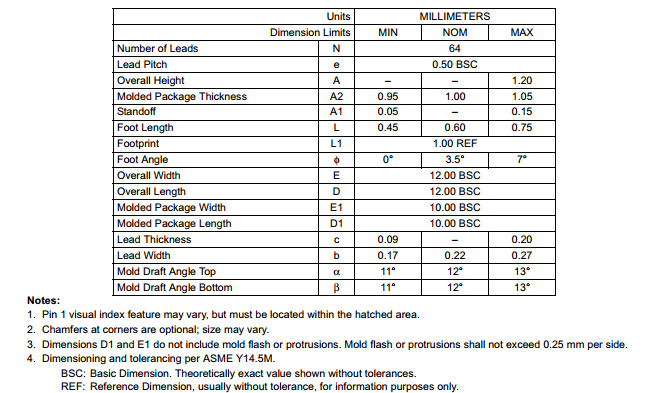

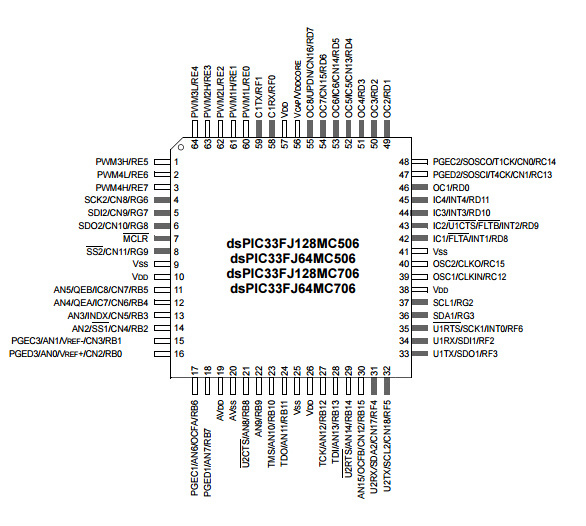

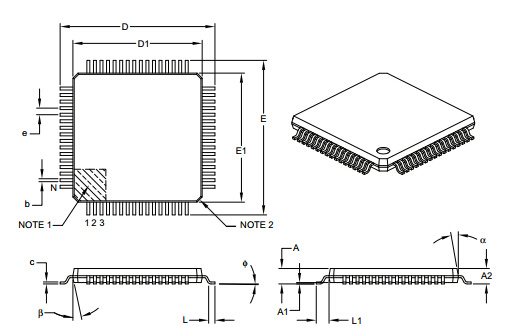

Package:TQFP64
Operating Range:• Up to 40 MIPS operation (at 3.0-3.6V):- Industrial temperature range(-40°C to +85°C)High-Performance DSC CPU:• Modified Harvard architecture• C compiler optimized instruction set• 16-bit wide data path• 24-bit wide instructions• Linear program memory addressing up to 4Minstruction words• Linear data memory addressing up to 64 Kbytes• 83 base instructions: mostly 1 word/1 cycle• Two 40-bit accumulators:- With rounding and saturation options• Flexible and powerful addressing modes:- Indirect, Modulo and Bit-Reversed• Software stack• 16 x 16 fractional/integer multiply operations• 32/16 and 16/16 divide operations• Single-cycle multiply and accumulate:- Accumulator write back for DSP operations- Dual data fetch• Up to ±16-bit shifts for up to 40-bit dataDirect Memory Access (DMA):• 8-channel hardware DMA• 2 Kbytes dual ported DMA buffer area(DMA RAM) to store data transferred via DMA:- Allows data transfer between RAM and aperipheral while CPU is executing code(no cycle stealing)• Most peripherals support DMAInterrupt Controller:• 5-cycle latency• Up to 67 available interrupt sources• Up to five external interrupts• Seven programmable priority levels• Five processor exceptionsDigital I/O:• Up to 85 programmable digital I/O pins• Wake-up/Interrupt-on-Change on up to 24 pins• Output pins can drive from 3.0V to 3.6V• All digital input pins are 5V tolerant• 4 mA sink on all I/O pinsOn-Chip Flash and SRAM:• Flash program memory, up to 256 Kbytes• Data SRAM, up to 30 Kbytes (includes 2 Kbytesof DMA RAM)System Management:• Flexible clock options:- External, crystal, resonator, internal RC- Fully integrated PLL- Extremely low jitter PLL• Power-up Timer• Oscillator Start-up Timer/Stabilizer• Watchdog Timer with its own RC oscillator• Fail-Safe Clock Monitor• Reset by multiple sourcesPower Management:• On-chip 2.5V voltage regulator• Switch between clock sources in real time• Idle, Sleep and Doze modes with fast wake-upTimers/Capture/Compare/PWM:• Timer/Counters, up to nine 16-bit timers:- Can pair up to make four 32-bit timers- 1 timer runs as Real-Time Clock with external32.768 kHz oscillator- Programmable prescaler• Input Capture (up to eight channels):- Capture on up, down or both edges- 16-bit capture input functions- 4-deep FIFO on each capture• Output Compare (up to eight channels):- Single or Dual 16-Bit Compare mode- 16-bit Glitchless PWM mode
