1525-New Type DSP Control CNC Wood Router /CNC Carving Machine
| Price: |
US $ 6500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Product Specifications
| Prod Model: |
1525 |
| Max. Speed: |
30m/Min |
| Service: |
Offering Oversea Service |
| Voltage: |
220/380V |
| Spindle Speed: |
24000rpm/Min |
| Table Size: |
1780*3100mm |
| X,Y Traveling Area: |
1500X2500X200mm |
| Motion Positioning Accuracy: |
± 0.03/300mm |
| Table Surface: |
PVC & T-Slot Extrusions |
| Control System: |
Ncstudio (DSP for Option) |
| Net Weight/ Gross Weight: |
1300kg/ 1500kg |
| Function: |
Lettering |
| Automation: |
Automatic |
| Control: |
CNC |
| Current: |
AC |
| Application: |
Stone Industry |
| Application Material: |
Wood |
Product Description

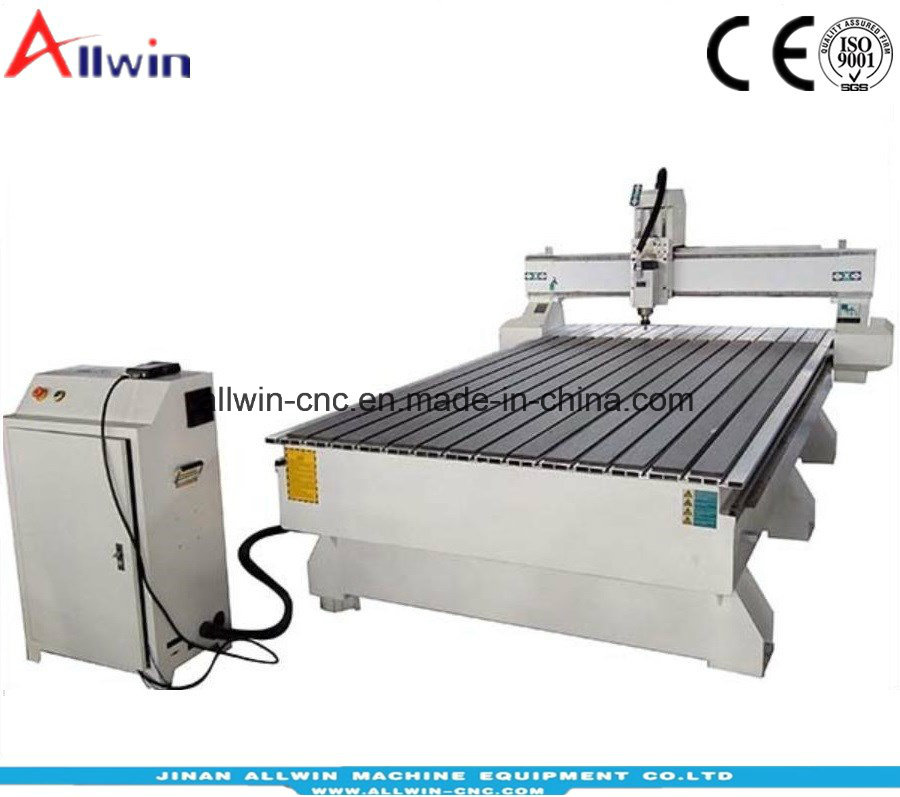

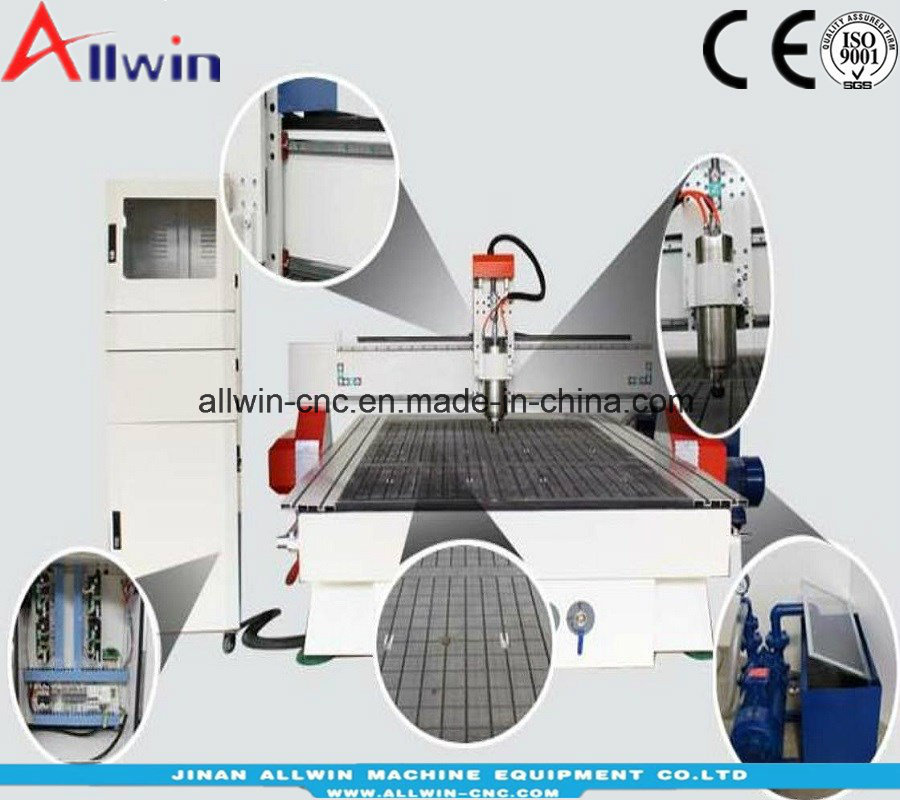

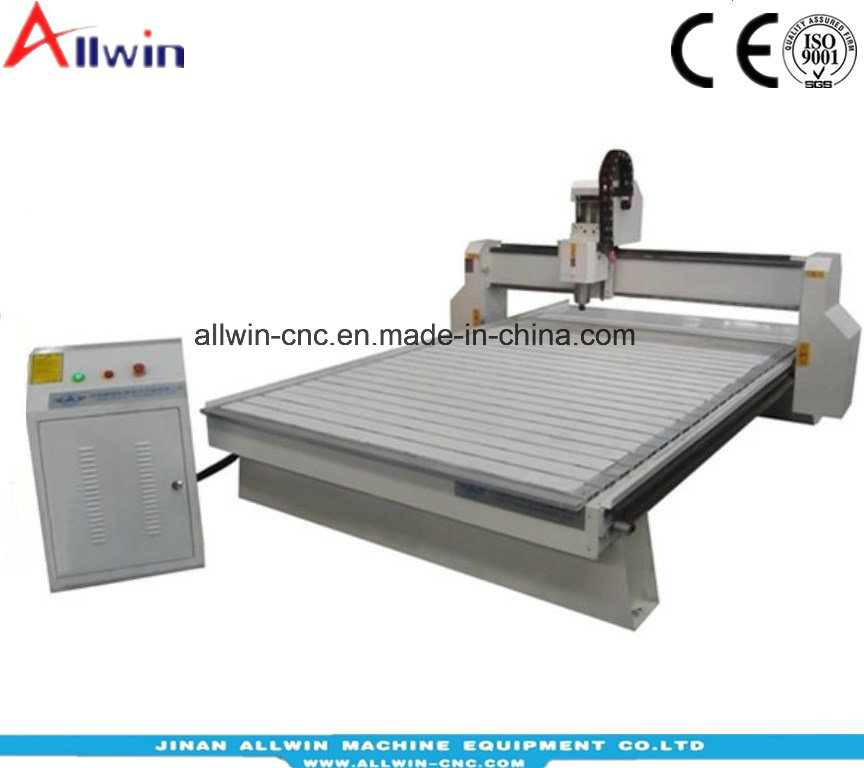

1525-New type DSP control cnc wood router machine
Advantages:1.Advertising/artwork/woodworking/cutting2.CE, SGS,ISO 3.Customized:Yes4.High sensitivity5.High efficiency6. Warranty: 1 year 7. Engineers Available to Service Machinery Overseas
8.Door-to-door technical service and 24 hours technology online support Application Industry and Materials:Advertising industury: Cnc router can engrave all kinds of signage,logo products, trademarks, nameplates, badges, decorative gift, embossed
medals, certificates, souvenirs, photo frames, furniture decoration, PVC plates, PCB boards(drilling and engraving),Double color boards,acrylic etc.Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,besidecabinets,folding screen etc. Artwork industry: In the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving. Model | ALLWIN-1525 |
Frame | wholly steel structure |
X,Y traveling area | 1500*2500*200mm |
Z traveling area | 200mm |
Table size | 1780*3100mm |
Table surface | Pvc & T-slot extrusions |
Max.running speed | 50000mm/min |
Max.carving speed | 30000mm/min |
Motion Positioning Accuracy | ± 0.03/300mm |
Repositioning Accuracy | ± 0.05mm |
Control system | Weihong control system(DSP for option) |
Software movement environment | Windows98/2000/XP |
Power | 2000w |
Working voltage | AC380V/50HZ |
Main axle power | 5.5KW Inverter-driven spindle motor cooled by water(or air for option) |
Spindle speed | 0-24000rpm |
Working Mode | Stepper motor (servo motor for your optional ) |
Dictate Formate | G code, *.u00, *.mmg, *.plt |
Software | Wentai original with Dongle or Type3, ArtCAM software |
Packing size | 3350×2150×1990mm |
Net weight/ Gross Weight | 1300kg/ 1500kg |
Optional Parts | LNC control system |
Rotary device with Dia80mm/100mm/200mm |
Vacuum table&Dust Collecting System |
Sample:

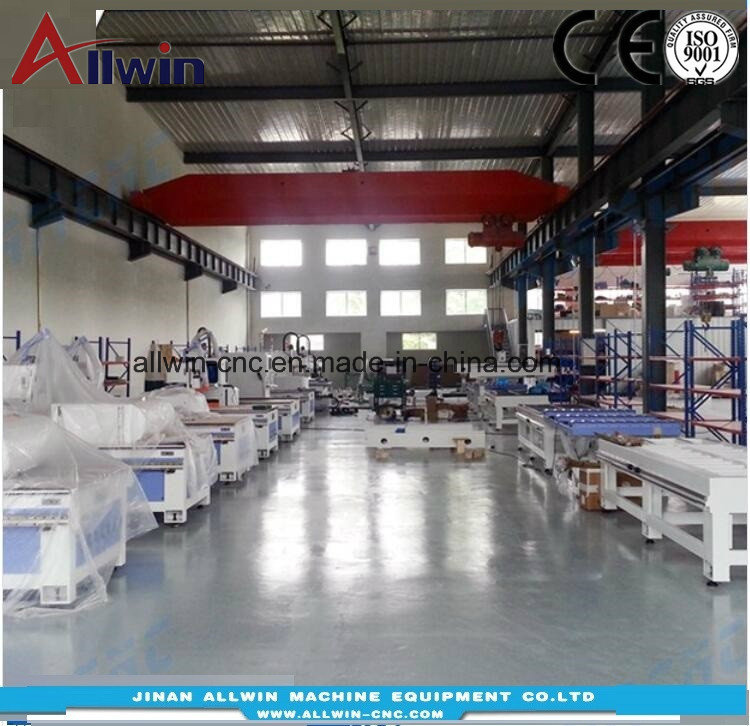

Factory:
Package:Inside:Water-proof Plastic Film Package With Foam ProtectionOutside:Solid Seaworthy Wood Box Package Below: Steel Tube
FAQ:1.How long about the machine's guarantee?2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agentsContact information:JINAN ALLWIN CNC MACHINERY CO;LTDAddress: 906 Room of Luding Building,Jinan City, Shandong Province, China.
Contact person: Cherry
Tel: 0086-18053176036Website: http://www.allwin-cnc.com/
Jinan ALLWIN CNC Machinery Co. Ltd is located in Jinan, Shandong Province, which specializes in manufacturing CNC and laser machines.
ALLWIN CNC Machinery Co. Ltd is a platform for equal and mutual benefit, no cheating but a win-win. We are friends of suppliers as well as buyers, our aim is to let buyers to find great products at a reasonable price.
Our main products are CNC Router and Laser Machine, 5 Axis ATC CNC Router, General 3 Axis CNC
Router, CNC Plasma Cutting Machine, The application covers Woodworking, Advertising, Marble,
Metal, Nonmetal, MDF, Plastic, etc. Our products are widely sold in European, American countries
Africa, Asia, etc.
And we also have some very gold partner for Laser engraving machine and cutting machine.
We are trying our best to produce innovative products to help customers lower their cost and our business is to improve your business. We offer overservice to our clients and we are looking for sales agent over the world
