| Price: | US $ 12000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Rotary Numbers: | Yes |
|---|---|
| Service: | Offering Oversea Service |
| Rotary Axis: | 150*1500mm |
| Motor And Drive: | 3.5kw |
| Software: | Type 3 or Artcam |
| Controller System: | Weihong or DSP |
| Customize: | Yes |
| Driver: | Leadshine or Opitional |
| Motor Or Drive: | Stepper or Servo |
| Structure: | Heavy Structure |

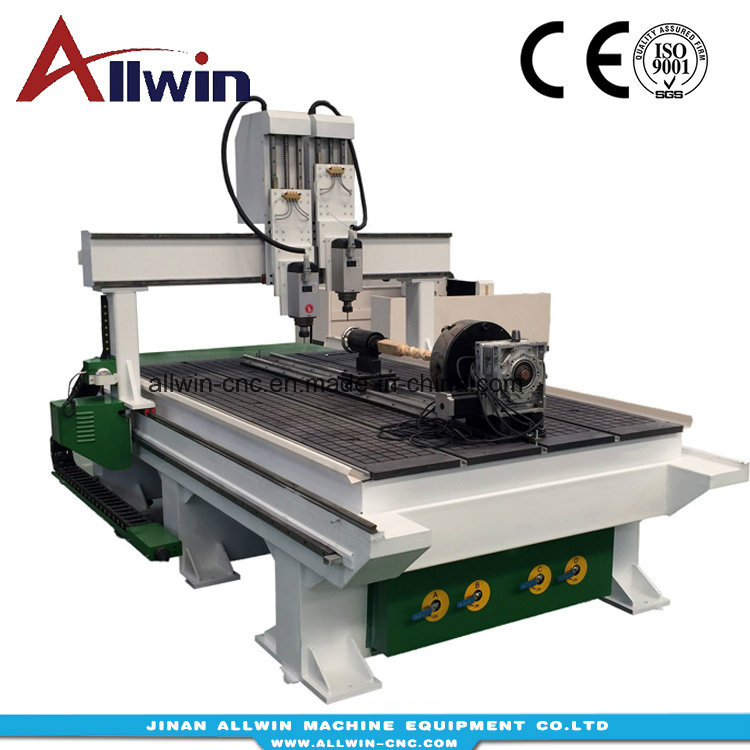

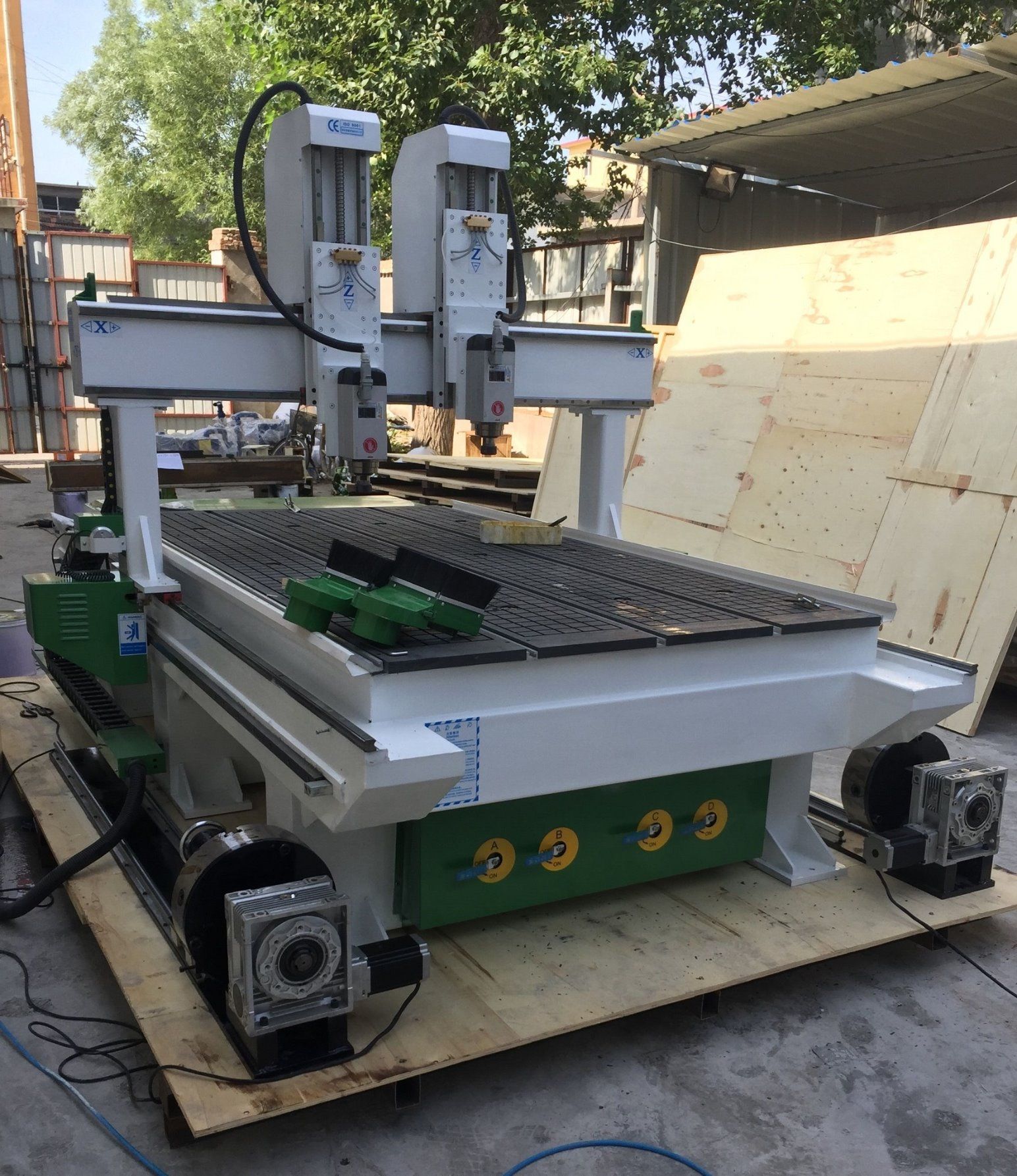

Model | K45MT/1530 | ||
X-Y-Z axis working area | 1,500x3,000x200mm | ||
Machine size | 3,600x2,150x1,700mm | ||
Repositioning resolution | 0.02mm | ||
System resolution | 0.0025mm | ||
X-Y movement | rack and pinion,gear driver/Taiwan | ||
Z movement | ball screw drive/Germany | ||
Guide | Linear 20 square/Taiwan | ||
Max speed | 35,000mm/min | ||
Max cutting speed | 25,000mm/min | ||
Spindle power | 4.5kw (chinese air cooling) | ||
Spindle speed | 24,000rpm | ||
Inverter power | 7.5kw | ||
Drive motor | stepper | ||
Working voltage | AC380V/50-60HZ,3-phase | ||
Commend code | G code | ||
Computer interface | USB 2.2 | ||
Collet | ER32-3.175mm,6mm,12.7mm | ||
Software | artcam&alphacam software/UK | ||
Controls | DSP A11 | ||
Packing dimensions | 3830x2290x1870mm,2000kgs | ||
1. auto tool surface sensor 2.manual oil lubrication system 3.Dust hood 4.T-slot vacuum table 5.regenerative blower 7.5kw | |||
Advantages:
1. Free samples(I can help you process samples for free. )
2. Advertising/artwork/woodworking
3. CE, SGS, ISO
4. High precision
5. High sensitivity
6. High efficiency
7. Warranty: 1 year
8. Door-to-door technical service and 24 hours technology online support
Application Industry and Materials:
Advertising industury: CNC router can engrave all kinds of signage, logo products, trademarks, nameplates, badges, decorative gift, embossed
Medals, certificates, souvenirs, photo frames, furniture decoration, PVC plates, PCB boards
(drilling and engraving), Double color boards, acrylic etc.
Woodworking Industry: CNC router can be used for solid wood furniture, mahogany furniture,
MDF paint doors, solid wood doors, composite doors, cupboard doors and windows, beside
Cabinets, folding screen etc.
Artwork industry: In the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving
Save space as much as possible for container loading.
