Product Specifications
| Prod Model: |
ck1390 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Belt: |
Fulong Blet or as Your Choice |
| Power: |
600X900mm or as Customer Choice |
| Transmission: |
Belt or Ball Screw as Your Choice |
| Lense And Mirror: |
Imported From Singapore |
| Working Size: |
1300X900mm |
| Structer: |
8mm Heavysteel Strucuter |
| Control Software: |
Rdcam6442g |
| Inverter: |
Leadshine |
| Rail: |
Taiwain Hiwin Rail |
| Driver: |
Leadshine Stepper Driver |
Product Description
This 1300x900mm with 130w RECI (Z6) Laser tube 1.5mm sheet metal and nonmetal laser cutter machine is belongs the laser machine type-metal and nonmetal cutting machine .
So its meaning is: It can cut metal and aslo can cut on the nonemtal: like acylic/paper/wood board /fabic .. and other materiasl.
It aslo can engraving . so don't think it not engraving . most of my customer, ask me : Can it engraving ? ..... My answer is: Yes!!!.
I think you are interested in how many thickness it can cut on each materials. Now let me answer you:
1. ,Metal it can cut : 1.2 mm.
2. Acrylic it can cut: 25mm.
3. Wood board it can cut:10-15mm. You know our 90W RECI brand (Z2) Laser tube can cut : 5-8mm hard wood, like MDF...
4. By the way, it can engrave on the glass, but can't cut glsss. if you want to cut glass, please choose our CK6090 small cnc router or the special machine to cut glass, but I promise it can do a good work engraving on glass.
So if you have any questions, please contact me, My name is vera, I am vera glad to help you choose a good machine for you.

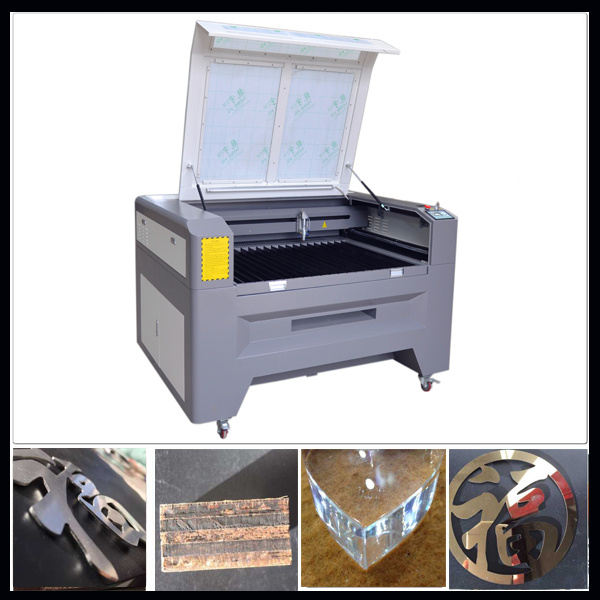

1300x900mm 130w 1.5mm sheet metal and nonmetal laser cutter
Features
Imported linear guide rail and step motor with reduce speed driver system to assure cutting incision more smooth.
Imported focus lens and metal reflect mirror from America have strong cutting ability and high precision
We can supply different colour shapes for your need
Applicable materials
Non-metal materials such as double colour board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc
Applicable industry
Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc
| Model | 1300x900mm 130w 1.5mm sheet metal and nonmetal laser cutter |
| Working area | 130cm*90cm / 47in*35in (L*W) |
| Laser power | 130W |
| Laser type | CO2 sealed laser tube,water-cooled |
| Engraving speed | 25-24000mm/min |
| Cutting speed | 50-5000mm/min |
| Power supply | 220V±10% /50HZ , 110V±10%//60HZ |
| Min. shaping character | Letter 1.0 x 1.0mm |
| Graphic format supported | BMP, PLT, DST, DXF, AI,CDR |
| Software supported | CorelDraw, PhotoShop, AutoCAD |
| Laser Output Control | 1-100% software setting |
| Highest Scanning Precision | 2000DPI |
| Resolution ratio | <0.01mm |
| Location precision | <0.01mm |
| Working temperature | 5°C-40°C |
| Operating humidity | 5%-95%(without condensed water) |
| Equipment Dimension | 1650mm*1250mm*970mm/65in*49in*38 in (L*W*H)
|
| Net Weight | 350KG |
| Optional parts | Up-down worktable, Red light pointer, Auto focus, Rotary device, Industry chiller, DSP off-line operation with USB flash |
packing:
All laser engraving machine are packed with standard inner plastic wrap and steel structure and outer plywood case, inner package would be help to tight all the Small parts in the package. and the plywood is firm enough to protect the laser machine during shipping.
The advantages of plywood case package:
Firstly, plywood case, its compressive strength and bearing quality is better, is the market of choice for the goods of high weight packing.
Secondly, the board area is big, the soil structuer is good and operational process is simple, so its is better in leakproof ness and waterproof.
Thirdly, when importing, the plywood case is with fumigation-free, the produre is simple.
after sale service:
Guarantee & After Sales Service
1. For the whole machine we give the warranty for 2 years.
2. For the RECI laser tubes,we give the warranty for 9 months.
3.For the focus lens and mirrors, we will give the warranty for 9 months too.
4.Any parts is broken during the warranty period( without human damage),we will change for you for free within2 years .
5.Engineer can go to your country to provide the technical support. and 24 hours after sale service worker is online.
Professional Service
From producing in our factory to shipping the goods directly to your port or company, we supply all-in-one service for our customers. With the rich experience of dealing with shipping issue and custom clearance, we can make the most economical delivery plan for you and ensure the quick leading time. No matter your quantity is our MOQ or very big, we take each customer as the only one.
How to choose our machine :
(1) please tell me the working size or the materails size , then I can know the working size if this machine you need.
(2) please tell me how many thickness of the materials you want to cut, if not to do the cut work, please let me know, in fact , the materails you work on is important for us! according this I know teh Co2 laser tube power you need?
(3) we have many brand spare parts, for this machine ,If you need which brand name sapre parts, pleae tell us, we will according your requirments to prouce the machine, if you don't know, I will list each sapre parts we use, and tell you its feratures, then please choose. or we help you choose if you glad. tatally , we hope you will be satisfied our machine and service.
(4) Factory history from 2003 year to do the china marketing, but from 2009 we start to exporting.
With us your money in safe, your business is in safe, Give you and me a chance, Let us know each other, and feel our profesional.
Jinan Chanke Mechanical Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of laser engraving machine, laser cutting machine, wood CNC router, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the CE, FDA certificate.
We prize quality above all else. We have a talented engineers and an experienced workers team. They have been in laser and CNC router area for a lot of years and love these machines very much. Our QC department is famous for strict attitude. Every parts should be checked step by step.
Competitive Pricing, Small Profit, Large Quantity is our rule when pricing. We keep our prices low through enhancing production efficiency, reducing the number of rejects and leaving more profit margins for clients to help them to get more orders. In addition, all our prices are based on good quality raw materials.
The aim of Jinan Chanke Mechanical Equipment Co., Ltd is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.
Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
