Product Specifications
| Prod Model: |
1325 |
| Product Name: |
1325 Stone Engraving CNC Router |
| Applications: |
Marble, Bluestone, Jade Crystal... |
| Working Area: |
1300X2500X300mm |
| Spindle Power Motor: |
5.5kw Water Cooling Spindle |
| Working Mode: |
Stepper Drivers |
| Working Voltage: |
380V/50Hz/3 Phase |
| Operating System: |
DSP Handle Controller |
| Working Table: |
Water-Groove Table and Hard Bakelite Board |
| Software: |
Artcam (English Version), G Code |
| X, Y, Z Structure: |
X.Y Rack Transmission,Square Guide Rail |
| Function: |
Lettering |
| Application Material: |
Granite |
| Automation: |
Automatic |
| Control: |
CNC |
| Current: |
AC |
| Application: |
Stone Industry |
Product Description

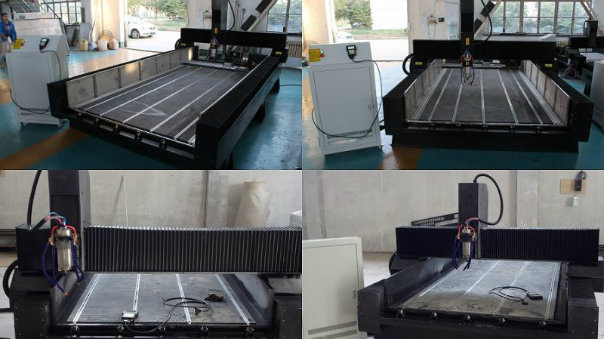

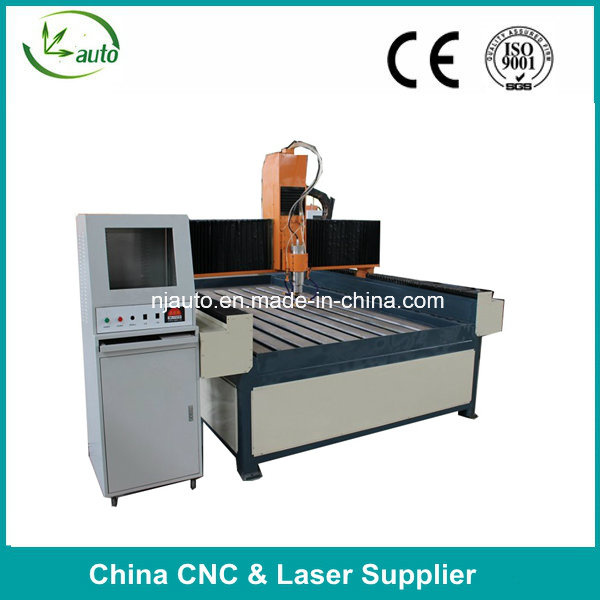

1325 Stone Engraving CNC Router , Stone Cutting Machine for Wood , Stone , Acrylic
Applications of China Stone Marble CNC Router:
Marble, bluestone, jade crystal, agate, glass, plastic cement, ceramic, stainless steel, titanium, copper, iron, aluminum, bamboo and other hardwood surface of virtue and sculpture
Option:
1.AC Servo motors
2.Italian HSD Spindle
3.Working area can be 1500*3000*200mm , 2000*3000*200mm
4. Rotary device. It can engrave cylindrical object. The rotary device's diameter, length and position can be customized according to your requests. We can also provide other optional parts according to your needs.
Technical parameters of 1325 Stone CNC Router:| Items | Parameters |
| Working area(mm) | 1300*2500*300mm |
| Table Structure | 1.5 mm stainless steel T-slot table |
| Transmission system | X,Y axis Gear Rack from Taiwan,z axis Ballscrew from Taiwan but with German technology |
| Lead rail system | Linear round guide rail |
| Spindle power | 5.5 kw Water-cooling ,3.175/4/6/12.7mm |
| spindle speed | 0-24000 rpm |
| Motor | stepper(Panasonic/Yaskawa optional) |
| Drive | YAKO 2811 |
| Dust collector system | For your option |
| Inverter | 7.5kw Fuling inverter |
| Software environmant | Windows 98/2000/XP |
| Control System | DSP A11 |
| Compatible file formats | G code; *.u00 ; *.mmg ; *.plt . |
| Compatible CAD/CAM Softwares | Ucancam V8 / Type3 / Artcam / |
| Working Voltage | AC380V,3ph, 50Hz |
| Precision | 0.005mm |
| Max speed | 26.0m/min |
| Max engraving speed | 18.0m/min |
| Max feeding height | 200mm |
| Work-holding devices | by fixture |
| Interface type | USB |
| Warranty guarantee | One-year after-sale services |
PS: All the working area and specifications can be customized according to your requests.

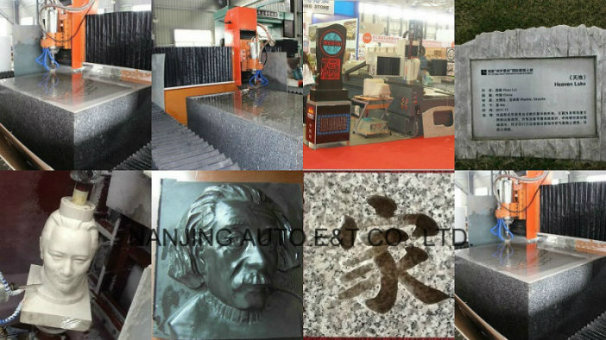

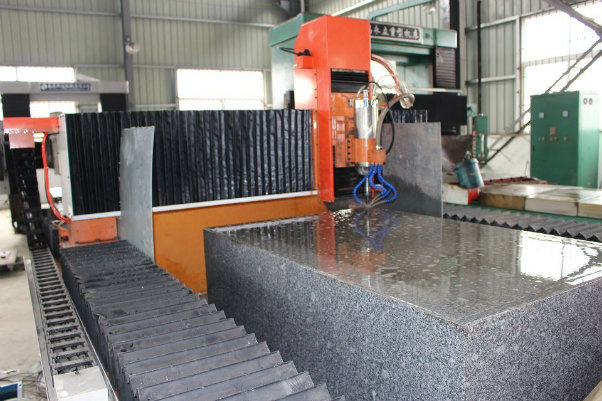

Samples of Stone Engraving CNC Router , Stone Cutting Machine for Wood

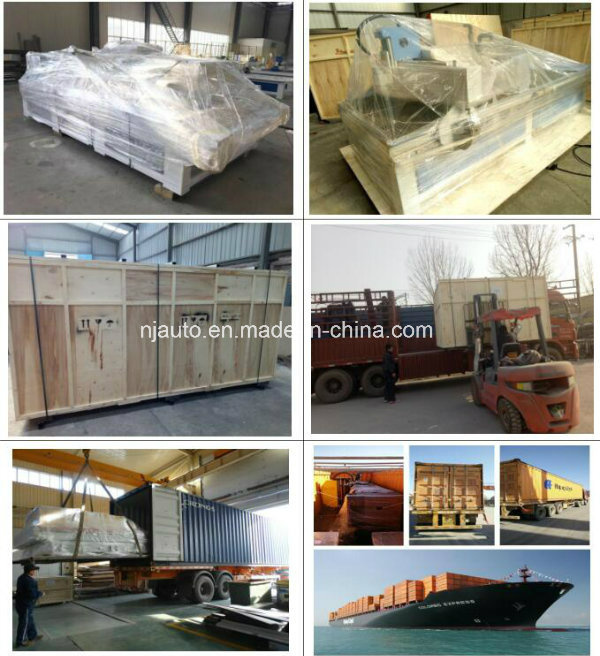

Packing & Shipping:
1. Our CNC machines and accessories are first covered by plastic sheet, water-proof and dampproof.
2. All the things are packed by plywood case used for export.
3. Furniture Making CNC Router machine Can be delivered by sea, by train, or by plane according to your designated place.
We strive to make your buying experience as convenient as possible. We work directly with shipping companies to ensure the best price for the shipment and we pass those savings on to you. Please notify salesperson at the time of your quote request if you wish to arrange for your own shipping method.
After-sales service
•Guarantee one year (except for consumable parts)
•Whole lifetime free service
•Technical support online or remote control
•Free tutorial and training courses (in video or in factory)
•Spare parts discountPlease advise us the follow questions,so that we can recommended you the most suitable machine model.
1.What meterials do you need to engrave or cut?
2.Is that meterial in roll or in sheet?What is the thickness?
3.After engraved/cut,what will the material used for?
4.Are you an end-user or reseller?
008613789813719
We are looking for Good customers like you! Distributor or Agents Wanted!!!
NANJING AUTO E&T Co., Ltd is a specialized CNC router manufacturing company which focuses not only on machine production but also on R&D activities as well. Our company is devoted in the research and development of carving CAD/CAM technology and CNC technology. Our CNC routers have obtained remarkable achievements in the precise carving machine design as well as artistic carving technology, and also have realized industrialization of computerized numerical control technology.
Our company produce CNC routers which are sold in various markets of Europe and America. We have received a good reputation and established a leading position in carving machine lines in those countries. With several years of rapid development, our products are applied for advertisement decoration, marking, label industry, woodworking, mold manufacturing as well as crafts and gifts. We are still trying our best to innovate our products to assist our worldwide customers in lowering their costs and increasing their return.
