Product Specifications
| Prod Model: |
OD-1325 |
| Working Zone: |
1300*2500*300mm |
| Spindle: |
4.5~7.5kw Water Cooled Spindle |
| Motor: |
Stepper Motor or Servo Motor |
| Control System: |
Ncstudio/DSP Hand Controller |
| Delivery Time: |
15 Days |
| Warranty Time: |
1 Year |
| Function: |
Basso-relievo |
| Application Material: |
Granite |
| Automation: |
Automatic |
| Control: |
CNC |
| Current: |
AC |
| Application: |
Stone Industry |
Product Description

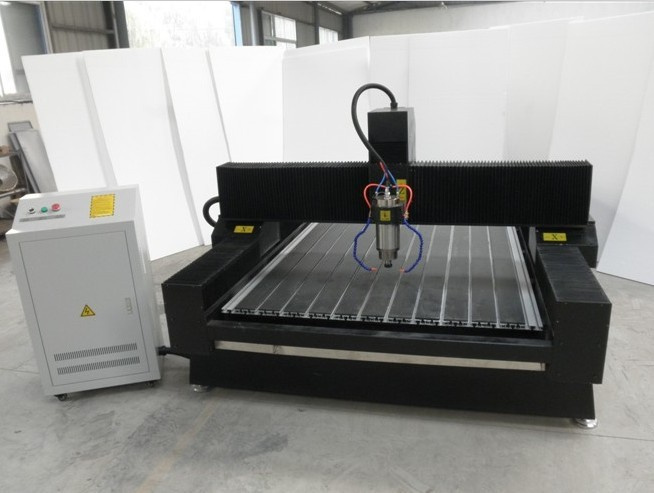

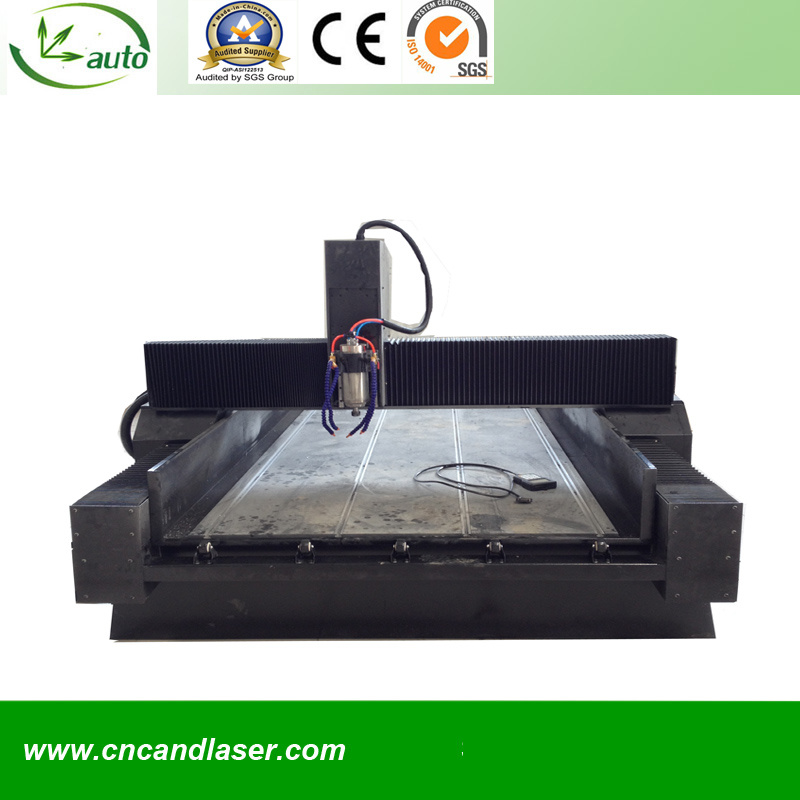

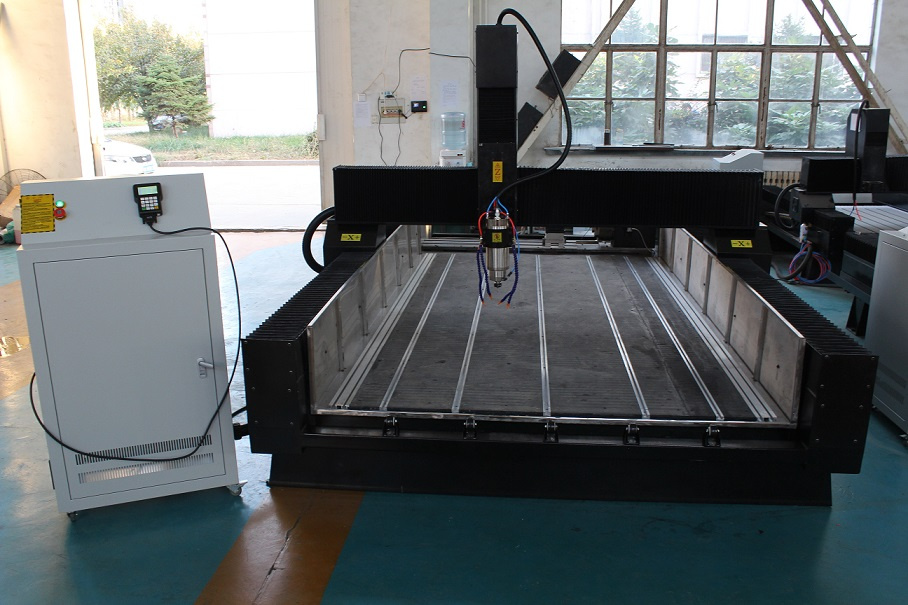

CNC Router for engraving Stone granite marble
Application Materials :
Artificial stone, Marble, Granite, Ceramic Tile, Tombstone, milestone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, grindstone ,Jade, crystal, plexiglass, aluminum composite panel, aluminum block, copper, wood, MDF, hardwood, plywood and so on.
Application Industries :
Suitable for Curb & Paving Stone Forming industries, Stone processing factories, Tombstone processing industries, Advertisement industries for Stone art craft works, Home & Outdoor Product making industries, Architectural decoration industries and so on.
N | parameters description | | parameters |
| | | X | 1300 mm |
| 1 | Working zone | Y | 2500 mm |
| | | Z | 300 mm |
| | | X | Rack gear and pinion drive |
| 2 | Transmission systems | Y | Rack gear and pinion drive |
| | | Z | Ball screw drive |
| | | X | square linear rails |
| 3 | Guide rails system | Y | square linear rails |
| | | Z | square linear rails |
| | | X | panasonic Servo motor with speed reducer |
| 4 | Drive systems | Y | panasonic servo motor with speed reducer (Two motors) |
| | | Z | panasonic servo motor with speed reducer |
| | | Power | 4.5KW |
| | | Speed | 24000rpm |
| 5 | Spindle | Cooling type | water -cooling |
| | | Origin | China |
| | | Collets | ER20 |
| 6 | Spindle inverter | | RITUO |
| 7 | Distance from spindle nose to table | | >= 200 mm |
| 8 | Table size | | 1680*3000mm |
| 9 | Max travel speed | | >30m/min |
| 10 | Max engraving speed | | >10 m/min |
| 11 | Resolution | | <=0,005 mm |
| 12 | Cutting Accuracy | | <= 0,05 mm |
| 13 | Repeatability | | <=0,03 mm |
| 14 | Control systems/Operation system | | NC studio |
| 15 | software | | TYPE3/Artcam /Ucancam /JDpaint |
| 15 | Power: | | AC380V±10% / 50~60Hz |
| 16 | Machine weight kg | 2000KG |
sample
NANJING AUTO E&T Co., Ltd is a specialized CNC router manufacturing company which focuses not only on machine production but also on R&D activities as well. Our company is devoted in the research and development of carving CAD/CAM technology and CNC technology. Our CNC routers have obtained remarkable achievements in the precise carving machine design as well as artistic carving technology, and also have realized industrialization of computerized numerical control technology.
Our company produce CNC routers which are sold in various markets of Europe and America. We have received a good reputation and established a leading position in carving machine lines in those countries. With several years of rapid development, our products are applied for advertisement decoration, marking, label industry, woodworking, mold manufacturing as well as crafts and gifts. We are still trying our best to innovate our products to assist our worldwide customers in lowering their costs and increasing their return.
