| Price: | US $ 6153/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | 1325 |
|---|---|
| Rotary Numbers: | 8 |
| Service: | Offering Oversea Service |
| Voltage: | 220/380V |
| Rotary Axis: | 150*1500mm |
| Motor And Drive: | Stepper Motor by Leadshine 86 of Shenzhen |
| Control System: | Ncstudio |
| Cooling: | Water Cooling |
| Movement Pattern: | Gantry Dynamic |
| X,Y Tramsmission: | Germany Slanting Rack |
| Z Tramsmission: | Hiwin 25 Ball Screw |
| Function: | Lettering |
| Automation: | Automatic |
| Control: | CNC |
| Current: | AC |
| Application: | Stone Industry |
| Application Material: | Wood |

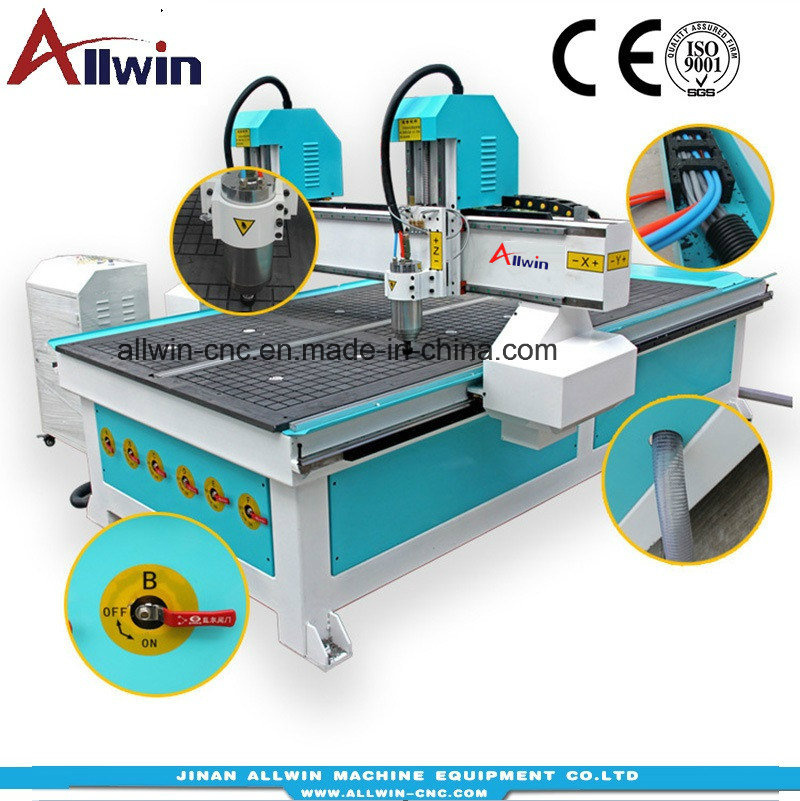

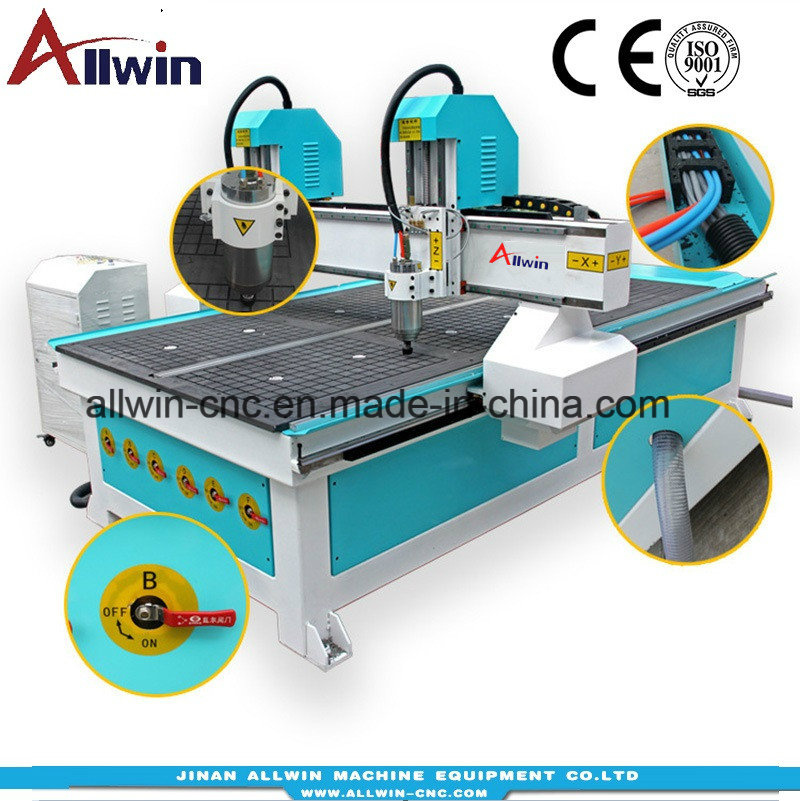

1325 Double Z Two Heads CNC Router Machine with 2 Spindles
Product Description:
1. T-shape body, T-gantry, T-support, with liner guideway and rack transmission.
2. Cutting size: 1300*2500 mm.
3. Compatible Software: Type 3 software, Artcut software, Artcam software.
4. Color is optional, Rotary axis, vacuum table and dust collector can be added as your demand.
Advantages:
1.Advertising/artwork/woodworking
2.CE, SGS,ISO
3.Customized:Yes
4.High sensitivity
5.High efficiency
6. Warranty: 1 year
7. Engineers Available to Service Machinery Overseas
8.Door-to-door technical service and 24 hours technology online support
Application Industry and Materials:
Advertising industury: Cnc router can engrave all kinds of signage,logo products, trademarks, nameplates, badges, decorative gift, embossed
medals, certificates, souvenirs, photo frames, furniture decoration, PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry:
in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Technic specification :
| Model No | 1325T-2D (Double Z axis) | |||||
| Platform Size (mm) | 1380* 2900 mm | |||||
| Engraving range (mm) | 1300* 2500 mm | |||||
| Z axis traveling height(mm) | 180mm | |||||
| Max feeding height | 200mm | |||||
| Structure options | 8mm thick T-shape steel struture; Whole casting | |||||
| Platform material | Thickened aluminum alloy; Max 23mm thick | |||||
| Fixturing method | With T-slot for clamp fixturing | |||||
| X,Y Tramsmission | Germany Slanting rack | |||||
| Z Tramsmission | HIWIN 25 Ball Screw | |||||
| Rail configuration | HIWIN 25 Square guide rail | |||||
| Positioning accuracy | ±0.1/300 mm | |||||
| Spindle speed | 0-24000 RPM | |||||
| Y Axis dual Drive motor | Stepper motor by Leadshine 86 of Shenzhen | |||||
| X,Z Axis Drive motor | Stepper motor by Leadshine 86 of Shenzhen | |||||
| Converter | Best Brand | |||||
| Control system option | NcStudio Control System | |||||
| Code formats | G code, U00, mmg, nc | |||||
| Idle working | 0-20000 mm/ min | |||||
| Max working speed | 0-15000 mm/ min | |||||
| Resolution | 0.00625/ pluse | |||||
| Diameter of cutting tools (mm) | 3.175/ 4.0/ 6.0/ 8.0/ 10.0/ 12.7mm optional | |||||
| Spindle power (KW) | 3.0KW*2 pcs ,Water cooling | |||||
| Cooling | Water Pump | |||||
| Working Voltage | 220V/ 380V, 50Hz Optional | |||||
| Movement pattern | Gantry dynamic | |||||
| Electric Box | Electric box with friendly UI | |||||
| Compatible software | CAD,CAM softwares such as MasterCAM/ Type3/ JDPaint/ ArtCAM/ Proe/ WenTai, etc | |||||
| Gross weight (KG) | 1500KG | |||||
Applicapable Materials :
CNC Cutting Machine for Timber, Foam, Styrofoam, EPS Foam, Wood, MDF, Solid wood, Hardwood, Artificial stone, Marble, Granite, Ceramic Tile, Tombstone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate,
Grindstone, Jade, crystal, plexiglass, aluminum composite panel, aluminum block, copper and so on.
Samples:
Package and shipping:
Inside:Water-proof Plastic Film Package With Foam Protection
Outside:Solid Seaworthy Wood Box Package
Below: Steel Tube
