| Price: | US $ 15000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | 1325 |
|---|---|
| Power(W): | 9kw Air Cooling Spindle |
| Service: | Offering Oversea Service |
| Voltage: | 220/380V |
| Controlling Software: | DSP or Ncstudio |
| Rotating Speed: | 0-24000rpm |
| Resetting Position: | ±0. 05mm |
| Driving System: | Japan Yaskawa Servo Motor |
| Working Table: | Double Layer Vacuum Table |
| Software: | Artcam/Type3 |
| Running Speed: | 50000mm/Min |
| Function: | Lettering |
| Automation: | Automatic |
| Control: | CNC |
| Current: | AC |
| Application: | Stone Industry |
| Application Material: | Wood |

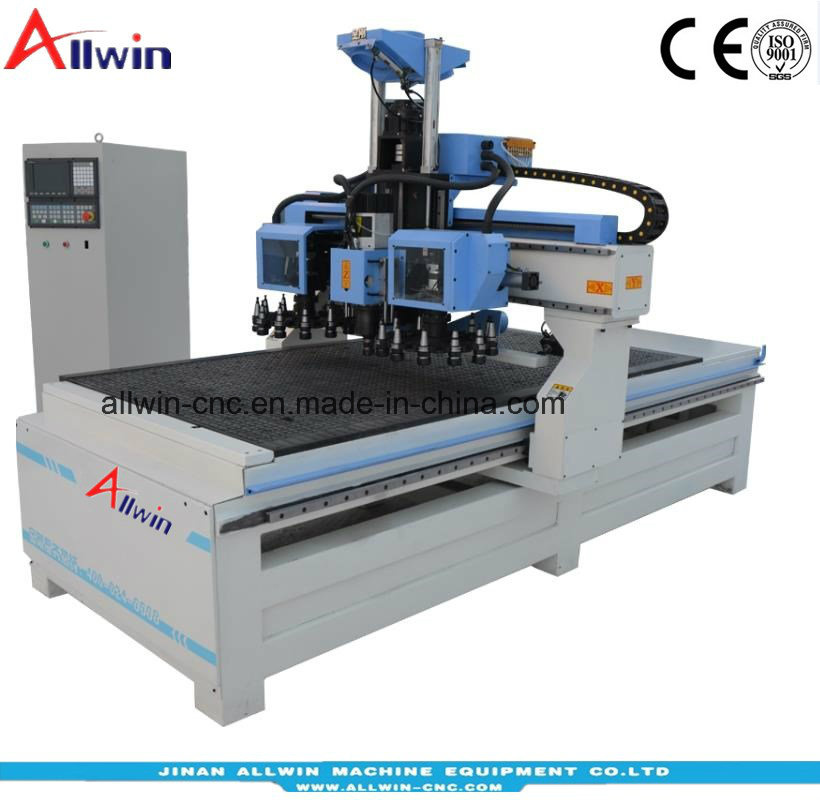

Double Carousel design 9kw air cooling spindle atc cnc router machine 1325
Advantages:
1.Advertising/artwork/woodworking/cutting
2.CE, SGS,ISO
3.Customized:Yes
4.High sensitivity
5.High efficiency
6. Warranty: 1 year
7. Engineers Available to Service Machinery Overseas
8.Door-to-door technical service and 24 hours technology online support.
Application Industry and Materials:
Advertising industury: Cnc router can engrave all kinds of signage,logo products, trademarks, nameplates, badges, decorative gift, embossed
medals, certificates, souvenirs, photo frames, furniture decoration, PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: In the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.

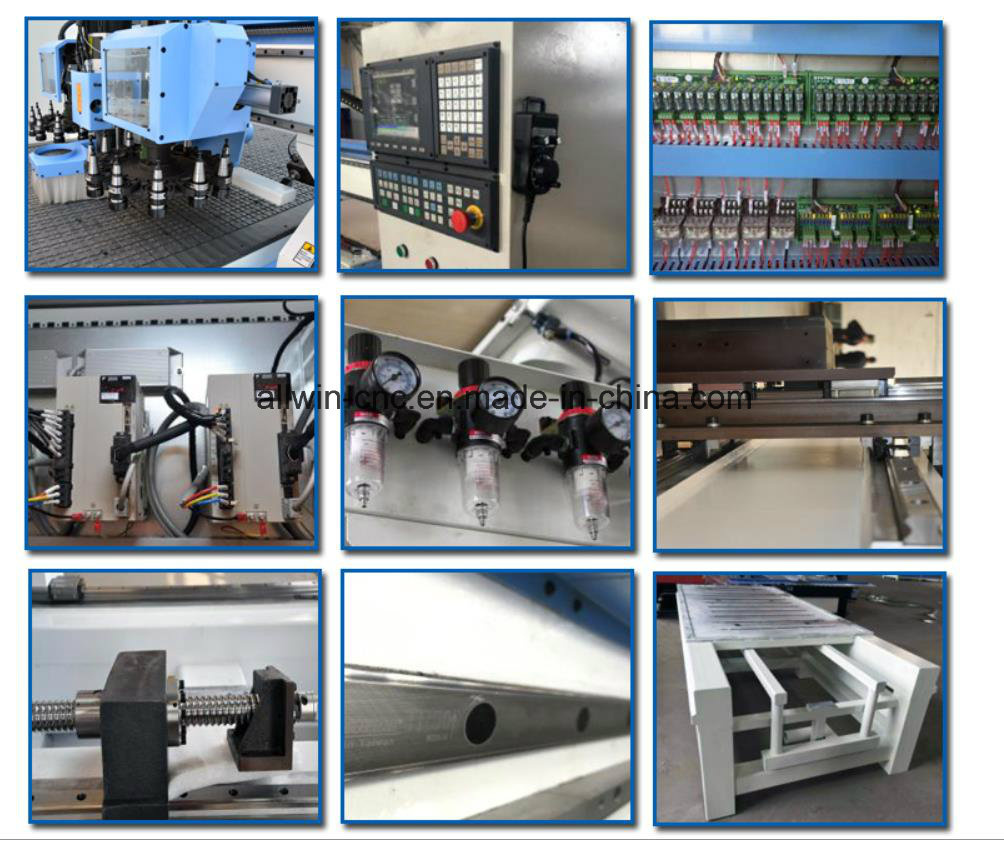

Technic specification :
| Keyword | ATC cnc router |
| Model | ALLWIN-1325 |
| Machining Area | 1300x2500mm(optional 1500X2500mm/1600x3200mm/2000x3000mm) |
| Z axis Travel | 200mm |
| Running Speed | 50m/min |
| working sytle | Gantry movement transmission |
| Spindle Motor | 9kw ATC spindle air cooling (0-24000rpm) |

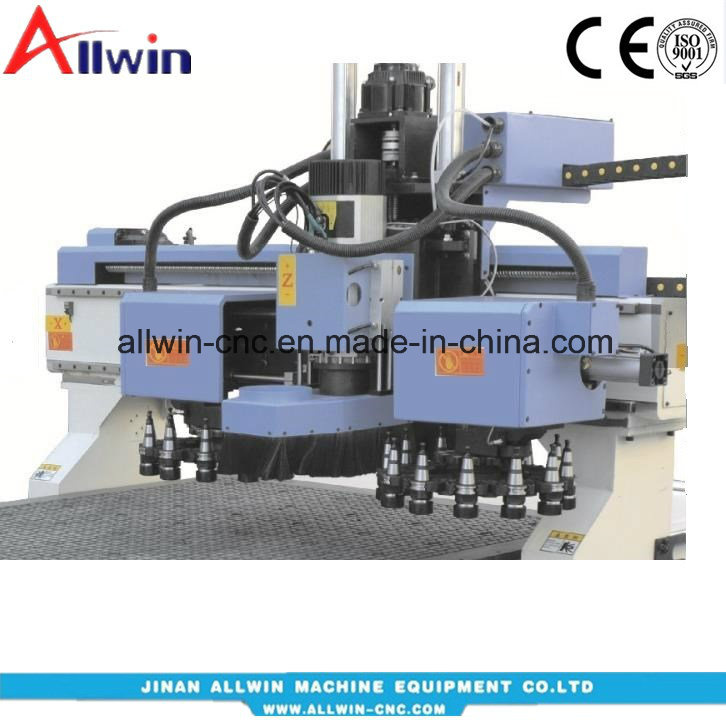

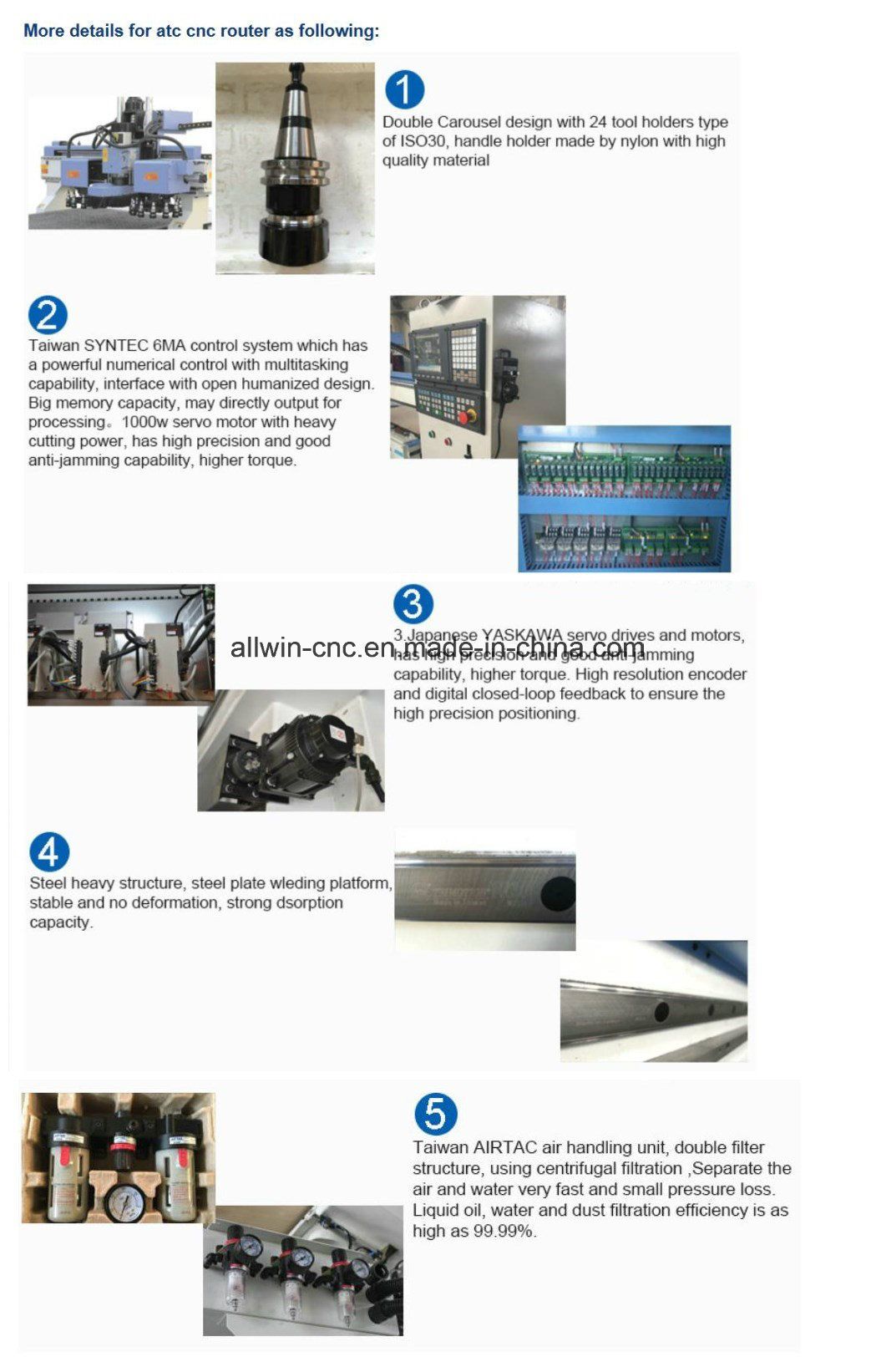

| Tool Magazine | Double Carousel design(revolver tool-changer) with 24 tool holders |
| Control system | Taiwan SYNTEC 6MA controller |
| Driving System | Japanese Yaskawa servo motor and driving system Y=1800w,X=1300W, Z=2505 |
| Guide Rail | Taiwan (30mm for Y axis and X axis and 25mm for Z axis) |
| Ball Screw | Taiwan TBI ball-screw for three axis transmission (Φ40 for Y axis ;Φ32 for X axis; Φ25 for Z axis) |
| Power Supply | AC380V/50~60HZ |
| Inverter | 11kw inverter with good quality |
| Table | Vacuum table with pop-up |
| Pump | 7.5kw air pump with high quality |
| Oil supply system | Automatic |
| Collet chuck | Φ6, Φ12.7 |
| CNC/components Warranty | Spindle motor is for half a year, others for one year. |
Applicapable Materials:
CNC Cutting Machine for Timber, Foam, Styrofoam, EPS Foam, Wood, MDF, Solid wood, Hardwood, Artificial stone, Marble, Granite, Ceramic Tile, Tombstone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, Grindstone, Jade, crystal, plexiglass, aluminum composite panel, aluminum block, copper and so on.
Package and shipping:
Inside:Water-proof Plastic Film Package With Foam Protection
Outside:Solid Seaworthy Wood Box Package
Below: Steel Tube
FAQ:
1.How long about the machine's guarantee?
2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents
Contact information:
JINAN ALLWIN CNC MACHINERY CO;LTD
Address: 906 Room of Luding Building,Jinan City, Shandong Province, China.
Contact person: Cherry
Tel: 0086-18053176036
Website: http://www.allwin-cnc.com/
