| Price: | US $ 7200/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | 1325 |
|---|---|
| Power(W): | 4.5kw Water Cooling Spindle |
| After-Sales Service Provided: | Engineers Available to Service Machinery Overseas |
| Inverter: | 4.5kw Inverter with Good Quality |
| Table: | Vacuum Absorption Table with T Slot with Pump |
| X Y Z: | Oblique Gear Rack, Ball Screw |
| Drive System: | Japan Yaskawa Servo Motor |
| Type: | Gantry Moving Machine |
| Feeding Height: | 200mm |
| Control System: | DSP |
| Dust Absorption: | Double Bags |

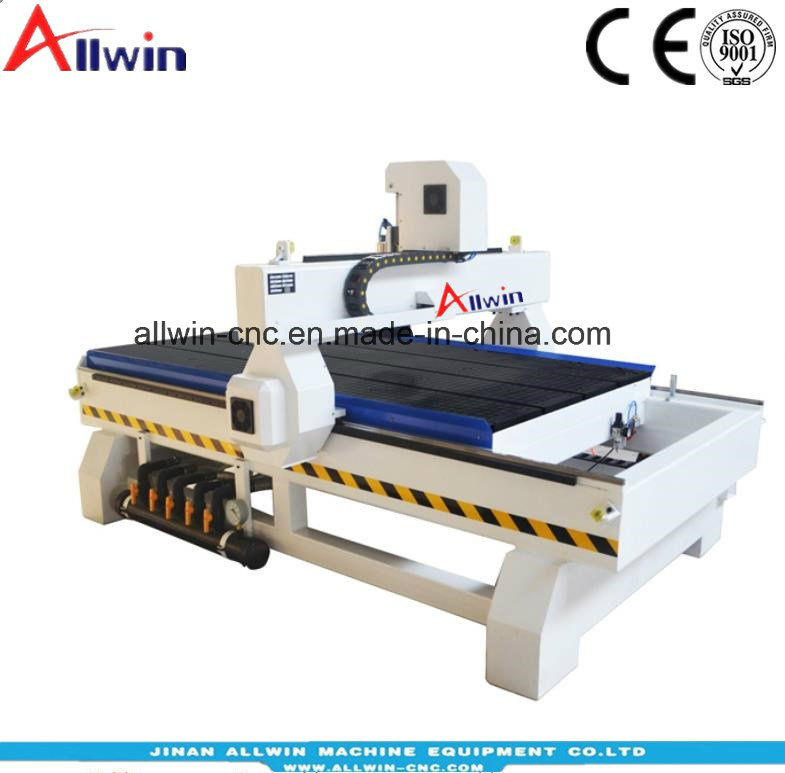

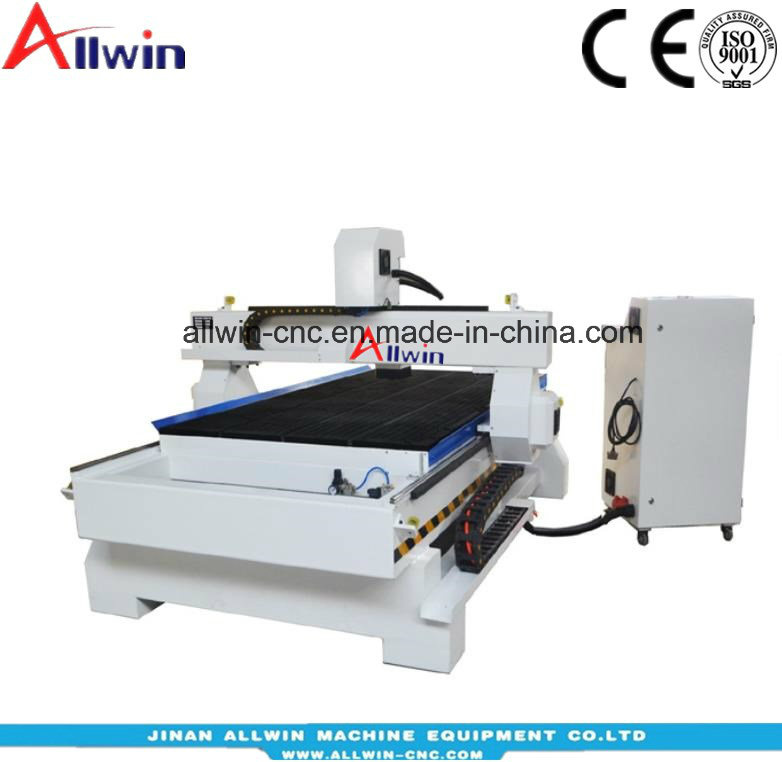

Model | ALLWIN-1325 |
X Y working area | 1300 x 2500 mm |
Feeding height | 200 mm |
Controller | DSP |
Drive type | easy servo (servo option) |
Transmit | X Y Gear rack oblique tooth type, Z ball screw |
Rails slide | square rails from Taiwan |
Spindle power | 4.5kw water cooling (2-14mm shank bits) |
Working table | vacuum absorption table with T slot with pump |
Dust absorption | double bags |
Max travel speed | 40,000mm/min |
Working precision | 0.05mm |
Command code | HPGL, G code |
Repeatability | 0.01 mm |
Power | AC380V ±10% / 50~60Hz |
Compatible Software | Type3/Artcam/UG/Pro-E/Mastercam/Ucancam V9, etc |
Advantages:
1.Advertising/artwork/woodworking/cutting
2.CE, SGS,ISO
3.Customized:Yes
4.High sensitivity
5.High efficiency
6. Warranty: 1 year
7. Engineers Available to Service Machinery Overseas
8.Door-to-door technical service and 24 hours technology online support
Application Industry and Materials:
Advertising industury: Cnc router can engrave all kinds of signage,logo products, trademarks, nameplates, badges, decorative gift, embossed
medals, certificates, souvenirs, photo frames, furniture decoration, PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry:
in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
