| Price: | US $ 5000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | 1318 |
|---|---|
| Service: | Offering Oversea Service |
| Voltage: | 220/380V |
| Table: | Vacuum System/Dust Collector |
| Spindle Power: | 3.2kw Water Cooled Spindle (Optional) |
| Driver: | Leadshine Stepper Motor 450b |
| Motor: | Stepper Motor 450b |
| X,Y,Z Traveling: | X, Y, Z Traveling |
| Control System: | Ncstudio/DSP |
| Inverter: | Fuling Inverter/Rituo |
| Software: | Type3 |
| Function: | Lettering |
| Automation: | Automatic |
| Control: | CNC |
| Current: | AC |
| Application: | Stone Industry |
| Application Material: | Wood |

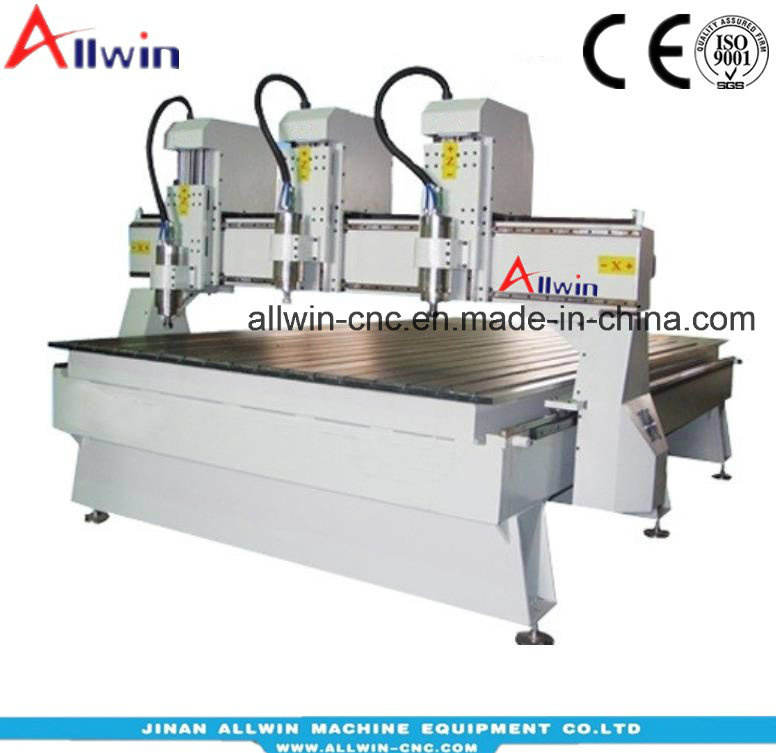

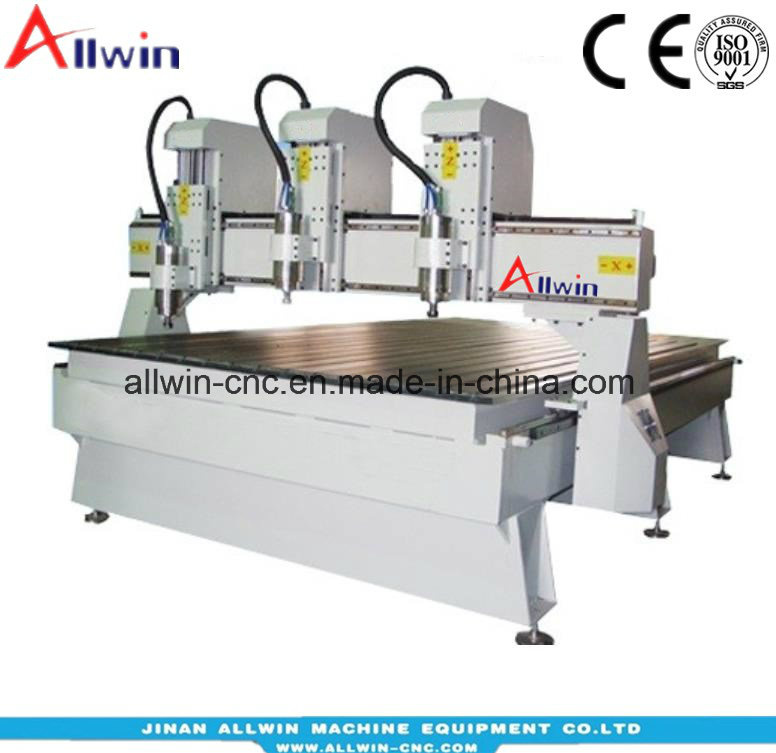

Three spindle heads cnc router engraving machine 3 axis 1318 engraver
Advantages:
1.Advertising/artwork/woodworking/cutting
2.CE, SGS,ISO
3.Customized:Yes
4.High sensitivity
5.High efficiency
6. Warranty: 1 year
7. Engineers Available to Service Machinery Overseas
8.Door-to-door technical service and 24 hours technology online support
Application Industry and Materials:
Advertising industury: Cnc router can engrave all kinds of signage,logo products, trademarks, nameplates, badges, decorative gift, embossed
medals, certificates, souvenirs, photo frames, furniture decoration, PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: In the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Technology Features:
1) 6mm thickness heavy duty steel tube for machine's body, and 8 thickness for the gantry,the machine structure is strong and stable.
2) 2 sets spindles with 2 sets inverters, every inverter has a switch, can flexibly choose the
spindles work separately or totally, verysuitable for mass processing work, can increase
the working efficiency.
3)The spindle can work together or not. You can set it according to your require, one machine
with two machines' function. Very afforable!!
X,Y,Z working area | 1200*1200*100mm(47.2*47.2*3.9inch) 1300*1800*100mm(51.2*70.9*100inch) 1300*2500*200mm(51.2*98.4*7.9inch) |
X,Y,Z traveling position accuracy | <=0.1mm |
X,Y,Z reposition accuracy | <=0.1mm |
Table surface | PVC |
Lathe bed | Cast |
X,Y transmission | High accuracy gear rack |
Z transmission | Imported ball screw |
Max power consumption(without spindle) | 12kw |
Max travel speed | 30000m/min |
Max working speed | 20000m/min |
Spindle power motor | 1.5kw *2, 1.5kw*3, 1.5kw*4,1.5kw*5 |
Spindle speed | 24000r/min |
Driver system | Step motor |
Working voltage | 380V/220V |
Command language | G code |
Operation system | DSP |
Interface | USB |
Flash memory | 128M |
Collect | 3.175-12.5 |
X,Y resolution | <=0.1mm |
Software | UCANCAM, Type3 |

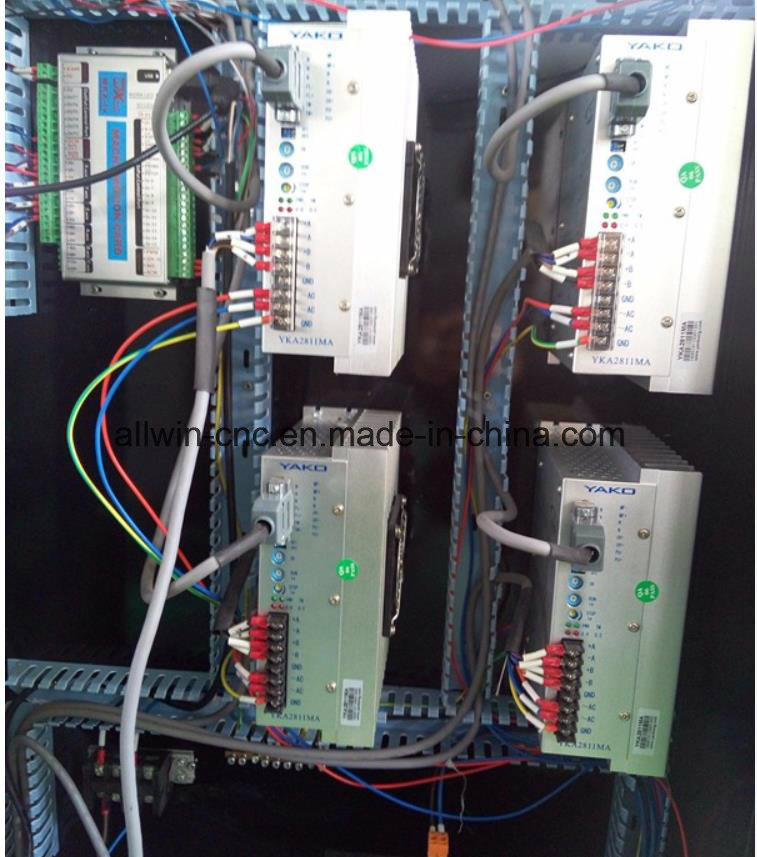

March 3 driver:

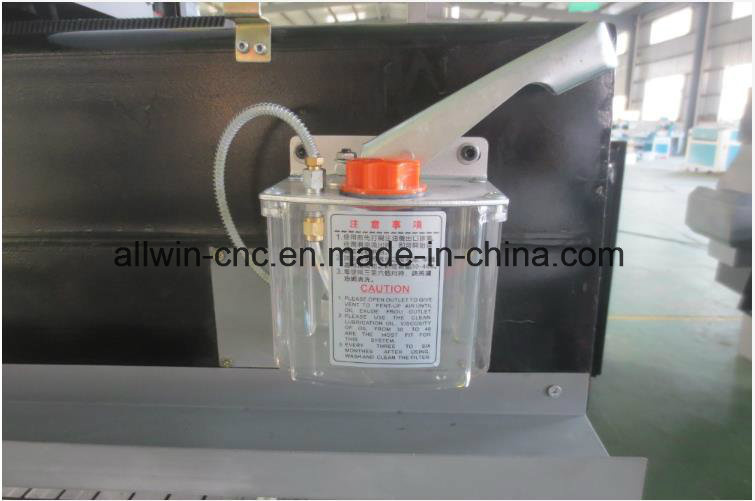

Hand oil system:

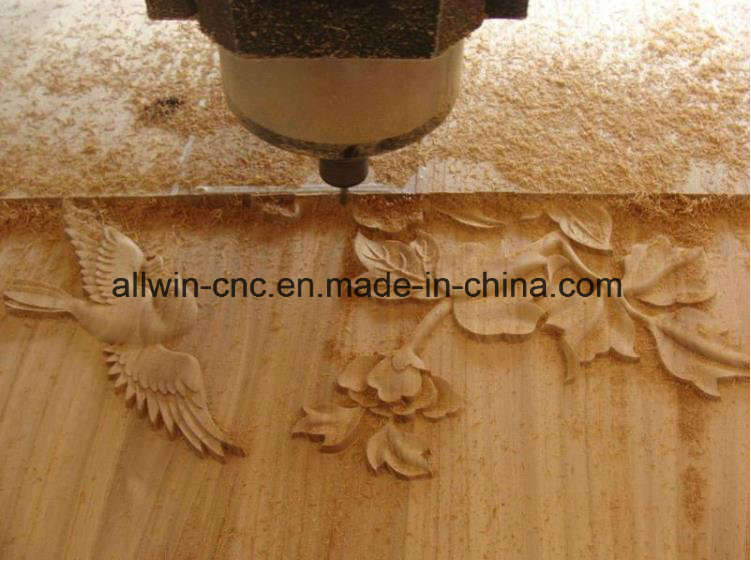

Sample:

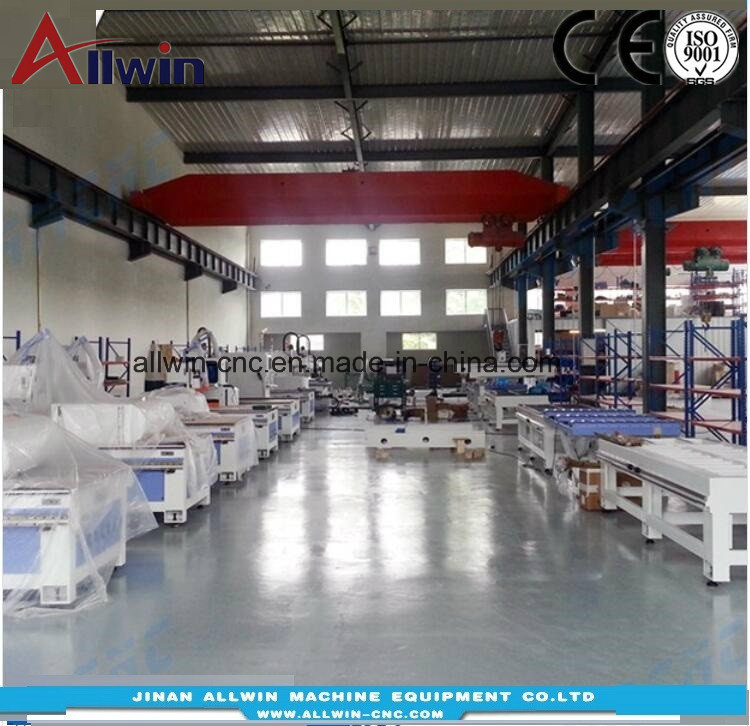

Factory:
Package and shipping:
Inside:Water-proof Plastic Film Package With Foam Protection
Outside:Solid Seaworthy Wood Box Package
Below: Steel Tube
FAQ:
1.How long about the machine's guarantee?
2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents
Contact information:
JINAN ALLWIN CNC MACHINERY CO;LTD
Address: 906 Room of Luding Building,Jinan City, Shandong Province, China.
Contact person: Cherry
Tel: 0086-18053176036
Website: http://www.allwin-cnc.com/
