| Price: | US $ 2630/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | 1212 |
|---|---|
| Service: | Offering Oversea Service |
| Voltage: | 220/380V |
| Z Axis: | Big Z Axis Works |
| Table: | Tab T-Slot or Vacuum Adsorption Table |
| Driver: | Leadshine 542 |
| Inverter: | Fuling or Delta |
| Cutting Material: | Stone Metal or Wood |
| Spindle: | Hsd or Hqd with Water Cooled |
| Motor And Drive: | stepper or Servo |
| Guild Rails: | Hiwin |
| Carving Material: | Stainless Steel |
Technology Features:
1. Transmission by ball screws for Z-axis, this machine ensures high precision and low noise
2. Whole machine by cast iron , solid, resistant, rigid
3. Motorized by stepper motor, double drive on the Y axis which allows stable operation
4. Adopt vacuum system, configured with vacuum pump of high absorption which can absorb materials of different size
5. Humanistic design, the machine can be disassembled, easy and convenient to transport

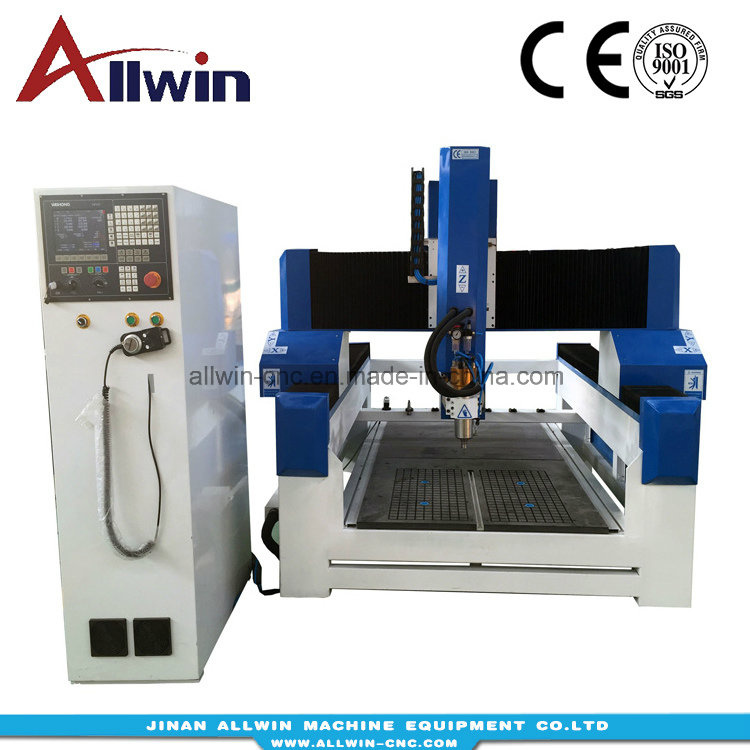

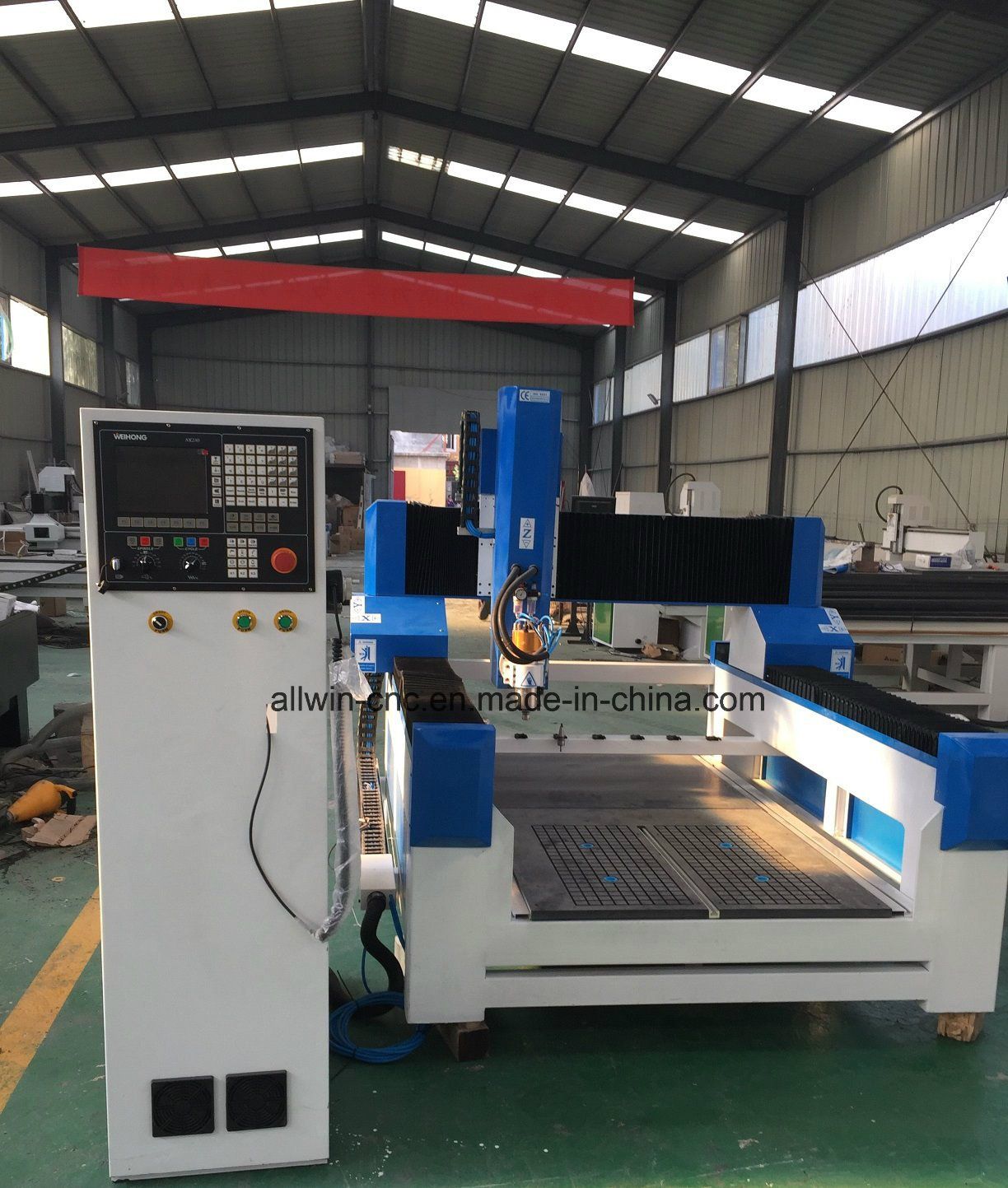

Model | ALLWIN-1212 Advertising CNC Router |
| X,Y,Z Working Area | 1200*1200*250mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |

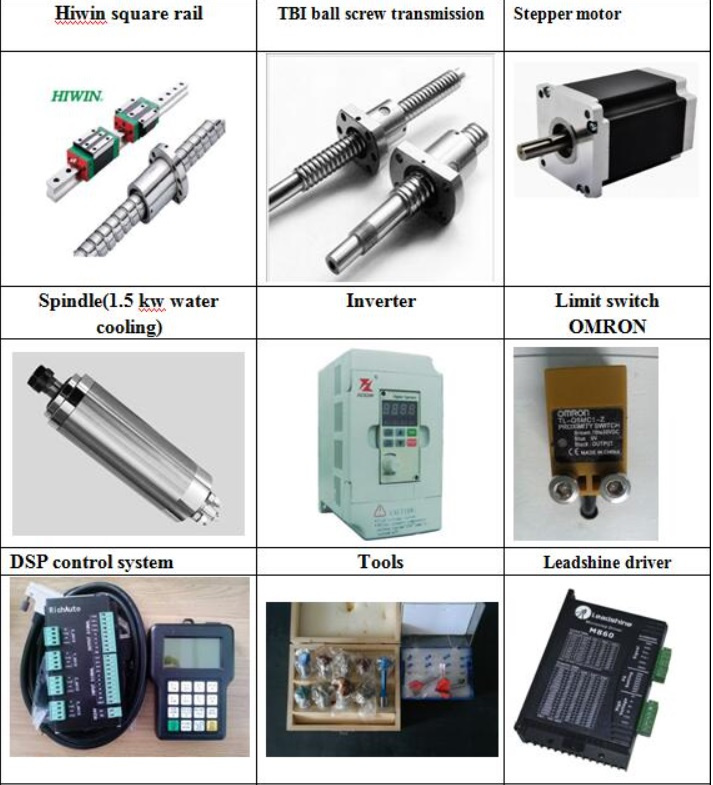

| Table Surface | T-slot Aluminum +PVC or Vacuum adsorption table |
| Frame | By cast iron |
| X, Y Structure | HIWIN Rail Linear Guide and TBI Ball Screw |
| Z Structure | HIWIN Rail Linear Guide and TBI Ball Screw |
| Max. Power Consumption | (Without Spindle) 3Kw |
| Max. Rapid Travel Rate | 25000mm/min |
| Max. Working Speed | 18000mm/min |
| Spindle Power | 1.5 kw water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | Stepper Motor |
| Working Voltage | AC220/380V, 50/60Hz |
| Command Language | G Code |
| Operating System | Ncstudio or Mach3 PC Software |
| Computer Interface | USB |
| Flash Memory | 128M(U Disk) |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3/Ucancame V9 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
| Inverter | Fuling or Delta |
| Electrical components | Schneider |
| Limit switch | OMRON |
| Driver | Leadshine 542 |
| ER Clamp Holder | ER 25 |
| Support | By calling or email or training |
1. Free samples(I can help you process samples for free.)
2.Advertising/artwork/woodworking
3.CE, SGS,ISO
4.Customized:Yes
5.High sensitivity
6.High efficiency
7. Warranty: 1 year
8.Door-to-door technical service and 24 hours technology online support
Application Industry and Materials:
Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Packing & shipment :
Save space as much as possible for container loading.
