| Price: | US $ 3000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | 1212 |
|---|---|
| Power(W): | 1.5/2.2/3.0kw |
| Weight: | 800kgs |
| Operating System: | DSP/Weihong |
| Warranty: | 1 Year |
| Table Structure: | T-Slot Table |
| Driving System: | Servo Motor/Stepper Motor |
| Command: | G Command |
| Guide Rail: | Hiwin 20 Square Linear Rails |
| Spindle Speed: | 0-24000 (R/ Min) |
| Service: | Offering Oversea Service |

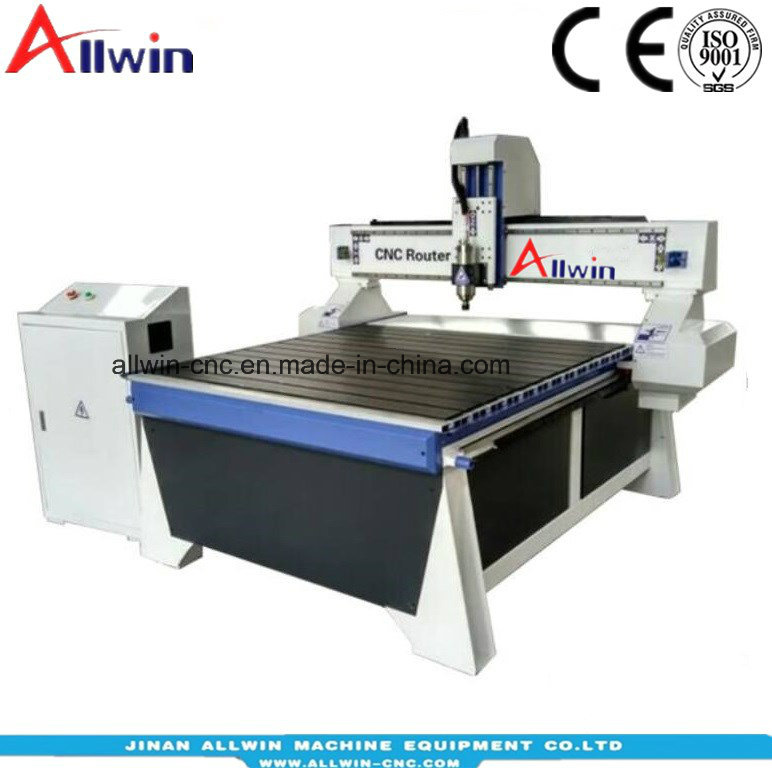

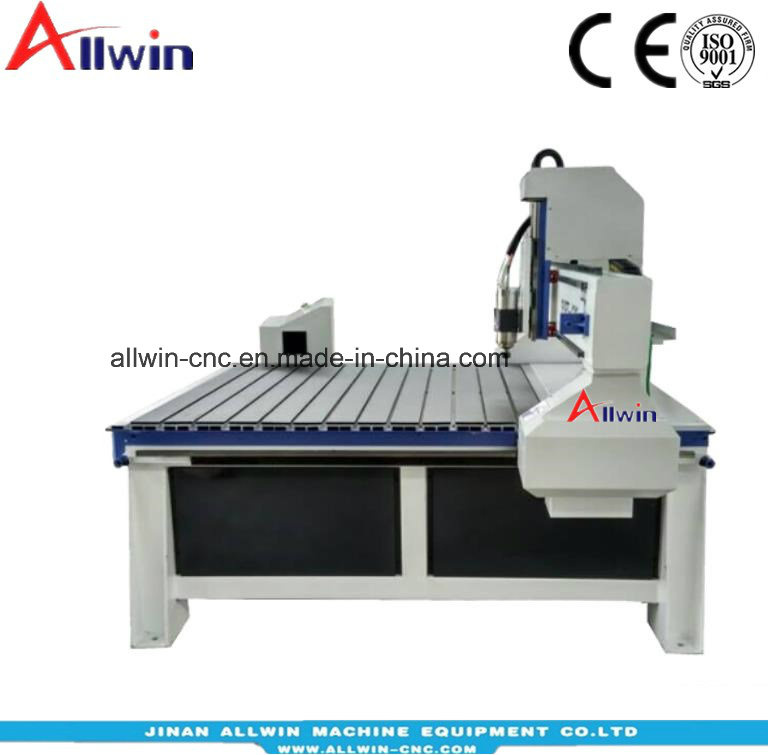

1212 advertising woodworking 4x4 ft CNC Router machine
Features and specialties:
1212 cnc router for acrylic engraving Product features
1.The lathe bed is cast iron wholly. High-rigidity ,firmness, without deformation.
2.Three axes adopt ball screw rod with high precision and circular guide rail which ensures the precision of machine.
3.High subdivision step motor with high speed, low noise, running firmly, and powerful torque cutting.
4.Adopts brushless water cooled spindle with frequency conversion. With low noise, the service life is long, and rotated steadily.
5.High-power, deeply incise. It can incise 30mm thickness acrylic once.
6.The software of the machine can be upgraded so as to ensure the machine improved constantly.
7.Opening software interface can connect all kinds of 3D engraving software, compatible with high precision software.
8.Inserting DSP control system can be optional to this machine.
Advantages:
1.Advertising/artwork/woodworking/cutting
2.CE, SGS,ISO
3.Customized:Yes
4.High sensitivity
5.High efficiency
6. Warranty: 1 year
7. Engineers Available to Service Machinery Overseas
8.Door-to-door technical service and 24 hours technology online support.
Application Industry and Materials:
Advertising industury: Cnc router can engrave all kinds of signage,logo products, trademarks, nameplates, badges, decorative gift, embossed
medals, certificates, souvenirs, photo frames, furniture decoration, PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry:
In the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
1212 cnc router Technical specification :
Model: | ALLWIN-1212M |
Machine body: | welded machine frame |
X,Y-axis working area : | 1200*1200mm |
Z-axis working area: | 120 mm |
Max. Speed: | 25000mm/min |
Working speed : | 0-15000mm/min |
Mechanical precision: | 0.04mm/300mm |
Compatible Software: | Artcam |
Power source: | AC 220v(50HZ)/380v(60HZ) |
Driver type | stepper motors 450B& lead shine drivers M860 |
The transmission: | Rack and gear drive on X/Y axis; TBI ball screw drive on Z axis |
Guideway | HIWIN 20 square linear rails |
Spindle: | 3.0KW water cooling spindle |
Spindle speed: | 0~24000rpm |
Blade diameter: | 3.175mm/4mm/6/8/12.7mm |
Control system: | NC Studio / (Option : 3 axis DSP control system ) |
Command: | G code (uoo.mmg.plt.) |
Running circumstance temperature: | 0-45°C |
Relative humidity: | 30%-75% |
Other Optional machine parts | Dust collector Oil injection device Vacuum Worktable |

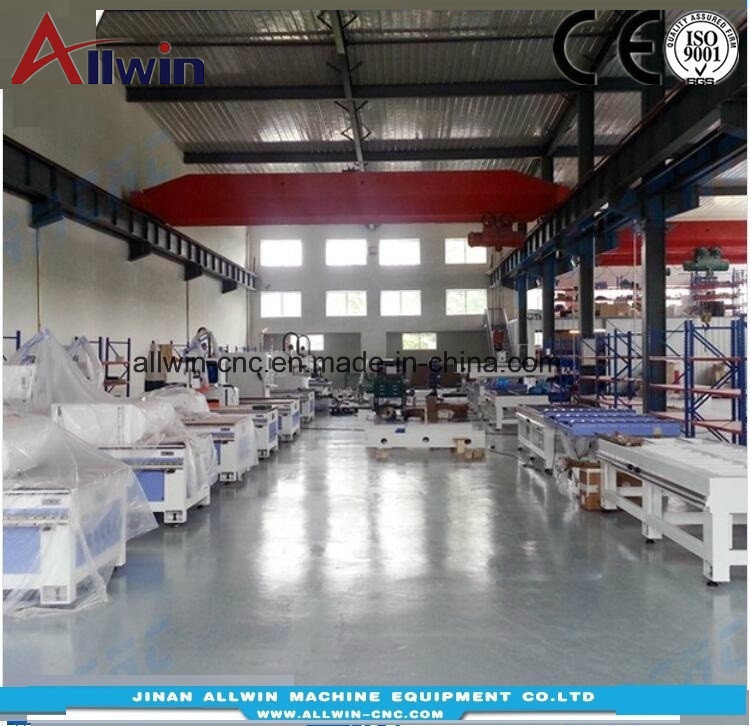

Factory:
Package and shipping:
Inside:Water-proof Plastic Film Package With Foam Protection
Outside:Solid Seaworthy Wood Box Package
Below: Steel Tube
FAQ:
1.How long about the machine's guarantee?
2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents
