Heavy Duty CNC Stone Marble Granite Engraving Machine 1300*2500mm

Heavy Duty CNC Stone Marble Granite Engraving Machine 1300*2500mm
Price: US $ 4000-6000set
Min Order: 1set
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Product Specifications


Prod Model: UG-1325
Working Area: 1300(X)mm*2500(Y)mm*300(Z)mm
Cooling: Stainless Steel Water Slot Cooling
Guide Rail: Linear Square Guide Rail ( Hiwin, Taiwan)
Transmission: Helical Rack &Pinion for X Y -Axis, Lead Ball Scre
Driving Mode: Delta Serv Motor and Driver
Spindle Motor: 5.5kw Water Cooling, Er25
Spindle Speed: 0-24000rpm
Control System: DSP A11e, 3 Axis, Richauto
Carving Instructions: G Code *Uoo *Mmg *Plt Hpgl
Lubrication: Automatically
Function: Lettering
Automation: Semi-automatic
Control: CNC
Current: AC
Application: Stone Industry
Application Material: All Kinds of Stone

Product Description

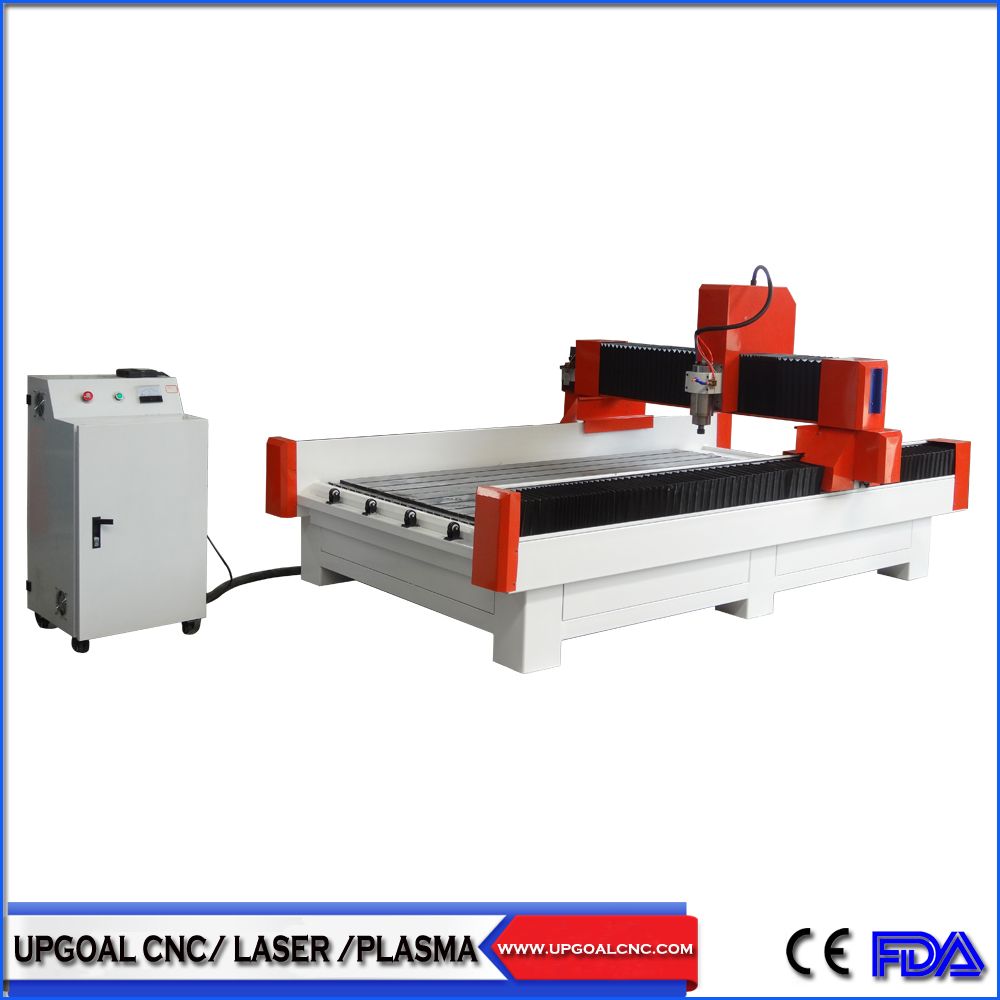

Heavy Duty CNC Stone Marble Granite Engraving Machine 1300*2500mm





Features

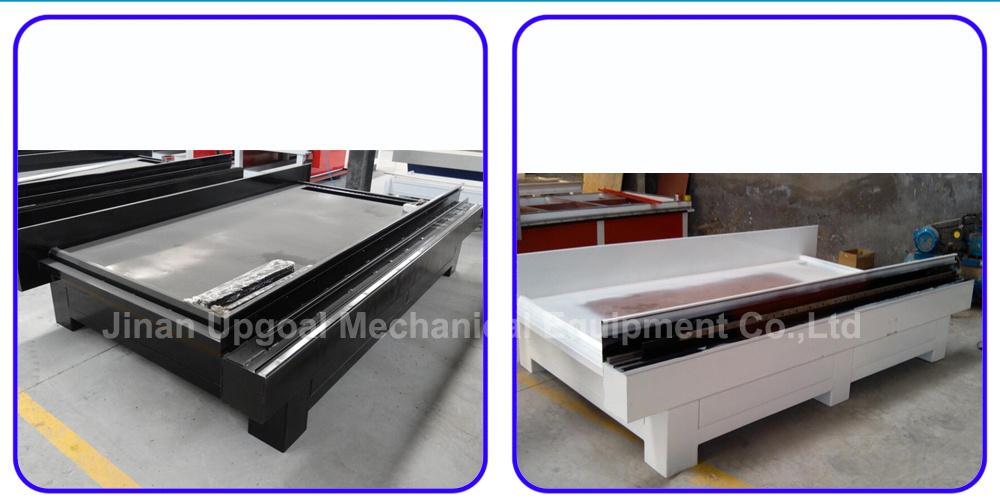

1. Adopted T type steel machine bed, strong rigidity, strong dynamics, ensuring the machine long time high speed moving and no deformation. Integrated stainless steel water slot with working table & machine body more convienient for water collection and circulation.



2. XYZ-axis adopted imported Hiwin, Taiwan linear square guide rail, high precision,fast speed and good wear resistance.

3. Heigh precision helical rack and pinion transmission for XY-axis,fast speed and powerful. Z-axis with double nut lead ball screw transmission, good weight capacity and stable moving.

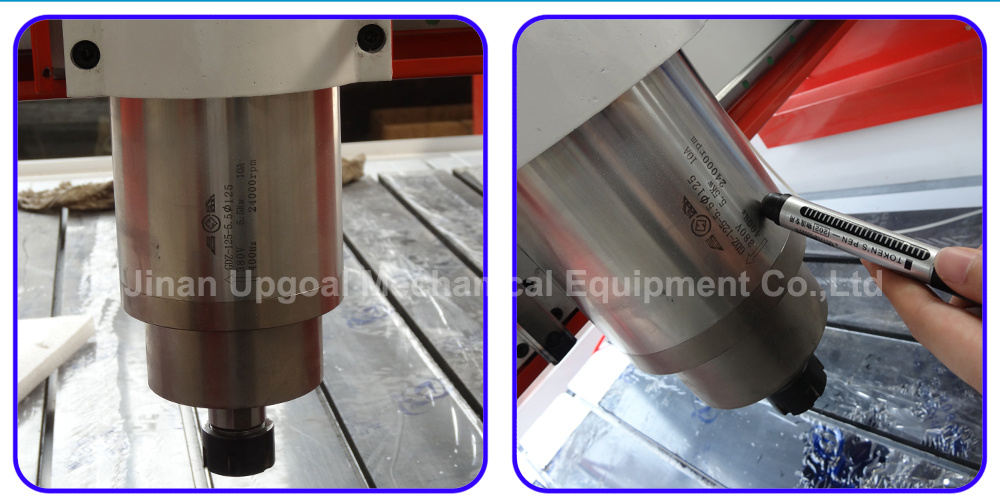

4. Powerful 5.5kw water cooling spindle, easy to engraving all kinds of stone, not only fine engraving, but also the bottom smooth and clear.

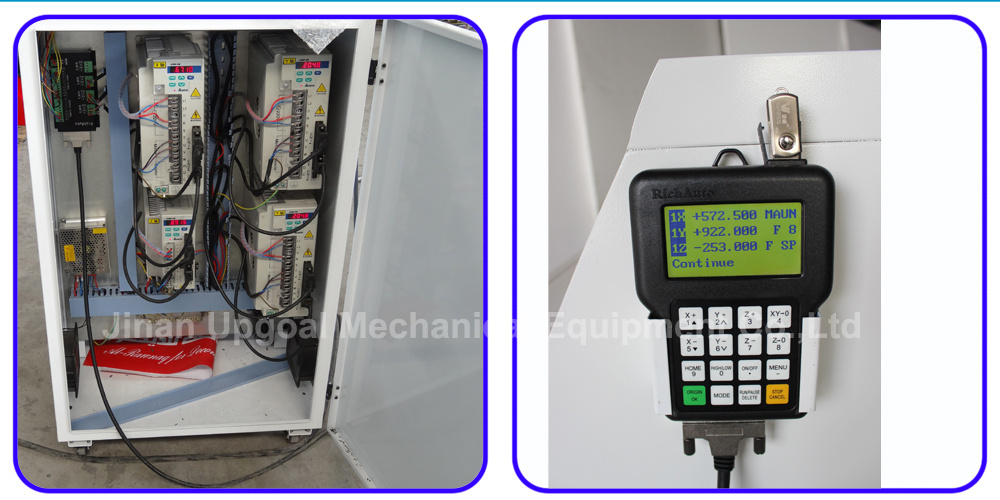

5. Delta servo motor and driver for XYZ-axis, high precision, faster speed and more stable than stepper motor and driver. Dual motor and driver for Y-axis,ensuring the stable moving.

6. DSP offline control system, when working no need computer, more convenient and easy to operate.



7. Bothway tools cooling system, effectively improve tools life time.

8. Special dustproof, waterproof device, effectively keep the transmission part cleaning and rust protection, more easy maintenance.

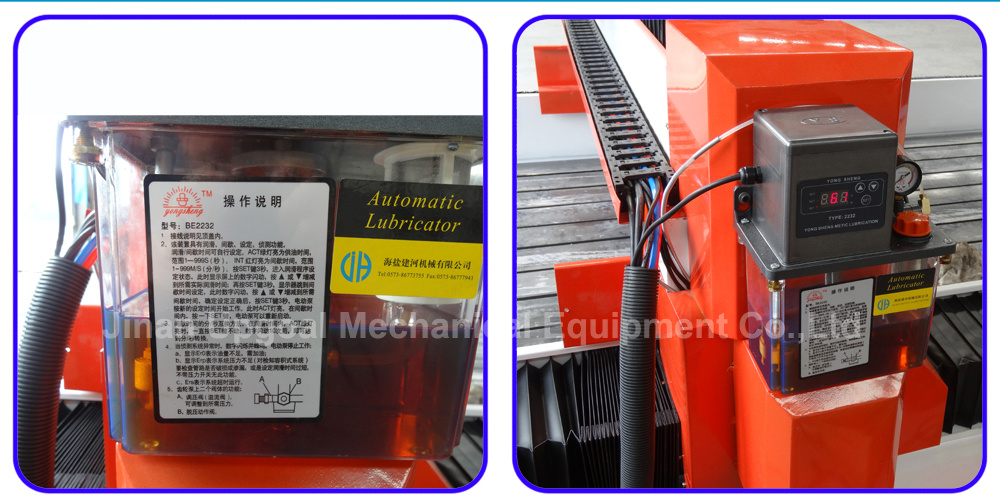

9. Auto lubrication sysetem, more convenient and easy for whole machine lubrication.



10. Auto tool calibration, accurate and convenient for Z-axis 0 point setting.

11.Special several processing 0 point saving method.

12. Memory of break point and power failure, ensuring continue working after breaking point or next time processing.

13. Advanced file processing function, can timely correct faults, and good compatibility for Type3/Artcam/Mastercam/Caxa such file. Advanced three dimensional curve forcast algorithm, stable broken line, ensuring the curve moving speed & precision.

Technical Parameters



Effective working area

1300(X)mm*2500(Y)mm*350(Z)mm

Materials

More thickness T type steel pipe welded machine holder bed, cast iron gantry

Working table

Aluminum T slot

Cooling system

Stainless steel water slot cooling

Moving type

Gantry moving

Guide rail

Linear square guide rail ( Hiwin, Taiwan)

Transmission

Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis

Driving mode

Delta servo motor and driver for XYZ-axis

Spindle motor

5.5kw water cooling

Spindle speed

0-24000rpm

Inverter

Delta,Taiwan

Voltage

AC 380V±10%, 50/60Hz, three phases

Traveling speed

>28000mm/min

Engraving speed

>15000mm/min

Machine accuracy

0.01mm

Control system

DSP offline control system (RichAuto, A11E)

Suitable software

Artcam, Type3, Ucancam V9,etc

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running environment temperature

0-45 ºC

Relative humidity

30%-75%

Lubrication system

Auto

Tool calibration

Auto

Certificate

CE


Application

Mainly used for natural marble, granite, artificial stone, tombstone, milestone, tile, glass, bluestone,sandstone, crystal, microlite,mural, village tablet inscription, decoration skirting line,...such relief engraving, singlet line, character, flat pattern engraving, with rotary axis, can for stone cylinder,breast board, handrail, dragon columns,figure of Buddha...engraving.
