| Price: | US $ 4000-6000set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | UG-1318 |
|---|---|
| Working Area: | 1300*1800*350mm |
| Working Table: | Aluminum T Slot |
| Guide Rail: | Linear Square Guide Rail ( Hiwin, Taiwan) |
| Transmission: | Helical Rack &Pinion for X Y -Axis, Lead Ball Scre |
| Driving Mode: | Stepper Motor (86bygh450b) and Driver |
| Spindle Motor: | 5.5kw Water Cooling, Er25 |
| Cooling System: | Stainless Steel Water Slot |
| Control System: | PCI Ncstudio |
| 4th Axis: | Rotary Axis, Diameter 300mm, Working Length 1200mm |
| Lubrication: | Semi-Auto |
| Function: | Lettering |
| Automation: | Semi-automatic |
| Control: | CNC |
| Current: | AC |
| Application: | Stone Industry |
| Application Material: | All Kinds of Stone |

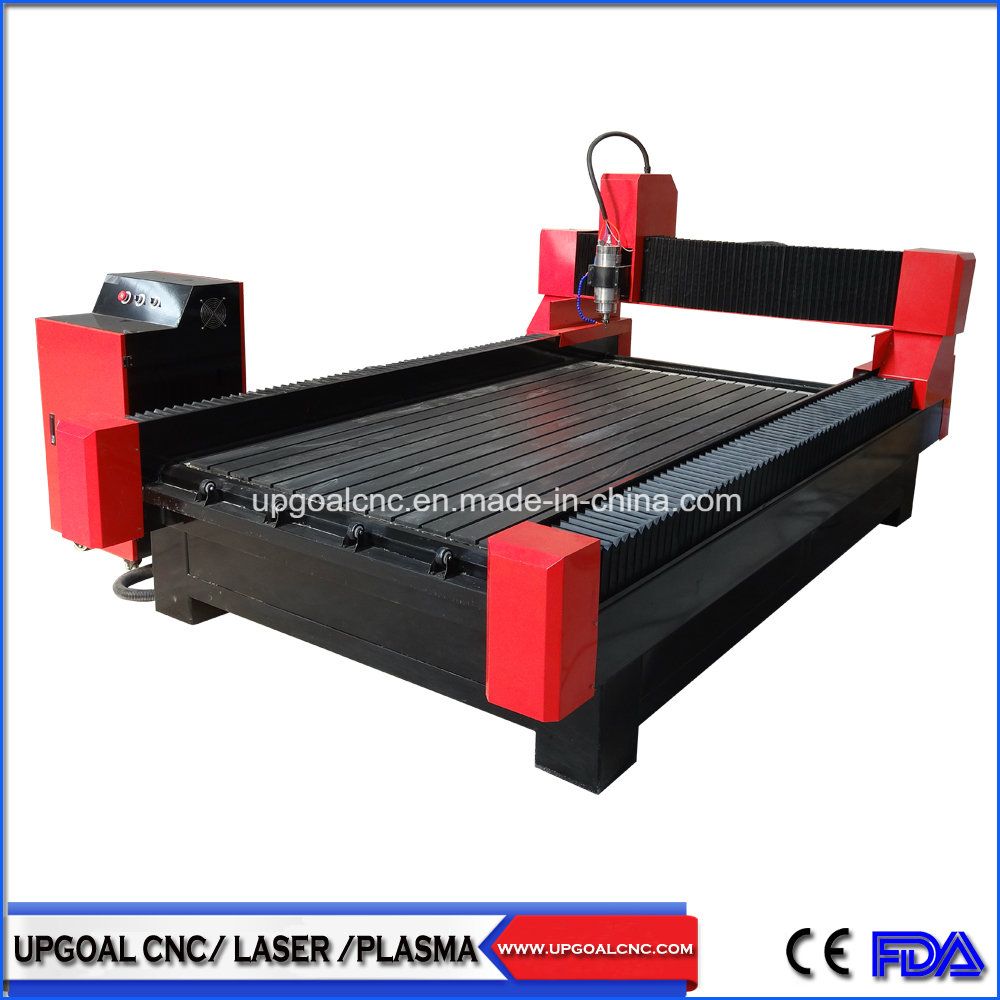

1300*1800mm 4 Axis Heavy Duty Stone CNC Router Engraving Machine
Features

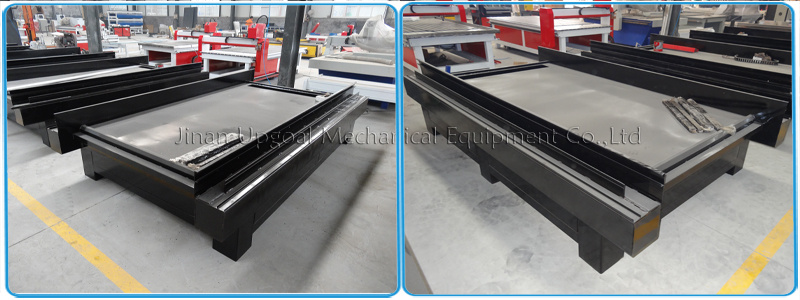

1. Adopted heavy duty steel machine bed, strong rigidity, strong dynamics, ensuring the machine long time high speed moving and no deformation. Integrated stainless steel water slot with working table & machine body more convienient for water collection and circulation.

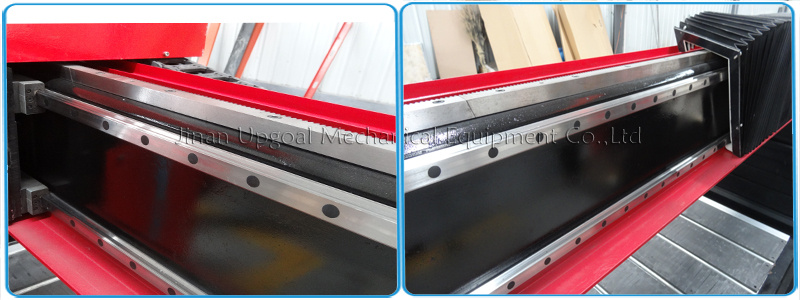

2. XYZ-axis adopted imported Hiwin, Taiwan linear square guide rail, high precision,fast speed and good wear resistance.
3. Heigh precision helical rack and pinion transmission for XY-axis,fast speed and powerful. Z-axis with double nut lead ball screw transmission, good weight capacity and stable moving.

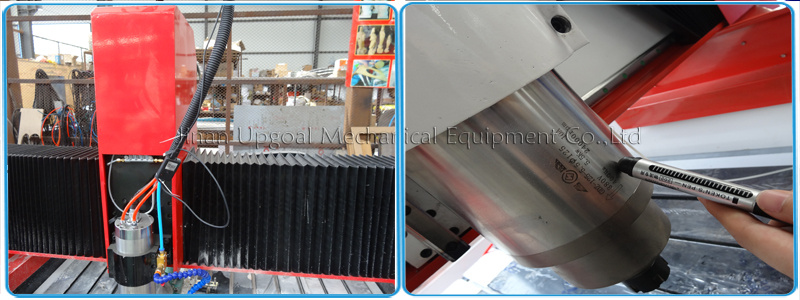

4. Powerful 5.5kw water cooling spindle, easy to engraving all kinds of stone, not only fine engraving, but also the bottom smooth and clear.

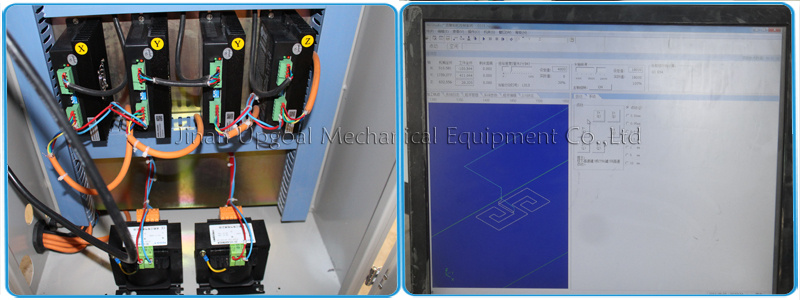

5. Powerful stepper motor and driver for XYZA-axis, high precision, faster speed and more stable than stepper motor and driver. Dual motor and driver for Y-axis, ensuring the stable moving.
6. PCI NcStudio control system, showing the processing path and estimate processing time, more convenient and easy to operate.
7. Bothway tools cooling system, effectively improve tools life time.
8. Special dustproof, waterproof device, effectively keep the transmission part cleaning and rust protection, more easy maintenance.

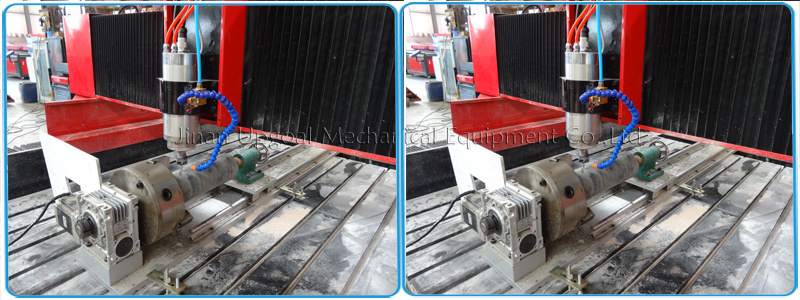

9. 4th Axis rotary axis diameter 300mm, working length 1200mm for stone cylinder engraving.
10.Auto lubrication sysetem, more convenient and easy for whole machine lubrication.
11. Auto tool calibration, accurate and convenient for Z-axis 0 point setting.
12.Special several processing 0 point saving method.
13. Memory of break point and power failure, ensuring continue working after breaking point or next time processing.
14. Advanced file processing function, can timely correct faults, and good compatibility for Type3/Artcam/Mastercam/Caxa such file. Advanced three dimensional curve forcast algorithm, stable broken line, ensuring the curve moving speed & precision.
Technical Parameters
Effective working area | 1300(X)mm*1800(Y)mm*450(Z)mm |
Materials | More thickness T type steel pipe welded machine holder bed, cast iron gantry |
Working table | Aluminum T slot |
Cooling system | Stainless steel water slot cooling |
Moving type | Gantry moving |
Guide rail | Linear square guide rail ( Hiwin, Taiwan) |
Transmission | Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis |
Driving mode | Stepper motor and driver for XYZA-axis |
Spindle motor | 5.5kw water cooling |
Spindle speed | 0-24000rpm |
Inverter | Sunfar |
Voltage | AC 380V ± 10%, 50/60Hz, three phases |
Traveling speed | >28000mm/min |
Engraving speed | >15000mm/min |
Machine accuracy | 0.03mm |
Control system | PCI NcStudio control system |
Suitable software | Artcam, Type3, Ucancam V9,etc |
Carving Instructions | G code *Uoo *mmg *plt HPGL |
Running environment temperature | 0-45 ºC |
Relative humidity | 30%-75% |
Lubrication system | Auto |
Tool calibration | Auto |
Certificate | CE |
Application
Mainly used for natural marble, granite, artificial stone, tombstone, milestone, tile, glass, bluestone,sandstone, crystal, microlite,mural, village tablet inscription, decoration skirting line,...such relief engraving, singlet line, character, flat pattern engraving, with rotary axis, can for stone cylinder,breast board, handrail, dragon columns,figure of Buddha...engraving.
