Zh-1325 Wood Curving CRC Router/Engraving Machine

Name: Zh-1325 Wood Curving CRC Router/Engraving Machine
Brand: china-crystals.com
SKU: 800947145
Availability: InStock
Rating: 4.9 (148 reviews)

Price:	US $ 6000-7300/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	ZH-1325H
Weight:	1000kg
Spindle Power:	4.5kw
Spindle Speed:	0-24000r/Min
Operating Voltage:	AC220V/50Hz
Max Speed Of Running:	20m/Min
Max Speed Of Engraving:	10m/Min
Platform Size:	1620*3070mm
Max Feed Thickness:	100mm
Resolution:	0.05mm
Warranty:	1year

Product Description

Zh-1325 wood curving crc router/Engraving Machine

Technical Parameters:

No.	Description	Parameter
1	X,Y,Z Working Area	1300mmx2500mmx120mm
2	Table Size	1620mm×3070mm
3	Resolution	0.05mm
4	X,Y,Z Repositioning Accuracy	±0.1mm
5	Frame	Welded steel tube structure
6	Inverter:	Chinese Fuling Inverter/Taiwan Delta Inverter

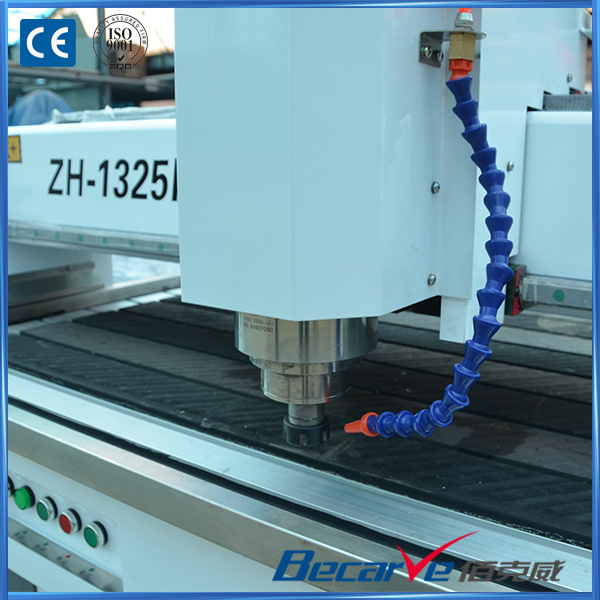

7	Spindle	CS water colling spindle/ Italy HSD air cooling spindle
8	Limit switch	Japan Omron limit switch
9	Oil LubricationSystem	Manual
10	X, Y Structure	Rack and Pinion Drive, Hiwin Square Rail
11	Z Structure	Hiwin Square Rail and Ball Screw
12	Max. Rapid Travel Rate	20000mm/min
13	Max. Working Speed	15000mm/min
14	Spindle Power	3.5/4.5/5.5/6 KW
15	Spindle Speed	0-24000RPM
16	Motors	450B stepper/Yaskawa servo
17	Working Voltage	380V/220V
18	Command Language	G Code
19	Operating System	NK105 DSP
20	Computer Interface	USB
21	Collet	ER25
22	X,Y Resolution	<0.03mm
23	Software Compatibility	Artcam Software (Option: Type3 Software)
24	Running Environment Temperature	0 - 45 Centigrade
25	Relative Humidity	30% - 75%
26	Packing Size	3100mmX2100mmX1600mm
27	N.W.	950KG
28	G.W.	100KG
29	Optional Parts	Air Cooling Spindle or Water Cooling Spindle
		Syntec Control System
		Dust Collector
		Vacuum Pump
		Rotary System
		Mist-cooling System

Application Industry and Materials:

Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside cabinets,folding screen etc.

The advertising Industry:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards(drilling and engraving),Double color boards,acrylic etc.

Artwork Industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.

Exhibition Industry: Showcases, etc.

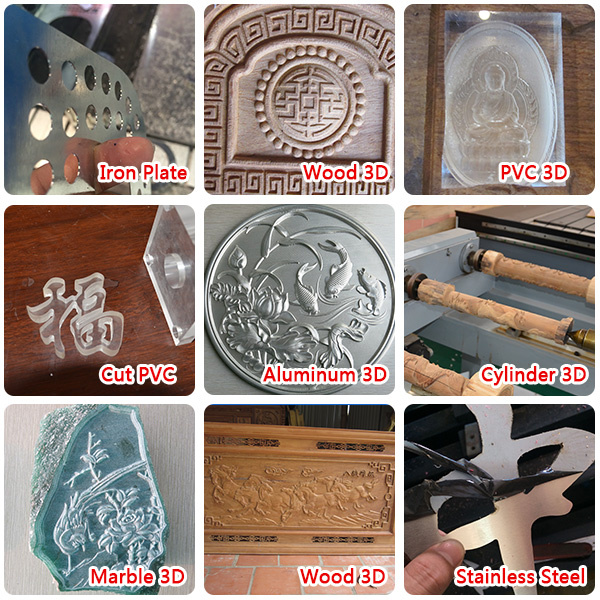

Samples:

Main products:
1.ZH-1325H multi-function cnc router
2.ZH-1325L
3.ZH-S5000 Automatic tool cnc machine
4.ZH-S1000 woodworking machinery
5.ZH-S3000 high precision Mini letter&metal engraving machine
6.ZH-1325V heavy type aluminum cuttingand engraving machine
7.ZH-1325S
8.ZH-4015Y4T cylinder wood machine
9.Acrylic Transparent Teching Machine
10.Laser Welding Machine

Exhibition:

FAQ:
1. Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
2. Is the sample available?
Yes, samples are available for you to test the quality.
3. Have the products been tested before shipping?
Yes, all of our bearings have been tested before delivery.
4. What's benefit will you bring?
Your clients will be satisfied of the quality.
Your clients continue orders.
Your can get good reputation from your market and obtain more orders.

After-sales service:

1). one year free warranty under normal use and we give maintenance for life

2). 12 hours service on Internet and Telephone, free instructions and problem solving

3).Free training provides. We could dispatch engineer overseas, the buyer should pay the fly ticket and accommodation

Agents Wanted: We are finding agents all over the world.

Any question, please email me or call me directly or chat with me online.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Our company adheres to the business philosophy of 'reliable quality, reasonable price, permanent security'; Insisting on the business strategy of 'the inner management, external word-of-mouth, first-rate service, constant innovation'; Promoting new scientific and technological achievements with high quality products, good reputation, and high-quality after-sale service; Considering the customers' benefit. Doing all of the above, our company not only take a bigger market share, but also obtains the customers' and the cooperative partners' trust.

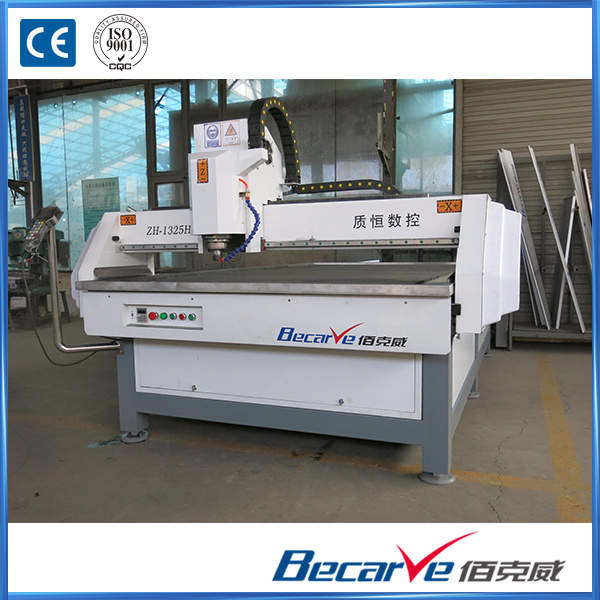

Product Introduction: Becarve CNC router 1325 series, such as1325-H, 1325-V, are applicable for various metal and non-metal sheets cutting, milling and engraving utilized and required in advertising and upholster industry. The working table dimension of this series is 1300mmX2500mm which is the maximum size for applicable sheet.
