| Price: | US $ 1450-2000/Ton |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Ton |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | XT-MS 3A |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | Light Grey |
| Size: | 1.7-2.5mm 3.0-5.0mm |
| Certificated: | ISO9001:2008 |
| Who We Are: | Manufacture |
| Bulk Density: | 0.7g/Ml |
| H2O Adsorption: | >21% |
| Shape: | Sphere |
| Sorbent: | Molecular Sieves |
| Desiccant: | Chemical Desiccant |
| Drying Method: | Desiccant |
| Model | 3A | |||
| Color | Light gray | |||
| Nominal pore diameter | 3 angstroms | |||

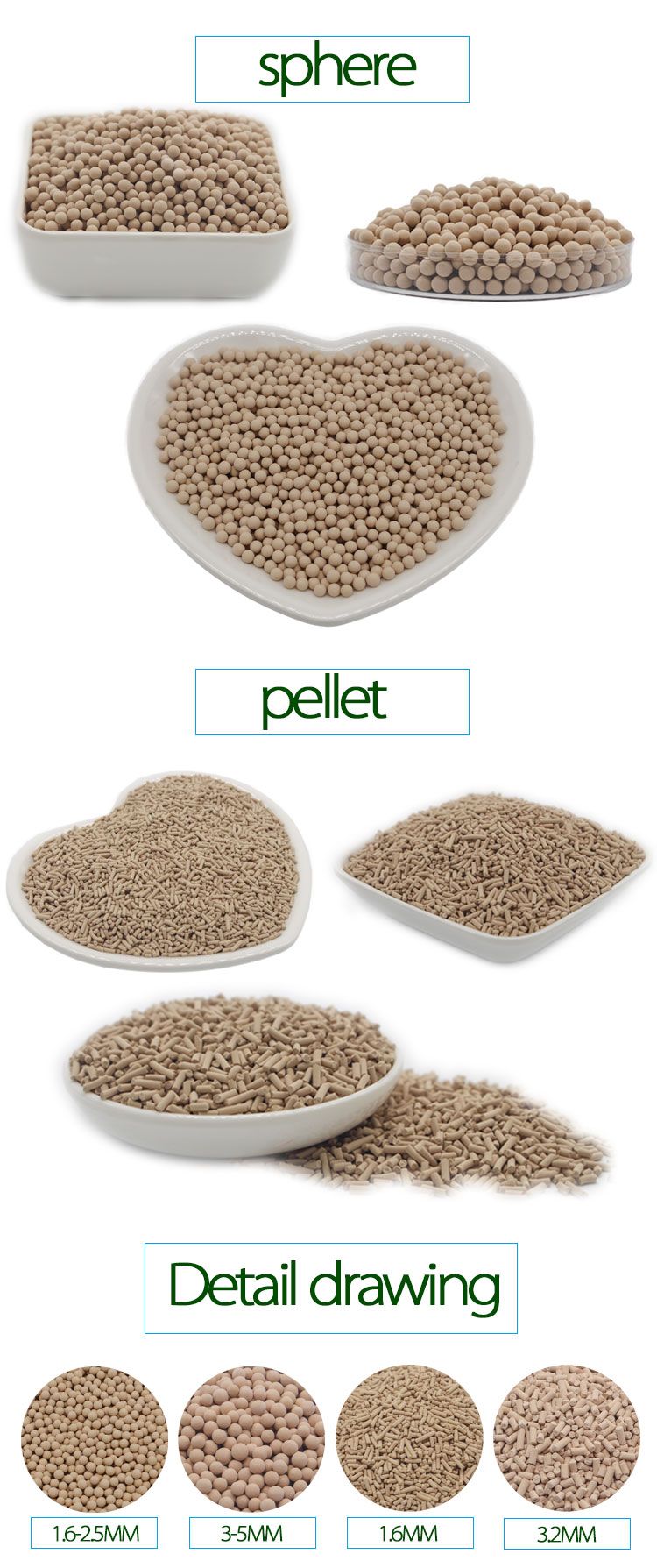

| Shape | Sphere | Pellet | ||
| Diameter (mm) | 1.7-2.5 (8*12 mesh) | 3.0-5.0 (4*8 mesh) | 1.6 (1/16 inch) | 3.2 (1/8 inch) |
| Size ratio up to grade (%) | ≥98 | ≥98 | ≥96 | ≥96 |
| Bulk density (g/ml) | ≥0.70 | ≥0.70 | ≥0.68 | ≥0.68 |
| Wear ratio (%) | ≤0.20 | ≤0.20 | ≤0.40 | ≤0.40 |
| Crushing strength (N) | ≥35/piece | ≥85/piece | ≥30/piece | ≥50/piece |
| Static H2O adsorption (%) | ≥21 | ≥21 | ≥21 | ≥21 |
| Dynamic capacity (%) | ≥20 | ≥20 | ≥20 | ≥20 |
| Ethylene adsorption (‰) | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 |
| Water content (%) | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
| Typical Chemical Formula | 0.4K2O . 0.6Na2O . Al2O3 . 2SiO2 . 4.5 H2O (SiO2 : Al2O3 ≈2) | |||
| Typical Application | a) Drying of unsaturated hydrocarbons (e.g. ethylene, propylene, butadien) b) Cracked Gas Drying c) Drying of natural gas, if COS minimization is essential, or a minimum co-adsorption of hydrocarbons is required. d) Drying of highly polar compounds, such as methanol and ethanol e) Drying of liquid alcohol f) Static, (non-regenerative) dehydration of insulating glass units, whether air filled or gas-filled. g) Drying of CNG. | |||
| Warranty: | a) By National Standard GBT 10504-2008 b) Offer lifetime consultation on problems occurred | |||
