Product Specifications
| Prod Model: |
EBZ132L |
| Traveling Speed: |
0~6m/Min |
| Weight Of The Largest Non-Detachable PAR: |
5159kg |
| Product Name: |
XCMG Official Ebz132L Boom-Type Roadheader for Sal |
| Total Weight: |
38.6ton |
| Cutting Depth: |
270mm |
| Ground Clearance: |
220mm |
| Gantry Height: |
400mm |
| Electric Cutting Motor (Kw): |
132kw |
| Oil Pump Motor: |
75kw |
| Maximum Heading Height: |
3.5m |
Product Description
Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.

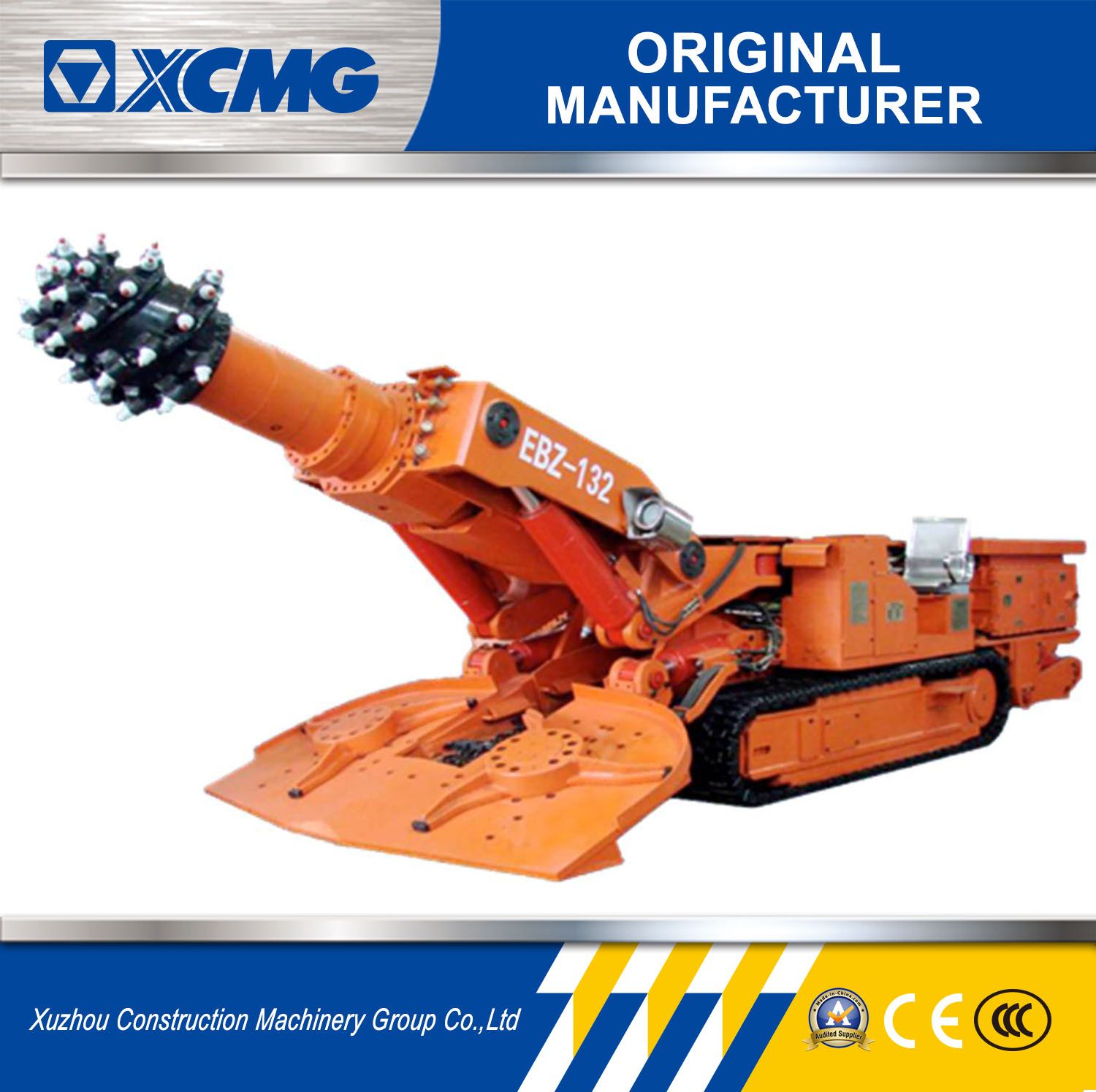

xcmg official EBZ132L Boom-type Roadheader for sale
[Product Description]
Roadheader series product is modern mechanical equipment for roadway excavation, covering over 10 specifications, types of light weight, medium weight and heavy weight with cutting power of 50KW to 315KW, cutting hardness of f4 to f12, which is applicable for the rapid excavation of coal, semi-coal and whole-rock roadway with cutting cross section of 3.8 to 42m2 and also applicable to the excavation of other mines, highway, railway and roadway of water conservancy project under similar condition.
EBZ132L boom-type roadheader, applicable to thin-seam and small-section coal roadway or semi coal-rock roadway, is a kind of integrated heading equipment which integrates cutting, shipping and walking.
Special design of low body (body height: 1.4m), underslung, with high stability and great grade ability;
Adopt fixed head, with good rigidity and high strength; suitable for semi coal-rock roadway;
Adopt small-diameter cutting head, with strong single-pole force, reasonable cutting pick arrangement, strong cutting capacity, low cutting vibration and high working stability;
Adopt imported low-speed and high-torque motor of international brand (Rexroth, Germany) for the loading mechanism and arc-shaped three-gear star wheel (directly-driven), to minimize coal reclaiming and improve the loading efficiency;
Adopt narrow shovel plate (2.6m), imported wearing plate for panel and base plate welding, with strong adaptability and long service life;
Adopt NORD-LOCK washer (American patent) for the joint of critical components, to avoid loosening under strong vibration;
The electrical system is equipped with the function of dynamic liquid crystal display in Chinese characters and hydropower closure; the electric cabinet adopts anti-shock design for semi coal-rock roadway heading.
[Product Parameter]
| Total length (m): | 8.92 | Rotate speed of the star wheel (r/min): | 36 |
| Total width (m): | 2.60 | Scraper chain speed (m/min): | 61 |
| Total height (m): | 1.40 | Traveling speed (m/min): | 0~6 |
| Total weight (t): | 38.6 | Dimension of the largest non -detachable part (m): | 3.24×1.39×1.29 |
| Cutting depth (mm): | 270 | Weight of the largest non-detachable part (kg): | 5159 |
| Ground clearance (mm): | 220 | Power supply voltage (V): | AC1140/660 |
| Gantry height (mm): | 400 | Electric cutting motor (kW): | 132 |
| Grade ability: | ±18° | Oil pump motor (kW): | 75 |
| Pressure to the ground (Mp): | 0.14 | System pressure (Mpa): | 18 |
| Maximum heading height (m): | 3.5 | Variable piston double pump (ml/r): | 145+145 |
| Maximum positioning heading width (m): | 4.7 | Travel motor (ml/r) | 125 |
| Rotate speed of the cutting head (r/min) | 44 | Shovel plate motor (ml/r): | 1340 |
| Head expansion range (m): | Fixed | The first conveyor motor (ml/r): | 400 |
| Economic cutting hardness (Mp): | ≤75 | Traction (kN): | ≥200 |
[Company Information]
Company profile
XCMG is a construction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5 in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-moving machinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment. Our other businesses include finance, leasing, and remanufacturing.
At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.
So, how do high-pressure hydraulic oil get? Each truck crane is equipped with a hydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.
Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet a variety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of a large deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides a basis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
