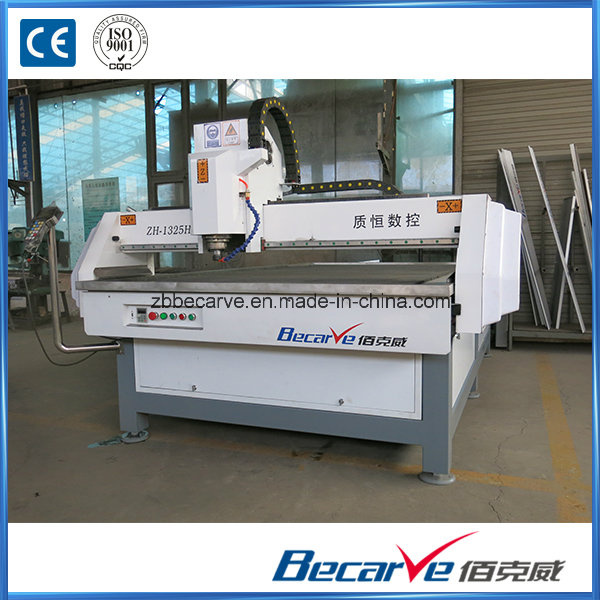

Wood Working Engraving Cutting CNC Router with Ce ISO: 9001 Certificate
| Price: |
US $ 6000-7300/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
ZH-1325H |
| Weight: |
1000kg |
| Spindle Power: |
4.5kw |
| Spindle Speed: |
0-24000r/Min |
| Operating Voltage: |
AC220V/50Hz |
| Max Speed Of Running: |
20m/Min |
| Max Speed Of Engraving: |
10m/Min |
| Platform Size: |
1620*3070mm |
| Max Feed Thickness: |
100mm |
| Resolution: |
0.05mm |
| Warranty: |
1year |
Product Description
Product Description
Wood Working Engraving Cutting CNC ROUTER with CE ISO:9001 Certificate1. Machine Features of Wood Working Engraving Cutting CNC Router1) Vacuum table can fix materials of different sizes effectively
2)Taiwan original silver guide, high precision,Large load bearing and stable running.
3) Gantry-travelling, sturdy, reliable and stable, non-deforming, high locating accuracy.
4) Use servo/stepper motor drive, select matching to ensure smooth movement.
5) DSP control system, with U disk available and not need computer
( can be completely off-line operation. ), provides high independence and great convenience for operation.
6) Unique ability to save several point of origin on several workpieces.
7) No engraving saw-tooth, smooth undersurface, legible contour, by high-power spindle.
8) Auto seeking original point system, a good way to improve the working effeciency.
9) Large compatibility of drawing software, such as Type3, artcam and some other CAD or CAM. 2. Application Industry and Materials: Wood CNC router is widely used in furniture industry, furniture decoration
Industry, woodworking decoration industry, musical instrument industry,
Wooden crafts industry, etc. And this machine is suitable for large area
Plate engraving, solid wood furniture engraving, solid wood art murals carving, MDF carving and cutting, etc.
---Woodworking Industry: Stereo wave board processing, wooden door,
Various furniture product auxiliary processing.
---Advertising Industry: Advertising label, PVC plate, PCB board
(drilling and engraving), Double color boards, logo production, acrylic cutting, plastic suction for making advertising dedication, word cutting,
Sign making, crystal word, LED display screen, kinds of doorplate,
Nameplate and so on.
---Mold Industry: Apply for carving various molds, wood pattern, Foam mould,
And metal mold, etc.
---Musical instrument industry: Instrument 3D surface engraving, shape cutting
---Wooden crafts.
---Exhibition industry: Showcase, etc.
Samples of CE Approved China Wood Working Engraving Cutting CNC Router for reference :3.Features:·We have been in this industry for more than 10 years.·Free sample will be offered to check the quality·We past ISO9001; CE etc. certificate·OEM and ODM sevice·Competitive price with high quality.4.Products:| Brand | BECARVE |
| Model | ZH-1325 |
| Dimensions | 3070*2050*1480mm |
| X,Y Axis Travel | 1300*2450mm |
| Z Axis Travel | 100mm |
| Platform size | 1620*3070mm |
| Maximum speed of running | 20m/min |
| Maximum speed of engraving | 10m/min |
| Resolution | 0.05mm |
| Reposition accuracy | 0.1mm |
| Maximum feed thickness | 120mm |
| Command | G Code*u00*.plt* |
| Software operating environment | Windows98/2000/xp |
| Weight | 1000kg |
| Operating voltage | AC220V/50HZ |
| Spindle power | 4.5KW |
| Spindle speed | 0-24000r/min |
5.Company information:ZIBO BECARVE MECHANICAL AND ELECTRICAL EQUIPMENT CO., LTD. is specialized in machinery manufacturing and stainless steel product processing, which relate to power sector, healthcare industry, advertising industry, and public signs industry. In 2006, we set up the specialist CNC engraving machine R&D department, and through the introductions of professional designers and technicians and adoption of hi-tech components in production, our CNC engraving machine registered as the brand name BECARVE has obtained wide acknowledge and users' high consensus. Alongside general functions of CNC routers, BECARVE CNC engraving machines can further enforce sophisticated cutting on stainless steel plate, steel plate, copper plate, aluminum plate, without using air cooling, water cooling, oil cooling auxiliary facilities. Therefore, as you choose BECARVE CNC engraving machine, you have obtained a broader scope of business. Besides, we can customize and individualize our product according to your requirement. We look forward to innovating with you and opening up a promising future. 6.Main products:1.ZH-1325H
2.ZH-1325L
3.ZH-1325IIA
4.ZH-1325M
5.ZH-S3000
6.ZH-1325V
7.ZH-1325S
8.ZH-4015Y4T
9.Acrylic Transparent Teching Machine
10.Laser Welding Machine

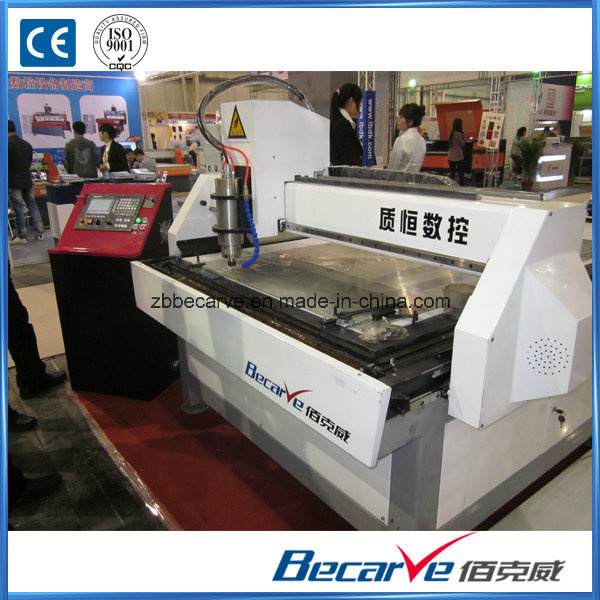

11.CNC Bending Machine7.Exhibition:
8.Packages1.Water-proof plastic film package with foam protection in each corner.
2.Solid Seaworthy Wood Box Package with Steel Belt.
3.Save space as much as possible for container loading.
4.According to the requirement of customers9.Guarantee& After Sales Service:1) The whole machine guarantee is 12 months except for special parts.
2) 24 hours technical support by phone, email or MSN, skype etc. 10.FAQ:How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
How about Guarantee & After Sales Service?
The machine guarantee is 12 months. 2) 24 hours technical support by phone, email or MSN, skype etc.
If some problems happened to this machine during warranty period, what should I do?
We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever, so any doubts, just let us know, we will give you solutions in 24 hours.
What is the MOQ?
MOQ for our products is 1 set machine, we could send it to your country port if you tell detail information about your country port.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
Our company adheres to the business philosophy of 'reliable quality, reasonable price, permanent security'; Insisting on the business strategy of 'the inner management, external word-of-mouth, first-rate service, constant innovation'; Promoting new scientific and technological achievements with high quality products, good reputation, and high-quality after-sale service; Considering the customers' benefit. Doing all of the above, our company not only take a bigger market share, but also obtains the customers' and the cooperative partners' trust.
Product Introduction: Becarve CNC router 1325 series, such as1325-H, 1325-V, are applicable for various metal and non-metal sheets cutting, milling and engraving utilized and required in advertising and upholster industry. The working table dimension of this series is 1300mmX2500mm which is the maximum size for applicable sheet.
