Product Specifications
| Prod Model: |
FLC1290 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Automatic |
| Type For Cutting Machine: |
Laser Cutting Machine |
| Working Area: |
1200*900mm |
| Laser Power: |
80W/100W/130W |
| Max Cutting Speed: |
30000mm/Min |
| Max Engraving Speed: |
60000mm/Min |
| Graphic Format Supported: |
BMP, Plt, Dst, Dxf, Ai |
| Software Supported: |
Coreldraw, Photoshop, Autocad, Tajima |
Product Description

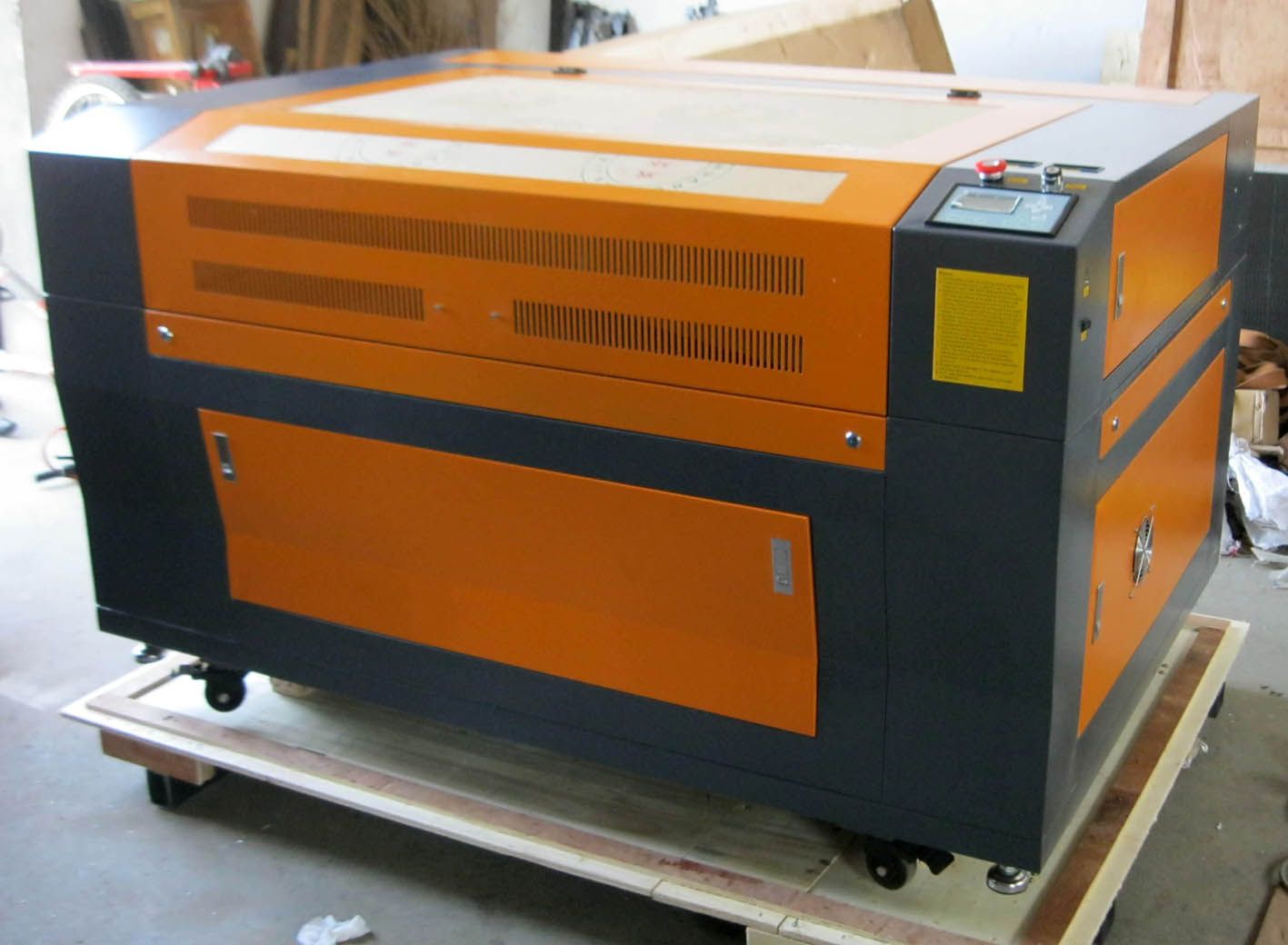

FL1290 Laser engraving cutting machine
Features: This laser cutting machine take CO2 laser tube as thermal source, this machine is developed in combination with of electronic technology, mechanical technology and computer. The laser top doesn't contact the object being engraved and therefore it won't hurt the surface of the object and get small cutting slot. It has high precision and it is the ideal choice for many processing industries.
Specifications:1) Laser-type: Sealed CO2 laser tube
2) Laser power: 90W/100W/130W
3) Engraving area: 1200 x900mm
4) Engraving speed: 0-60, 000mm/min
5) Max cutting speed: 0-30, 000mm/min
6) Laser output control: 1-100% software setting
7) Location precision: Less than 0.01mm
8) Highest scanning precision: 2500DPI
9) Operating temperature: 0 - 45
10) Operating humidity: 5- 95%.
11) Minimum shaping character: English 1.0 x 1.0mm
12) Graphic format supported: BMP, PLT, DST, DXF, and AI

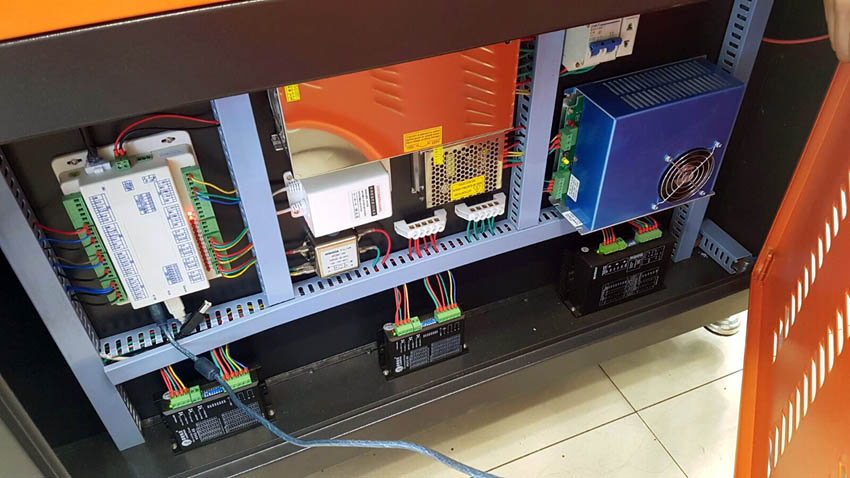

13) Driving system: Stepper
14) Cooling mode: Water-cooling and protection system
15) Auxiliary equipments: Exhaust-fans, air-exhaust pipe, air pump, water pump
16) Controlling software: DSP control system.
17) Compatible Software: TAJIMA, CorelDraw, AutoCAD, Photoshop
18) Slope Engraving: Yes, 360 degree can be easily designed.
19) Color separation: Yes
Applicable Industries: Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc. Applicable Materials: Non-metal materials such as double color boards, acrylic, glass, wood planks, bamboo, rubber, plastic, garments, paper, leather, marble, granite, tiles and etc...
Flying Technology Development Limited. Was established in 2008. We are well known for our superior quality and service in the field of engineering and manufacturing of Laser Equipment and CNC Router that includes: Laser Engraving and Cutting Machine, CNC Router, CNC plasma cutting machine, Acryling Bending machine, Cutting Plotter, and so on.
Our company is the modern enterprise in combination with resarching, producing and selling, have excellent engineers, technical experts, etc. Each product has its enterprise standard. All of them have the strict quality testing departnment detection, complete with product standards. The product passed the European Union CE authentication and American FDA certificate, the products are sold in eighty countries. Most of the m- aterials which the product use for imported steel and electrical devices, true material anticipates, worth of the money. The employee of our company is very rigorous, serious and responsible. The product from design to production, every link excellence, plus factory's strict inspection so that making the product has excellent quality and minimum malfunction probalility.
Our company is famous for high quality and better after-sale service as the competitive price. Our products are widely used in the following industry, such as Woodworking, Advertising, Artmaking, Model, Electric, CAD/CAM Industry Model, Clothing, Package Printing, Marking, Laser Sealing and so on.
We are searching the distributors around the world. Hope we can cooperate for the world market.
