Product Specifications
| Prod Model: |
YJ-U370T |
| Name: |
Trolley Ultrasound Scanner |
| Keyboard: |
Light Floating International Standard |
| Probe Transducer Types: |
3.5 MHz Convex Probe |
| Zoom: |
10 Steps |
| Focus: |
Continuous Dynamic Focus |
| Memory: |
Cine Memory |
| Display: |
15 Inch High Resolution Monitor |
| Power: |
AC 100V to 240V |
| Gray Scale: |
256 |
| Detecting Depth: |
220mm |
| Classification: |
Imaging Diagnostic Equipment |
| Type: |
Ultrasound Scanner |
| Certification: |
ISO13485 |
| Group: |
Middle-aged and Old |
Product Description

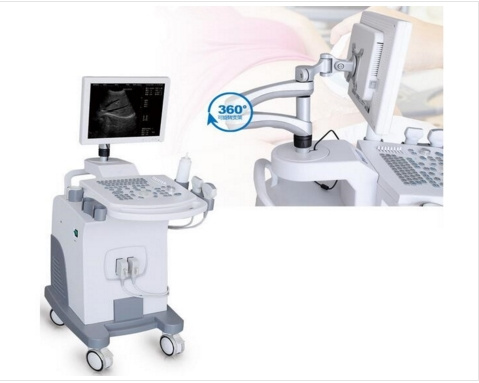

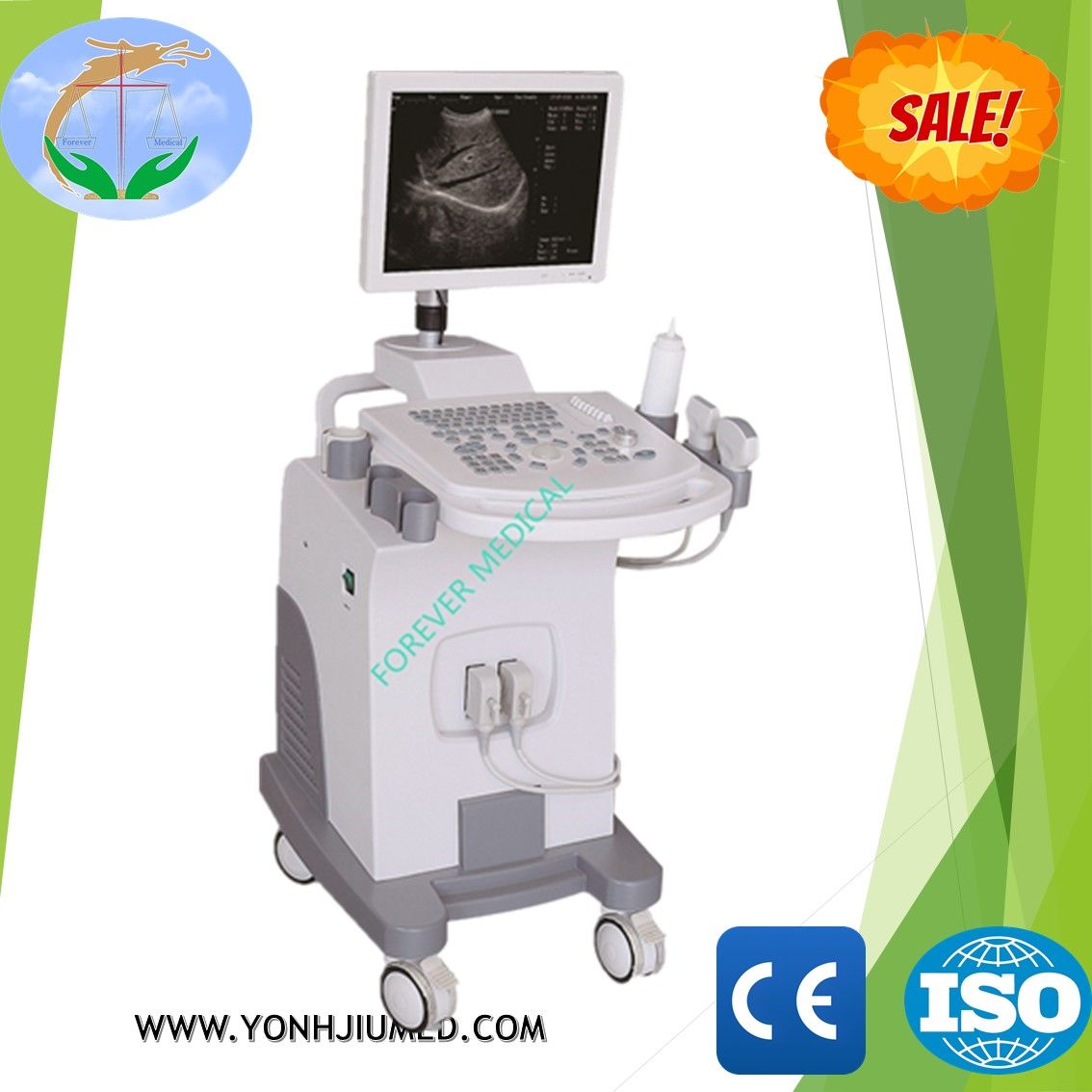

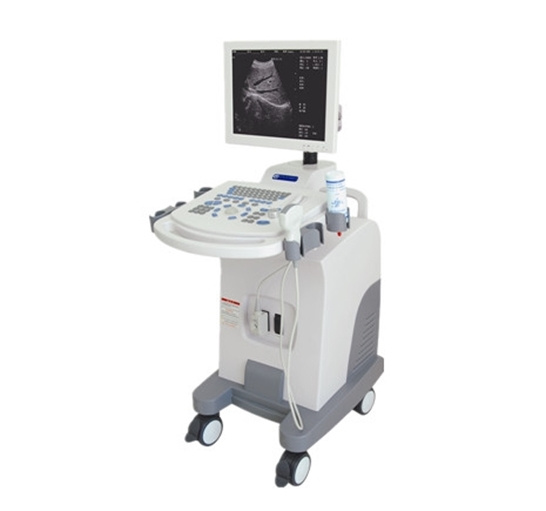

Wonderful Medical Trolley Ultrasound Similar with Mindray
Full Digital CE Approval Ultrasound Diagnostic System15 inch high quality LED liquid crystal monitor,
Exquisite image quality and excellent stability,
YJ-U370T Full-digital Trolley Ultrasound Scanne| Model | YJ-U370T |
| Display mode | B, B+B, 4B, B+M, M |
Human Body &Veterinary
Abdomen, Obstetrics, Gynecology, Pediatrics,Small parts, Artery,
Superficial organ, Orthopedics, Musculoskeletal, Vascular, etc.
Probe
Transducer Types
Probe | 5 Steps Multi-frequency |

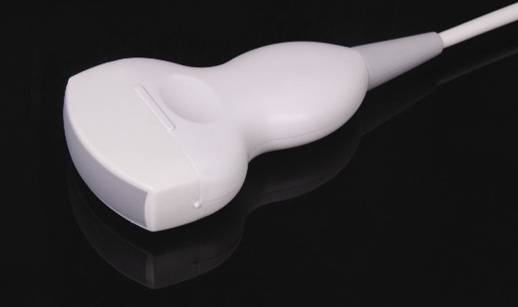

| 3.5Mhz convex probe | (2.0/ 3.0/ 3.5/ 4.0/ 5.5Mhz) |

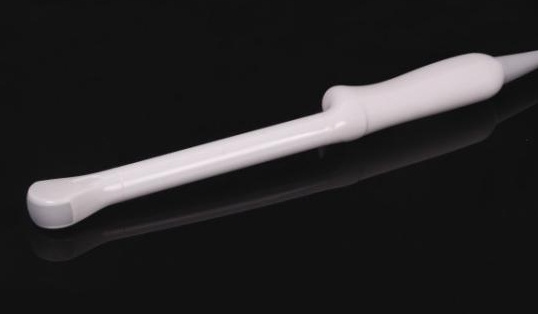

| 6.5Mhz transvaginal probe | (5.0/ 6.0/ 6.5/ 7.5/ 9.0Mhz) |

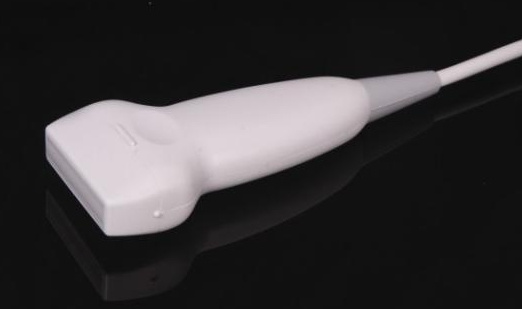

| 7.5Mhz linear probe | (6.0/ 6.5/ 7.5/ 10.0/ 12.0Mhz) |
| 3.5Mhz micro convex probe | (2.0/ 2.5/ 3.5/4.5/ 5.0Mhz) |
| 3.5Mhz phased array probe | (2.1/ 3.0/ 3.5/ 4.0/ 5.0Mhz) |
Main featuresFirst-class digital imaging technology, more clearer image:
Full-digital beam imaging technology
Real-time dynamic receiving focus point by point
Real-time dynamic sound velocity changed
High-accuracy DSC Digital image formation technology
Intelligentized 8-segment TGC adjustment
Progressive SMT components technology to ensure machine reliability
USB port: storable and readable
Flexible and convenient operating system:
15 inch LED liquid crystal display, angle range is more flexible to adjust
Back-lit keyboard silicon gel,more comfortable and wearable,
no trouble in using in the darkroom
Intelligentized menu,man-machine diaglogue is easy and quick
Puncture guide line can display under B mode, angle and position are adjustable
More magnification display, Disease diagnosis more accurate
USB storage is connected outside, more convenient to upload pictures
Large capacity of cine loop,image can display circularly and automaticallyTechnical specificationScanning mode: convex / linear / micro-convex
Probes: 96 elements convex probe,trans-vaginal probe, trans-rectal probe,
high frequency linear probe
Operation panel: user-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operation
Display mode: B, B+B, B+M, M, 4B
Detecting depth: ≥242mm
Resolution: lateral≤2mm, axial≤1mm
Blind Zone: ≤3mm
Geometry precision: lateral≤5%, axial≤5%
Gray scale: 256
Electronical focusing: 2 focuses combination randomly
Cine loop: 256 frames, realized in automatic successive playback
and manual single step forward, backward playback
USB port: storable and readable
Image storage: 8
Local zoom can be used at real time.
Magnification: ×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20,
×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.(16 kinds)
Body marks: 30
Probe interface: 2
Pseudo color: 7
Image processing:
up/ down, left / right, black / white convertion, edge enhancement, gamma correction, frame correlation, pseudo color processor( need external color display).
Measurement: distance, perimeter, area, volume, heart rate, gestational week,
FW, AFI, EDD , maternity table, heart package etc.
Note: date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion.
Output interface: PAL-D, SVGA (SVGA color monitor), USB port .
With the puncture guiding function, line position can be adjusted
With gravel positioning, dynamic target area tracking function Main power supply: AC220V±22V , 50/60HzStandard configuration
15 inch high resolution Led monitor
3.5MHz Multi-frequency convex probe(2.5MHz-5.0MHz)
Options
6.5MHz Trans-vaginal probe(5.5MHz-7.5MHz)
7.5MHz High frequency linear probe(6.5MHz-8.5MHz)
Color laser printer for option .FAQ :1. Delivery time: 3~5 working days after payment.
