Product Specifications
| Prod Model: |
Wall Power Socket-019 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Maiyu |
| Operating Environment: |
-30~70 Centigrade; Less Than 95% Rh |
| Rated Voltage: |
AC 100~250V/50~60Hz |
| Rated Currents: |
16A |
| Materials: |
Environmental and Flame Resistance |
| Approvals: |
CE RoHS... |
| Grounding: |
Standard Grounding |
| Type: |
Without Switch |
| Application: |
Residential/General-Purpose |
| IP Rating: |
IP68 |
| Brand: |
Maiyu |
Product Description
Triple Wall Power Outlet Without Plug Socket, White Crystal Glass Panel, AC 110~250V 16A Wall Power Socket,
Rated Current: 16A
Rated Voltage: AC 100~250V/50~60Hz
Grounding: Standard Grounding
Model Number: VL-C7C3EU-11
Color: White
Panel Material: White Crystal Glass
Operating Environment: -30~70 centigrade; less than 95% RH
Suit Standard: EU Standard

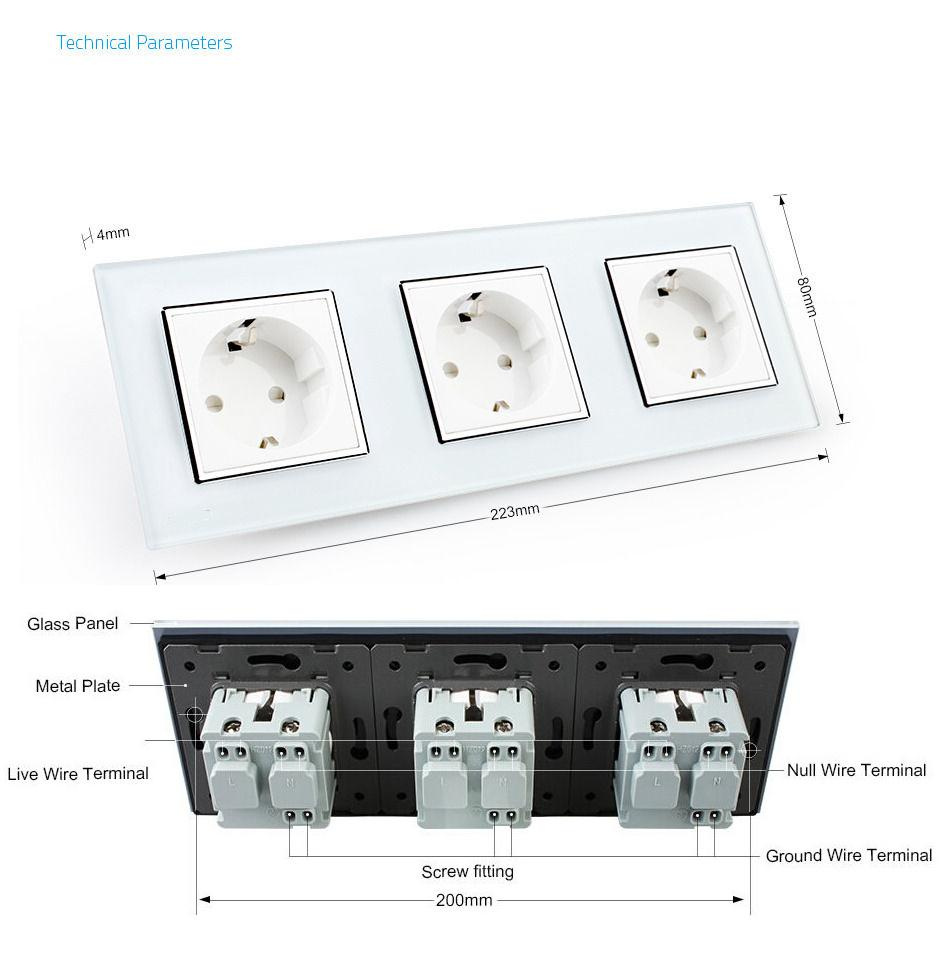

Dimension: 223mm*80mm*40mm
Package:
1 X Socket
Application:
Can be used for laboratory testing and installation of the test bench, can be equipped with furniture, cabinets, and equipment installation.
Mounting Method:
1. Remove the screws in the middle of the panel
2. After wiring, will be installed on both sides of the foot loose screw off and set into the European magazine.
3. Insert the screws and tighten installed on both sides of the foot, Stuck in the junction box.
4. The panel is reloaded, Tighten the screws.
Note: This product is required to support the European special cartridge installed
