Product Specifications
| Prod Model: |
PDL |
| Markets: |
North America,Mid East |
| Working Pressure: |
16 Bar |
| Input Voltage: |
AC110V-220V & Plusmn; 100‰, 50Hz |
| Life: |
10 to 15 Years |
| High-Voltage Electrostatic Generator: |
16cm × 16cm × 9cm |
| Tapered Pipe Thread: |
40mmg |
| Teflon Thickness: |
70 Um |
| Condition: |
New |
| Model: |
Pdl |
| Application: |
Water Treatment |
| Probe Length: |
550mm |
| Motive Force: |
Electric power |
| Certification: |
SGS, ISO |
| Performance: |
Water Descaling |
| Type: |
Descaling Equipment |
Product Description

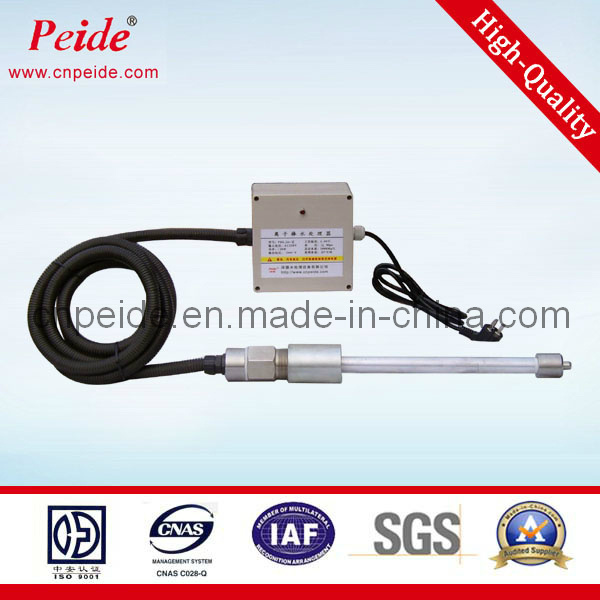

Water Ion Stick Water Descaling Equipment Suppliers (ISO9001, SGS Certificates)
1. Product brief description and advantages
1. Inhibit, remove scale, descaling
2. Kill bacteria alage
3. Inhibit corrosion
2. How Ion Stick water treatment equipment works
1. Inhibit scale: Ion bar water treatment equipment change the water molecules through more than DC7500V high pressure electrostatic field. Water dipole will surround the positive and negative ion. So the positive and negative ion can not move and put in positive and negative order in catenulate type. Positive ion can not tend to pipe surface, which, inhibit caluium and magnesium to scale on the surface of pipe. Then it does the effect of inhibiting the scale.
2. Remove scale: Static electricity can destroy electric binding force which is among scale ion. It change the structure of crystal and promote hard scale loose. What's more, it can improve the distance between dipole and enhance the hydration capacity of connecting with salt ion to increase the dissolve rate. So the scale will corrode and be off from the surface of pipe.
3. Descaling: Rust scale is one kind of water scale. It can clean the rust scale if it can clean water scale.
4. Kill bacterial and algae: Ion bar can generate the active oxygen "O2-, OH, H2O2" which can destroy the ion channel of Biological and change the living environment of bacterial and algae.
5. Inhibit corrosion: Active oxygen can generate Micro-membrane on the surface of metal surface.
3. Ion bar characteristic
1. High voltage
Voltage output more than 7500V, the highest value can reach to 15000V.
2. Teflon protect device.
A. Ion bar has teflon protect which can withstand 20000V. Insulation and safety performance is good
B. Teflon can prevent edema and impurities absorbing on the probe. The probe can play good effect lasting and is easy to clean.
3. Conicity thread connect and simple installation
It's convenient and low cost in conicity thread connect compared with flange.
4. Import cable can withstand -40C.
It can connect and seal well to protect high pressure generator avoid moisture and corrosion gas corroded.
5. Safe: Although the ion bar voltage is high, the current is less than 1mA with no dielectric effect.
6. Life long: Ion bar use the high quality component. So the using life can reach to 10-15 years
7. No chemical effect to water: Ion bar just effect water physical not chemical characteristic.
4. Technical parameters
Probe length: 550mm
Probe diameter: 28mm
Output voltage: ≥ DC7500V
Power: ≤ 10W
Tube length: 2.8m
Operating Temperature: 1° C -90° C
Appropriate water temperature: 1° C -90 ° C
High-voltage electrostatic generator: 16cm × 16cm × 9cm
Working pressure: ≤ 16 bar
Tapered pipe thread: 40mmG
Connecting thread diameter: 60mm
Teflon thickness: 70 um
Adapting to water quality: Total hardness ≤ 1000mg / L (CaCO3)
Input voltage: AC110V-220V ± 100‰ , 50Hz
Life: 10 to 15 years
5. Our Quality Assurance System
1. We have passed the ISO9001 quantity management system certification, SGS certification
2. Each produce with a warranty and after-sales toll-free information.
3. We provide services in researching, water quality monitoring, designing, technical consulting, commissioning.
4. We are the most powerful manufacturer of water treatment equipment in China; China famous brand, Quality Trust-worthy enterprise
5. We owned 17 items of patented technologies
6. Our annual sales reached 4, 300 sets, which make sure of the stable and persistent quality.
| Number | Type | Flow (m3/h) | Appropriate
Pipe diameter |
| 1 | PDL 100-16 | 100 |
80-150mm |
| 2 | PDL 125-16 | 150 |
| 3 | PDL 150-16 | 220 |
| 4 | PDL 200-16 | 380 | 125-150mm |
| 5 | PDL 250-16 | 450 |
| 6 | PDL 500-16 | 500 | Above 250mm |
