Shanghai Qingjiang Valve Manufacturing Co., Ltd. >> Valve Accessories - The Stamping Elbow (DN15~DN300)

Valve Accessories - The Stamping Elbow (DN15~DN300)

Valve Accessories - The Stamping Elbow (DN15~DN300)
Price: US $ 1-215/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P

Product Specifications


Prod Model: The Stamping Elbow

Product Description

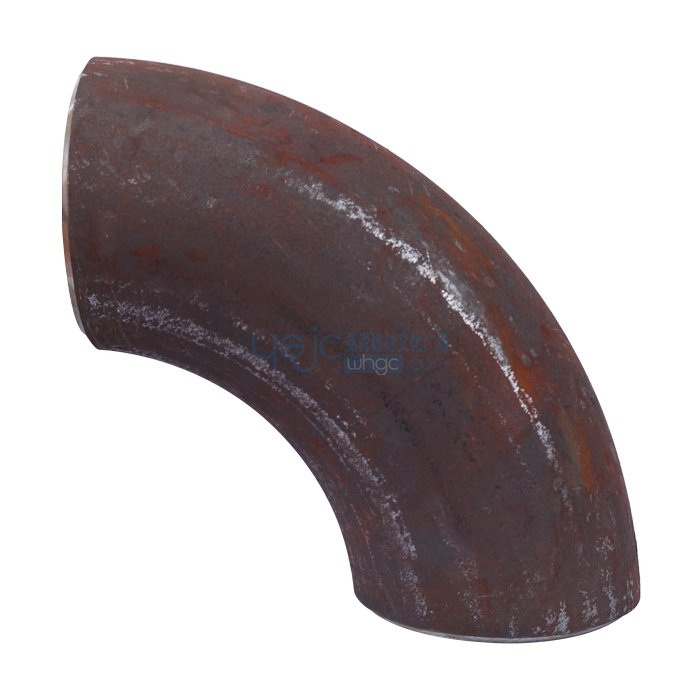

The stamping welding elbow is used to press the sheet metal of the same material with the pipe material into half a circular bend, then the two half ring elbow is formed for the welding forming. Due to the different welding standards of various pipes, it is usually done by the group to fix the semi-finished product of the spot welding, and the site construction is welded according to the weld grade of the pipeline. Therefore, it is also known as the two-part welding elbow. A kind of pipe fitting commonly used in piping installation, connecting two common nominal sizes to the same or different pipes to make the pipe bend in a certain Angle. It is made of carbon steel, stainless steel and alloy steel. The stamping bend of carbon steel is cheap and used. The bend of alloy steel is used in special position.
Stainless steel.

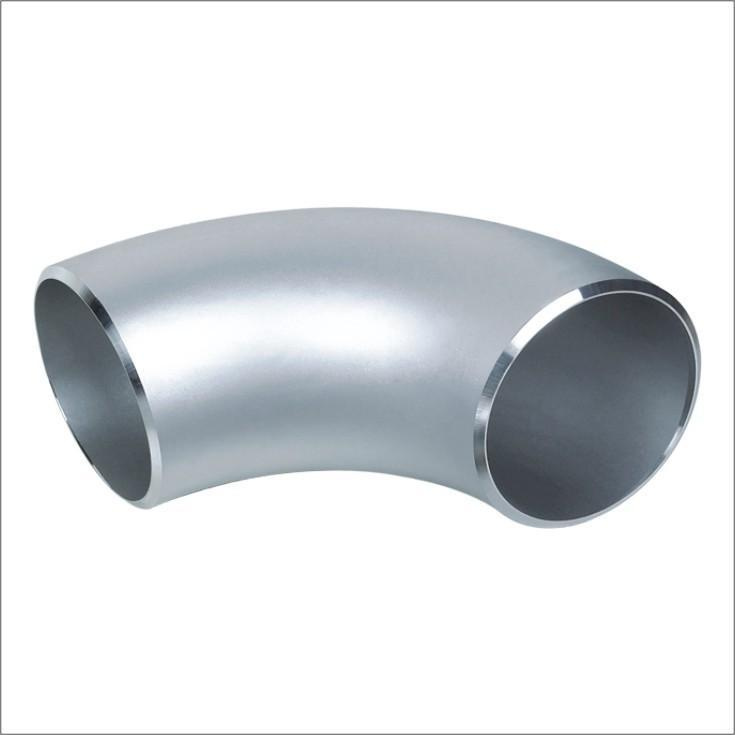

The stainless steel bending head is different from carbon steel elbow, which is mainly made of materials. Its chemical composition will keep the curved surface for a long time without rust and not corroded.
Stainless steel with stainless steel, corrosion resistance as the main characteristic, and chromium content at least 10.5 %, the carbon content of the steel not exceeding 1.2 %.
The austenitic stainless steel matrix is dominated by the austenite (gamma phase) of the planar cube structure, which is not magnetic, and is mainly used to strengthen (and possibly lead to a certain magnetic) stainless steel.
Austenitic ferritic stainless steel.
The matrix has both austenite and ferrite two phase tissues (the content of which is generally greater than 15%) and magnetic, which can be strengthened by cold processing.
Iron grain size stainless steel substrate with body centered cubic crystal structure of ferrite organization (alpha), magnetic, generally can't through heat treatment hardening, but cold working can make its mild stainless steel reinforcement.
Martensitic stainless steel matrix is martensite and has magnetic properties, which can be used to adjust the mechanical properties of stainless steel.
Precipitate hardened stainless steel
The matrix is composed of austenite or martensite, and can be treated with precipitate (also known as aging hardening) to make it hard (strong) of stainless steel.

 The Stamping Elbow
DN15$1
DN20$1
DN25$1.5
DN32$1.5
DN40$2
DN50$3.3
DN65$8.6
DN80$9.5
DN100$14.8
DN125$29
DN150$40
DN200$93.5
DN250$185
DN300$215








Shanghai Qingjiang Valve Manufacturing Co, . Ltd. Is located in Shanghai Fengxian Industrial Zone, is a commitment to scientific research, production, sales of professional valve manufacturer.

The company has a technical department, production department, marketing department, quality department, financial department enterprise management agencies. Built to international advanced level of processing center, spraying line, CNC lathes, plasma welding, chemical composition analysis, mechanical property testing, hardness testing, spectral analysis, nondestructive testing, thickness testing equipment more than 320 Taiwan (sets) of sophisticated processing, testing equipment and improve the detection process, for the production of high quality valves products to provide a strong guarantee.

Company to an international metropolis -- Shanghai as the basis, make full use of regional advantages and industry, is committed to the introduction of international advanced management experience and technological innovation, and actively promote the enterprise comprehensive strength, and expand market share, formed with the gate valve, globe valve, ball valve, check valve, butterfly valve, hydraulic control valve, balance valve, relief valve, regulating valve and so on more than 60 series nearly 1000 varieties of products structure. Products nominal diameter is 1/4"-80" (DN6-2600mm) pressure 0.1MPa - 32.0MPa, temperature -196-595º C. Valve of the main materials are cast iron, ductile iron, carbon steel, alloy steel, stainless steel, copper and other materials, and according to the special needs of customers and manufacture of metal products. Widely used in construction, municipal, water supply and drainage, HVAC, fire, electricity, metallurgical, petrochemical, gas and other industries, and exported to the Middle East. Europe and the United States and Southeast Asia and other countries and regions. High quality wins the customer the consistent high praise and trust.

New century Qingjiang Valve will be the spirit of " forever we cherish human harmony with nature, for which we in the water industry continue to strive to "business philosophy, and actively expand the market both at home and abroad, and create new brilliance in the twenty-first Century!
