Product Specifications
| Prod Model: |
KIS-03 KIS-05 KIS-08 KIS-10 KIS-20 KIS-40 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
20kg |
| Frequency: |
1.5MHz |
| Structure Material: |
Metal Material |
| Application: |
Heater |
| Working Frequency: |
Superhigh Frequency |
| Brand: |
Durowelder |
Product Description

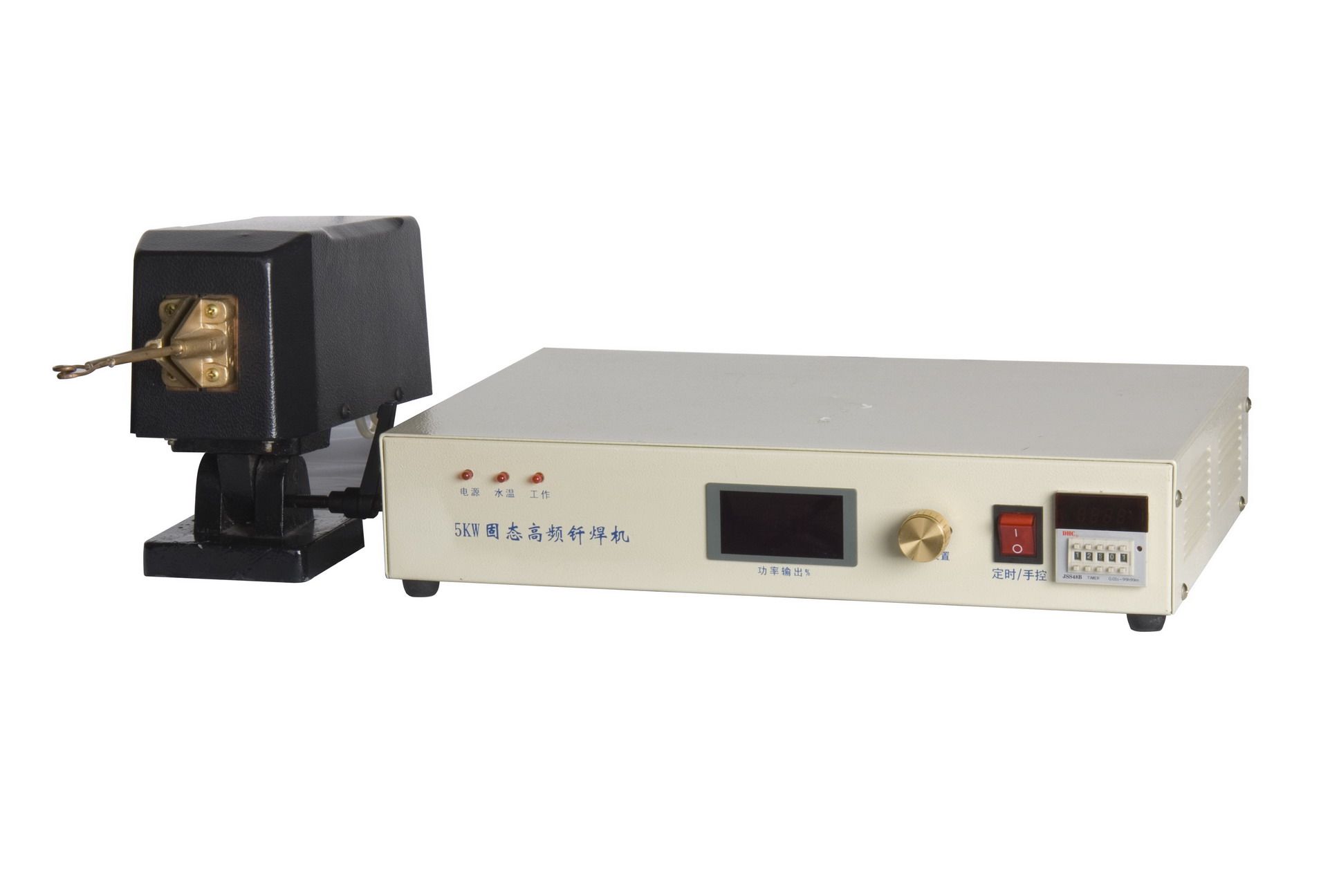

KIS superhigh frequency induction heating equipment has such features as high frequency (the minimum heated welding diameter is 0.1mm), small size, light weight low failure rate and conservation of energy(it can save the power 70% as compared with glass-ceramic vacuum tube high frequency heating equipment). Furthermore, it can ensure the solid welding point which is pleasing and delicate is appearance, integral geometric configuration, perfect surface grain, compete crystal structure of internal metal part. Limited annealing range and crimination of obvious weld knot. It is widely applied to the welding of couples and inserts used in metal glass manufacturing as well as electric appliance and electric industries, non-contact welding of internal parts of small-size relays, high-pressure refrigerating parts, headwear decorations, metal ornamental articles and art wares.
Application:
1. Welding of big and small gears of hard alloy saw blade;
2. Welding and annealing of spectacle frame and fitting;
3. Welding of jewelleries, clock and watch;
4. Electric industry(tin and silver soldering of fine wire, various electronic elements);
5. Electromechanical industry(silver and braze welding of fine metal joints as well as quench tempering for mini motor shaft);
6. Wire material industry(annealing of wire material and sheet band);
7. Welding of cutting tools as well as tempering for paper cutter and shoe knife blade;
8. Toy industry( tempering for wind spring and thin metal sheet)
| Model | KIS-3KW | KIS-6KW | KIS-8KW | KIS-10KW | KIS-20KW | KIS-40KW | KIS-60KW |
| Input Voltage | Single phase 220V 50/60Hz | Three phase 380V 50/60Hz |
| Max output power | 3KW | 6KW | 8KW | 10KW | 20KW | 40KW | 60KW |
| Max input current | 14A | 28A | 35A | 15A | 30A | 60A | 90A |
| Frequency | 0.5-1.1
Mhz | 0.2-1.1
Mhz | 0.2-1.1
Mhz | 200-500
Khz | 50-250
Khz | 50-200
Khz | 50-150
Khz |
| Cooling water pressure | 0.5Mpa | 0.2Mpa | 0.2Mpa | 0.2Mpa | 0.3Mpa | 0.3Mpa | 0.5Mpa |
| Input water temperature | <40ºC | <40ºC | <40ºC | <40ºC | <40ºC | <40ºC | <40ºC |
| Duty cycle | 100% | 100% | 100% | 100% | 100% | 100% | 100% |
GUANGZHOU DUROWELDER LIMITED is founded by WELDING TECHNOLOGIES, USA and serves as its Manufacturing Plant in order to bring latest achievements in various equipment science and technology to the biggest market of Welding Equipment, Induction Heating Equipment, and Wire & Tube Processing Machine in the world - China with a goal to support a demand for high quality of various equipment in the region and beyond.
Quality oriented design is produced by US trained technicians using state of the art facility in Guangzhou City, China.
Our products include full line of Standard and Custom Made Resistance Welders, Various Arc Welding and High Degree Automated Systems; Medium Frequency Induction Heating Equipment, Ultrasonic Frequency Induction Heating Equipment and High Frequency Induction Heating Equipment, Super-high Frequency Induction Heating Equipment, Portable Type Mini-Inductor, Flameless Easy Induction Heater, Automatic Tube Straightening & Cutting Machine, Tube End Forming Machine, Automatic Wire Bending Machine, and so on.
Our Company is a certified ISO9001: 2000 facility and holds various quality and safety Certificates, such as National Mandatory Safety System certificate of CCC, UL, European CE and others.
