Product Specifications
| Prod Model: |
CDH03-A3L |
| Size: |
A4 Portrait(Customized Sizes Available) |
| Thickness: |
Super Slim, Minimum 6mm |
| Power Supply: |
AC/DC Power Adaptor, Input 110V-240V, Output 12V |
| Light Resource: |
SMD LED Light Strip (SMD3014) |
| Lifespan: |
More Than 50, 000 Hours |
| Type: |
Ultra Slim Light Box |
| Usage: |
Advertising |
| Material: |
Acrylic |
| Shape: |
Rectangle |
| Suitable For: |
Indoor |
| Installation: |
Ceiling Hanging |
| Pringting Carrier: |
Inkjet Film |
| Style: |
Modern |
| Certification: |
UL |
Product Description

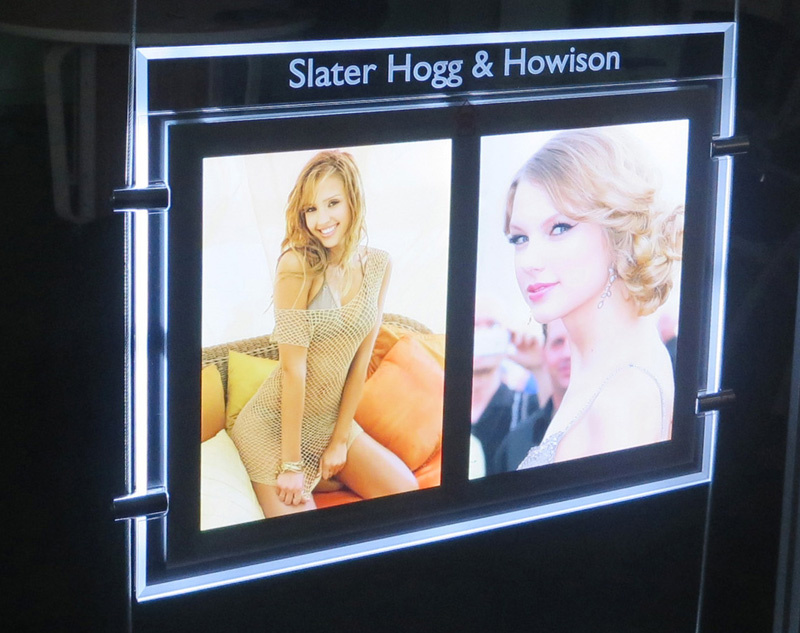

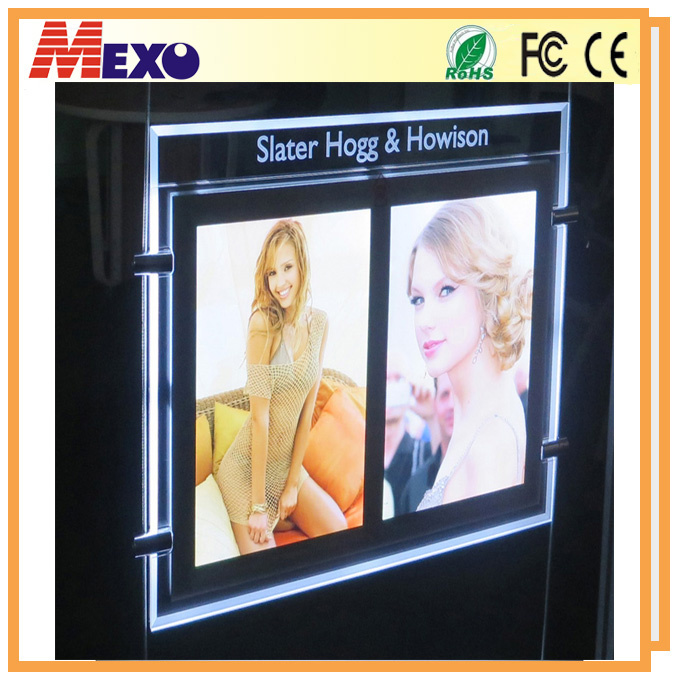

Ultra Slim LED Light Pocket
are widely used for advertising exhibition and decoration. Super slim, minimum in 6mm only.
Features of LED light pocket:Type: Double side, magnetic open, window display.
Change picture: Magnetic open, easy for changing Posters/pictures.
LGP: New optic quality acrylic sheet, with latest CNC engraving technology, better than 3D laser engraving.
Face Panel: 1-3mm high quality acrylic sheet.
Thickness: 6mm only.
Size: A4, customized can be available.
Frame color: can be customized
Light source: high brightness SMD LED light Strip bulit-in edge-lit.
Light power: Input: AC110-240V to DC12V adaptor.
Uniformity: edge-lit and LGP, uniform lighting
Environmentally friendly, energy-saving.
Installation: Hanging from the ceiling or against the wall
Applications: Indoor exhibition, advertising or ornament.
Advantage of LED light pocket:Acrylic Frame LED Light Pocket
from mexotech adopt newest optic quality acrylic panel, CNC engraving technology(better than 3D laser engraving), which longer life span and distributes lighting evenly. SMD LED light strip edge-lit, high brightness, low power consumption and long lifespan.
Package: protected by air bubble bag inside,paper carton box outside
Certification: CE & RoHS
Specification:| Item No. | Poster Size(mm) | Visual Size(mm) | Frame Size(mm) | Power Watt(w) | Power Voltage(v) | N.W.
(kg) | G. W.(kg) | Package Size(cm) | Unit Price (US$) |
| CDH03-A0 | N/A |
|
|
|
|
|
|
|
|
| CDH03-A1 | 841 x 594 | 831 x 584 | 903x656 | 38.76 | 3.23 | 9.3 | 10.8 | 102 X 78 X 5 | 146 |
| CDH03-A2 | 594 x 420 | 584 x 410 | 650x476 | 22.68 | 1.89 | 5.5 | 6.5 | 75 X 58 X 2 | 72.5 |
| CDH03-A3 | 420 x 297 | 410 x 287 | 476x353 | 11.52 | 0.96 | 2.3 | 2.8 | 58 X 46 X 2 | 45 |
| CDH03-A4 | 297 x 210 | 287 x 200 | 353x266 | 3.84 | 0.32 | 1.5 | 1.8 | 46 X 37 X 2 | 28.6 |
Application: airport,bus-stop,image sign ,chain store,indoor decoration,shopping mall, supermarket,hotel restaurant, bank exhibition hall, etc

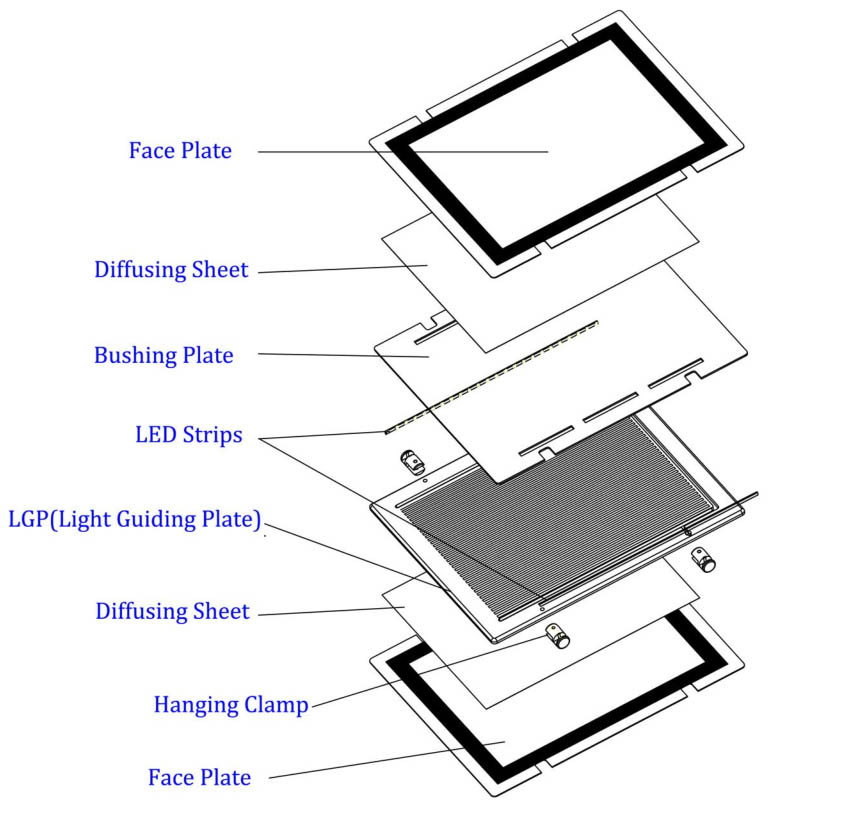

More information about MEXO'S LED light box: Structure of LED light pocket:

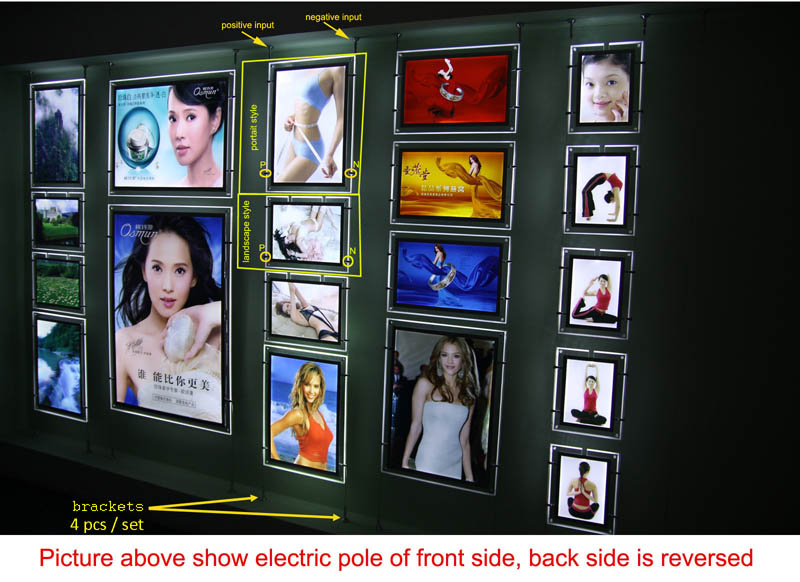

Installation of LED light pocket:
Application of LED light pocket:
Packing for LED light pocket

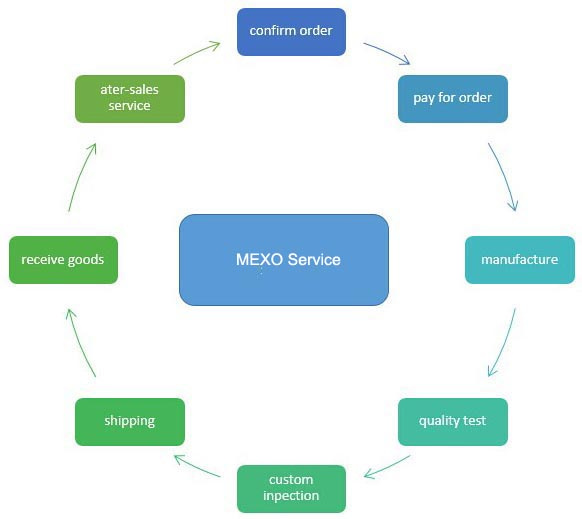

Service for LED light box order:
We offer OEM service !
