Product Specifications
| Prod Model: |
FX1325D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: |
1300*2500mm |
| Table: |
Vacuum Suction |
| Spindle Power: |
Double 3kw/4.5kw or 6kw |
| Controller: |
DSP or Ncstudio |
| Spindle Layout: |
Vertical |
| Spindle Number: |
Double-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
CE |
Product Description

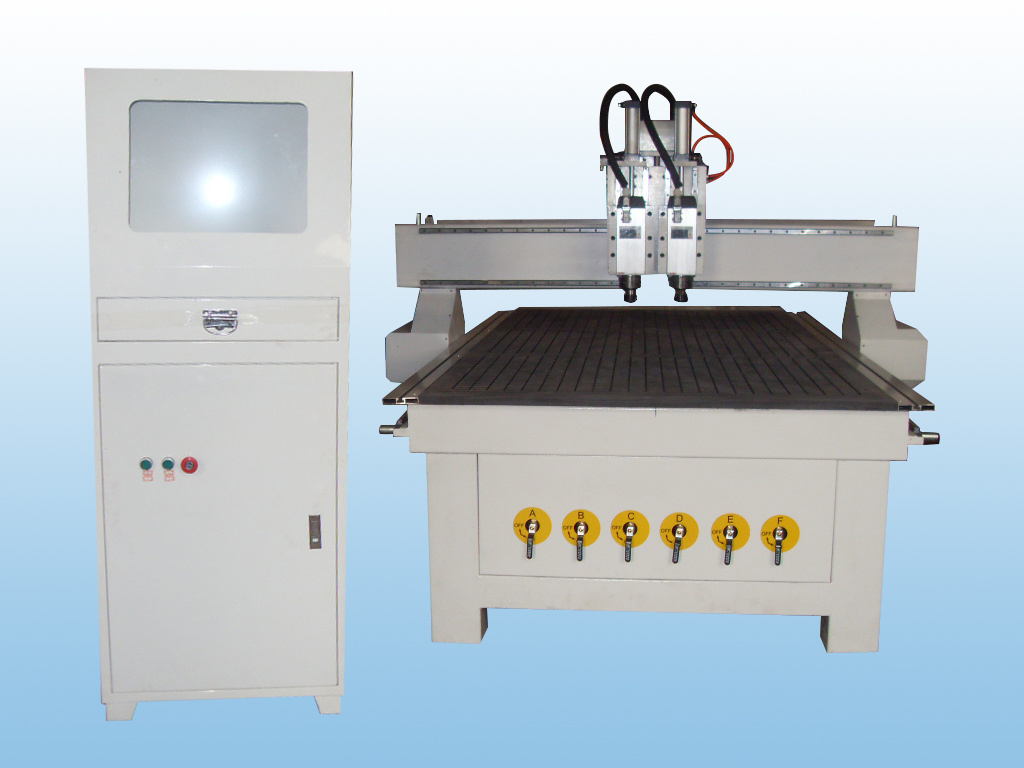

two heads cnc router with rotary for 3D wood engraving
Model: FX1325d
This series products are designed specially for rosewood,classical furniture processing 3D relief sculpture in a large amount and small workpiece processing .suitable to process wood cabinet, art relief screen, craft fan window ,relief craft gift ,solid wood art wall painting ,wood calligraphy engraving , art photo frame , the table of electrical equipment , sports equipment violin cambered surface, non-ferrous metal engraving and cutting .
Features:
Free processing, Can use a single spindle processing ,also can process the same files with multy-spindle at the same time, substantially enhance the working efficiency ..
Continued working ability, adopt the imported high precision linear guiderail , technical grade body design ,ensure the lathe bed could work long time , and durable in use ..
Applicable industries
Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials
Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materals and light metal materials
Specifications:
| Model | FX1325D |
| Working area (X*Y*Z,mm) | 1300*2500*150 |
| Machine structure | steel structure lathe bed and T-slot of sectional material |
| Working holding | By clamps or vacuum suction |
| Overall dimension | 3100*1810*1750/3100*2060*1850 |
| Precision(mm) | 0.07 |
| Position accuracy(mm) | 0.02 |
| Repeatability(mm) | 0.02 |
| Lding speed (mm/min) | 15,000 |
| Working speed(mm/min) | 10,000 |
| Spindle | 3.0kw/4.5kw,water-cooling(0-24000rpm) or air-cooling 6kw |
| Available tools(mm) | φ3.175~φ12.7 |
| Drive system | Stepper motors |
| Working voltage | AC220V±30V,50HZ |
| Command code | G Code(*.nc,*.mmg,*.u00,etc),*.eng |
| Control system | NcStudio/DSP Hand-held |
Flying Technology Development Limited. Was established in 2008. We are well known for our superior quality and service in the field of engineering and manufacturing of Laser Equipment and CNC Router that includes: Laser Engraving and Cutting Machine, CNC Router, CNC plasma cutting machine, Acryling Bending machine, Cutting Plotter, and so on.
Our company is the modern enterprise in combination with resarching, producing and selling, have excellent engineers, technical experts, etc. Each product has its enterprise standard. All of them have the strict quality testing departnment detection, complete with product standards. The product passed the European Union CE authentication and American FDA certificate, the products are sold in eighty countries. Most of the m- aterials which the product use for imported steel and electrical devices, true material anticipates, worth of the money. The employee of our company is very rigorous, serious and responsible. The product from design to production, every link excellence, plus factory's strict inspection so that making the product has excellent quality and minimum malfunction probalility.
Our company is famous for high quality and better after-sale service as the competitive price. Our products are widely used in the following industry, such as Woodworking, Advertising, Artmaking, Model, Electric, CAD/CAM Industry Model, Clothing, Package Printing, Marking, Laser Sealing and so on.
We are searching the distributors around the world. Hope we can cooperate for the world market.
