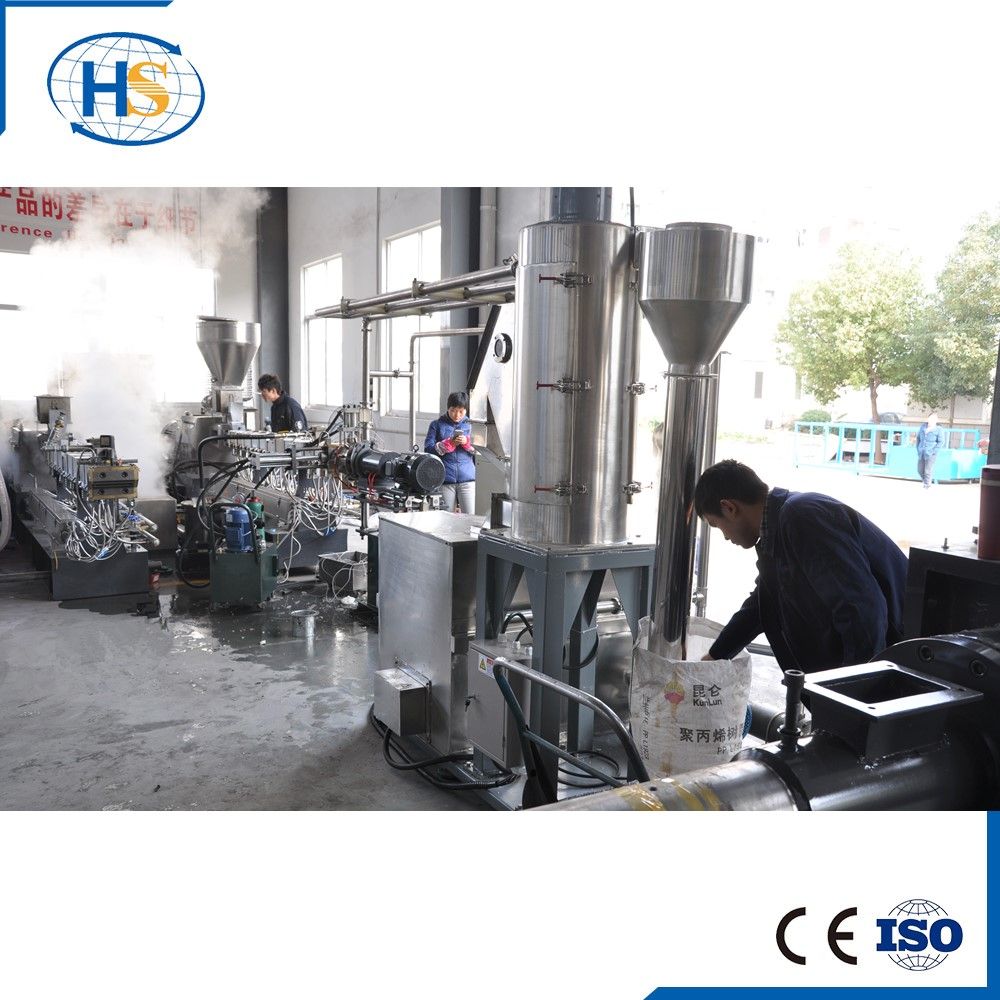

Twin Screw Extruder Granulating Machine in Water Ring Cutting Way

Name: Twin Screw Extruder Granulating Machine in Water Ring Cutting Way
Brand: china-crystals.com
SKU: 770943425
Availability: InStock
Rating: 4.4 (80 reviews)

Price:	US $ 54000-89999/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	TSE-65B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color Of Soles Extruder:	as Customer Required
Barrel And Element:	Module
Output:	200-300kg/H
Screw Diameter:	62.4mm
L/D:	32-64
Motor Power:	90kw
Screw Rater:	600r/Min
Torque:	716n.M
Torque Level:	5.1t/N3
Application:	EVA TPR TPU Soles Extruder
Product Type:	Granulating Extruder
Feeding Mode:	Multiple Feed
Assembly Structure:	Separate Type Extruder
Screw:	Twin-Screw
Engagement System:	Full Intermeshing
Screw Channel Structure:	Deep Screw
Exhaust:	Exhaust
Automation:	Non-Automatic
Computerized:	Non-Computerized
Type:	Granules
Plastic Processed:	EVA/TPR/TPU

Product Description

twin screw extruder granulating machine in water ring cutting way

Products description of the soles extruder
1. The EVA TPR TPU soles extruder can reduce the cost of soles material;
2. Differnet ratio of the raw material can make the masterbatch soft or hard.
3. The sole extruder adopt the imported the ABB inverter, easy control and operation.

Other kinds of applications of the sole extruder

Mixing nature changing: PE, PP, PS+SBS, PA+EPDM, PP+NBR, EVA+Silicon rubber PE, PA, PC, CPE+ABS, ABS+TPU, PBT+PET, PP+PE

Filling nature-changing: PE, PP, EVA, etc. +Calcium carbonate, talcum powder, titanic powder PP, PA, ABS+ferrous powder, sulphuri powder, ceramic powder

Functional machine pellets: PP, PA, ABS, PBT, etc. +anti-burning agent and other auxiliary agents: Combustion- supporting machine pellets

PE, PP, PS, etc+starch: De-composing machine pellets

PE+fog-preventing dipper, stabilizer: Dual-prevention machine pellets

PE, EVA, ABS, etc+carbon black: Black machine pellets

Colored machine pellets: PEMPP, ABS, AS PA, EVA, PET+pigment and auxiliary Intensified glass fibers and carbon fibers: PP, PBT, ABS, AS, PA, PC, POM, PPS, PET, etc+long fiber, carbon fibers, crystals and so on

The production process
1. The gearbox:
New-style project of parallel three-axises driving makes the convey axis, convey chain, decelerate and the torque assignment get together, which keeo it compact, and the key bearings are imported.
The select material of drive components is dainty. Including super intension alloy cementiteing steel, cementiting and quenching, gear grinding technics, strengthening of tooth face. So they can ensure high torque, high precision and low noise.
Soakage and coerce lubrication integrate smoothly. When the hydraulic circuit is over pressed, it alarms.

2. The feeding system
Metering feeders are equipped with single screw, twin screw, hollow screw, forced-feeding, side feeding, liquid-adding system, etc

3. Screw
The screw elements and then kneading blocks are designed accurately, by precise processed, agile combination, with interchangeability, which can fulfill efficient self-cleaning, transmission, compounding, pressure-forming.
The screw material is made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heat-treament.

4. The barrel
Euro style rectangle barrel, reflux refrigeration is optimized and disposed, which makes temperature difference in C areas smaller
According to the material and special techinics demands, the material of cylinder can use high quality nitrided steel, corrosion proof or antifriction with corresponding process.

5. The heater
Innovated design of heater tightened style insures high efficiency of heat transfer and high longervity of heater.

6. Pelletizing
Various modes of pelletizing, such as water-cooling strand, air-cooling pelletizing, water-ring pelletizing, under water pelleting, etc.

Certificates
We have CE/ISO/SGS/TUV certificates, strict control systems to improve the quality. Why did our Customers choose us?
1. Reply < 10 hours
2. Delivery time > 99%
3. Quality Control > 100%
4. After-sales Service > 100%
What can we do for you?
1. Good quality twin/single screw extrusion machine or other spart parts with competitive price.
2. Satisfying services.
3. OEM&ODM

Our Service
As for the products. We have passed CE. FCC certificates.

As for factory firm ability, we have passed CE. ISO. SGS.

Our sincerity business commercial ethic is: ''the business principle of best quality, customer always the first".

Sincerely welcome to contact us to made a good cooperation with us.

We join the Chinaplas Fair and the overseas every year.

The co-rotating twin screw extruders from Haisi are the world's most frequently used extrusion and compounding systems for the production of plastics.

Mode	Screw Diameter D(mm)	Screw Length(mm)	L/D	Screw Rater N(r/min)	Motor Power P(kw)	Torque T(N.m)	Capacity Q(kg/h)
SHJ-20	22	150	32-44	600	5.5	43	0.5-10
TSE-30A	31		32-48	500	11	105	5-30
TSE-30B	31		32-48	600	15	119	5-40
SHJ-35A	35.6		32-48	600	15	119	20-60
TSE-40A	41	160	32-64	400	22	263	65-110
TSE-40B	41	160	32-52	600	30	239	90-150
SHJ-50A	50.5		32-52	500	45	430	135-225
TSE-52B	51.5	210	32-64	600	55	438	225-250
TSE-52C	51.5	210	32-64	600	75	597	200-300
SHJ-65A	62.4	240	32-52	400	75	895	180-250
SHJ-65A	62.4	240	32-52	500	75	716	180-250
TSE-65B	62.4	240	32-64	600	90	716	200-300
SHJ-75A	71	290	32-56	400	90	1074	225-350
SHJ-75A	71	290	32-56	500	110	1050	250-450
TSE-75B	71	290	32-64	600	132	1050	350-550
TSE-75D	71	290	32-64	60O	220-250	1990	500-1000
TSE-95A	93	360	32-64	500	250	2387	600-1000
TSE-95B	93	360	32-64	600	315	2506	800-1200
TSE-135A	133		32-64	500	750	7162	1500-2250

Introduction and history:

Nanjing Haisi Extrusion Equipment Co., Ltd is a high-tech manufacturing and trading company in China. "Family" is our benchmark. We work efficiently and help each other whenever anyone is in need due to the same target, that is, to make best quality of extruders in China.

Our company is a professional manufacturer of granulating extruders for coloring/dyeing, filling masterbatch production, as well as plastic modification and compounding, plastic recycling. Innovative machines are built as per the concept of durability, high efficiency and economical power consumption. And we also have substantial experience in R&D, technique and after sales service. And for some materials, we supply turn-key project.

Company is in strict accordance with CE and ISO9001 quality certification system for production management. There are over 200 models of extruders and spare parts. Factory has CNC center, grinding machines, cutter, puncher, etc. To meet customers' requirements on extruders and spare parts.

Business scope and achievements:

All kinds of plastic extruder.

Our machines are widely used in China mainland, and have been exported to 20 countries and places over the world. Our annual production capacity is 240 sets plastic extruder in domestic countries and abroad! OEM service offered in granulating plastic extruder industry in consistence with specific requirement from both national and international customers.

Prospects:

Surely you will also get professional machines and characteristic services here. Let's create more together!

Characteristics of our machine:

Euro-style rectangle barrel, reflux refrigeration channel is optimized and disposed, which makes temperature difference in D areas smaller.

Innovated design of heater tightened style insures high efficiency of heat transfer and high longevity of heater.

According to the material and special technics demands, the material of cyliner can use high quality nitrided steel, corrosion proof or antifriction with corresponding process.

Various modes of pelletizing, such as water-cooling strand, air-cooling pelletizing, water-ring pelletizing, under water pelletizing, etc.

The screw elements and kneading blocks are designed, by precise processed, agile combination, with interchangeability, which can fulfill efficient self-cleaning, transmission, compounding, pressure-forming, etc. The screw is made of high tool steel 38 CrMoAlA or W6Mo5Cr4V2 by special heat-treatment, which is possessed with high corrosion-resistand and high functions.

The machines are designed by using the "toy bricks" principle, the screw configuration, barrel setup, L/D or mode of feeding and venting, screen changing, way of granulating, and the control mode can be optimally adjusted according to different material properties and requirements in consideration of the versatility in each general applications.

Metering feeders are equipped with single screw, twin screw, hollow screw, forced-feeding, side-feeding system, etc. To meet different requirements of feeding, such as powder, pellet, pump and liquid material.

New-style gear transmission system:

New-style project of parallel three-axises driving makes the convey axis, convey chain, decelerate and torque get together, which keep it compact, and the key bearings are imported.

The computer designs to potimize gear parameters and strenghthen safe overmeasure.

The selected material of drive components is dainty. Including super intention alloy cementiteing steel, cementiting and grinding technics, strengthening of tooth face. So they can ensure high torque, high precision and low noise.

Soakage and spraying lubriation integrate smoothly.
