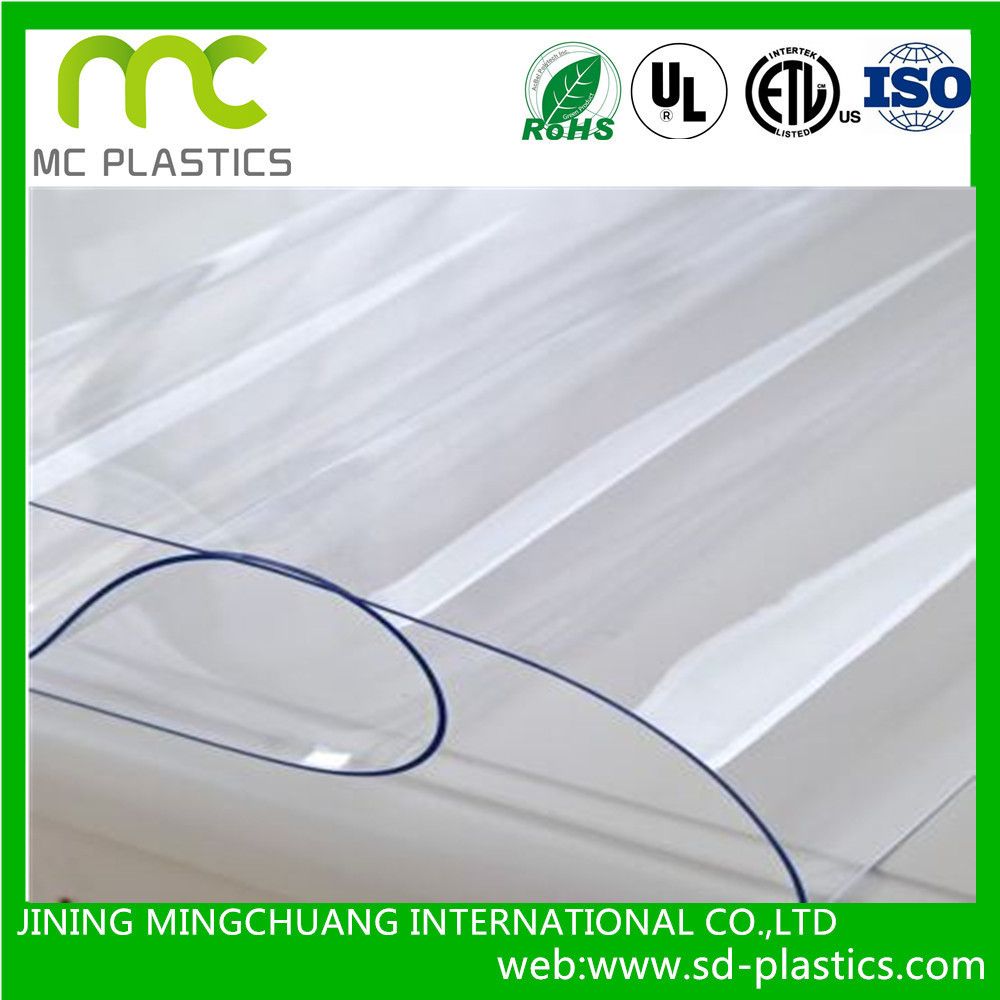

Transparent Crystal Board for Table Cover/Window and Packaging Bags
| Price: |
US $ 1.3-1.616 |
| Min Order: |
50016 |
| Pay Type: |
T/T |
Product Specifications
| Application: |
Covering ,Packaging ,Protection ,Decoration |
| HS Code: |
39204300 |
| Shipment: |
Within 15 Days |
| Sample: |
Free |
| Pinhole: |
No |
| Wrinkles: |
No |
| Bubbles: |
No |
| Lay Flat: |
Yes |
| Trace Mark: |
No |
| Material: |
PVC |
| Type: |
Stretch Film |
| Transparency: |
Transparent |
| Hardness: |
Soft |
| Molding Method: |
Calendered |
Product Description
A: Surface Properties: Matte Glossy Transparent Translucent No pinholes No Bubbles No wrinkles No occluded air lay flat
B:Colors: Transparent
C:Roll Specification : Thickness :0.5mm-7mm Width:600mm-2200mm
Length : customized
D:Packaging: Inside protective foam ,outside pvc film wrapped .
E:Standard or specific requirements: 16 Phthalates free .Non-toxic ,ECO-Friendly .our formulations depend on the requirements of customers: softness ,PHR ,UV property ,fire resistance and so on . PVC Physical properties:| | Item | Index |
| Mulch Film | Printing film | Outdoor film | Industrial film | Inflatable toy film | Insulation tape film | Others |
| TOP Quality | First Class | Second Class | TOP Quality | First Class | Second Class |
| 1 | Tensile Strength(MD CD)MPa | ≥16.0 | ≥16.0 | ≥13.0 | ≥11.0 | ≥16.0 | ≥14.0 | ≥11 | ≥16.0 | ≥16.0 | ≥22.5 | ≥15.0 |
| 2 | Elongation at break(MD CD)% | ≥210 | ≥160 | ≥150 | ≥180 | ≥200 | ≥180 | ≥130 | ≥200 | ≥220 | ≥200 | ≥180 |
| 3 | Elongation at low Temperature(MD CD)% | ≥22 | ≥8.0 | ≥8 | ≥8 | ≥30 | ≥25 | ≥8 | ≥10 | ≥10 | ≥10 |
|
| 4 | Angle tearing strength(MD CD)% | ≥40 | ≥40 | ≥35 | ≥30 | ≥40 | ≥35 | ≥30 | ≥40 | ≥40 | ≥40 | ≥45 |
| 5 | Dimensional stability(MD CD)% | | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | | ≤6 | ≤7 | ≤5 |
| 6 | Heating Loss % | ≤4.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤4.0 | ≤4.0 | ≤4.0 | | ≤3.0 | ≤4.0 | ≤4.0 |

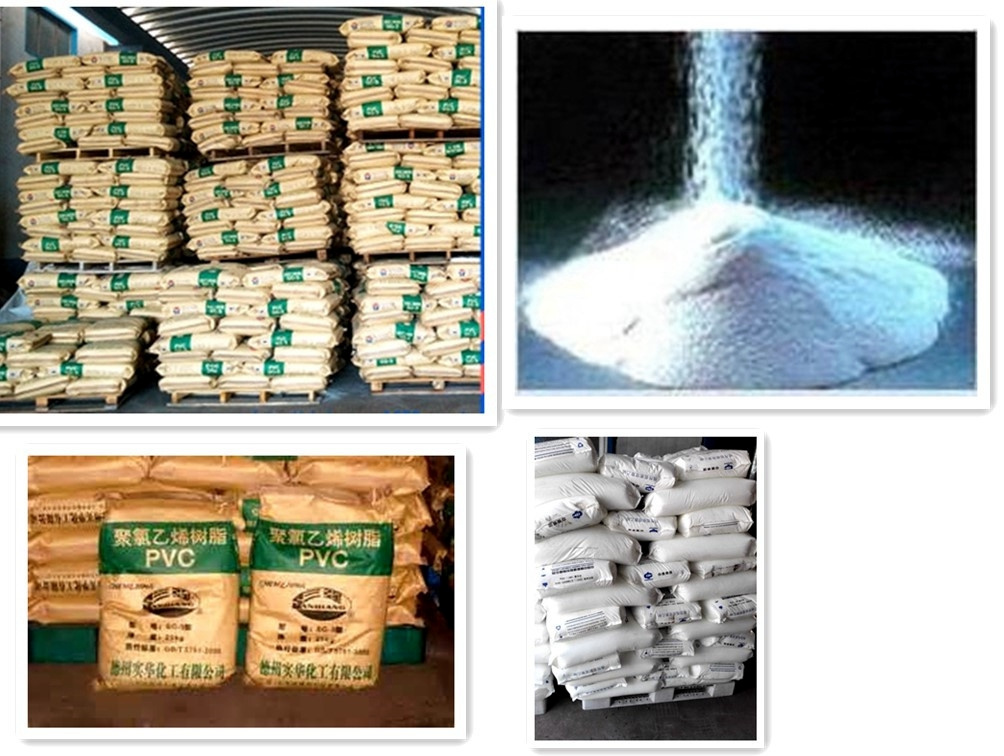

Process of PVC calendering sheet- PVC Resin SG-3 Or SG-5 ,K Value 60-75 .
- Mixed process: PVC resin with Plasticizer, Lubricants, stabilizers ,pigments and filler. From mixer or mill ,then the extrusion .

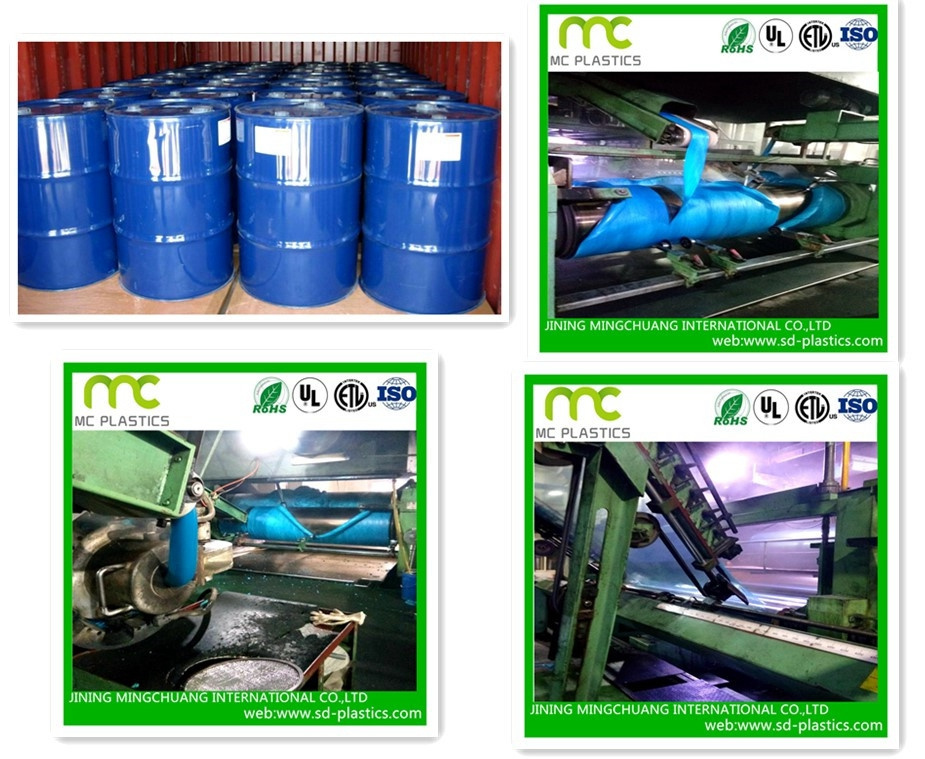

- Four-Roll calendering process which compresses and rolls the plastic into a flat film or sheet. Finishing equipment cooling and take-off the films with embossed or plain rolls.

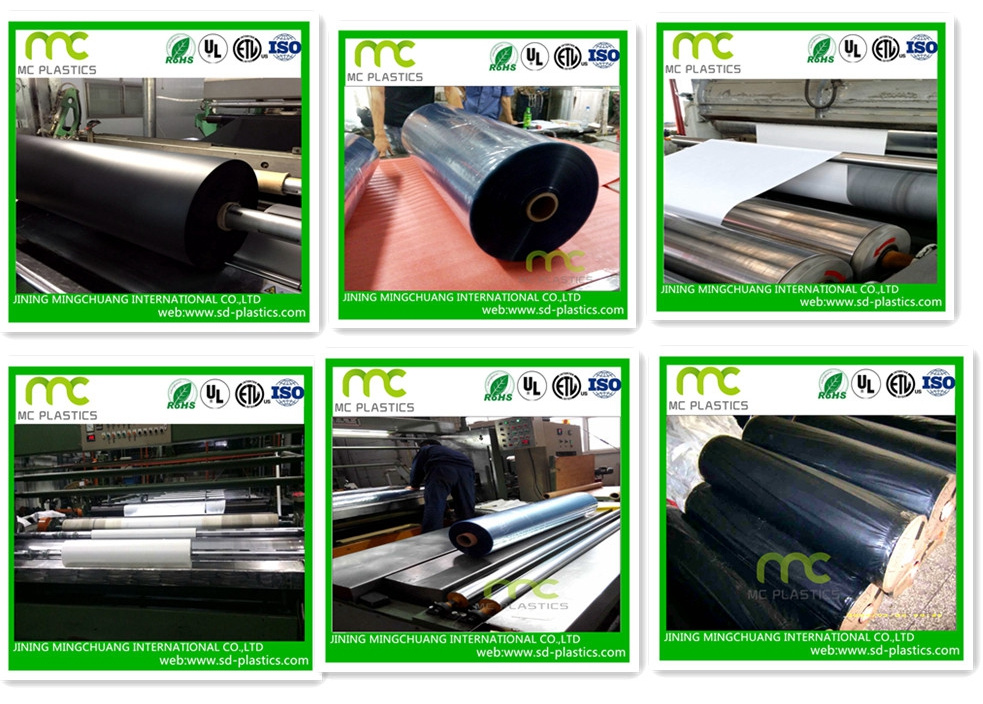

- Finished rolls.

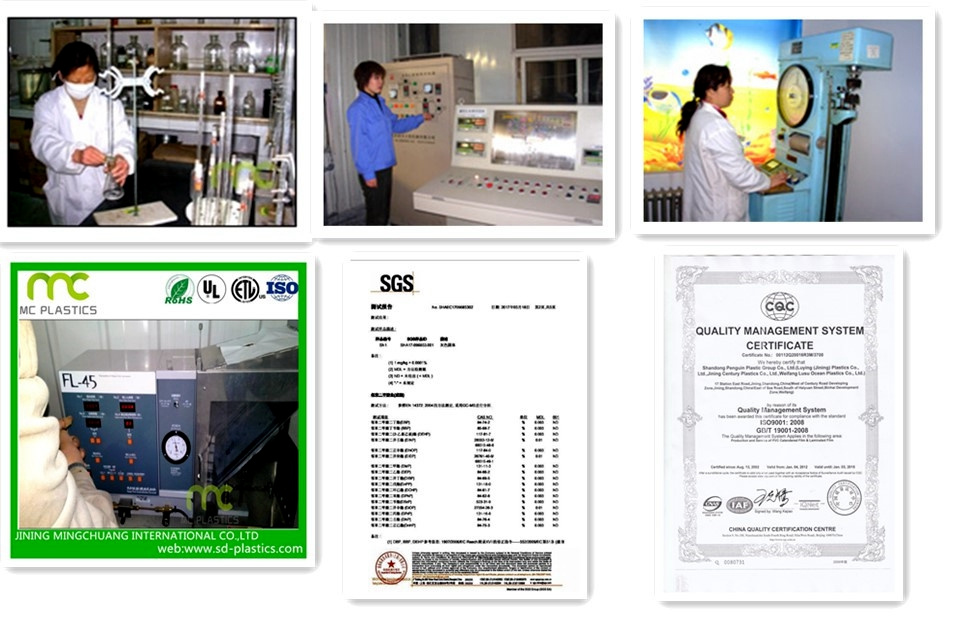

- Inspection ,can test surface, tensile strength ,plasticizer extraction/migration, elongation ,flame-retardant, breakdown and so on .

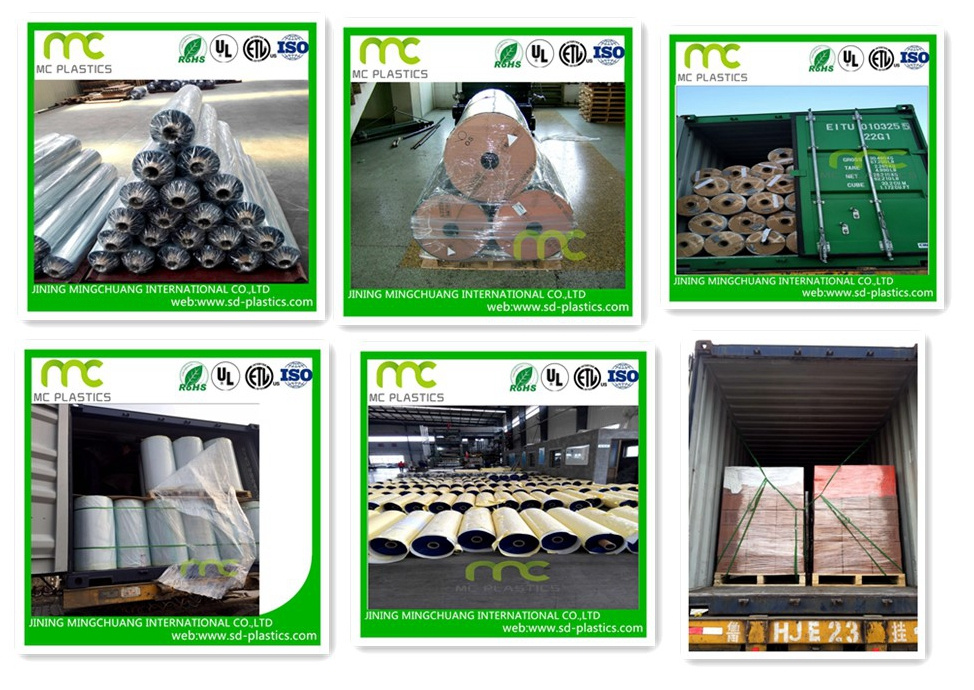

- Packing and shipping.
Applications: Covering ,Packaging ,Protection ,Decoration,window .Strip curtains
Jining Mingchuang International Co., Ltd's predecessor was Shandong Plastics, which is a state-owned enterprise founded in 1968, and established the first calendered machine in China. With a history of over 50 years, MC plastic now has been a privately held company and owns the most advanced PVC calendering, lamination, slitting and stretching production lines in the world. Our main products are PVC calendered film, PE liner Laminates, tarpaulin, canvase Industrial Membranes, PVC tapes, PVC laminator banner, PE&POF&PVC shrink/stretch films etc, which are widely used in covering, toys, electrical&Insulation tapes, flexible air ducts, decoration, packaging, flooring, covering and food industries.
Integrated with traditional technology and increasingly improved modern technologies, we set up strict standards on the products from material choosing and structuring, which leads to the constantly improved product quality, marketing and customer services.
PVC film:
A: Surface Properties: Matte Glossy Transparent Translucent No pinholes No Bubbles No wrinkles No occluded air lay flat
B: Colors: Any colors
C: Roll Specification: Thickness: 40Micron-220Micron Width: 600mm-2200mm
Length: 80-3000m
D: Packaging: Inside protective foam, outside PVC film wrapped, with cardboard on two sides.
E: Standard or specific requirements: 16 Phthalates free. Non-toxic, ECO-Friendly. Our formulations depend on the requirements of customers: Softness, PHR, UV property, fire resistance and so on.
