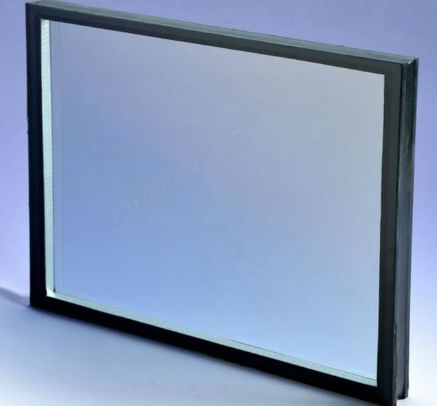

Toughened Double Glazing Glass for Window Door Wall Curtain

Product Specifications

Product Description

***  manufactured by fusing tinted glass and  low-E glass spaced by dry air or Argon gas. It is with exellent solar heat insulation property which greatly reduces cooling or heating loads and make building looks colorful and beautiful.

***  FUNCTION AND PROPERTY
1.Thermal insulationlow heat gain and heat loss value (low U value)
2. Light transmission.Appropriate level of solar transmission and solar reflectance can be selected to meet the design and functional requirement.
3. Noise insulationreduce noise level by 30 dB. with inert gas in-filled, a 5 dB further reduction can be achieved.
4. Condensing preventionOur insulated glass are designed to withstand down to -65degrees without condensing, which is far exceeding the National Requirement of -40degrees.
5. Leak proof

***  Specifications
clear folat glass, color tinted glass,reflective glass,sun shading glass, Nano glass, spandrel glass,low E glass,ultra clear glass , hst glass, laminated glass ,color ceramic glass, acid etched glass are available
air space 6A/9A/12A/15A /16A//20A/21AMax. Size 3000mm X 6000mm.

***  Strictly producing quality control1.
1.  we use top quality raw materials to manufacture insulating to ensure the safe and quality
glass of low-E glass, solar control glass, tinted float glass, float glass are from Chinese 5 brands, such as Shanghai pilkinton(SYP), China south glass(CSG), Taiwan glass, Xingyi glass, Jinjing glass(G-crystal) or as to your nominated brand for raw glass

2. top branded aluminium spacer, stainless steel spacer and warm -edge spacer, color decration spacer are available

3. top branded silicone sealant, polysulfide sealant, butyl sealant are available

4. top branded molecular or dry agent availble


5 . we use soft water to clean the glass,then the galss surface are very clean and keep the quality in the further deeply processing.

6 .most important isAll these insulating processes are automatically finished by advanced machines, and robot arms, then the quality and surface quality is ensured, from aluminium framing, molecular filling, space sealing to packing.

7..Specially,  to ensure IGU air tight, automatic bending machine is used for all four corners bending, with use of linear connector for the spacer.A dual seal system is adopted with PIB as primary seal, and silicone or polysulfide,as secondary seal. We use advanced fully automatic IG production line ,with automatic production operations covering spacer bending,filling of desiccant, edge deletion of coated glass, glass assembly,filling with inert gas and application of primary and secondary sealants
