Product Specifications
| Prod Model: |
TM056KDH02 |
| Active Area (W*H): |
113.28*84.708 mm |
| Resolution: |
320*234 |
| Interface Type: |
RGB , 26 Pins , FPC |
| Usage: |
TV-LCM |
| Digital LCD Module Type: |
Timing Module |
| Touch Screen Type: |
Infrared |
| Type: |
LCM |
| Response Time: |
5ms |
| Viewing Angle: |
IPS |
| Display Technology: |
TFT |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Non-Customized |
Product Description
PRODUCT PREVIEW:

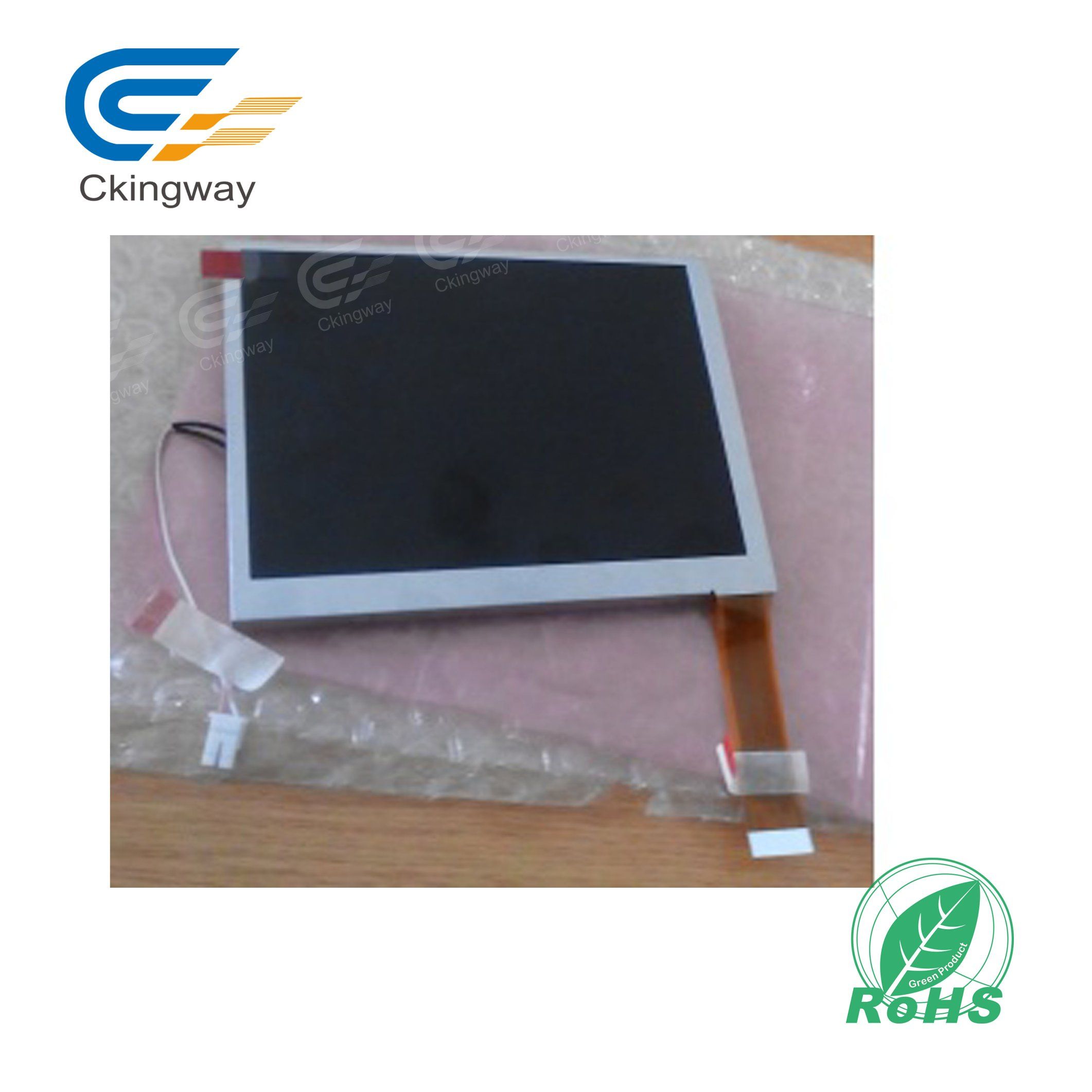

Small Size TFT, The TM056KDH02 , is a small-size 5.6" TFT with 320*234 resolution. All our colordisplay products can be modified to be sunlight-readable, and touch panels can added or removed. upon request (there may or may not be tooling associated with sunlightreadability or touch-panel changes).
| Product Name | TM056KDH02 |
| Screen Diagonal | 5.6 |
| Module area (W*H*T): | 126.5*100 mm |
| Active area (W*H): | 113.28*84.708 mm |
| Resolution | 320*234 |
| Brightness | 330 cd/m2 |
| Interface Type | RGB , 26 pins , FPC |
| Viewing Angle (L/R/V/T): | 65/65/45/65 |
| Backlight Type | WLED |
| Product Keywords | economical |
| Size Inch | CKT | Dot Format | A.A. (mm) | Outline Size (mm) | Top.(°C) | Tstor. (°C) |
| 1.77 | CKT017M030CAN-A3 | 128*RGB*160 | 28.03*35.04 | 34.70*46.70*2.50 | -20-70 | -30-80 |
| 2.00 | CKT020M033LQN-A4 | 240*RGB*320 | 30.6*40.8 | 37.88*51.50*2.50 | -20-70 | -30-80 |
| 2.20 | CKT022M034TQN-A1 | 240*RGB*320 | 33.84*45.12 | 41.04*56.45*2.85 | -20-70 | -30-80 |
| 2.40 | CKT024M037MQN-A1 | 240*RGB*320 | 36.72*48.96 | 42.72*60.26*2.46 | -20-70 | -30-80 |
| 2.80 | CKT028M041TQN-A3 | 240*RGB*320 | 43.2*57.6 | 50.00*69.20*2.40 | -20-70 | -30-80 |
| 3.50 | CKT035G044MHT-A1 | 320*RGB*480 | 48.96*73.14 | 54.66*82.94*3.45 | -20-70 | -30-80 |
| 3.50 | CKT035G045TQN-A1 | 240*RGB*320 | 71.52*53.64 | 85*64*2.93 | -20-70 | -30-80 |
| 3.50 | CKT035G049TQN-A1 | 320*RGB*240 | 70.08*52.56 | 76.9*63.9*3.15 | -20-70 | -30-80 |
| 3.50 | CKT035G049TQT-A1 | 320*RGB*240 | 70.08*52.56 | 76.9*63.9*4.15 | -20-70 | -30-80 |
| 3.50 | CKT035G050TVN-A1 | 480*RGB*640 | 53.28*71.04 | 64*85*3 | -20-70 | -30-80 |
| 4.30 | CKT043D058TBN-A6 | 480*RGB*272 | 95.04*53.856 | 105.5*67.2*2.9 | -20-70 | -30-80 |
| 4.30 | CKT043D060QBT-A5 | 480*RGB*272 | 95.04*53.856 | 105.5*67.2*4.1 | -20-70 | -30-80 |
| 5.00 | CKT050D072TGN-A3 | 800*RGB*480 | 108*64.8 | 120.7*75.8*3.95 | -20-70 | -30-80 |
| 5.70 | CKT057D073MVN-A1 | 640*RGB*480 | 115.2*86.4 | 127*98.43*8.0 | -20-70 | -30-80 |
| 7.00 | CKT070D025CGN-A5 | 800*RGB*480 | 154.08*85.92 | 164.9*100*3.5 | -20-70 | -30-80 |
| 9.00 | CKT090D086CGN-A1 | 800*RGB*480 | 198.00*111.70 | 210.60*126.50*5.30 | -10~60 | ~20~70 |
| 10.01 | CKT101D083CPN-A1 | 1024*RGB*600 | 222.72*125.28 | 235*143*5.0 | -20-70 | ~30~80 |
