Titanium PVD Vacuum Coating Machine

Titanium PVD Vacuum Coating Machine
Price: US $ 1/Set
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union

Product Specifications


Prod Model: JTL-series
Coating Technology: Arc Cathode Sputtering, Ion Plating, Plasma Sputte
After Sales-Service: Engineers Available to Service Machinery Overseas
Control System: PLC+ Touch Screen, Automatic+ Manual
Application: Decorative Coating, Widely Use in Get Gold Color
Business Type: Manufacture+Trading
Name Of Our Company: Dongguan Huicheng Vacuum Technology Co.,Ltd

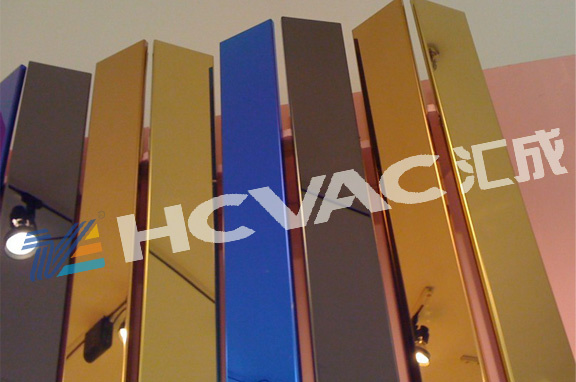

Coating Color: Gold, Silver, Rose Gold, Copper, Coffee, Blue, etc
Type: Coating Production Line
Coating: Vacuum Coating
Substrate: Glass,Metal,Ceramic,Alloy,Crystal,Mosaic

Product Description

Titanium PVD vacuum coating machine

PVD Titanium gold vacuum coating machine integrated three technology of DC magnetron sputtering, middle frequency sputtering and electric arc ion evaporation, combining the linear ionize source and pulse bias coating to thin the deposition particles. The various film performance are improved, and be able to coat alloy film, compound film, multilayer composite film on the surface of metal as well as nonmetal. After years of dedicated R&D by our engineer, through unique cathode electric arc ion and unbalanced magnetron systems, we develop a package of PROPOWER series of computer automatic control system. It makes the coating film adhesion density as well as good complex consistency, and solve the problems of the complexity of the manual operation, film color inconsistencies, etc.

Characteristic:
1. The principle of magnetron sputtering is based on the cathode glow discharge theory, expanding the cathode surface magnetic field close to the surface of workpiece, to increased the ionized rate of sputtering atoms. It retains the delicate of the magnetron sputtering and increased the glossiness.

2. The performance of electric arc plasma evaporation source is reliable, be able to work under the current 30A when optimize the cathode and magnetic field structure coating, and the coating film and substrate interface produce atomic diffusion, plus the feature of the ion beam assisted deposition.

Applied industry: The PVD Titanium gold vacuum coating machine is widely used in IPG clocks, IPS watches and clocks, guns IP, mobile phone shell, hardware, sanitary ware, cutters, anti-friction tools, dies and mould, etc. It can coat TiN, TiCN, CrN, TiALN, TiNbu, TiCrN, ZrN, and various kinds of diamonds film (DLC).
















Mode
Dimension
LH-800LH-1250LH-1416LH-1618
800*1000mm1200*1500mm1400*1600mm1600*1800mm
Coating mode and main confirguration
Eight multi-arc targets

Twelve multi-arc targets

Fourteen
multi-arc targets

Twenty
multi-arc targets
Power sourceElectric-arc power, Filament power,   Pulsed bias power supply
Process gas controlMass flowmeter + Electromagnetic ceramic valve
Vacuum chamber structure
Vertical side opening door, pump system postposition, double water cooling
Vacuum systemMolecule pump +Roots pump +Mechanical pump(5.0*10 -5 Pa)
Diffusion pump +Roots pump +Mechanical pump(5.0*10 -4 Pa)
Workpiece baking temperature
Normal temperature to 350 centi-degree PID control, radiation heating.
Workpiece motion modePublic rotation Frequency control: 0-20 rotation per minute
Measure modeNumber display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa
Control modeManual/Automatic/PC/PLC + HMI/PC  four choice of control mode
RemarkWe can design the dimension of the equipment according to customer's special technique requirement.

We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.



ISO 9001 standard to ensure the quality can meet the customer's requirements.


Please feel free to contact us for further information!

Contact: Kelly Luo

Mobile: 0086-13650364433


Why a HCVAC system?

Over 1000 plants installed worldwide
Quick cycle times
High production capability with low energy consumption
More up time due to ease of loading/unloading and low maintenance
High productivity with only a single operator
Steel process chambers, built to last
Eco-friendly
Space saving design
PVD option available on all plants
1 year component warranty and 12 years minimum guaranteed working life
Complete global network of consulting, engineering and renowned after sales service

DongGuan HuiCheng Vacuum Technology Co., Ltd is a high-tech enterprise specialized in the R&D, Production and Marketing of various kinds of the vacuum equipments. Our company aggregates many excellent technicians in the vacuum industry, including engineers with the senior and middle technique titles. We also invite the senior experts and experienced technicians to be responsible for the development and design of the new products, insure the high technology and quality of the vacuum equipment. Our products are popular with both the domestic and overseas clients, and have a high reputation in the vacuum industry.

Our company is dedicated to the R&D of the series of the vacuum coating machine. We have been designed various coating technics projects according to different requirements successfully, especially in the fields of mobile(computer) shell, electronical appliance, metal, auto parts and high-tech industries, etc. Particularly we designed the special wheels coating machine for the VIP enterprise in Zhejiang Province in 2007, bringing great benifits for the client, making prominent contribution to the environment protection and generating extremely positive social effectiveness. It is high appreciated by the government and craft brother. Therefor this project is listed to the item of the Nation Star Project. Our main products also include slide valve vacuum pump, Roots vacuum pump, water ring vacuum pump, rotary-vane vacuum pump, various vacuum units and different vacuum heating energy equipments, etc.

Our company sticks to the selling concepts of"People-Oriented, Keeping improving, Innovative and Factualistic, Customer First"; Holding the management policy of "Keep the science and technology ahead, Put quality and service at the first place"; Carrying forward our corporate spirits"Honesty and High efficiency, Unity and Struggle, Factualic and Innovative". We'll continue to hold the development and improvement as our main rhythm, stepping forward to the goal of becoming diversification, internationalization and high technological modern enterprise. We will make new contribution to set up the international advanced level in the vacuum fields.
