Thermal Low- E Hollow Glass for Wall Cladding
| Price: |
US $ 10/Square Meter |
| Trade Terms: |
FOB,CIF,DAT |
| Min Order: |
100/Square Meter |
| Pay Type: |
L/C,T/T,D/P,Paypal |
Product Specifications
| Prod Model: |
113 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shape: |
Flat |
| Structure: |
Hollow |
| Air Cavity Depth: |
12mm |
| Deep Processing Depth: |
Hollow Glass |
| Usage: |
Building |
| Type: |
Insulated |
| Color: |
Blue |
Product Description
* Low E Hollow Glass for Wall Cladding,Facade

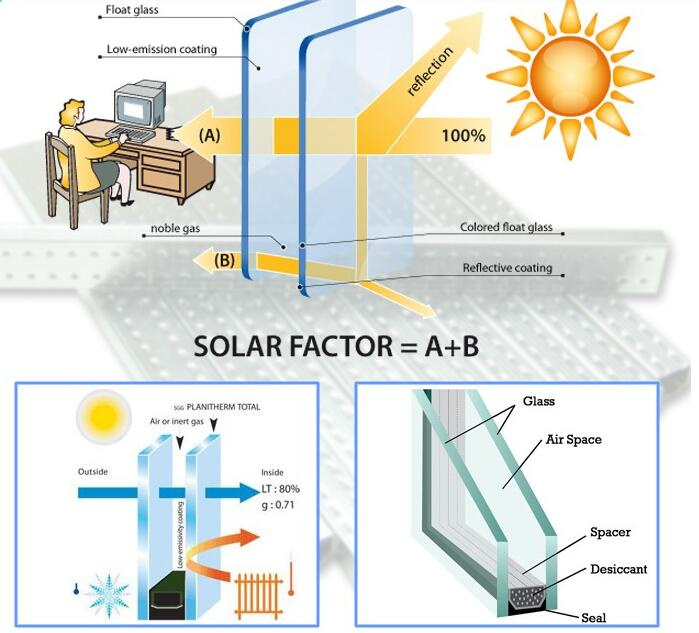

It is insulated glass, manufactured by fusing together 2 panes, or 3 panels of glass spaced by dry air or Argon gas. It is with exellent solar heat insulation property which greatly reduces cooling or heating loads and make building looks colorful and beautiful.
FUNCTION AND PROPERTY
1.Thermal insulation
low heat gain and heat loss value (low U value)
2. Light transmission.
Appropriate level of solar transmission and solar reflectance can be selected to meet the design and functional requirement.
3. Noise insulation
reduce noise level by 30 dB. with inert gas in-filled, a 5 dB further reduction can be achieved.
4. Condensing prevention
Our insulated glass are designed to withstand down to -65degrees without condensing, which is far exceeding the National Requirement of -40degrees.
5. Leak proof
To ensure IGU air tight, automatic bending machine is used for
all four corners bending, with use of linear connector for the spacer.
A dual seal system is adopted with PIB as primary seal, and silicone or polysulfide
as secondary seal. We use advanced fully automatic IG production line ,
with automatic production operations covering spacer bending,
filling of desiccant, edge deletion of coated glass, glass assembly,
filling with inert gas and application of primary and secondary sealants

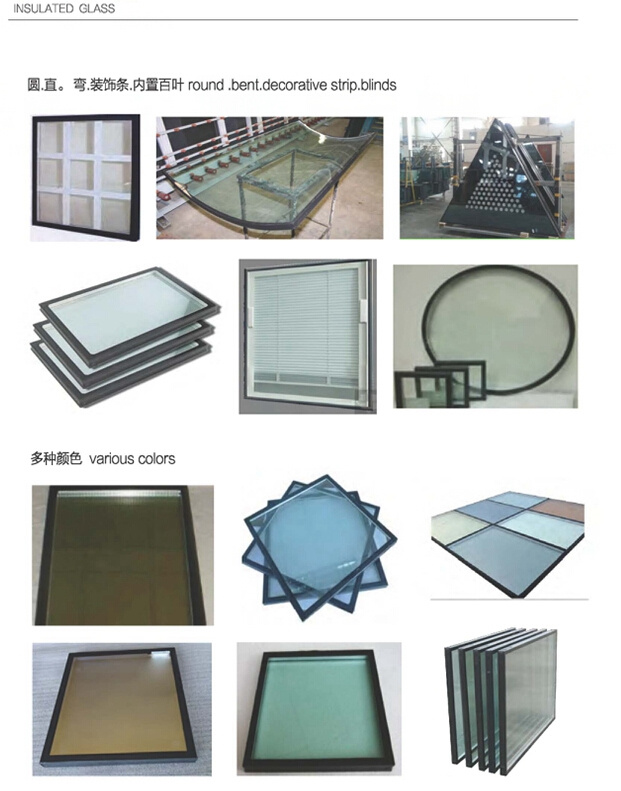

Specificaions we mainly supply with 1) various types are available, as the follwoing
Clear float glass + 6A/9A/12A/15A /20A + clear float glass (tempered,laminated ,heat strengthened ,hst available)Clear float glass + 6A/9A/12A/15A /20A + clear color pattern printed glassClear float glass + 6A/9A/12A/15A /20A + tinted color glass (green, blue, grey, brown, golden)
Clear float glass + 6A/9A/12A/15A /20A + clear low -E glass
Clear float glass + 6A/9A/12A/15A /20A + off-line low-E glass(green, blue, grey, brown, golden)
Clear float glass + 6A/9A/12A/15A /20A + on-line low-E glass(green, blue, grey, brown, golden)
Clear float glass + 6A/9A/12A/15A /20A + solar heat reflective glass(green, blue, grey, white, brown, golden)
Clear float glass + 6A/9A/12A/15A /20A + solar control coated glass (green, blue, grey, white, brown, golden)
Clear float glass + 6A/9A/12A/15A /20A + self-cleaning glass
Solar reflective glass + 6A/9A/12A/15A /20A + low-E glass (green, blue, grey, white, brown, golden)2) Glass thickness, spacer thickness and sizes customized
warm edge spacer is available.
min. Size 150X150mm,
Max. Size 2440mm X 3660mm
Our Quality Control
1) we use top quality raw materials to manufacture insulating to ensure the safe and quality
* glass of low-E glass, solar control glass, tinted float glass, float glass are from Chinese 5 brands, such as Shanghai pilkinton(SYP), China south glass(CSG), Taiwan glass, Xingyi glass, Jinjing glass(G-crystal) or as to your nominated brand for raw glass
* top branded aluminium spacer, stainless steel spacer and warm -edge spacer, color decration spacer are available
* top branded silicone sealant, polysulfide sealant, butyl sealant are available
* top branded molecular or dry agent availble
2) use soft water (specially processed) to wash the glass, in avoid of the raw water -pollution
3) most important is
All these insulating processes are automatically finished by advanced machines, and robot arms, then the quality and surface quality is ensured, from aluminium framing, molecular filling, space sealing to packing.
Factory Introduction
Our glass factory was founded in 2000, now it is leading glass manufacturer in China. We have three workshops, and are specialized in manufacturing building glass, household appliances glass,with annual producing capability of 750,000sq.meters.For Building Glass, they are toughened glass, laminated glass, insulated glass, acid itched glass, heat soak tested glass, silk-screen printed glass. They are used for swimming pool fence, shower screen, balustrade, balcony, winds, doors, glass wall, glass table,elevator and so on.
For Household Appliance Glass, they are furniture glass for door,table,tv crack,microwave oven door glass, cooktop glass, range hood glass.
We have complete and advanced equipments and machines for making glass.They are imported from USA, Italy Bottero, Finland Tamglass, South Korea Ekang etc. The products have been certificated and approved by AS/NZS 2208: 1996, ISO9002, SGCC: ANSI Z97.1 CPSC 16 CFR 1201, TNO: EN12150, CCC(3C), etc. With high-grade quality and good controlling system, the products have been exported to USA, Australia, New Zealand, U. K., Holland, Norway, Germany, Japan, South Africa and Singapore.
Yilin Glass Manufacturing Co., Ltd, one of Chinese leading glass processing manufacturers, established in 2001, located in Suzhou city, near Shanghai sea port, with 62 employees, including 8 engineers, specialized in manufacturing tempered glass (toughened glass), insulated glass, laminated glass. They are widely used for window, door, partition, building inside and out side decoration, as well as for furniture and appliance. Annual producing capability of 750, 000sq. Meters
Equipped with the most advanced machines, production and administration approved by ISO 9001: 2000, our products have been certificated by AS/NZ, CE, ANSI, CCC(3C).
In China, our glass is accepted and enjoys a good reputation in Shanghai building market. In overseas building market, it is exported and used in Canada, USA, Germany, Russia, Australia, Indonesia, South Africa and Brazil.
No matter where you are! We are looking forward to working with you in the near future.
Our Business Advantage
1) stable and mature deep-processing technology
2)skilled workers and engineers team & advanced business management mode
3)specialized production & competitive cost
We manufacture the following high quality glass products
1)Tempered Glass Products: Pool fence glass, shower screen glass, balustrade glass, balcony glass, partition glass, shop front glass, wall curtain glass, shelf glass, door table glass etc.
2)Insulated Glass Products: Double glazing, low-E insulated glass, reflective insulated glass, tinted insulated glass, double glazing venetian blinds, used for window door and building curtain wall.
3)Laminated Glass Products: Large size laminated, color PVB film laminated
Glass, balustrade glass, ceiling glass, curtain wall glass
