Product Specifications
| Prod Model: |
NCK BOX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quality: |
Original New |
| Warranty For Box: |
8 Months |
| Warranty For Cables: |
No |
| Weight: |
100g |
| Compatible Brand: |
Samsung, HTC, Nokia, HTC... |
| Accessories: |
Software Repair Tool |
| Parts: |
Unlock Box |
Product Description

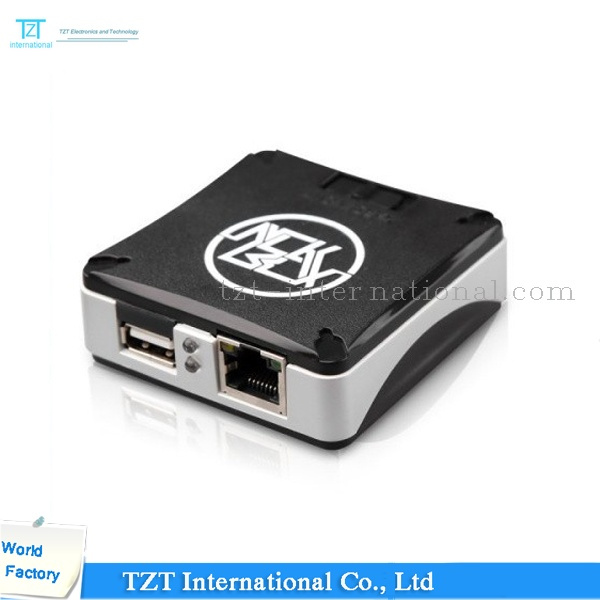

NCK BOX
The newest vesion NCK Box For LG &Alcatel&samsung&Nokia&HTC&XPERIA&ZTEflashing, software repair and unlocking pack with16cables
NCK Box is a polyfunctional phone servicing tool for Alcatel, Samsung, LG, Huawei and other devices' flashing, software repair and unlocking.
NCK Box - Features
Direct Unlock
Alcatel
Huawei
Nokia
HTC
LG
XPERIA
Samsung
ZTE and other brands
Huawei with old and new security types
Standalone solution, doesn't need any server codes or credits
All firmware versions and provider IDs are supported
Fast unlock procedure
Read Codes
Alcatel
BlackBerry
Huawei
HTC
Samsung
Motorola
ZTE
Alcatel, Motorola WX-series:
NCK (Network Control Key) code
NSCK (Network Subset Control Key) code
SPCK (Service Provider Control Key) code
CCK (Corporate Control Key) code
PCK (Personalization Control Key) code
Support for a specific firmware and hardware versions:
Models locked with "hardware lock"
Models with auto SP-lock
Models with more than one SIM
Models with disabled unlock code menu
Unlock Code Calculation by IMEI
Alcatel - MTK - Android - Modems
Avvio
BlackBerry
Chibo
Doro
GTran
Huawei
MicroMax
Mojo
Motorola
Mivistar
Orange
Pantech
TCL
SFR
Spice
Vodafone
T-Mobile
TMN
ZTE - MTK - Android - Modems
Internet connection is not required for code calculation on most of the models
Standalone solution, doesn't need server codes or credits
No limit for quantity of codes calculated per day
Flash/Backup
Read phone's firmware version
COM port speed - up to 921600 bps
Read and restore backup
Upgrade firmware (restore backup from one phone into another)
Upgrade and downgrade firmware version
Huge flash files archive:
Latest firmware versions
Huge archive of operator's firmwares
Huge selection of language packs
IMEI
Repair IMEI, including models with more than one SIM
Repair Software IMEI (phones with IMEI located in the file system)
Repair "Blank" IMEI
Repair Security Area
Repair Alcatel Security Area via flashing
Works with FFS through boot mode (allows to export information from the phone's FFS zone even if the handset is dead, but file system of the phone is not damaged)
Works with network calibrations (backup and restore)
Phone book backup
Format file system
NCK Box - File Names Specifications
Locked - means that after firmware update procedure the phone will be locked
Unlocked - means that after firmware update procedure the phone will be unlocked
Flash ID - means that firmware is intended for a specific flash memory type
Language description - means that each file contains description of languages that are placed in the flash file
NCK Box - Supported CPUs
Qualcomm
Broadcom
Infineon
Swift
Sysol3
MediaTek: MT6219, MT6223, MT6225, MT6226, MT6235, MT6236, MT6238, MT6239, MT6252, MT6253, MT6268
The box operates via UART interface - any virtual or physical COM-port (up to 921600 bps).
NCK Box - Supported Models
Alcatel MTK
OT-B331, OT-C818, OT-C819D, OT-DS1D, OT-E101 FLIP, OT-EASYMUSIC, OT-KR01 (Crystal), OT-TEST, OT-V570, OT-S122, OT-S621, OT-S626, OT-T60, OT-T66, OT-90, OT-103, OT-104, OT-105, OT-106, OT-107, OT-108, OT-109, OT-112, OT-113, OT-117, OT-132, OT-140, OT-150, OT-1801, OT-203, OT-203A, OT-203E, OT-204, OT-205, OT-206, OT-208, OT-209, OT-213, OT-214, OT-214W, OT-216, OT-217, OT-222, OT-223, OT-228, OT-232, OT-233, OT-250, OT-252, OT-255, OT-255D, OT-262, OT-268, OT-280, OT-282, OT-292, OT-296, OT-297, OT-300, OT-301, OT-303, OT-304, OT-305, OT-306, OT-308, OT-310, OT-311, OT-312, OT-315, OT-315M, OT-317D, OT-318D, OT-319, OT-322, OT-332D, OT-352, OT-355, OT-355DX, OT-356, OT-358, OT-358G, OT-358D, OT-360, OT-361, OT-362, OT-363, OT-380, OT-383, OT-385, OT-385J, OT-385D, OT-390, OT-455, OT-505, OT-505K, OT-506, OT-506D, OT-508, OT-510, OT-530, OT-540, OT-543, OT-555, OT-565, OT-585, OT-585D, OT-585F OT-595, OT-595D, OT-600, OT-602, OT-602D, OT-605, OT-606, OT-650, OT-660, OT-665, OT-668, OT-706, OT-708, OT-710, OT-710D, OT-7110, OT-710K, OT-720, OT-720D, OT-720G, OT-799, OT-8107, OT-800, OT-802, OT-802Y, OT-803, OT-803D, OT-806, OT-806D, OT-807, OT-808, OT-809, OT-810, OT-810D, OT-813, OT-813D, OT-813F, OT-818, OT-818D, OT-819, OT-828, OT-838, OT-870, OT-880 (MISS-SIXTY2, AMSTERDAM), OT-900, OT-901, OT-902, OT-905, OT-905D, OT-907
Alcatel Android
OT890, OT891, OT908, OT908A, OT908F, OT908F, OT909, OT909A, OT909S, OT910, OT910A, OT980, OT980A, OT981, OT981A, OT990, OT990A, OT990S, OTA890, OTA909, OTA990, OTC908, OTC990, OTMOVE, OTV958, OT-903, OT-903A, OT-903X, OT-903D, OT-918, OT-918A, OT-918X, OT-918D, OT-918N, OT-918S, ORANGE PASADENA, OT-991, OT-991A, OT-991X, OT-991D, OT-A919, OT-V861, OT-M960, OT-A966, OT-W939, OT-A919, OT-C918, OT-C919, OT-MOV2, OT-MOV2X
Alcatel Modems
S220L, X020, X030, X060, X060S, X070S, X080S, X090S, X100X, X150X, X200S, X200X, X210S, X210X, X215S, X220X, X225L, X225S, X228L, X230X, X300X, X310X, X500X, X520X, Y280X
Alcatel TCL
TCL-I606, TCL-I650, TCL-I780, TCL-I802, TCL-I806, TCL-I806D, TCL-I880, TCL-I898, TCL-I900, TCL-I905, TCL-T208, TCL-T218, TCL-T255, TCL-T268, TCL-T355, TCL-Q3, TCL-Q5
Other supported Alcatel models:
OT-4030D, OT-4030E, OT-4030X, OT-5020A, OT-5020D, OT-5020X, OT-5020E, OT-5020W, OT-5021, OT-5021E, OT-5035A, OT-5035D, OT-5035E, OT-5035X
BlackBerry
6120, 6210, 6220, 6230, 6280, 6510, 6710, 6720, 6750, 7100, 7105, 7130, 7210, 7230, 7250, 7270, 7280, 7290, 7510, 7520, 7730, 7750, 7780, 8100 8110, 8120, 8130, 8220, 8300, 8310, 8320, 8330, 8350, 8500, 8520, 8700, 8703, 8705, 8707, 8800, 8801, 8810, 8820, 8830, 8900, 9000, 9020, 9100 9105, 9300, 9360, 9380, 9500, 9520, 9520, 9525, 9530, 9550, 9600, 9630, 9700, 9780, 9790, 9800, 9860, 9900, 9930, Bold, Curve, Gemeni, Niagara Odin, Onyx, Pearl, Pearl Flip, RIM 850, RIM 857, Storm, Storm 2, Thunder, Tour, 9630
Huawei
G6600, G5500, G5510, G6603, G6609, G7050, G7300, KNP Touch, T-MOBILE ENERGY, VM820, G7105, G20, G6005, G6605, G6608, G6210, G6620, G7210, Panama, VM720, G5726, G7510, G6622, G3501, G7600, G7002, G5010, Astro, T-mobile Prism, Blaze, Boulder, Fusion 2, G300, Gaga, HUAWEI-858, MTS EVO, Netphone 501, Orange Stockholm, Orange Barcelona, OPTIMUS T-Mobile, STOCKHOLM, Sonic, SFR STARSHINE, Rapport, VODAFONE-858, T-Mobile Comet, Turkcell T20, U8150, U8160, U8180, U8220, U8350, U8500, U8510, U8510_IDEOS, U8650, U8651T, U8652, U8655, U8665, U8666, U8815, Ascend Y100, Ascend Y200, Ascend Y201, X1, X3
Huawei Modems
E156, E155, E1550, E1552, E156G, E160, E160G, E161, E166, E169, E169G, E170 E172, E176, E1762, E180, E182E, E196, E226, E270, E271, E272, E510 E612, E618 E620, E630, E630+, E660, E660A, E800, E870, E880, EG162, E880, EG162, EG162G EG602, EG602G, B260a E122 E153 E1551 E1553 E155X E156B E156C E1609 E160E E160X E1612 E1615 E1616 E1630 E1632 E166G E1690 E1692 E170G E171 E172G E173 E1750 E1750C E1752 E1756 E176G E1803 E180G E180S E181 E182 E1820 E216 E219 E230 EM770 S4011 UMG1691 UMG181 UMG1831
LG
A110, GB102, GB105, GB106, GB107a ,GB108, GB109, GB125, GB126, GB250, GU220 GU230, KG270, KG271, KG275, KG276, KG278, KG285, KG288, KG289, KG370, KG375 KP100, KP105, KP107, KP109, KP112, KP270, KF510, KF600, KP500, KP501, KP502 KP505, KP550, KP570, KS365, GS100, GS101, GS101go, GS102, GS102go, GS105 GS107, GS107a, GS107b, GS108, GS155, GS155a, GS290, TU365F
Samsung
GT-A897, GT-B6520, GT-B7320, GT-B7330, GT-B7510, GT-B7510L, GT-C3200, GT-C3200G, GT-C3200L, GT-C3310C, GT-C3310L, GT-C3310V, GT-C3312, GT-C3312, GT-C3322, GT-C3330, GT-C3332, GT-C3350, GT-C3353, GT-C3530, GT-C3550, GT-C3550L, GT-C3550M, GT-C3560, GT-C5010, GT-C5010L, GT-E2230, GT-E2230L, GT-E2230M, GT-E2232, GT-E2330, GT-E2330B, GT-E2330C, GT-E2530, GT-E2530F, GT-E2600, GT-E2652, GT-E2652W, GT-I5500, GT-I5503, GT-I5503T, GT-I5505, GT-I5700, GT-I5800, GT-I5801, GT-I6410, GT-I6500, GT-I6500U, GT-I7110, GT-I7500, GT-I8150, GT-I8320, GT-I8330, GT-I8350, GT-I8510, GT-I8520, GT-I8530, GT-I8700, GT-I9000, GT-I9000M, GT-I9003, GT-I9008, GT-I9010, GT-I9020, GT-I9023, GT-I9088, GT-I9100, GT-I9100G, GT-I9100P, GT-I9100T, GT-I9103, GT-I9108, GT-I9188, GT-I9210, GT-I9300, GT-I9300M, GT-I9300T, GT-I9308, GT-M3710, GT-N7000, GT-N8000, GT-P1000, GT-P1000L, GT-P1000M, GT-P1000R, GT-P1000T, GT-P3100, GT-P5100, GT-P6200, GT-P6800, GT-P7100, GT-P7300, GT-P7320, GT-P7500, GT-S3650, GT-S3650C, GT-S3650H, GT-S3653, GT-S3653M, GT-S5230, GT-S5233, GT-S5260, GT-S5263, GT-S5330, GT-S5333, GT-S5360, GT-S5363, GT-S5369, GT-S5380B, GT-S5380D, GT-S5380L, GT-S5560, GT-S5560C, GT-S5560H, GT-S5560I, GT-S5570, GT-S5570B, GT-S5570I, GT-S5660, GT-S5660L, GT-S5660M, GT-S5660V, GT-S5670, GT-S5830, GT-S5830B, GT-S5830L, GT-S5830T, GT-S6500, GT-S6500D, GT-S7500, GT-S7500L, GT-S8000, GT-T359, GT-T669, SGH-I927, SGH-I987, P6201, P7500R, P7501, SC01C, SC02C, SGH-I589, SGH-I600, SGH-I607, SGH-I617, SGH-I637, SGH-I717, SGH-I717M, SGH-I727, SGH-I727R, SGH-I747, SGH-I777, SGH-I827, SGH-I896, SGH-I897, SGH-I900, SGH-I900L, SGH-I917, SGH-SC-01D, SGH-SC-02C, SGH-SC02D, SGH-T499, SGH-T589, SGH-T679, SGH-T759, SGH-T769, SGH-T839, SGH-T849, SGH-T859, SGH-T959, SGH-T959D, SGH-T989, SGH-T989D, SGH-T999, SHW-M110S, SHW-M240S, SHW-M250S, SHW-M380k, SHW-M440s, SGH-T869, SGH-T959U, SGH-T969V, GT-P3110, GT-I9000B, GT-I9000L, GT-I9000T, GT-I9018, GT-I9103L, GT-P1010, GT-P7500C, GT-P7500M, SGH-T939, SGH-T959V, SGH-I757M, SGH-T889
And many others
NCK Box - Supported Operating Systems
Windows 2000
Windows XP 32/64-bit
Windows Vista 32/64-bit
Windows Server 2003 32/64-bit
Windows 7 32/64-bit
Windows Server 2008
NCK Box - Package Content*
NCK Box with smart card inside
Cables:
Alcatel S210 RJ45 cable
LG GS102 RJ45 cable
LG KG800 RJ45 cable
LG KE500 RJ45 cable
Micro USB CA101 RJ45 cable
Micro USB cable
Motorola WX-series RJ45 cable
Nokia Easy Flash 3-in-1 USB and RJ45 cable
Samsung C180 RJ45 cable
Samsung E210 RJ45 + USB combo cable
Samsung Micro UART (C3300k) RJ45 cable
Samsung Micro UART (S7070) RJ45 cable
Testpoint cable with labeled wires
Sony Ericsson test point cable
ZTE X760 RJ45 cable
