TFT LCD Display 2.8inch 240X320 for Mobile & Portable Device
| Price: |
US $ 4-6/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
RP2D8T078 |
| Screen Size: |
≤17" |
| Application: |
Mobile Phone |
| Aspect Ratio: |
16:9 |
| Feature: |
LED Backlight Display |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
16ms |
| 3D: |
Not 3D |
| Optimum Resolution: |
240*320 |
| Interface Type: |
Mipi |
Product Description

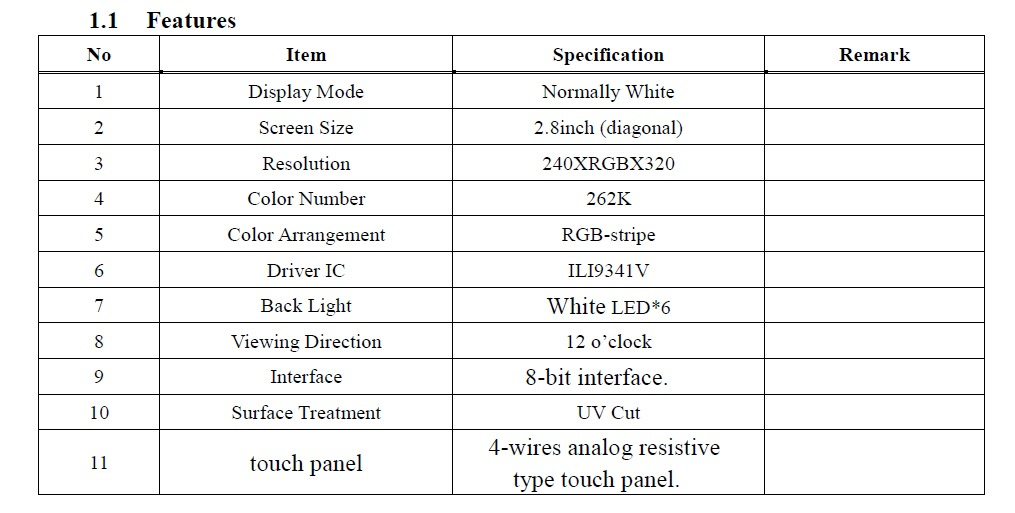

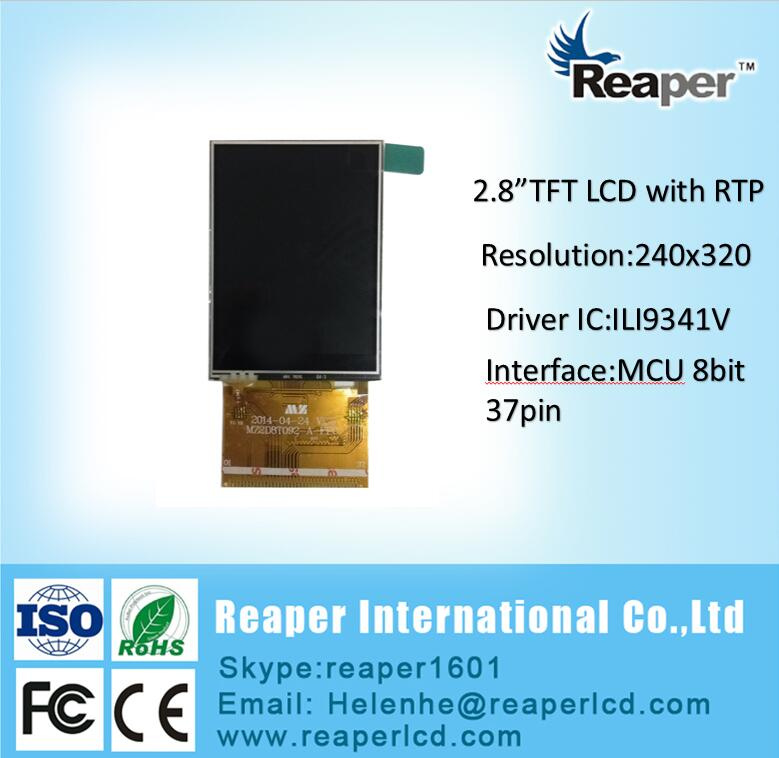

2.8inch 240x320 TFT LCD Display for Mobile & Portable Device| Model NO.: | RP2D8T078 |
| Screen Size: | 2.8" |
| Resolution: | 240*320 |

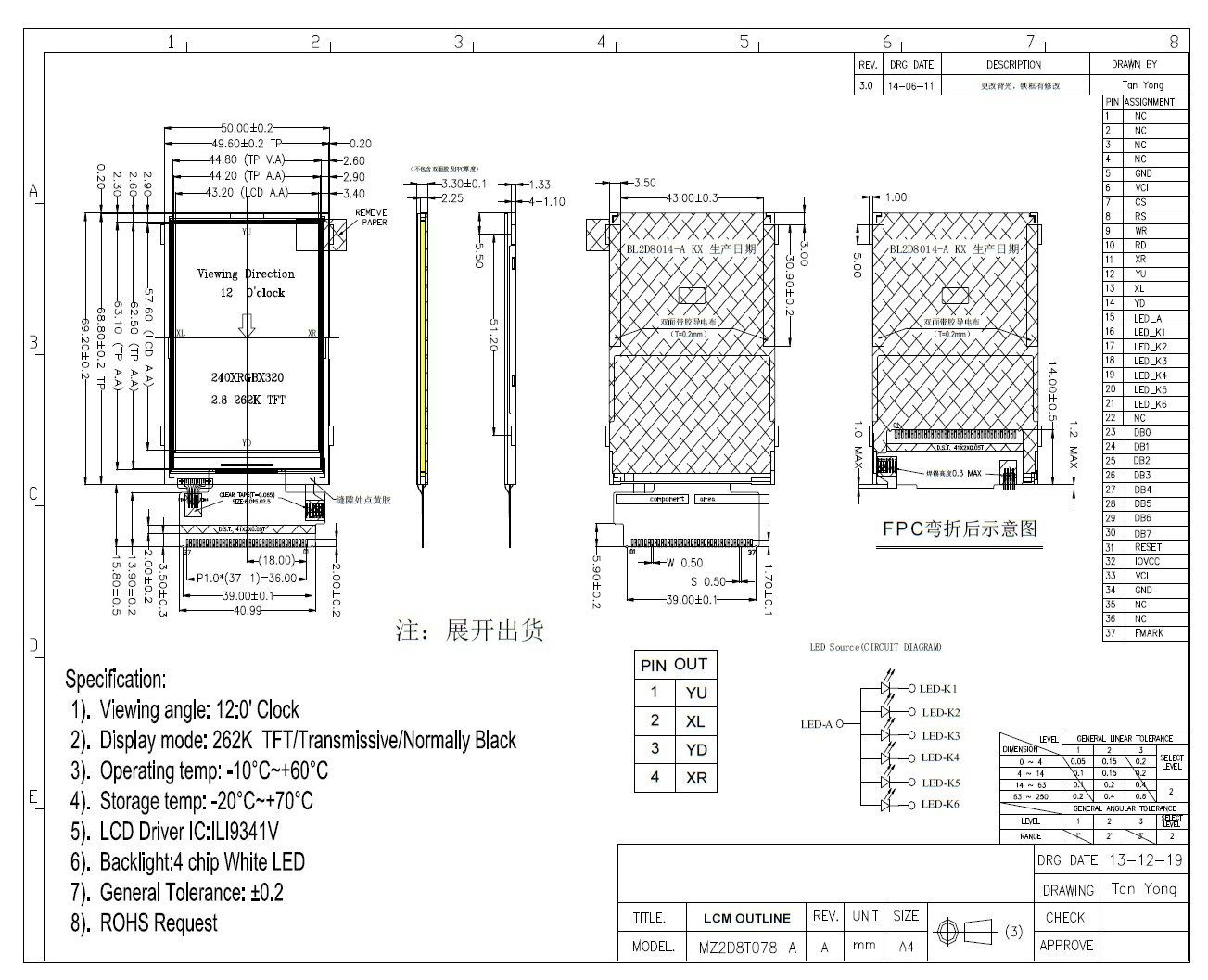

| Module size(W*H*T): | 50.0(W) x69.2(H) x 3.30(T)mm |
| Active area (W*H): | 43.2(W) x57.6(H)mm |
| Controller: | ILI9341V |
| Backlight: | LED White |
| Display Type: | 262K |
| Operating Temperature:- | -20 ~ +70ºC |
| Storage Temperature: | -30 ~ +80ºC |
General Description RP2D8T078 is a transmissive type a-Si TFT-LCD (amorphous silicon thin film transistor liquid crystal display) module, which is composed of a TFT-LCD panel, a driver circuit a backlight unit, The panel size is 2.8 inch and thresolution is 240x320. High image quality a-Si TFT LCD module. Partial-screen display function is available. Sleep and Stand-by modes are available for power saving.
Common Applications| Telecommunication Devices | Telephone,interphone,watch,tablet PC,radio,etc |
| Consumer Products | Camera,DVD player,toy, Cell Phone,game player,etc |
| Technical Equipment | Elevator controller,Industrial machine,etc |
| Office Automation | Printer,scanner,attendance machine,fax machine,etc |
| Home Appliances | Air-condition display,refrigerator,electric cooker,video doorbell,etc |
| Automobile | GPS,video player,speedometer,audio broadcast,etc |
| IT Products | Camera,handheld digital video,projector,media play,tablet PC,etc |
| Medical Equipment | Ultrasound machine,therapeutic equipment Blood pressure meter,etc |
Advantages1.LCD&LCM Display: Design, Manufacturing LCD&LCM (TN, STN, CSTN, TFT); OEM Service for COG, TAB & COB LCD Modules.

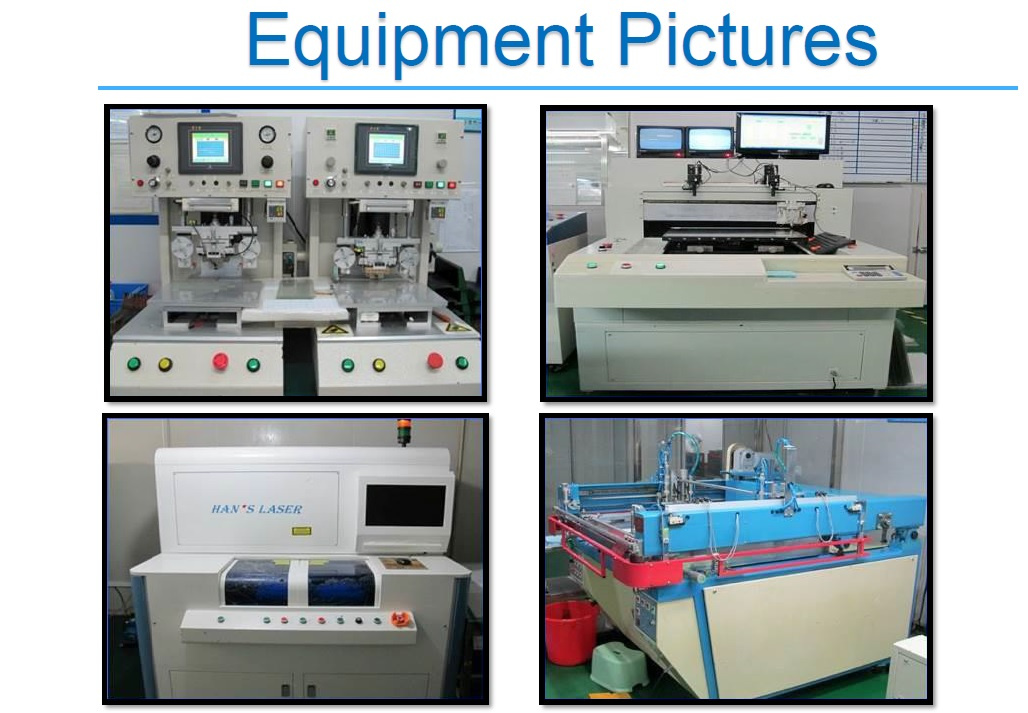

2.2.Guarantee: In order to ensure our products' quality, each process has been aranged QC. And there are many advanced machines introduced to check the products quality. The goods will have a ramdom test before delivery. One year for warranty under normal use.

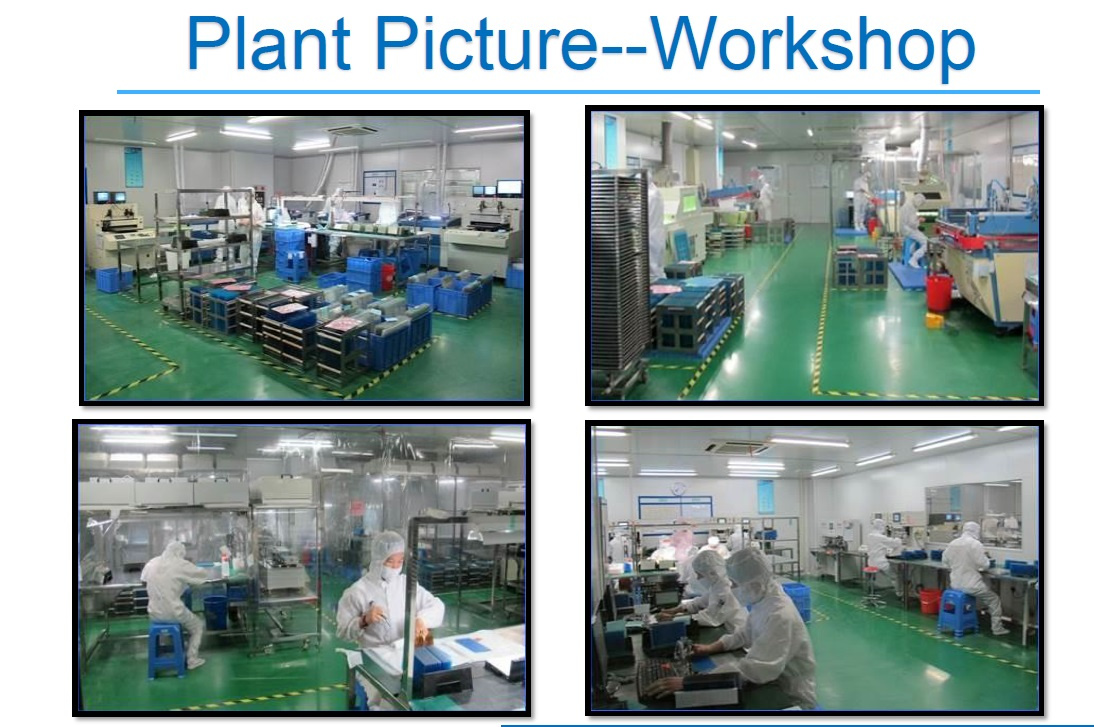

Reaper International found in 2009, reaper has grown profitably through the years to become one of the true leading manufacturers of liquid crystal Display(LCD)technology. Today, Reaper employs some 600 manufacturing and engineering personnel within its factories located in China. With a total of 2000 square meters of manufacturing space, Reaper is fully equipped to handle the market needs for Color STN, chip-on glass(COG), chip-on film(COF), tape-automated-bonding(TAB), chip-on board(COB) and surface-mount technology(SMT) LCD moule designs. With over 79 series(comprising over 1000 configurations) of standard LCD modules, Reaper is uniquely positioned in the marketplace today. Very few manufacturers of LCD modules can affirm this diversity of standard product.
TFT LCD Screen Display Module, COG FOG COB, TN STN HTN, Graplhic LCD, Character LCD, LCM Panel, Monitor, resistive touch panel, capacitive touch panel, mobile phone LCD screen, iPhone Samsung LCD screen.
Having achieved ISO certification for quality assurance. Reaper has earned the undaunted reputation for being an extremely aggressive and innovative leader in today's highly competitive world market. This has been largely achieved as a result of Reaper's uncompromising code of ethics with their ongoing development of global business partnerships. Reaper consistently strives to offer customers "total solutions" to their requirement, while at the same time, provide unparalleled engineering and customer service support.
Through a sophisticated network alliance of representative, agent and distribution channels Reaper has thousands of customers number in the thousands spread across America, Europe, Australia and Asia.
Reaper is headquartered in Hongkong, with manufacturing facilities located at this headquarters as well as GuangDong and Jiangxi, China. As the rapid development and reform of the economy and reform in China. Reaper anticipates future expansion of its factories in China to meet the ever-increasing customer base and demand for our products.
Reaper is prepared to meet your requirements for your next LCD module design, We are committed to meeting your product needs with consistent quality and on-time delivery at a very competitive cost, Reaper is renowned choice.
