Tempered Sealed Igu Glass
| Price: |
US $ 10-30/Square Meter |
| Min Order: |
50/Square Meter |
| Pay Type: |
L/C,T/T,D/P,Paypal |
Product Specifications
| Shape: |
Flat |
| Structure: |
Hollow |
| Deep Processing Depth: |
Hollow Glass |
| Usage: |
Curtain ,Ice Box Cover |
| Type: |
Insulated Glass |
| Glass Thickness: |
15mm-65mm |
| Air Cavity Depth: |
6mm,9mm,12mm,15mm,19mm,21mm,25mm |
| Energy Transfer: |
Low E |
| Color: |
Blue,Gray,Green,Brwn, Golden |
Product Description

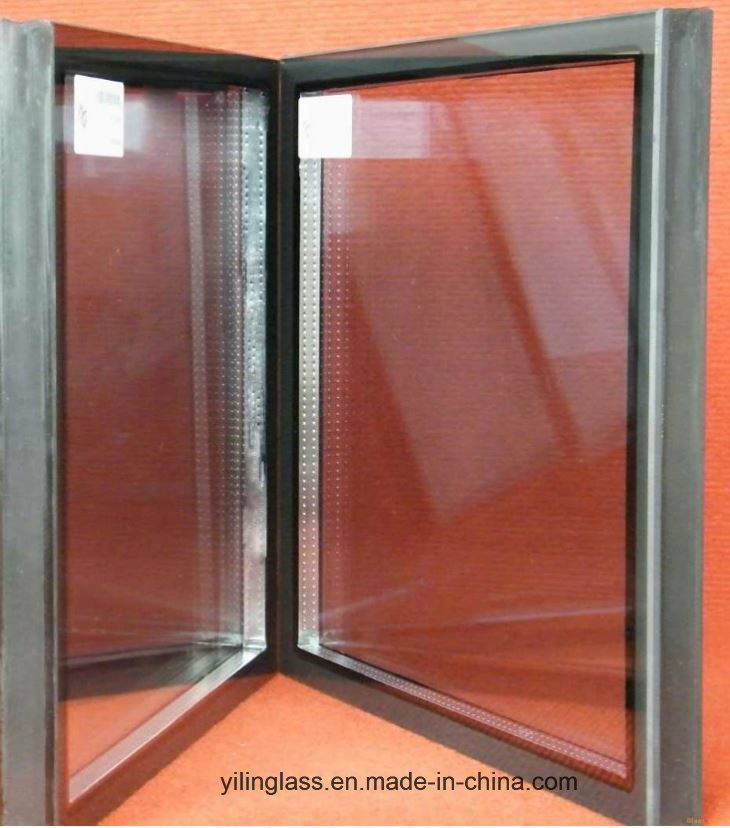

Tempered Sealed IGU Glass
* is manufactured by fusing together 2 panes ,spaced by dry air or argon gas. It is with exellent solar heat insulation property which greatly reduces cooling or heating loads and make building looks colorful and beautiful.
* the unit can consist of normal float glass,ultra clear glass,heat reflective glass, low-E glass,tinted glass, tempered glass,laminated glass and color printed glass ,patterned glass, frosted glass and so on.
* single glass thickness from 2mm to 19mm
* max.size within 6M X 3.6M
* air spacer frame , 6mm.9mm,12mm,15mm,16mm,19mm,20mm,21mm,25mm(aluminum or warm edge spacer)

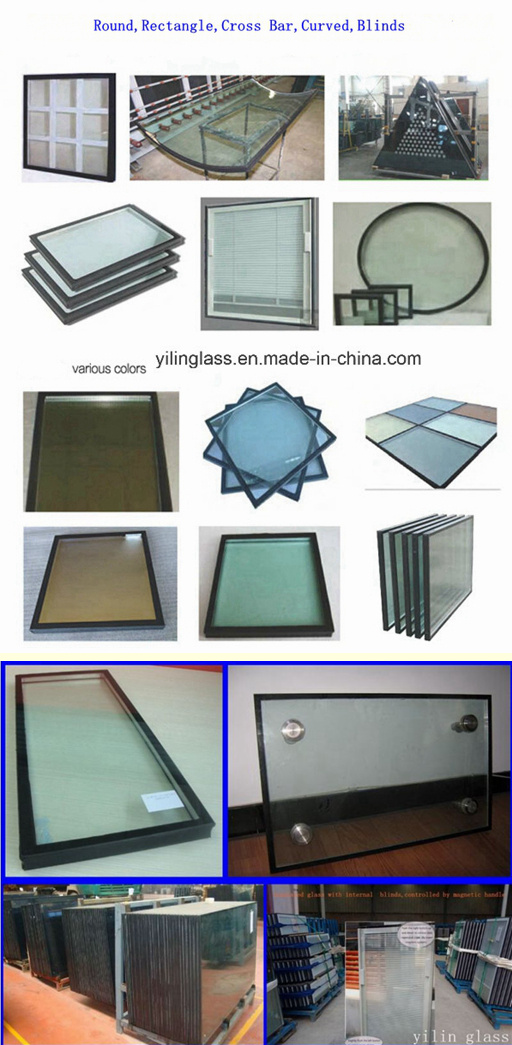

Various Types Available

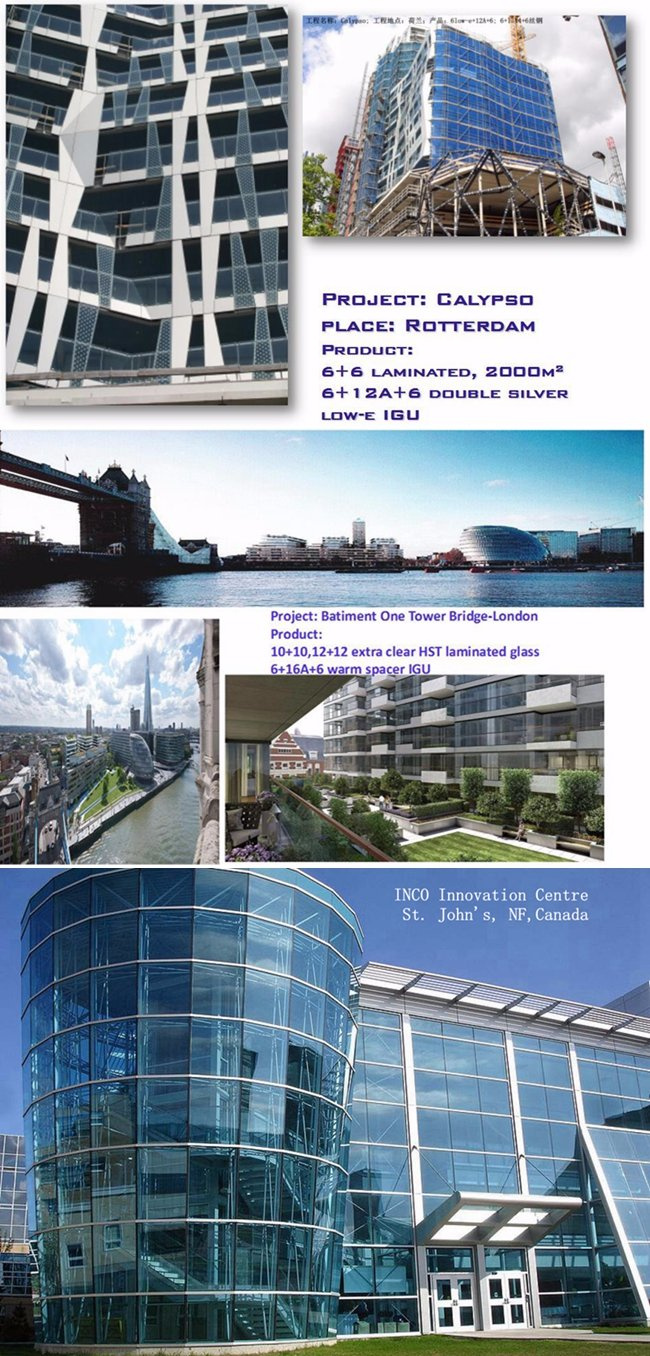

Project Cases & Application

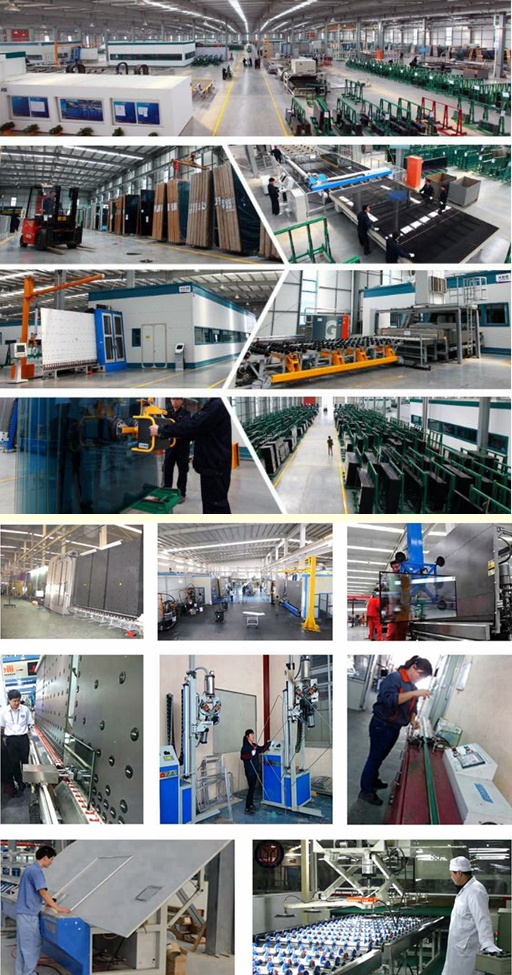

Overview of Factory & Workshop
Fuction & Property

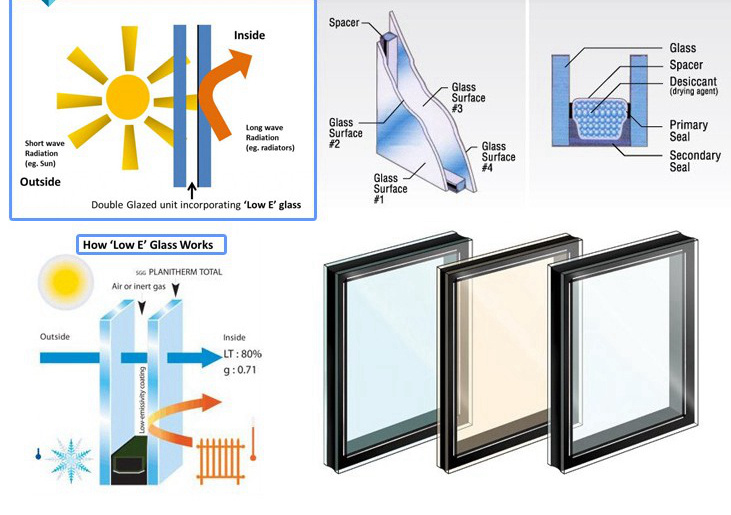

1.Thermal insulation low heat gain and heat loss value (low U value)
2. Light transmission.
Appropriate level of solar transmission and solar reflectance can be selected to meet the design and functional requirement.
3. Noise insulation
reduce noise level by 30 dB. with inert gas in-filled, a 5 dB further reduction can be achieved.
4. Condensing prevention
Our insulated glass are designed to withstand down to -65degrees without condensing, which is far exceeding the National Requirement of -40degrees.
5. Leak proof
To ensure IGU air tight, automatic bending machine is used for
all four corners bending, with use of linear connector for the spacer.
A dual seal system is adopted with PIB as primary seal, and silicone or polysulfide
as secondary seal. We use advanced fully automatic IG production line ,
with automatic production operations covering spacer bending,
filling of desiccant, edge deletion of coated glass, glass assembly,
filling with inert gas and application of primary and secondary sealants
Specifications glass thickness, spacer thickness and sizes are customized
min. Size 150X150mm
max. Size 3000mm X 6000mm
glass panel types available below
Clear glass, color tinted glass(green ,gray,blue ,brown,golden,silver )
low E glass, heat reflective glass, patterned glass,color printed glass, frosted glass etc.
Our Advantage ------Strictly quality control
1. we use top quality raw materials to manufacture insulating to ensure the safe and quality
* glass of low-E glass, solar control glass, tinted float glass, float glass are from Chinese 5 brands, such as Shanghai pilkinton(SYP), China south glass(CSG), Taiwan glass, Xingyi glass, Jinjing glass(G-crystal) or as to your nominated brand for raw glass
* top branded aluminium spacer, stainless steel spacer and warm -edge spacer, color decration spacer are available
* top branded silicone sealant, polysulfide sealant, butyl sealant are available
* top branded molecular or dry agent availble
2. we use soft water to clean the glass,then the galss surface are very clean and keep the quality in the further deeply processing.
3.most important
all these insulating proceses are automatically finished by advanced machines and robot ams,then the qualty and surface quality is ensured,fom spacer ffaming,molecular filling,unit sealing to packing
4.we strictly follow up quality control in every producing procedure and do last - every- piece inspection before the packing , to guarantee the high quality of min. 100% of ordered quantity
5. Delivery on time.
Yilin Glass Manufacturing Co., Ltd, one of Chinese leading glass processing manufacturers, established in 2001, located in Suzhou city, near Shanghai sea port, with 62 employees, including 8 engineers, specialized in manufacturing tempered glass (toughened glass), insulated glass, laminated glass. They are widely used for window, door, partition, building inside and out side decoration, as well as for furniture and appliance. Annual producing capability of 750, 000sq. Meters
Equipped with the most advanced machines, production and administration approved by ISO 9001: 2000, our products have been certificated by AS/NZ, CE, ANSI, CCC(3C).
In China, our glass is accepted and enjoys a good reputation in Shanghai building market. In overseas building market, it is exported and used in Canada, USA, Germany, Russia, Australia, Indonesia, South Africa and Brazil.
No matter where you are! We are looking forward to working with you in the near future.
Our Business Advantage
1) stable and mature deep-processing technology
2)skilled workers and engineers team & advanced business management mode
3)specialized production & competitive cost
We manufacture the following high quality glass products
1)Tempered Glass Products: Pool fence glass, shower screen glass, balustrade glass, balcony glass, partition glass, shop front glass, wall curtain glass, shelf glass, door table glass etc.
2)Insulated Glass Products: Double glazing, low-E insulated glass, reflective insulated glass, tinted insulated glass, double glazing venetian blinds, used for window door and building curtain wall.
3)Laminated Glass Products: Large size laminated, color PVB film laminated
Glass, balustrade glass, ceiling glass, curtain wall glass
