Product Specifications
| Prod Model: |
T5577 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Logic Encryption Card |
| Structure: |
Read-Write Card |
| Read-Write Method: |
Non-Contact Type |
| Power Mode: |
Passive Card |
| Function: |
Identification, Encrypt/Decrypt, Information |
| Data Transmission Mode: |
Parallel |
| Frequency: |
Low Frequency |
| Label Category: |
Passive |
Product Description

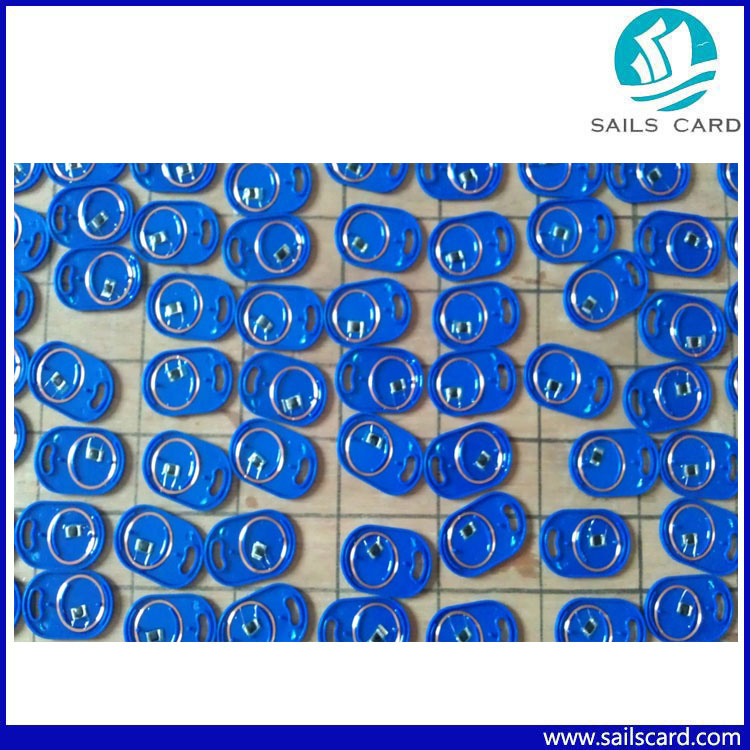

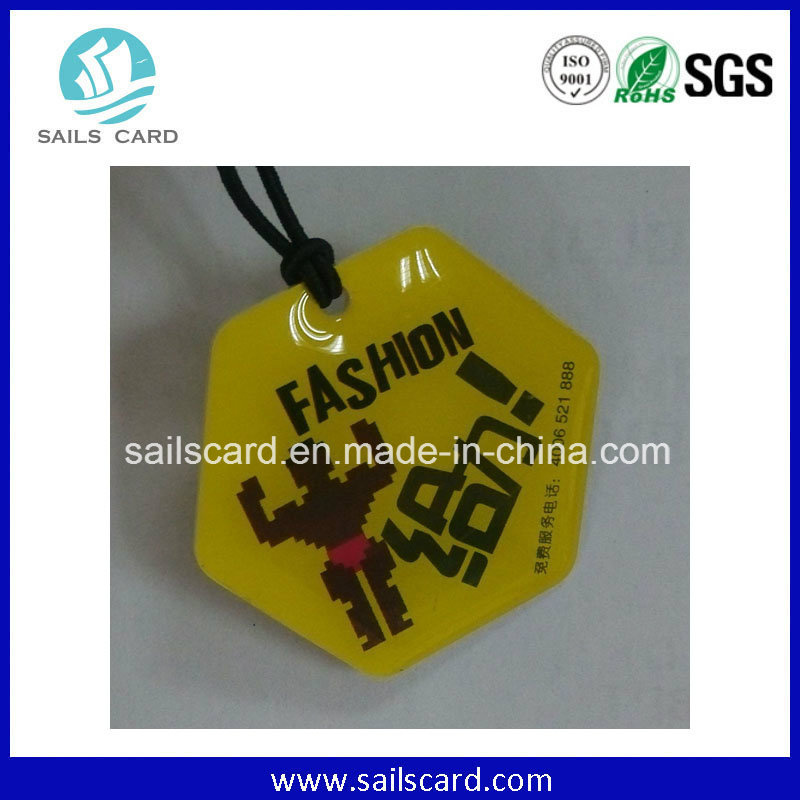

Atmel temicT5577 crystal epoxy keyfob specifications125KHz Temic T5577 Proximity Card
IC manufacturer: Atmel
- Function: Read/Write protect by password
- Memory: 330-bit EEPROM(10 blocks, 33bits each)
- Frequency: 125KHz
- RF protocol: N/A
- Modulation: FSK, PSK, Manchester, Biphase, NRZ
ATA5577 Read/Write LF RFID 125 kHz
Features:
High Performance IDIC® (Extended Read/Write Distance)
Contactless Power Supply
Contactless Read/Write Data Transmission
Radio Frequency fRF from 100 kHz to 150 kHz
Basic Mode or Extended Mode
Compatible with E5551/T5551, T5557, ATA5567
Configurable for ISO/IEC 11784/785 Animal and Waste Standards Compatibility
Total 363 Bits EEPROM Memory: 11 Blocks (32 Bits + 1 Lock Bit)
On Chip Trimmed Capacitor
High Q-antenna Tolerance Due to Build in Options
Adaptable to Different
Applications: Access Control, key card,Animal ID and Waste management
Other RFID Chip Options for your reference
Frequency | chip type | Memory | RF Standard |
| 125KHz | EM4100,EM4102 | 64 bit R/O | ISO 18000-2 |
| EM4200 | 64 bit R/O | ISO 18000-2 |
| EM4205,EM4305 | 512 bit R/W | ISO 11784/11785 |
| EM4450,EM4550 | 1K bit R/W | ISO 18000-2 |
| T5577 | 330 bit R/W | ISO 18000-2 |
| Hitag 1 | 2K bit R/W | ISO 18000-2 |
| Hitag 2 | 256 bit R/W | ISO 11784/11785 |
| Hitag S2048 | 2K bit R/W | ISO 11784/11785 |
| 13.56MHz | MF Classic 1k S50 | 1K Byte R/W | ISO 14443A |
| MF Classic 4k S70 | 4K Byte R/W | ISO 14443A |
| MF Ultralight | 512 bit R/W | ISO 14443A |
| MF Ultralight C | 192 bit R/W | ISO 14443A |
| MFUltralight EV1 | 384/1024 bit R/W | ISO 14443A |
| MF DESFire EV1 2K | 2K Byte R/W | ISO 14443A |
| MF DESFire EV1 4K | 4K Byte R/W | ISO 14443A |
| MF DESFire EV1 8K | 8K Byte R/W | ISO 14443A |
| MF DESFire 4K D40 | 4K/8K Byte R/W | ISO 14443A |
| MF Plus 2k | 2K Byte | ISO 14443A |
| MF Plus 4k | 4K Byte | ISO 14443A |
| I CODE SLI | 1K bit R/W | ISO 15693, ISO18000 |
| NTAG203/203F | 144 Byte R/W | ISO 14443A |
| NTAG210 | 48 Byte R/W | ISO 14443A |
| NTAG212 | 128 Byte R/W | ISO 14443A |
| NTAG213/213F | 144 Byte R/W | ISO 14443A |
| NTAG215 | 504 Byte R/W | ISO 14443A |
| NTAG216 | 888 Byte R/W | ISO 14443A |
| NTAG213F/216F | 144/888 byte | ISO 14443A |
| FM11RF08 | 1K byte | ISO 14443A |
| FM11RF32 | 4K byte | ISO 14443A |
| Topaz512(BCM20203) | 512 byte | ISO 14443A |
| Felica Lite-S(RC-S966) | 14 blocks+1 subtraction block(1 block= 16 byte) | ISO/IEC 18092 |
| Legic MIM 256 | 256/1K Byte R/W | Legic RF Standard |
| TI2048 | 2K bit R/W | ISO 15693, ISO18000 |
| Picopass 2k | 2K/32K bit R/W | ISO 14443B, ISO 15693 |
| UHF/2.45GHz | UCODE HSL | 2K bit R/W | ISO 18000 |
| 860~960MHz | UCODE EPC G2 | 512 bit R/W | EPC class1,G2 |
| Monza 5 | 128 bit R/W | EPC class1,G2,ISO 18000-6C |
| Monza 4D/4E/4QT | 128 bit R/W | EPC class1,G2,ISO 18000-6C |
