Szg Conical Vacuum Dryer for Pharmaceutical, Chemical, Foodstuff Industry
| Price: |
US $ 10000-200000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
sag |
| Material: |
SUS304/SUS316/Q235 |
| Usage: |
Salt,Granule,Small Block Material,Animal Food,Comp |
Product Description
SZG Conical Vacuum DryerDescriptions: SZG Series Conical Vacuum Dryer is a new generation drying device developed by our factory on the basis of combining the technology of similar equipment. It has two connecting ways, i.e. belt or chain. Therefore it is stable in operation. The special design guarantees two shafts realize good concentricity. Heat medium and vacuum system all adapt reliable rotating connector with the technology from USA. On this basis, we also developed SZG-A. It can carry out steeples speed change and constant temperature control.
As a specialized factory in drying industry, we supply hundred sets to the customers every year. As for working medium, it may be thermal oil or steam or hot water. For drying the adhesive raw material, we have designed specially a stirring plate buffer for you.Principle: Let heat source (for example, low pressure steam or thermal oil) pass through the sealed jacket. The heat will be transmitted to raw material to be dried through inner shell; Under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. The purpose of reinforced drying can be realized; The raw material is under vacuum. The drop of steam pressure makes the moisture (solvent) at the surface of raw material become saturation and will evaporate. The solvent will be discharged through vacuum pump and recovered in time. The inner moisture (solvent) of raw material will infiltrate, evaporate and discharge continuously. The three processes are carried out unceasingly and the purpose of drying can be realized within a short time. Applications: It is suitable for the raw materials that need to concentrate, mixed and dried at low temperature (for example, biochemistry) products in chemical, pharmaceutical and foodstuff industries. Particularly it is suitable for the raw materials that are easy to be oxidized, volatilized and have night heat sensitivity and is toxic and not permitted to destroy its crystal in drying process.Technical parameters: | item | spec |
| name | unit | 100 | 200 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 |
| total volume | L | 100 | 200 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 |
| working volume | L | 50 | 100 | 175 | 250 | 375 | 500 | 750 | 1000 | 1500 | 2000 | 2500 |
| heating area | m 2 | 1.16 | 1.5 | 2 | 2.63 | 3.5 | 4.61 | 5.58 | 7.5 | 10.2 | 12.1 | 14.1 |
| speed | rpm | 6 | 5 | 4 | 4 | 4 |
| power | kw | 0.75 | 1.1 | 1.5 | 1.5 | 2 | 3 | 3 | 4 | 5.5 | 7.5 | 7.5 |
| rotating height | mm | 1810 | 1910 | 2090 | 2195 | 2500 | 2665 | 2915 | 3055 | 3530 | 3800 | 4180 |
| total weight | kg | 825 | 1050 | 1350 | 1650 | 1800 | 2070 | 2250 | 3000 | 4500 | 5350 | 6000 |
| design pressure inside the tank | mpa | -0.09~-0.096 |
| design pressure of jacket | mpa | 0.3 |
Speed adjusting motor of 0-6rpm might be chosen according to the user's requirements. The following aspects should be point out when to order:
1. the above-mentioned parameters are calculated based on material density of 0.6g/cm3. If it's over, please point out.
2. If certificate for pressure vessel is required, please point out.
3. If glass lining for interior surface is required, please point out.
If the material is explosive, or flammable, the calculation should be made according to trial result. Features: When oil is used to heat, use automatic constant temperature control. It can be used for drying biology products and mine. Its temperature of operation can be adjusted form 20-160 ºC.
Compared to ordinal dryer, its heat efficiency will be 2 times higher.
The heat is indirect. So the raw material can not be polluted. It is in conformity with the requirement of GMP. It is easy in washing and maintenance.
FAQ
1.Q:Do you have factories?
A:Yes,we have factories in Changzhou City on drying machine.
2.Q:How is the progress for an new order?
A:1) we will provide pre-sale service, it is free.Just contact us ,and tell us what you want to dry, and capacity you need and some necessary conditions, our sales and technical people will give the best suggestion for you.
2) Once you have confirm,or if you like, welcome to visit our factories.You can sign the contact with us, and pay deposit.
3)After deposit, we will send you the drawing of each part, and confirm with you.If okay, we begin producing.
4)When completed, we will send the picture or video to you for confirmation.Or you can come to check.If all okay,payment of balance will be needed.
5)We send the machine and you will get the machine soon.

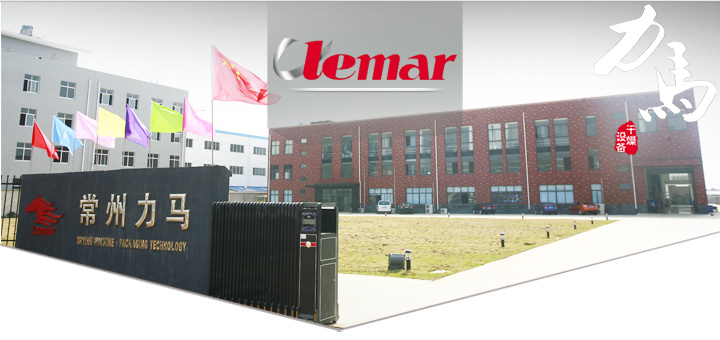

Changzhou Lemar Drying Technology Co., Ltd is located in Zhenglu Industrial Park, Changzhou, Jiangsu, China. It's only 3 kilometers from downtown and it tightly close to east-ring elevated road of Changzhou and Hengshan Exit of Shanghai-Nanjing Expressway. Our company undertakes large-scale drying technical engineering projects, design, manufacture and sale of drying equipments and industrial heat energy research. Now our products cover the field of drying equipments, granulating and coating equipments, crushing and mixing equipments and advantageous field of heat energy intensive device. The annual output for each kind of product reaches 500 sets.
