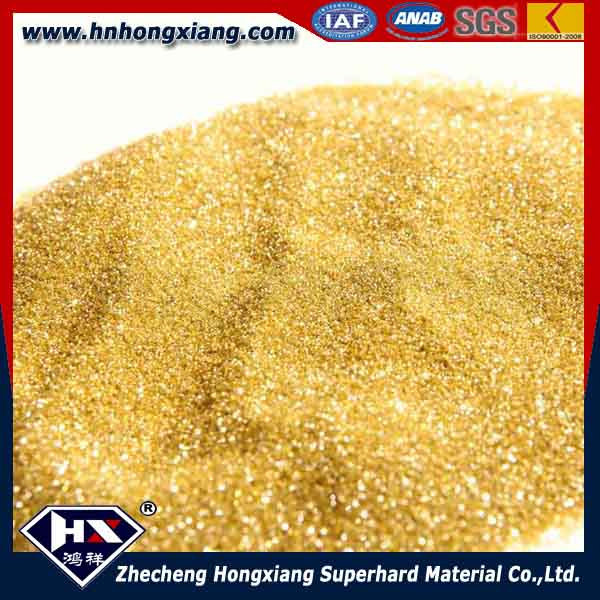

Synthetic Diamond & Wear-Resisting & Good Crystal

Name: Synthetic Diamond & Wear-Resisting & Good Crystal
Brand: china-crystals.com
SKU: 696591192
Availability: InStock
Rating: 4.8 (67 reviews)

Price:	US $ 0.038carat
Trade Terms:	FOB,CFR,CIF
Min Order:	2000carat
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	RVD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certifiction:	ISO9001
Grit:	30/40 to 400/500
Mesh:	30 to 500#
Delivery Time:	3-5 Days
Material:	Diamond
Usage:	Lapping
Color:	Yellow, Light Yellow

Product Description

Products information;
Size:
a. Diamond micron powder: from 0.25micron up to 50 micron
b. Diamond mesh powder: Grit No. : from 30/40 up to 500/600
c. Coated synthetic diamond : Nickel 30% and 56% , Ti 56% and 30%
d. Single crystal: diameter 1.2mm,1.5mm,1.8mm,2.0mm,2.2mm,2.4mm
e. Polycrystalline diamond (PCD) :10mm*0.75mm, 2.5mm*1mm, 3.2mm*1mm etc .

Name	Feature	Usage	Workpiece material
RVD	Most crystals are irregular with rough surface.	For making resin bond and vitrified bond abrasive tools, electroplated products and drilling tools etc.	Hard alloy,glass,ceramics,diamond etc.
MBD	Well facetted crystals with smooth surface and high compressive strength.	For making metal bond abrasive tools etc.	Stone,concrete product,refractory etc.
SMD	Well facetted and very clear crystals with smooth surface and high compressive strength.	For making saw blades drilling and dressing tools etc.	Stone,concrete product,etc.
Dianmond micro powder	Grit is uniform.Don't contain impurities.High purity.	For making polishing pads,polishing disc,diamond compound,PCD,diamond wire dies,polishing ceramics,electronic devices etc.	Diamond gem,hard alloy,electronic products,optical instrument,etc.

GRIT OF SYNTHETIC DIAMOND MICRO POWDER

Standard of China	Standard of International	Mesh	Standard of China	Standard of International	Mesh
w0.1	0-0.1		w10	5-10	2000
w0.25	0-0.25	60000	w10	6-12	1800
w0.5	0-0.5	30000	w12	8-12	1600
w1	0-1	15000	w14	7-14	1500
w1.5-	0-2	13000	w14	8-16	1300
w1.5	1-2	12000	w20-	10-20	1200
w2.5	1-3	10000	w20	12-22	1000
w3	2-3	7000	w20+	15-25	800
w3.5	2-4	6500	w28	20-30	700
w3.5	2-4	6000	w28+	22-36	600
w4	2-5	5000	w40-	20-40	500
w5	3-6	4000	w40	30-40	450
w6	4-6	3500	w40+	35-45	400
w7	4-8	3000	w50	36-54
w10	4-9	2500

Grit of Synthetic Diamond
Stanrd of International	Stanrd of China	Mesh	Stanrd of China	Stanrd of International	Mesh
D602	30/40	30#	D426	40/45	40#
D356	45/50	45#	D301	50/60	50#
D251	60/70	60#	D213	70/80	70#
D180	80/100	80#	D151	100/120	100#
D126	120/140	120#	D107	140/170	140#
D91	170/200	170#	D76	200/230	200#
D64	230/270	230#	D54	270/325	270#
D46	325/400	325#		400/500	400#
	500/600	500#

About us:
Zhecheng Hongxiang Superhard Material Co.,ltd., a professional diamond powder manufacturer in China mainland, with the capacity of producing 1000kg diamond powder per month, We have professional inspection micron powder equipment Malvern Instrument and Coulter, with strict inspection process,promise to supply the best products and service to our esteemed customers;

All of our business is carried out in full compliance with the ISO9001 Certification.
If you wanna more information, please contact us, here, you will get a very competitive price!

FOR MORE INFO:

Zhecheng Hongxiang Superhard Material Co., Ltd. Affiliated with Wanke Group, is a highly professional and experienced manufacturer of synthetic diamond powder & diamond tools in China. We have specialized in this field over 27 Years and always dedicated to the produce the diamond tools in high quality and good service.

Our products include,

Synthetic diamond

Diamond powder

Diamond saw blade

Diamond drill bit

Poly crystalline Diamond composite ( PDC )

PCD wire drawing dies

Diamond glass tools

Diamond polishing pad

Diamond cutting tools

Diamond grinding tools

Diamond wheels

Diamond tools, etc.

Why choose us?

1. Since 1990, with over 27 years diamond tools manufacturer experience.

2. Rich experience in OEM order

3. Advanced production equipment

4. Own design team, can help you custom the packaging

5. Own provincial engineering technology center

6. D&B and ISO9001 Certificates

We are a professional synthetic diamond powder & diamond tools company integrating development, production and sales. Factory located in middle of China-Henan, with more than 124000 square meters. "High quality products, competitive prices, and classic services" is the soul of our business.

Warmly welcome all partners to join us for mutual benefits cooperation.
