Product Specifications
| Prod Model: |
JSMDP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Synthetic Diamond Powder |
| Size: |
0-0.5 to 36-54; 100/120 to 500/600 |
| Quality Grade: |
Jsmdp-H and Jsmdp-E |
| Material: |
Diamond |
| Usage: |
Grind |
| Color: |
Yellow |
Product Description

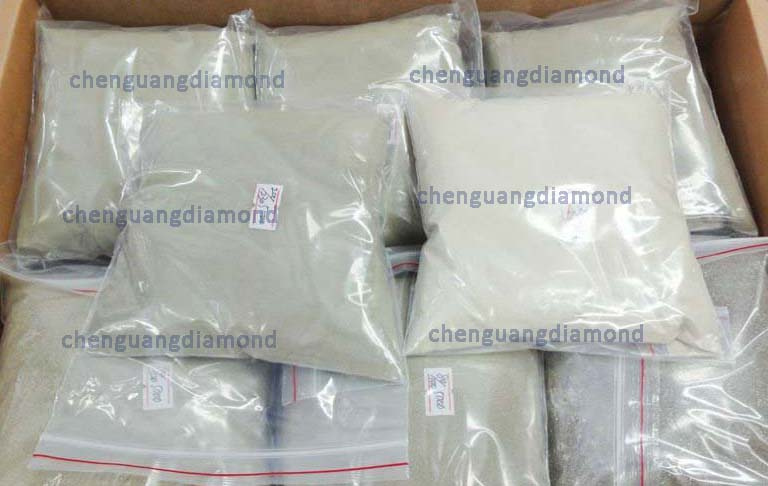

Synthetic diamond powder:
Micron powders are diamond finer particles resulting from the crushing of coarser grades. Size and shape characterizations are the two most important characteristics of these particles:
1, Particle size distribution is crucial to ensure tool performance. It influences surface finish and material removal in most abrasive applications. Consistent shape of particles improves results obtained.
2, Crystal shape is a key element. Blocky particles with sharp cutting edges optimize material removal rate without causing severe damage or scratches on the surface treated due to oversized grains.
Available size:
1.RVD RVG and RVE diamond crushing material:
100/120 230/270
120/140 270/325
140/170 325/400
170/200 400/500
200/230 500/600
2.Diamond micro powder:
For polishing: 0-0.5,0-1,0.5-1,0.5-1.5,0-2, 1-2,1-3,2-4,2.5-5,3-6
For Lapping ; 4-8, 5-10,6-12,8-16,10-20
For Grinding : 12-22, 20-30,22-36, 36-54
|
( Type ) |
( Characteristic ) |
( Applications ) |
(Size) |
|
JSCBN-800 |
Black, low toughness, easily fractured mono-crystalline. |
Suited for resin bond systems and grinding in low temperature. |
60/80 80/100 100/120 120/140 140/170 170/200 200/230 230/270 270/325 325/400 |
JSCBN-850
|
Black, semi-blocky, semi-tough, high thermal stability. Optimum balance of fracture strength and breakdown characteristics to enhance wheel life and grinding efficiency. |
Widely used in vitrified bond systems. |
60/80 80/100 100/120 120/140 140/170 170/200 200/230 230/270 270/325 325/400 |
JSCBN-M850
|
Black CBN micron powder, designed for honing whetstones and PCBN |
Suitable for ferrous lapping and polishing applications. |
60/80 80/100 100/120 120/140 140/170 170/200 200/230 230/270 270/325 325/400 |
JSCBN-950
|
Latest product, gold in color, blocky, extreme thermal stability and highest fracture strength. |
Used in electroplated tools and metal bond systems. |
60/80 80/100 100/120 120/140 140/170 170/200 200/230 230/270 270/325 325/400 |
|
JSCBN-980 |
Dark brown, irregular mono-crystalline with sharp edge, tough, high thermal stability. |
Used in vitrified bond, metal bond systems and heavy-duty resin bond applications. |
60/80 80/100 100/120 120/140 140/170 170/200 200/230 230/270 270/325 325/400 |
|
JSCBN-810 |
Black, irregular, semi-toughness, angular sharps, providing increased grinding efficiency in vitrified or resin bonds. |
Used in vitrified bond and resin bond applications. |
60/80 80/100 100/120 120/140 140/170 170/200 200/230 230/270 270/325 325/400 |
|
JSCBN-M990 |
Amber CBN micron powder, designed for honing stones and PCBN, |
Suitable for precision processing and lapping applications. |
