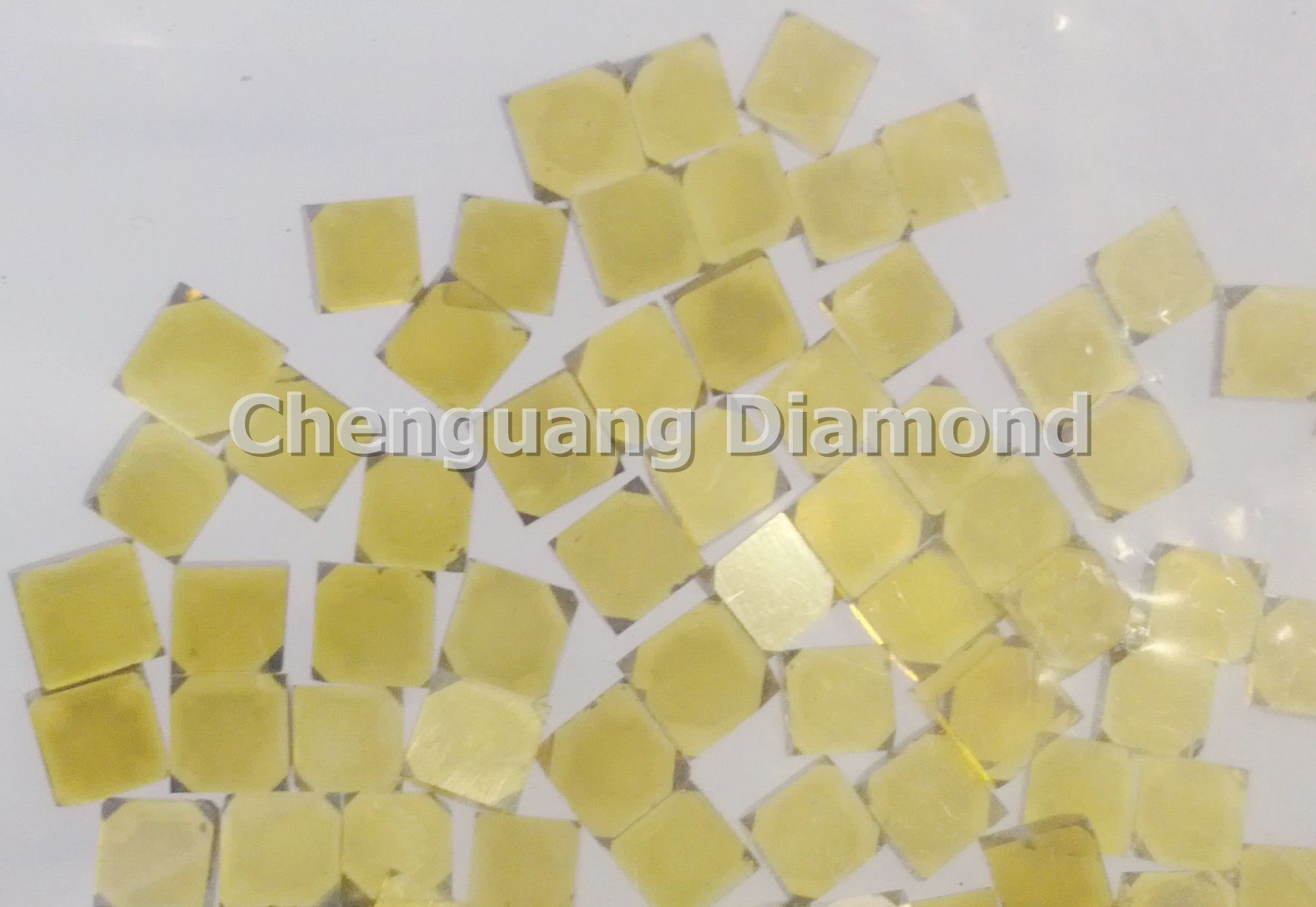

Synthetic Diamond Hpht/CVD Man Made Diamond

Product Specifications

Prod Model:	JSD12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	3.0X3.0X1.1mm
Synthesis Of Cubic Boron Nitride Method:	High Pressure High Temperature

Product Description

Specifications 1.Easy-to-use toolmaking material 2.Excellent thermal stability 3.100 (four point) orientation on all faces 4.laser cutting Our square shape big size synthetic diamond plates are compared to Element Six company,similar performance and reasonable price. Mono Diamond Plates: Our mono synthetic diamond products are produced by high pressure, high temperature(HPHT) synthesis, has highly consistent and predictable properties and behaviour. Advantages Easy-to-use toolmaking material. Uniform wear over the entire length of the dresser. Choice of two dresser orientations. Excellent thermal stability. precision laser cutting 100 (four point) orientation on all faces. APPLICATIONS 1. applied to all kinds of high quality cutting tool; 2. applied to make tools for cutting and dressing hard materials; 3. used for cutting tools for non-ferrous and non-metallic materials, 4. dressers for wheel dressing, a variety of special knives, burnishing tools, wear parts, and wire drawing dies. TOOL FABRICATION Outstanding thermal properties and very high thermal oxidation resistance. It is ideal for secure mounting when using traditional non-ferrous metal sintering. Alternatively, the synthetic single crystal diamond dressers can be brazed onto a dresser body using an active braze alloy in a non-oxidising environment. Using PCD grinding techniques, the dressers can be shaped in-situ to make cone, chisel and radiused shapes. Dressing Parameters Wheel type  WA46KV (300 mm diameter x 50 mm) Speed  2300 rpm Infeed  20microns per pass Cross feed  0.4 m/min Coolant  Flood coolant AVAILABILITY provide the toolmaker with exceptional ease of tool fabrication by virtue of the fact that the four-point faces are easily defined and located with their grinding directions as shown. By the simple expedient of rotating the logs through 45o about their central axis, it is possible to expose the two-point direction with its potentially greater wear resistance. Thus, the toolmaker and end user are provided with a wide variety of options for both manufacture and use. Grades: JSD11 JSD21  JSD13 JSD23 JSD11 Comparatively regular square plates shape, straight edge, almost no impurity, 2.5-4.5mm edge length, 1.0-1.2mm thickness, high strength. JSD21 Comparatively regular square plates shape, straight edge, containing a bit back spot or cracks but not too much, 2.5-4.5mm edge length, 1.0-1.2mm thickness, lower strength than JSD11. JSD13 Irregular plates shape, near square, not straight edge, almost no impurity, good transparency, 2-4mm edge length, 1.0-1.2mm thickness., high strength. JSD23 Irregular plates shape, near square, not straight edge, containing a bit back spot or cracks, good transparency,2-4mm edge length, 1.0-1.2mm thickness, lower strength than JSD13.
