Product Specifications
| Certificate: |
CCC,ISO,SGS |
| Weightr: |
25-26tons/20gp |
| Glass Thickness: |
4mm,5mm,6mm,8mm,12mm |
| UV Block: |
More Than 98% |
| Type: |
Float Glass |
| Shape: |
Flat |
| Layer Type: |
Common Laminated Glass |
| Function: |
Photochromic |
| Melting Point: |
High Temperature |
| Production: |
Dry Laminated Glass |
| Color: |
Clear |
| Usage: |
Railing |
| Appearance: |
Flat and Curved |
| Structure: |
Glass +PVB+ LC Film+PVB + Glass |
| Intermediate Film: |
PVB |
Product Description
About Product
Description:
Smart glass or switchable glass is glass whose light transmission properties are altered when voltage, light or heat is applied. Generally, the glass changes from translucent to transparent, changing from blocking some (or all) wavelengths of light to letting light pass through

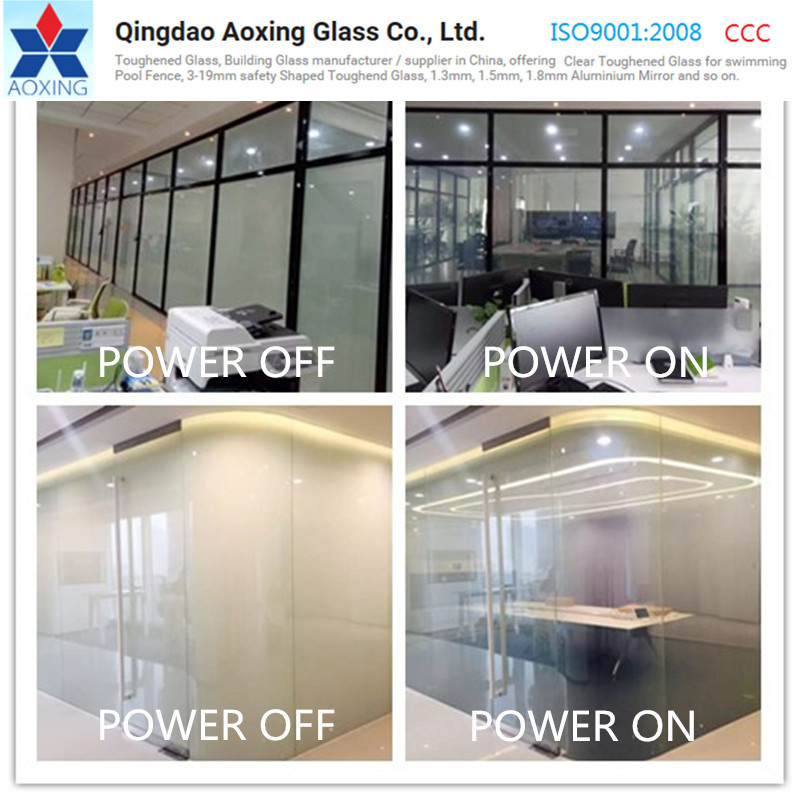

when the power is turned off,the liquid crystal molecules in the PDLC film distributes irregularly.at this stage,the PDLC film is opaque.when the power is on,the liquid crystal molecules can get arranged quite reglarly and the PDLC film can get transparent instantly
.Features:
1. Privacy protection
2. It is safety glass like laminated glass
3. Environmental protection, block 98% UV.
4. Sound proof
Applications:
• Hotel Bathroom
• Indoor rooms spacer
• Office partitions
• Curtain walls
• Facades
• Conference rooms
• Meeting rooms
• Hospitality Projection
• Restaurants
• Gymnasiums
| Test Parameter | State | Results |
| Optics | Transmittance(Parallel light) | power on | >66% |
| Power off | <1.5% |
| Haze | Power on | <5% |
| Power off | >90% |
| Visual angle | Power on | about 150° |
| Screening of UV light | power on | >99% |
| power off | >99% |
| Screening of IR light | power on | >30% |
| Power off | >90% |
| Electricity | Power adapter | Power on | 70 VAC |
| Response time | on→off | <200ms |
| off→on | <10ms |
| Power | Power on | <5W/m2 |
| Size | Thickness | / | 0.4mm |
| Enviroment | Operating Temperature | / | -10ºC~60ºC |
| Storage Temperature | / | -20ºC~70ºC |
| Lifetime | Lifetime | power on | more than50000Hrs |
