Product Specifications
| Prod Model: |

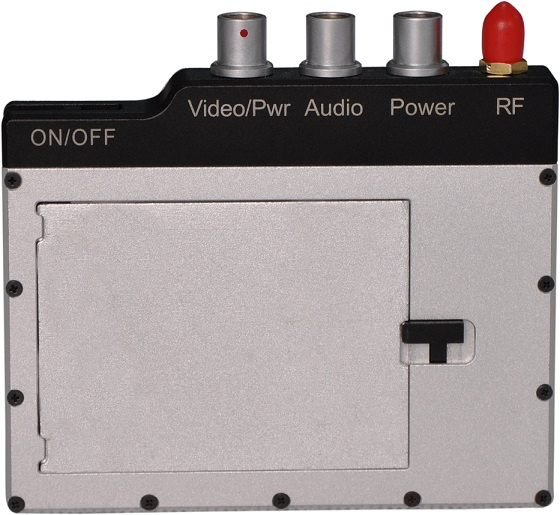

MV2025TWSE mini video transmitter |
| Dimension: 101mm*81mm*15mm: |
Weight: 0.28kg (Include Battery) |
| Application: |
Image Transmission |
| Oscillator Circuit: |
LC or Crystal Oscillator |
| Modulation: |
Qpsk, 16qam, 64qam |
Product Description
Functions & Features:N Super low latency
N Working frequency and RF bandwidth self-adapted within specified range
N RS232 data unidirectional transmission
N Low power consumption, small size and portable usage
N Separately workable and also compatible with external power amplifier
N High-strength aluminum alloy case
N Military aviation plug for A/V and power interfaces; Different pins for different function interface to avoid misplug
N Removable lithium battery, easy operation and battery replacement
| Power Supply |
| Power supply interface | Standard interface |
| Power supply | Combined transmitter: DC14.8V
Mini video transmitter: DC7.8V |
| Video Transmission |
| Frequency output range | 300MHz~1.2GHz or user customized |
| RF bandwidth MHz | 6/7/8MHz or 1.25/2.5MHz |
| Power output | 200mW |
| C/N | ≥28dB@23dBm |
| SHG | >52dBc |
| Modulation | COFDM |
| Video encoding | MPEG-2/MPEG-4 |
| Encryption | AES/ALLTECH Basic scrambling |
| Constellation | QPSK/16QAM @ 1.25/2.5MHz
QPSK/16QAM/64QAM @ 6/7/8MHz |
| FEC | 1/3, 2/3@ 1.25/2.5MHz
1/2, 2/3, 3/4, 5/6, 7/8 @ 6/7/8MHz |
| Carrier | 2K |
| GUI | 1/8, 1/16 @ 1.25/2.5MHz
1/4, 1/8, 1/16, 1/32 @ 6/7/8MHz |
| Video input level | 1~1.2Vp-p@75Ω |
| Video input format | PAL/NTSC |
| Video resolution | 720x576(PAL) 720x480(NTSC) |
| Video amplitude-frequency characteristic dB | 0~4.8MHz | -0.5~1.5 |
| 5.5MHz | -4.0~1.5 |
| Audio input | Left/right channel, stereo |
| RS232 control interface | Standard RS232 level, 9600, 8, N, 1 |
| RS232 data interface | Standard RS232 level, support 1200~115200 |
| Delay | Less than 60ms | |
Environment
| |
| Working temperature | -25°C~55°C | |
| Storage temperature | -40°C~70°C | |
| Ambient humidity | No less than 95% | |
| Protect standard | Rust protection and shakeproof | |
| Appearance | |

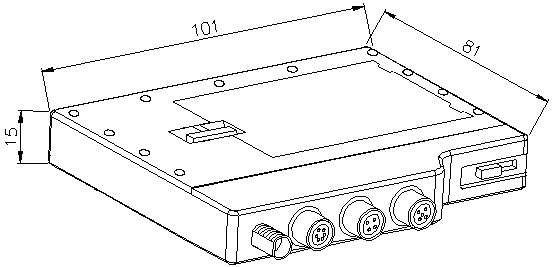

| Dimension | 101mm ×81mm ×15mm | |
| Weight | 0.28Kg(include battery) | |
| RF interface | Standard SMA | |
