| Price: | US $ 5800/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | JK12RD |
|---|---|
| Heating Capacity: | 42.0 Degree |
| Cooling Capacity: | 32.0 Degree |
| Dehumidify: | 50.0L/H |
| Noise: | 75dB(a) |
| Max.Temperature: | 75 Degree |
| Material: | 304 Stainless Steel/Steel |
| Items: | No-Pollution Food Dehydractor |
| Main Parts: | Drying + Drying Chamber |
| New Technology: | Second Waste Heat Recovery Technology |
| Control System: | Touch Screen Operation |
| Voltage: | 380V |
| Customized: | Non-Customized |
| Power: | 15.0kw |
| Type: | Drying Oven |

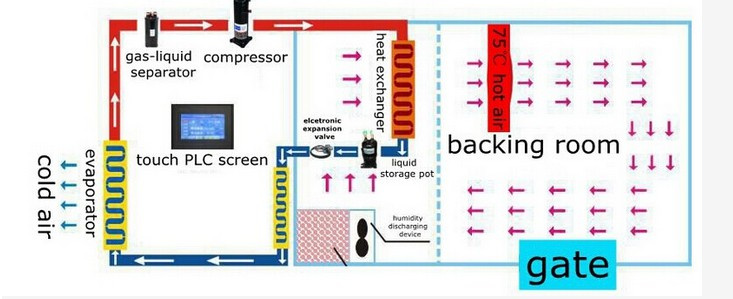

How Does The Dehydrator Work?
1, Dryer evaporator of refrigerant absorb the air from outside.
2, Then compressor works that make the air temperature rise.
3, Heat exchanger change the hot air into drying chamber.
4, Final materials will be dried by the hot air circulating in drying chamber.
Model: JK03RD, JK06RD, JK10RD
Power Supply: 220V/1PH/50HZ or 380V/3PH/50HZ
Type: 75% air source + 25% electric power
Max. Temp: 75C
Working Temp: -10~45C
Functions: Heating / Cooling / Dehumidify
Dryer Type: Batch Type
Parameters
| Single dryer + drying chamber | ||||
| Model | Unit | JK03RD | JK06RD | JK12RD |
| power input | KW | 4.8 | 8.5 | 15.0 |
| power supply | V/PH/HZ | 380V/3PH,50/60HZ | 380V/3PH,50/60HZ | |
| 220V/1PH,50/60HZ | ||||
| Rated current | A | 9.6A(380V),22A(220V) | 17.0 | 30.0 |
| Heating capacity | KW | 10.5 | 21.0 | 42.0 |
| Cooling capacity | KW | 7.8 | 18.0 | 50.0 |
| Dehumidify | L/H | 12.0 | 25.0 | 50.0 |
| Max. temperature | ºC | ≤75 | ≤75 | ≤75 |
| Working condition | ºC | 0-43 | 0-43 | 0-43 |
| Max.exhause pressure | MPa | 3.0 | 3.0 | 3.0 |
| Noise | dB(A) | 75 | 75 | 75 |
| Power consumption/H | KWH | 4.8 | 8.5 | 15.0 |
| Electric heater | KW | 3.0 | 6.0 | 12.0 |
| Blowing type | / | HORIZONTAL BLOWING 360° | ||
| Dimension of dryer | MM | 1675×860×1280 | 1760×1060×1280 | 2120×1360×1590 |
| Weight | KG | 180 | 285 | 480 |

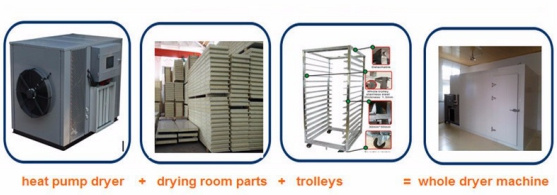

Recommend Drying Machine+Drying Chamber
| Dryer material | Galvanized steel (Stainless steel for option) | ||
| Drying chamber material | Polyurethane Two sides: steel | ||
| Heating source | 75% air source + 25% electric | ||
| Brand name | KINKAI | ||
| Model number | JK03RD JK06RD JK12RD | ||
| Recommend dryer + drying chamber size | Description | Product Capacity | Drying Chamber size |
| One unit JK03RD dryer + drying chamber | 300Kg / batch | 4000*2000*2200mm | |
| One unit JK06RD dryer + drying chamber | 600Kg / batch | 6000*2800*2200mm | |
| One unit JK12RD dryer + drying chamber | 1000Kg / batch | 6000*3000*2200mm | |
| Two units JK03RD dryers + drying chamber | 1200Kg / batch | 7000*2200*2200mm | |
| Two units JK06RD dryers + drying chamber | 1500Kg / batch | 10000*2800*2200mm | |
| Two units JK12RD dryers + drying chamber | 2500Kg / batch | 10000*3000*2200mm | |
Warm prompt: We can make different drying chamber sizes for your refference.

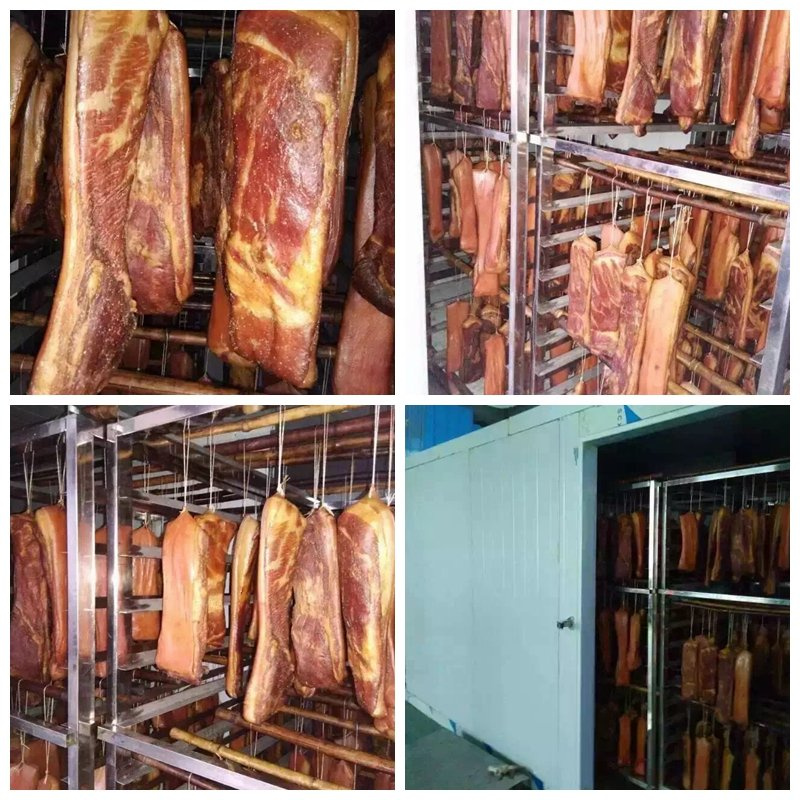

Application
Packaging & Shipping
For heat pump dryer parts---with plywood
For drying chamber +trolleys
If shipped with 20ft container or 40ft container, no packing
If shipped with LCL( less than container load), packed in plywood.
Customers & Us
If you are interested in our fish drying equipment, please contact us for more information, such as catalogue, video,etc.
Crystal, Lin
Phone: +86+13723539881
Add: Huadu District, Guangzhou City, Guangdong Province, P.R. China
Our serviece
A. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need.
B. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year's warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty
