Price: | Negotiable/Piece |
---|---|
Min Order: | 100/Piece |
Pay Type: | T/T |
Prod Model: | ST-C1210 |
---|---|
Application: | Charger Controller |
Rated Voltage: | 12V,24V |
Working Mode
There are several common working mode of PWM solar controller:
1. Button Mode (Manual switching load)
2. Light Controlled Mode (Load switch is controlled by solar panels
photosensitive control and timing control)
3. Light control turn on delay off mode.
4. Circulation model (With Clock Fuction)
5.0-24 hours optical mode,switch,wireless remote control mode,etc load mode optional

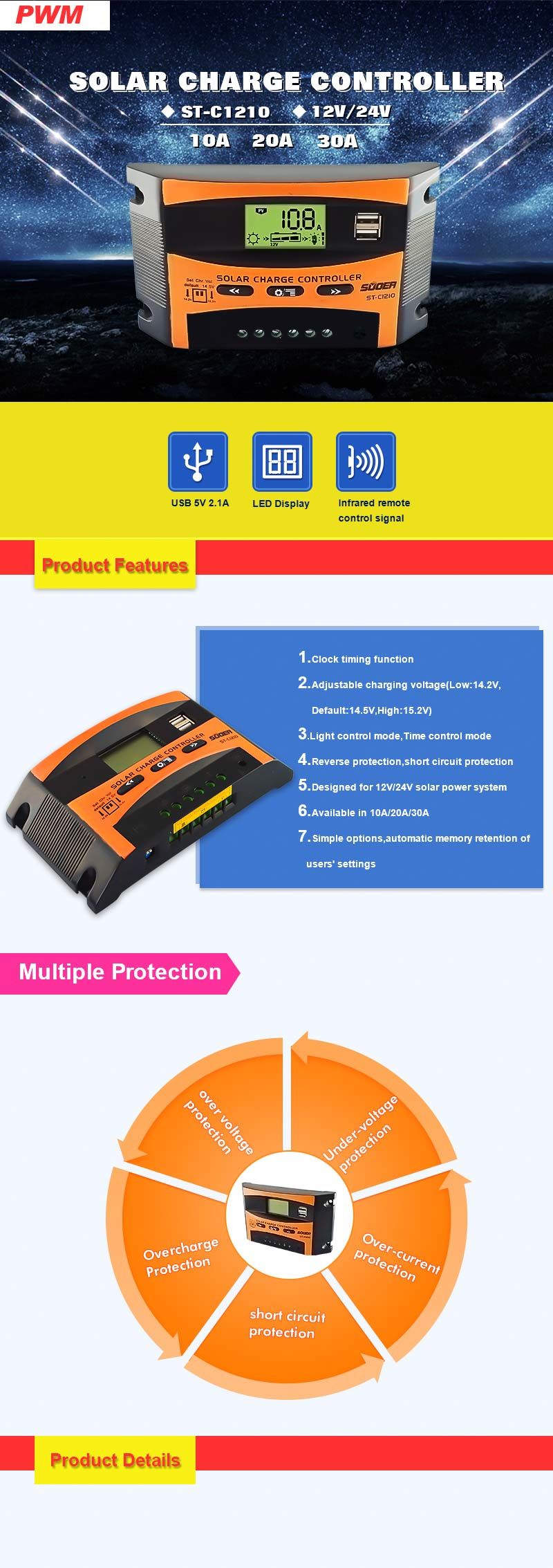

Protection
All kinds of complete protection,stable and reliable(charging over voltage protection,charging flow protection,over-current protection,load load short circuit protection,under-voltageprotection)
Application
The waterproof solar controller of light and night away less than 10 ma power flow, ideal for small power solar products, such as solar street lamp light, streetlight, DC Load, illumination, solar power system and so on.

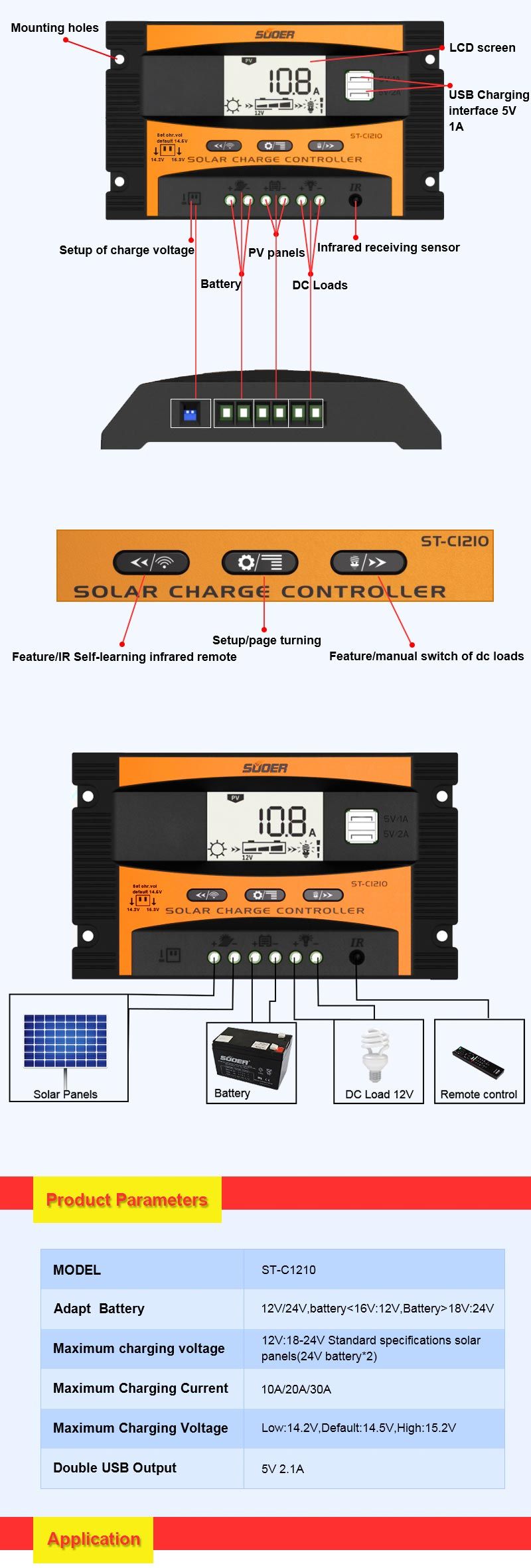

Technical Parameters
waterproof solar controller | ST-C1210 | ST-C1220 | ST-C1230 | ||
to adapt to the battery | 12V/24V,battery<16V:12V,Battery>18V:24V | ||||
Maximum charging voltage | 12V:18-24V Standard specifications solar panels(24V battery*2) | ||||
Maximum charging current | 10A | 20A | 30A | ||
Maximum charging voltage | Low:14.2V,Default:14.5V,High:15.2V | ||||
The largest output voltage | 13A | 26A | 39A | ||
Low voltage protection voltage | 10.5V(24 battery*2) | ||||
Low pressure recovery voltage | 12.5V(24 battery*2) | ||||
Load overload automatic recovery | 30S | ||||
Double USB output | 5V 2.1A | ||||
Load relating to open time | 0-24 hours can choose | ||||
Infrared remote control distance | >5m |

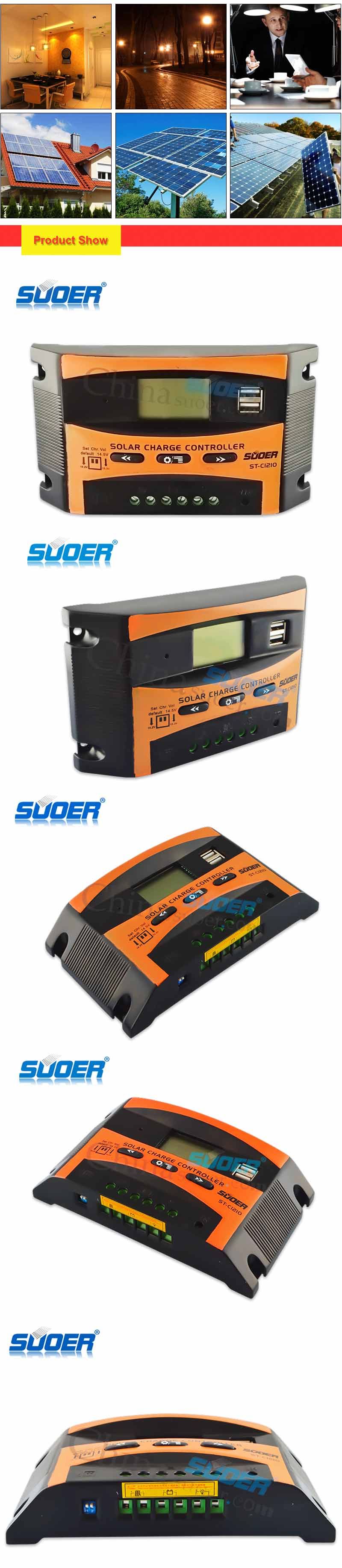

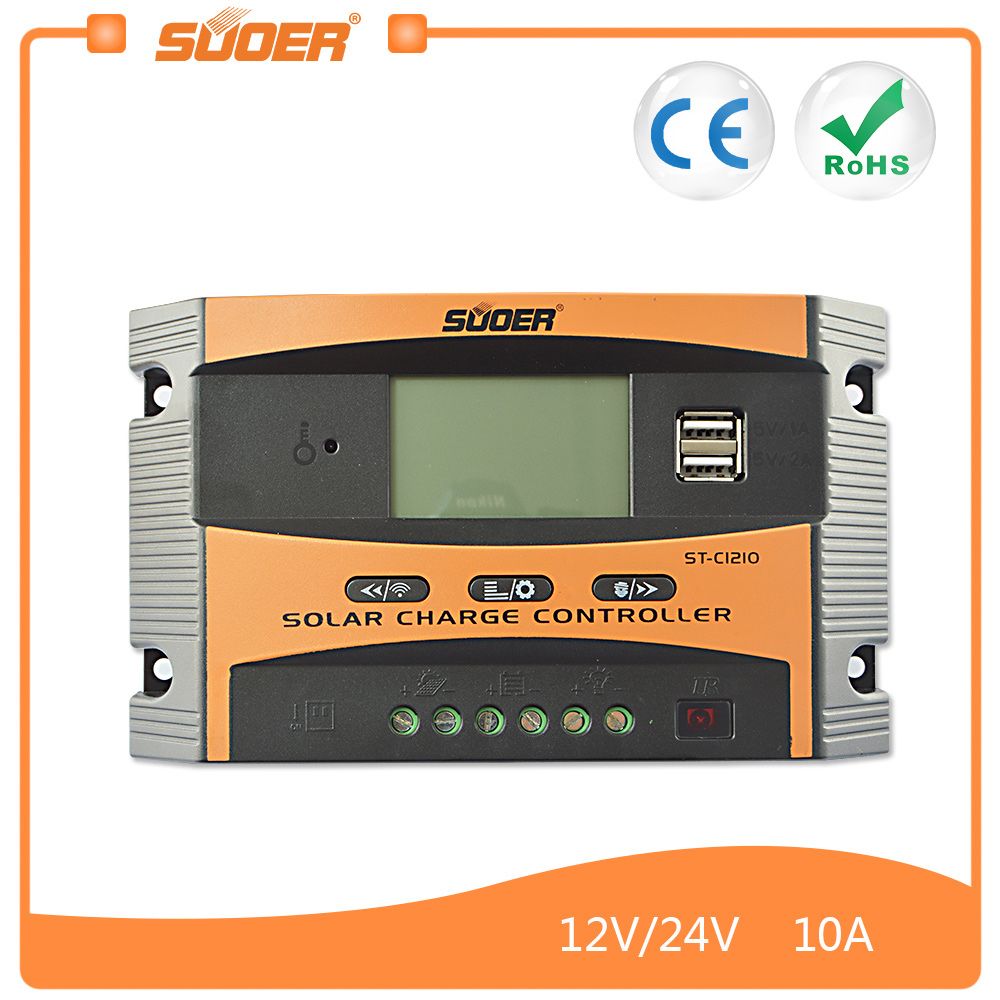

Product Photo
FAQs
1. May I take some samples to test before placing the order ?
Answer: Yes, but customers need to pay for the sample fees and express fees, and it will be returned when next order is confirmed.
2. How long can you offer the samples?
Answer: 1~5 days after the deposit payment is confirmed.
3. What's your payment terms for sample?
Answer: You can pay via T/T.
4. What's the price terms can you offer for us?
Answer: We can accept EXW, FOB, CIF and so on.
5. Do you have any certifications for your products?
Answer: We have ISO9001:2000, CE, RoHS, certifications for all of our products.
6. Where is your main market for your products?
Answer: Most of our Suoer brand products are exported to Southeast Asia, Africa and Mid East.
