Product Specifications
| Prod Model: |
STM-M10F2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Stm-M10f2 |
| Operating Method: |
Maunal Press |
| Voltage: |
220/110V |
| Power: |
1800W |
| Usage: |
T-Shirt, Slate, Glass, Crystal, Aluminum Sheet, Tiles |
| Printing Size: |
38X38cm(15X15") |
| Other Sizes Available: |
40X50cm, 40X60cm, 50X60cm, 50X70cm etc |
| Gas Springs: |
60 Kgs X 2PCS |
| Time: |
0-999 S |
| Temperature: |
0-399 ºC |
| Type: |
Ink Jet |
| Plate: |
Lithography Printing |
| Structure: |
Platen Press |
| Color & Page: |
Multi-Colour Printing Press |
| Printing Speed: |
7.5CPI |
Product Description

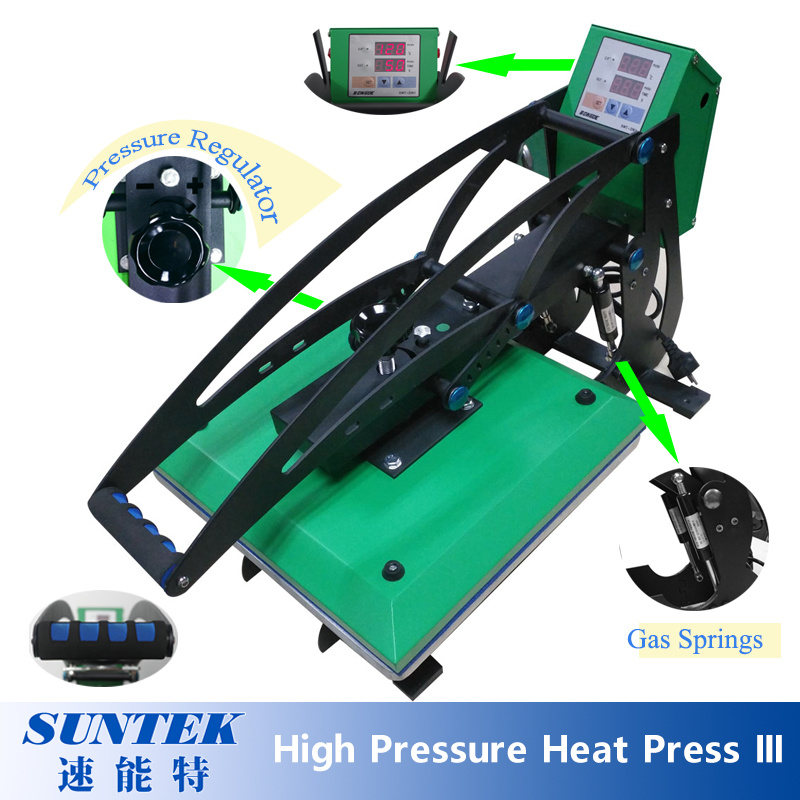

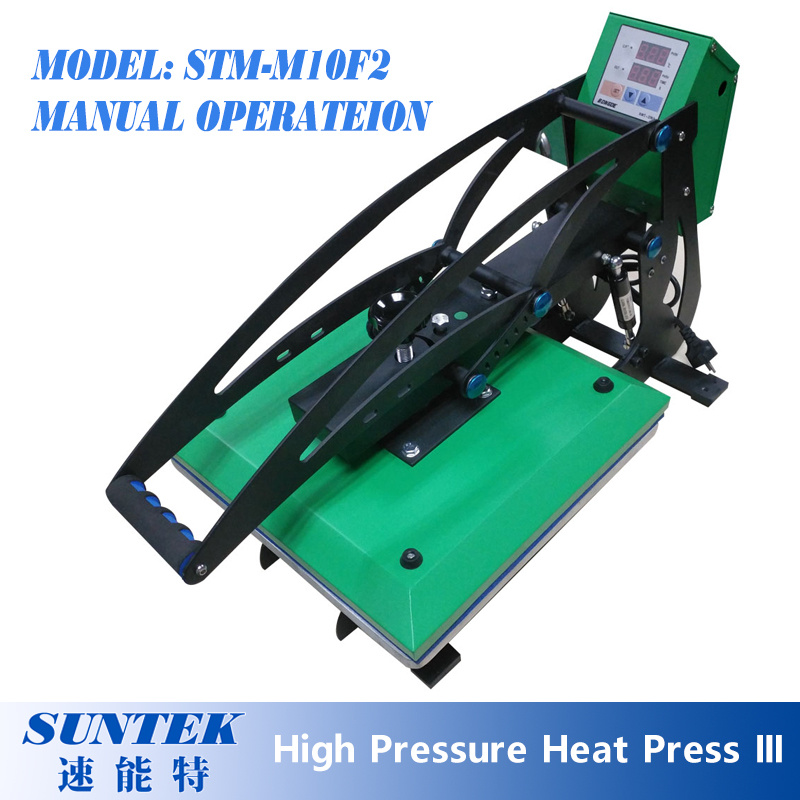

Suntek High Pressure Heat Press Machine III
Model No: STM-M10F2
This heat press enables you to print many flat sublimation blanks, such as t-shirt, mouse pad, metal, 2D mobile phone case, rock slate, slipper, bag, cushion, Glass, Tiles, Crystals heat transfer printing etc.
Specification
| Item No. | STM-M10F2 |
| Printing size | 15x15, 38x38, 40x50, 40x60, 50x60, 50x70 and other customized sizes |
| Voltage | 110V / 60Hz, 220V /50Hz |
| Power | 1500, 2200, 2350, 2600, 3000, 3500 w |
| Temperature range | 0-399 ºC |
| Time range | 0-999 s |
| G. W. | 33, 39, 41, 54, 60 kg |
| Packing dimension | 52x30x36, 72x44x39, 78x68x46, 84x80x66, 90x105x75, 105x120x80cm |
| Packing | Strong carton box with foam inside |
| Includes | 1 sheet silicone pad, 1 sheet teflon sheets(Accept Teflon Coated requirement) |

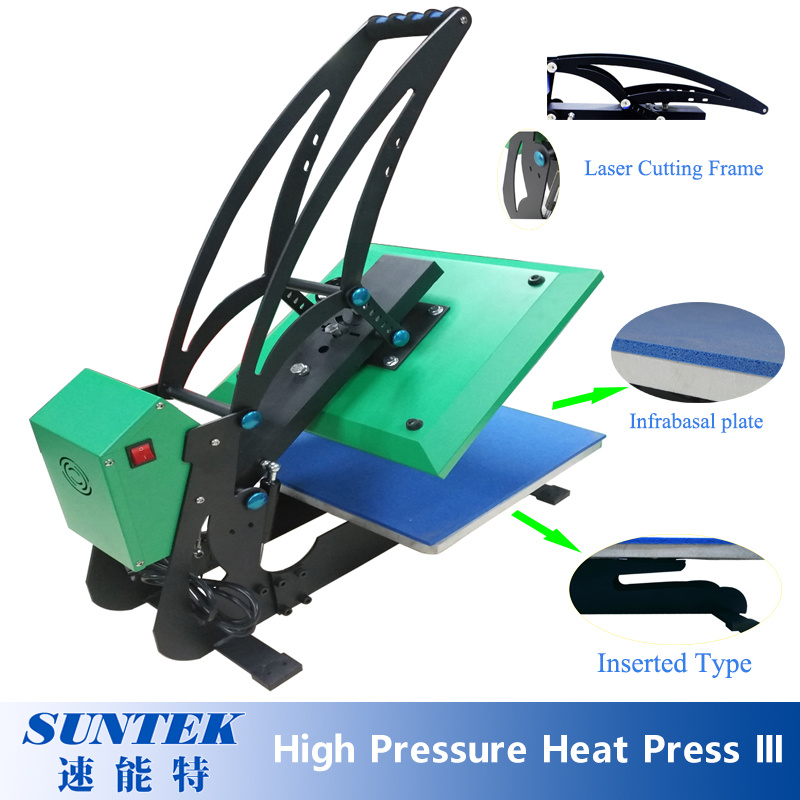

Feature1. Framework is molded by laser cutting, Durable and beautiful.
2. Aluminum heating plate and infrabasal plate, even and steady heat, longevity.
3. Bent shape cover on heating plate, shapely figure, avoid too hot on the surface.
4. "U" inserted type feeding design, much better for T-shirt or bag sublimation print.
Feature5. Digital 2in1 controller, accurate temperature ± 1ºC.
6. Pressure regulator is easy to adjust heat press pressure higher and lower.
7. Double gas springs system with 60kgs power,it make the press machine open gently.
8. Powder coating make the whole heat transfer machine looks Deluxe.
Warranty:
can rest assured that we will offer good after-sale service:
The machine enjoys one year warranty, life-long on-line technical support.
We provide free parts when problems occur within one year, not including shipping cost.
we also offer good quality: all the machine of our factory have been approved by CE.
Please note:
1. You should switch off the power when you don't use it. Don't heat nothing for a long time.
2. Avoid touching the heat press plate when you operating in case be injured.
3. If you feel the pressure is too much and it is hard to be pressed, or the pressure is not enough and it is too easy to be pressed, please adjust the pressure adjusting knob, decrease / increase the shrink of the spring. The intensity of the machine will be injured if the pressure is too much.
4. A successful print requires right time, temperature and pressure, the thickness of the fabric, even the type of printing paper, all will affect the performance of printing. Any kind of sublimation paper need be tested before mass production.
5. Keep children away from the machine even when the machine is left unused.
Operation Procedure
1.Temperature setting: press button SET, then temperature indicator starts to flash. Press UP button to increase temperature. Press DOWN button to reduce temperature.
2.Time setting: press button SET again, and time indicator starts to flash. Press UP button to increase time, and DOWN button to reduce time.
3.When temperature and time are confirmed, press SET to back to the main interface. Reference parameter for some product sublimation:- Polyester T-shirts: 220ºC-25S-High pressure
- Aluminum Sheets: 200ºC-25S-Midium pressure
- Tiles/Slates/Glass : 180ºC-360S-Midium pressure
About Us: Established in 2009, Suntek Print Co., Ltd. is a high-tech enterprise integrated in R&D, manufacture and trade on various transfer printing machines & consumables.
Our products are mainly as follows:
1. Heat press machines
3D sublimation vacuum machine, roller sublimation machines, heat press for t-shirt, mug, plate, cap etc.
2. Transfer consumables
sublimation paper, heat transfer paper, water decal paper, sublimation ink, sublimation blanks etc.
3. Sublimation blanks
such as mugs, mobile phone cases, plates, sublimation stone, and sublimation crystals and so on.
These products are widely used in fabric printing, digital printing and DIY gifts of t-shirts, mugs, phone cases, plates, crystals and so on.
We always keep developing high-quality competitive new products which has enjoyed a good reputation among our customers worldwide.
Welcome all types of companies and personal fans to contact us with your requirements. We also receive domestic and foreign OEM orders.
