Product Specifications
| Prod Model: |
CKT035G045TQN-A1 |
| Model No.: |
Ckt035g045tqn-A1 |
| Module Area (W*H*T): |
64.00*85.00*2.93 |
| Active Area (W*H): |
53.64*71.52 |
| Pixel Pitch (W*H): |
0.2235*0.2235 |
| Resolution: |
240*320 |
| Driver IC: |
Ili9341V |
| Recommended Viewing Direction: |
6 |
| Gray Scale Inversion Direction: |
12 |
| Application: |
Medical Equipment |
| Aspect Ratio: |
4:3 |
| Feature: |
With Remote Control |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
30ms |
| 3D: |
Not 3D |
| Screen Size: |
3.5 |
| Optimum Resolution: |
240*320 |
| Interface Type: |
Spi+18bit RGB |
Product Description

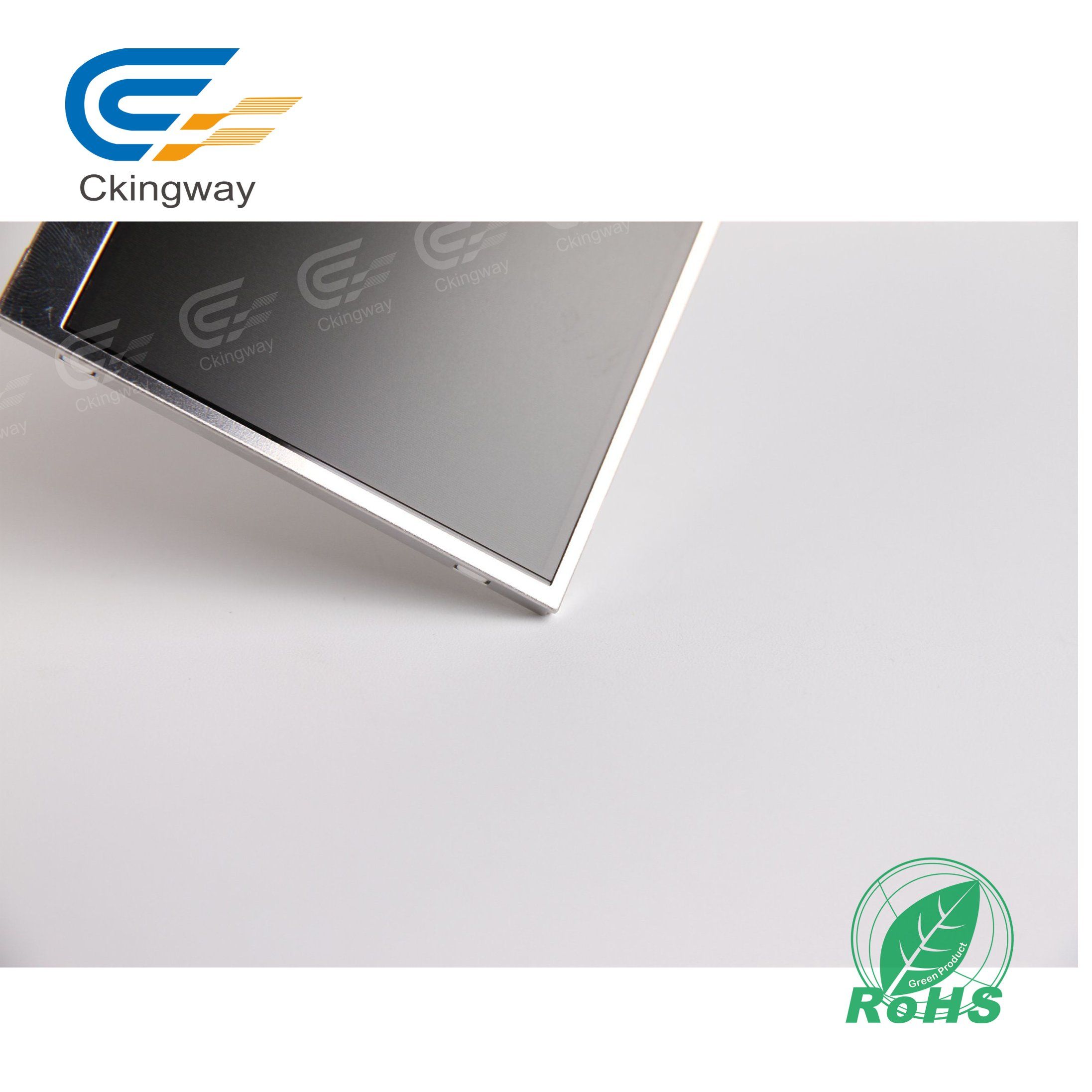

PRODUCT PREVIEW:
A Transflective liquid-crystal display is a liquid-crystal display (LCD) that reflects and transmits light (transflective is a portmanteau of transmissive and reflective).Under bright illumination (e.g. when exposed to daylight) the display acts mainly as a reflective display with the contrast being constant with illuminance. Only in dim and dark ambient situations is an auxiliary transmissive backlight needed.
Some displays that transmit light and have minor reflectivity are best readable in the dark and fairly readable in bright sunlight, but only under a particular angle; they are least readable in bright daylight without direct sunlight. Under exposure to direct daylight, the image on non-reflective displays will completely wash out.| Model No.: | CKT035G044MHT-A1 Transflective |
| Screen Diagonal | 3.5" |
| Module area (W*H*T): | 64.00*85.00*2.93mm |
| Active area (W*H): | 53.64*71.52 |
| Pixel pitch (W*H): | 0.2235*0.2235 |
| Resolution | 240×(RGB)×320 |
| Driver IC | ILI9341V |
| Recommended Viewing Direction | 6 |
| Interface Type | SPI+18BIT RGB |
| Colors | 262K |
| Backlight Type | 6-DIES WHITE LED |

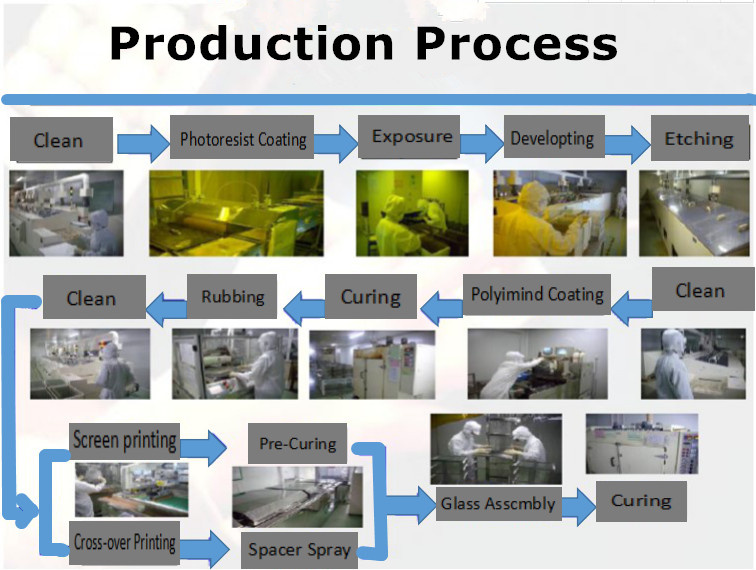

Product Process
Our Company
Shenzhen Ckingway's Introduction
Hello guys.,
Enjoy your working time with me!
I'm a manufacturer,my name is Shenzhen Ckingway Technology Co.Ltd. I specialize in producing TFT LCD/Touch screen/Mono LCD,the detail as below:
Touch Panel, Size: 1.44"~32.0"
Graphic character LCD Module, Size: 24.1×9.0 mm~153.0×103 mm
LCM (Liquid Crystal Display Module), Size: 0.96"~15.6"
Maybe you want to know if my reach your standard?
I approved the ISO9000 quality management system
I approved the ISO14000 environmental management system
I fully comply with the ROHS requirements
So,welcome to visit my home and take me to your home with confidence.
If you have other doubt please do not ask my master anytime.
Sincerely blessing you full of happiness and love everyday.
Package

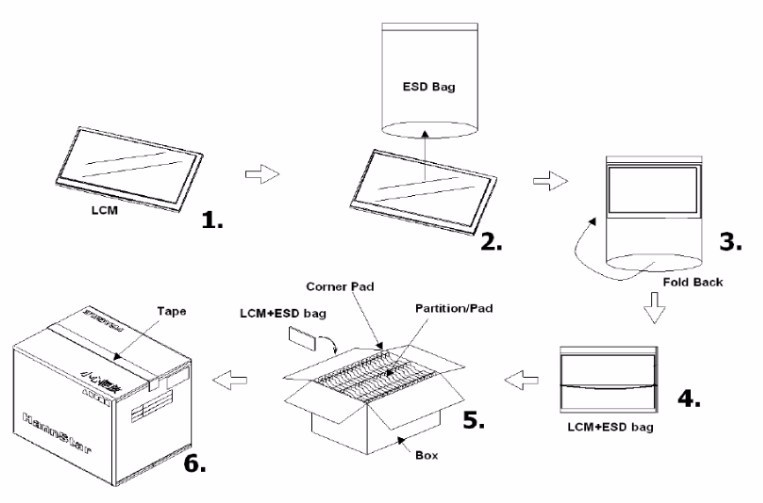

Packing Details for volume production order:
(1) Packed the LCM into ESD bag
(2) Packed the LCM+ESD bag in air bubble bag/film
(3) Put the above together into foam box
(4) Packed the foam box into a carton box to protect the LCM during transportation.
(5) Seal the carton by tape
Delivery
Delivery Details:
Normal order we will ship the goods within 3-7 working days after we get the payment, the bulk order need about 5 -35 working days, any delay we will inform you at once.
Shipping Details:
1) Can Ship by express such as DHL, FEDEX, EMS, TNT, UPS, or by Sea, by air, it's depends on your requirement.(The express shipping time is about 3 - 7 working days.)
2) The tracking number will be informed after 1-3 working days the package delivered.
3) We will follow the shipment info after delivering. If you can't receive the goods on time, please contact with us, we will assist to find the solution as soon as possible.
