Sum High Speed Passenger Elevator with Low Noise

Name: Sum High Speed Passenger Elevator with Low Noise
Brand: china-crystals.com
SKU: 778130495
Availability: InStock
Rating: 4.3 (140 reviews)

Price:	US $ 12000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	SUM-TK
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Trademark:Sum:	Packing: High Quality Export Wooden Case
Origin: Zhejiang, China:	Production Capacity: 10000psc/Year
Driving Type:	AC Elevator
Capacity:	500-1000kg
Persons:	6 - 10
Speed:	2.5m/S-4m/S

Product Description

SUM-Gives You More

Sum elevator inherits classical German craft&technology. It learns from rigorous German nation to produce high quality elevators. It attentively casts the eyes upon the world in every detail.

What we are proud of:
1,Intellectual specialist ,special-purpose control system,more simple up/down motion
   More stable and accurate elevator control
   More prompt and accurate signal transmission
   Rational arrangement of intellectual group-supervision
2,Green energy-saving,reduces energy consumption,adds green benefits for vast clients.New generation permanent magnet synchronous and gearless traction machine.It greatly reduces average current of click on run .It thus lowers down power consumption.compared with the traditional geared elevator .It saves half of energy. Compared with hydraulic elevator. It saves 60% of energy.It needs no grease-renewal and has no oil-stain pollution.it is low noise,natural&peaceful
3,Smooth start,peaceful running.We guarantee your safety in an omni-bearing way
Muti-functional pure light curtain elevator door .Liquid crystal touch operation system. Intellectual IC card system,safe and scientific authority management
4,Competitive price
The cost has been reduced greatly by automic manufacturing model and assembly line which contributes to the competitive price of our passenger elevator
5, Professional after-sell service
Professional technical global client center provides 24 hours service to solve your problems and questions on elevator

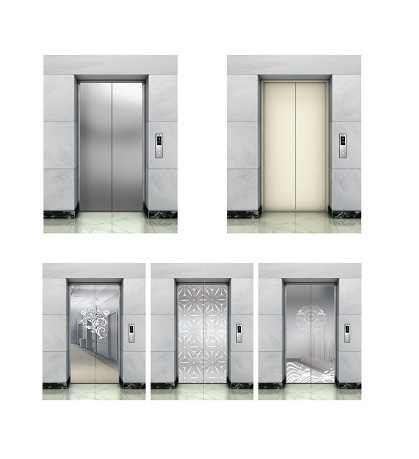

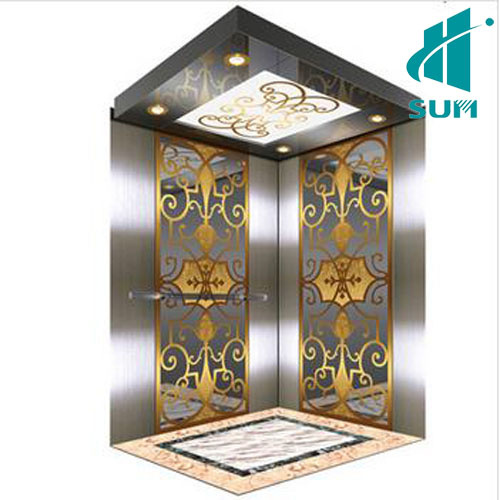

Decoration of our passenger elevator

Elevator type	Capacity	Decoration
Passenger elevator	450-2000kg	Standard: Car wall, car door and first landing door hairline stainless, other floors painted steel, small jamb
Passenger elevator	450-2000kg	Optional: Mirror etched Golden mirror etched Etc

Functions of our passenger elevator

VVVF door operator	VVVF elevator drive	Independent running	Automatic pass without stop
Automatically adjust door opening time	reopen with hall call	Express door closing	Car stop and door open
Car arival gong	Command register cancel	curtain light protection	Designated stop
Overload protection	An-ti stall timer protection	Start protection control	Inspection operation
Fault self-diagnosis	Repeated door closing	Up/down over run and final limit protection	Down over speed protection device
Upward over-speed protection device	Micro-touch button for car call and hall car	Floor and direction indicator	Floor and direction indicator inside car
Emergency car lighting	Inching running	Five way intercom	Bell
Fire emergency return	Car ventilation, light automatic shut off	Remote shut off

Parameter table of our passenger elevator

Load(kg)	Speed	Car dimension(mm)			Hoistway size(mm)				ML(m)	MLH(m)	MFS(m)	Power(kw)	Guiderail brackets span(mm)
DL	V	CW	CD	C	Min X	Min Y	Min P.P	Min O.H	Max N	Max	Min D	P	DBGRB
800	2.0	1400	1350	800	1900	2050	1750	4700	40	120	2.7	13.5	2000
	2.5						1950	4900		130		16.8
							3600	5600	35	118	3.3	16.5
	3.0						4000	6000	50	165		22.1
	4.0
1000	2.0	1600	1400	900	2100	2100	2000	4900	40	120	2.7	13.5
	2.5						2500	5500		130		16.8
	3.0						3600	5600	35	118	3.3	19.7
	4.0						4000	6000	50	165		26.3
1150	2.0	2000	1350	1100	2500	2100	1750	4700	40	120	2.7	16.9
	2.5						1950	4900		130		21.3
	3.0						3600	5600	35	118	3.3	22.6
	4.0						4000	6000	50	165		30.1
1350	2.0	2000	1500	1100	2500	2200	1750	4700	40	120	2.7	18.4
	2.5						1950	4900		130		23.2
	3.0						3600	5600	35	118	3.3	27.2
	4.0						4000	6000	50	165		36.2
1600	2.0	2000	1700	1100	2500	2400	1800	4700	40	120	2.7	21.8
	2.5						1950	4900		130		27.5
	3.0						3600	5600	35	118	3.3	33
	4.0						4000	6000	50	165		53.3

Note: the parameter table shows the standard design of our elevator. We also can design elevator for you with your parameter.

Our Results Show

Agent Wanted:
Welcome experienced elevator company act as our distributors/agent to cooperate with us on long term basis. We would like to provide our distributor/agent promotion price as reward for the cooperation. if you are interested, please do not hesitate to contact with us. Thanks

Zhejiang XIZHIMEN Elevator Co., Ltd, located in the most developed Yangtze river delta region, total invest 66million dollars and A-rated certificate of the SPECIAL EQUIPMENT(ELEVATOR) MANUFACTURING LICENSE IN THE PEOPLE'S REPUBLIC OF China, which is issued by the State Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China.

As a professional manufacturer, XIZHIMEN Elevator Co., Ltd provides all range of services such as elevator R&D, design, manufacture, sales, installation, maintenance, transformation etc. Company covers the elevator: Passenger elevator, Residential elevator, Sightseeing elevator, Villa elevator, Hospital elevator, Freight elevator, Automobile elevator, Dumbwaiter elevator, Escalator, Moving-walk etc series.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective, To perfect our service, we provide the products with good quality at the reasonable price
