Stainless Steel Washable Chemical Solvent /Oil Filter Cartridge Element
| Price: |
US $ 50-200/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
oil filter cartridge |
| Application: |
Metallurgy |
| Filtration Grade: |
Medium Filter |
| Material: |
Stainless Steel |
Product Description

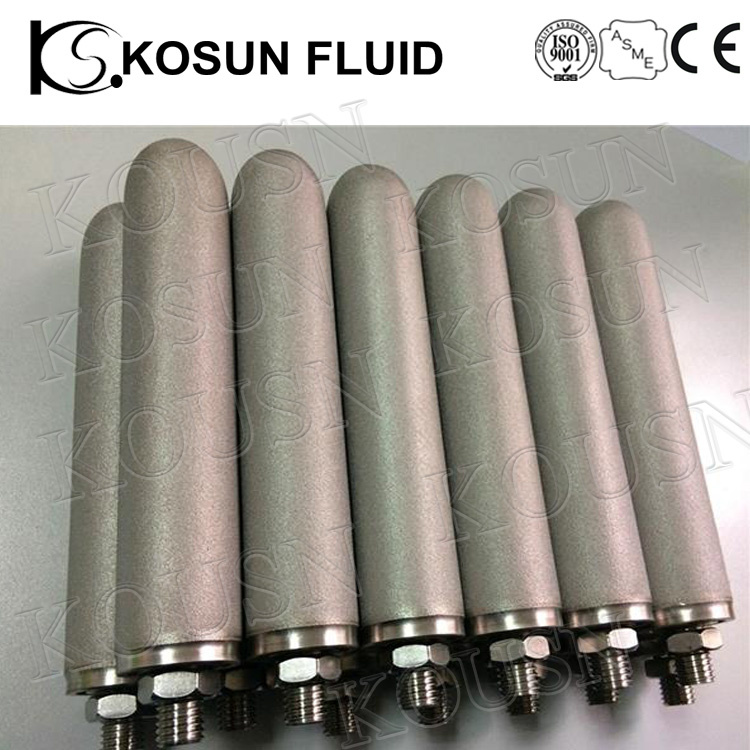

Stainless steel washable chemical solvent /oil filter cartridge element Introduction of sintered power filter cartridge The sintered filter is made of stainless steel power ,through the sub-screen, forming, sintering to micro-filter components. According to user requirements can produce a variety of shapes, structure, different size, porosity of porous components, such as: hood, cap, sheet, tube, rod-like filter element. Specification of stainless steel powder sintered filter| stainless steel powder sintered filter cartridge | stainless steel powder sintered filter plate |
| Diameter: | Ф20mm -Ф200mm | Diameter: | Ф5mm-Ф300mm |
| Length: | L50-L1200 (can be customized on request) | Thickness: | 0.5mm-10mm |
| Thickness: | 2mm or more | Pore size: | 0.5um-70um |
| Pore size | 0.5um-70um | Material: | Stainless steel |
| Porosity | 20-50% | Porosity | 20-50% |
| Permeability | 3-1300m3 / m3hkPa | Permeability | 3-1300m3 / m3hkPa |
| Temperature resistance | 500 Deg C | Temperature resistance | 500 Deg C |
| Maximum working pressure | 0.6Mpa
| Maximum working pressure | 0.6Mpa
|
Application of stainless steel powder sintered filterThe stainless steel powder sintered filter element can be widely used in the pharmaceutical industry, water treatment industry, food industry, biological engineering, chemical industry, petrochemical industry, metallurgy industry and gas purification field. Typical uses include:1, chemical raw materials in the production process in addition to impurities filter, the material decarburization filtration and fine filtration.2, water treatment of ultrafiltration, RO, EDI system, security filtering.3, food and beverage drinks, fruit juice, liquor, beer, vegetable oil, mineral water, soy sauce, vinegar clarification filter.4, chemical industry liquid products, liquid raw materials, pharmaceutical intermediates decarbonization filtration and precision filtration, ultra-fine crystals, the catalyst filter recovery, resin adsorption after the precision filter and the system heat conduction oil, material removal filter, catalytic gas Purification and so on.5, oilfield water filtration and other areas of reverse osmosis security filtering.6, the dye industry, high-temperature decarbonization, bleaching disabilities filter.7, gas purification of the vapor, compressed air, catalyst filtration.8, Pneumatic components, lubricants, fuel and hydraulic pressure system, media purification and flow restrictions, compressed air degreasing purification, crude oil desanding filtration, nitrogen and hydrogen gas filtration, pure oxygen
Wenzhou Kosun Fluid Equipment Co., Ltd is established in 2001, From a small family owned workshop to a factory with over 2000 square meter production area. Our factory is located in Wenzhou City, East coast of China. In 2009, We got ISO 9001: 2000 certification. Now CE certification is under application.
Our main products including stainless steel tanks. Stainless steel filter housing, stainless steel valve and fitting.
Stainless steel tank, including stainless steel storage tank, Mixing tanks, Fermentation tanks, All could be customized according to customer's requirement.
Stainless steel filter housing. Including cartridge filter housing, bag filter housing, Lenticular filter housing, magnetic filter housing, Steam & sterile air filter housing, etc. Our filter housing is suitable all branded filter supplier like Pall, Cuno, Sartorius, Eaton
Stainless steel valve and pipe fitting including butterfly valve, Ball valve, Check valve, Elbow, Tee, tri clamp fitting
In the past few year, We have export our products to, United States, Australia. Italy, Spain, UK, Philippine, Malaysia, Such experience make our quality more stable and suitable for international market
